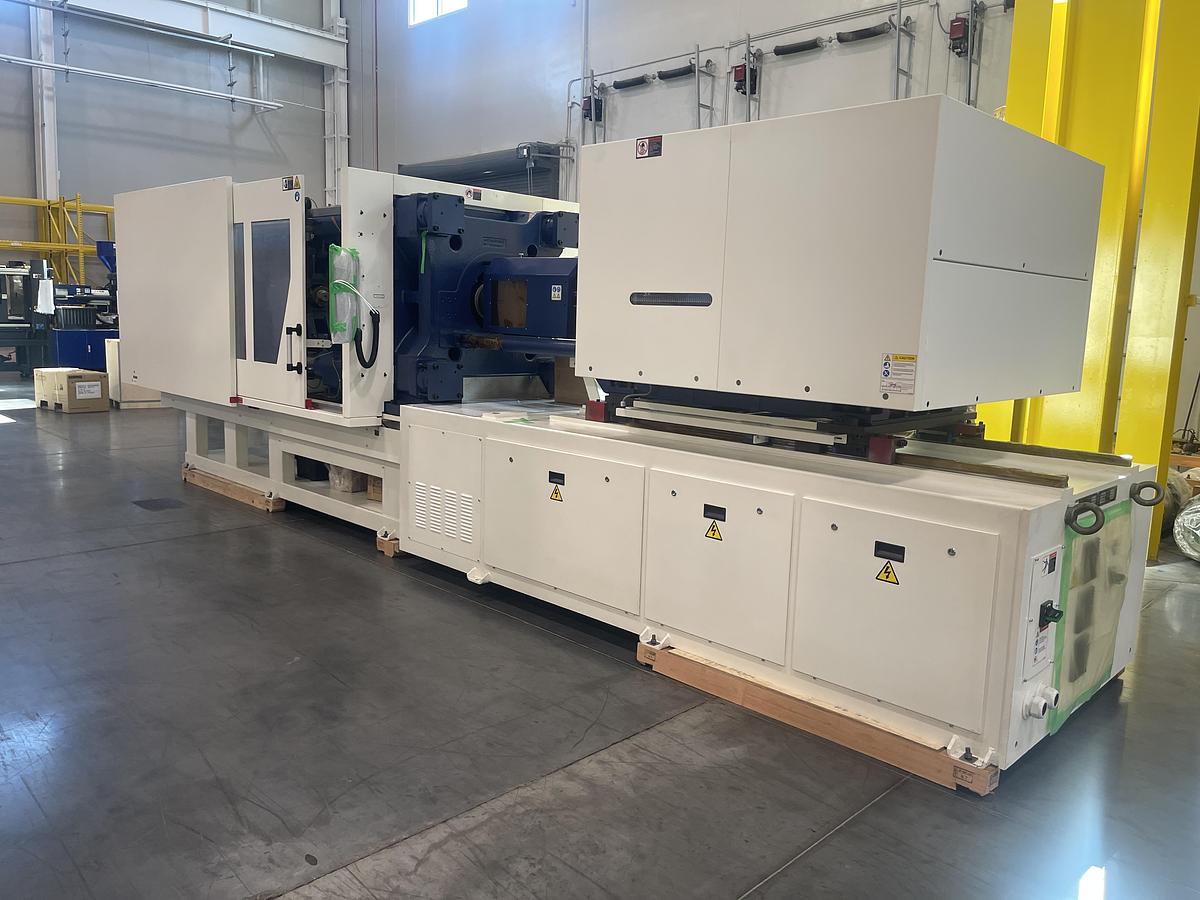

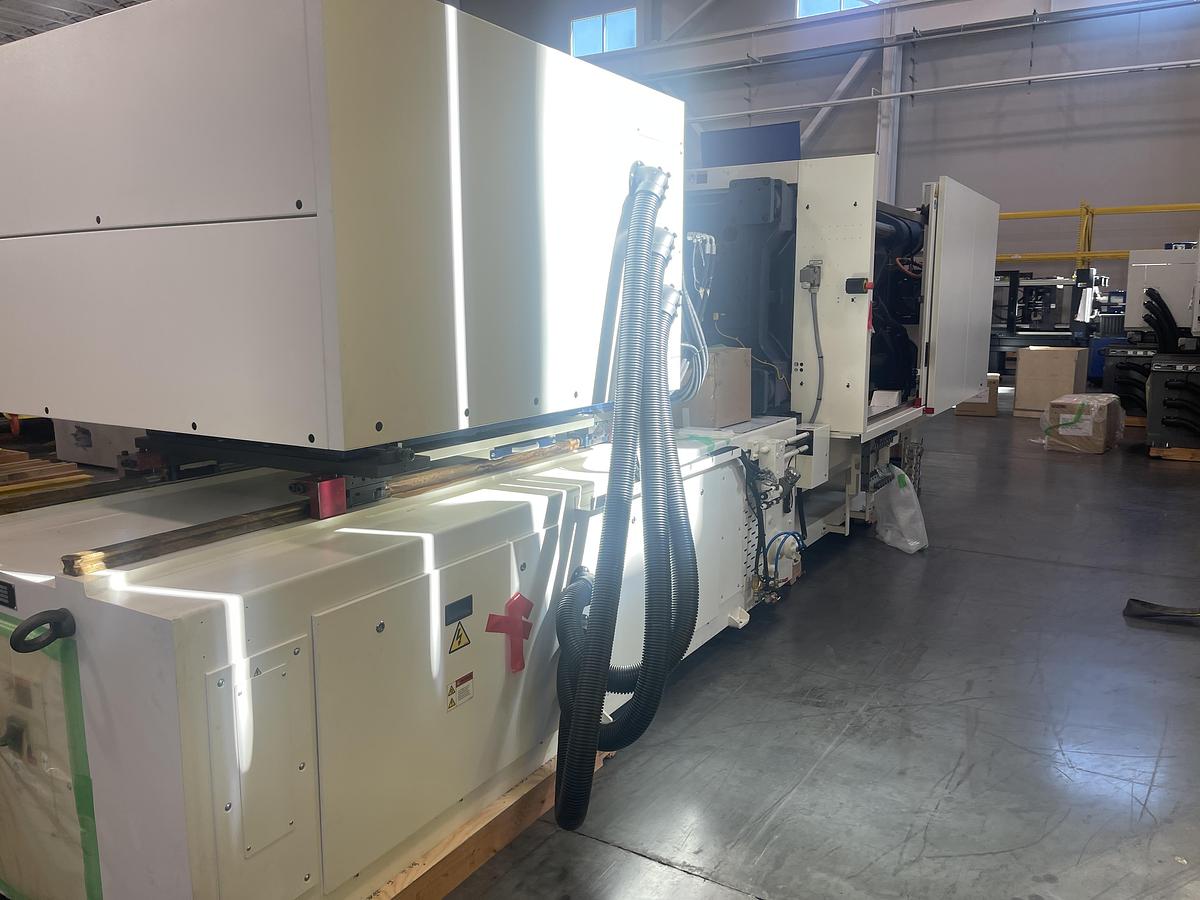

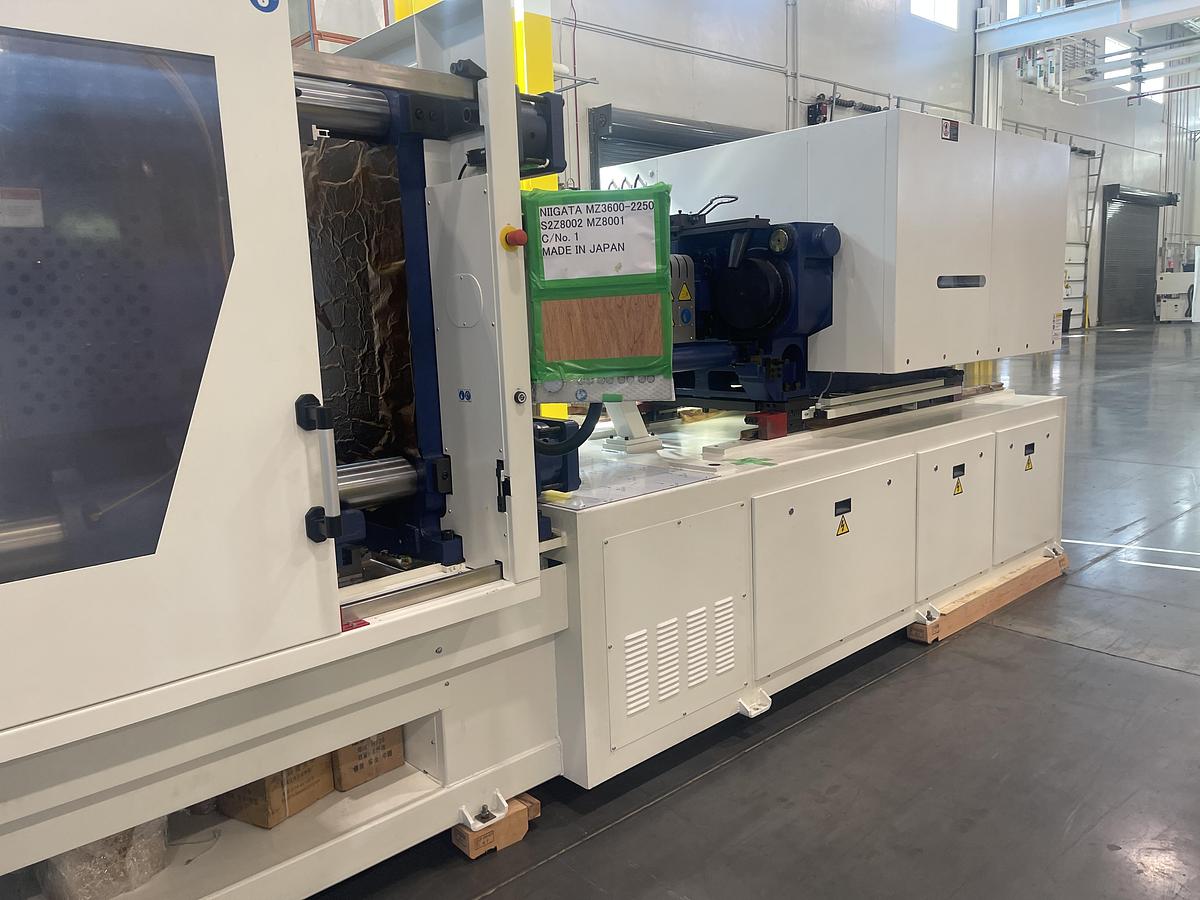

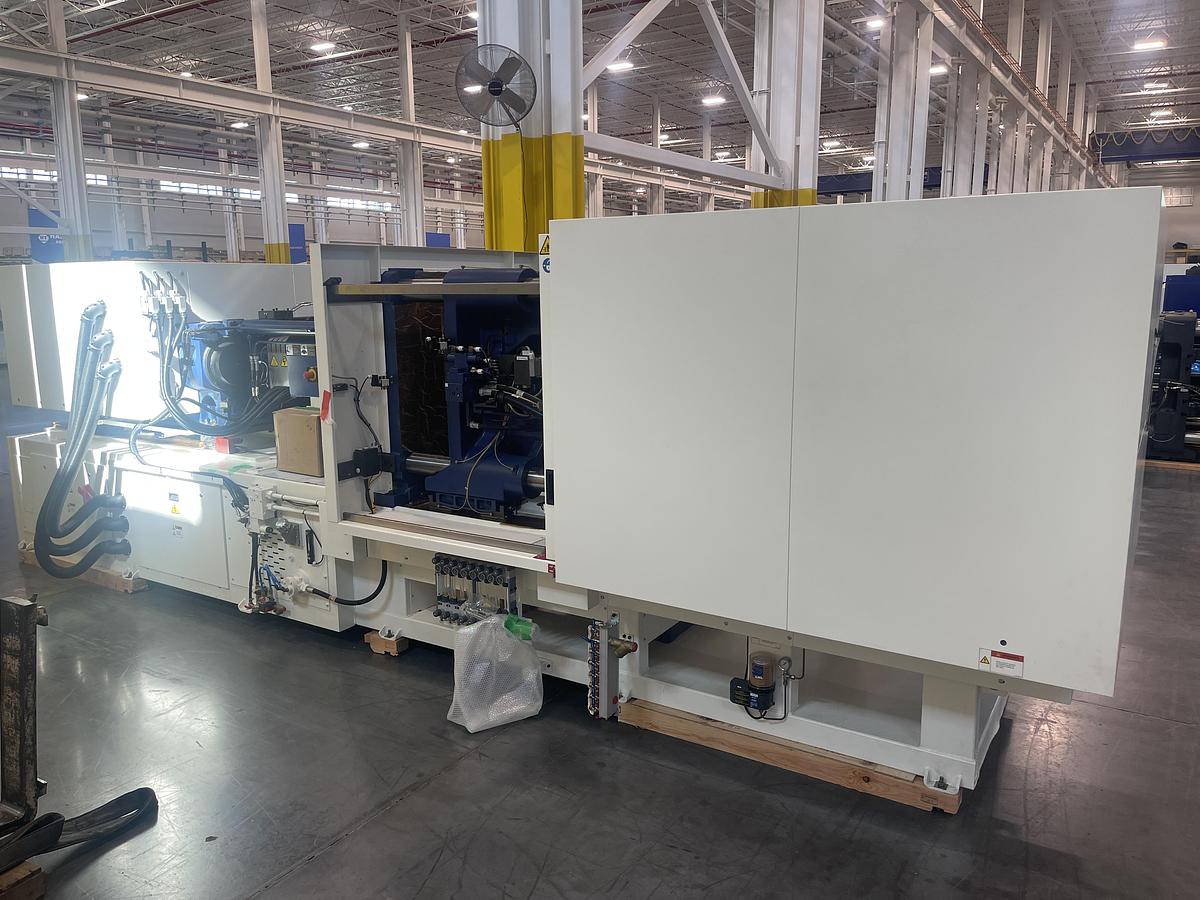

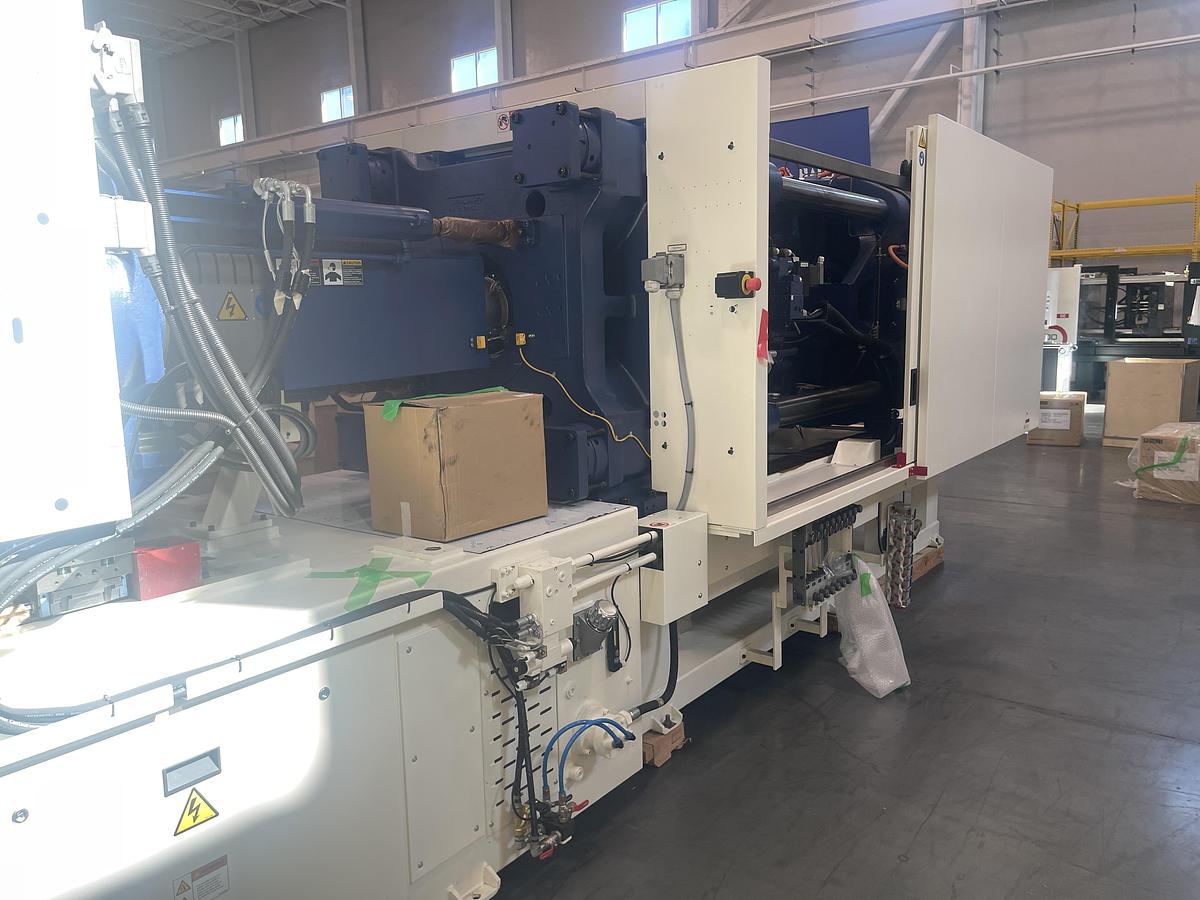

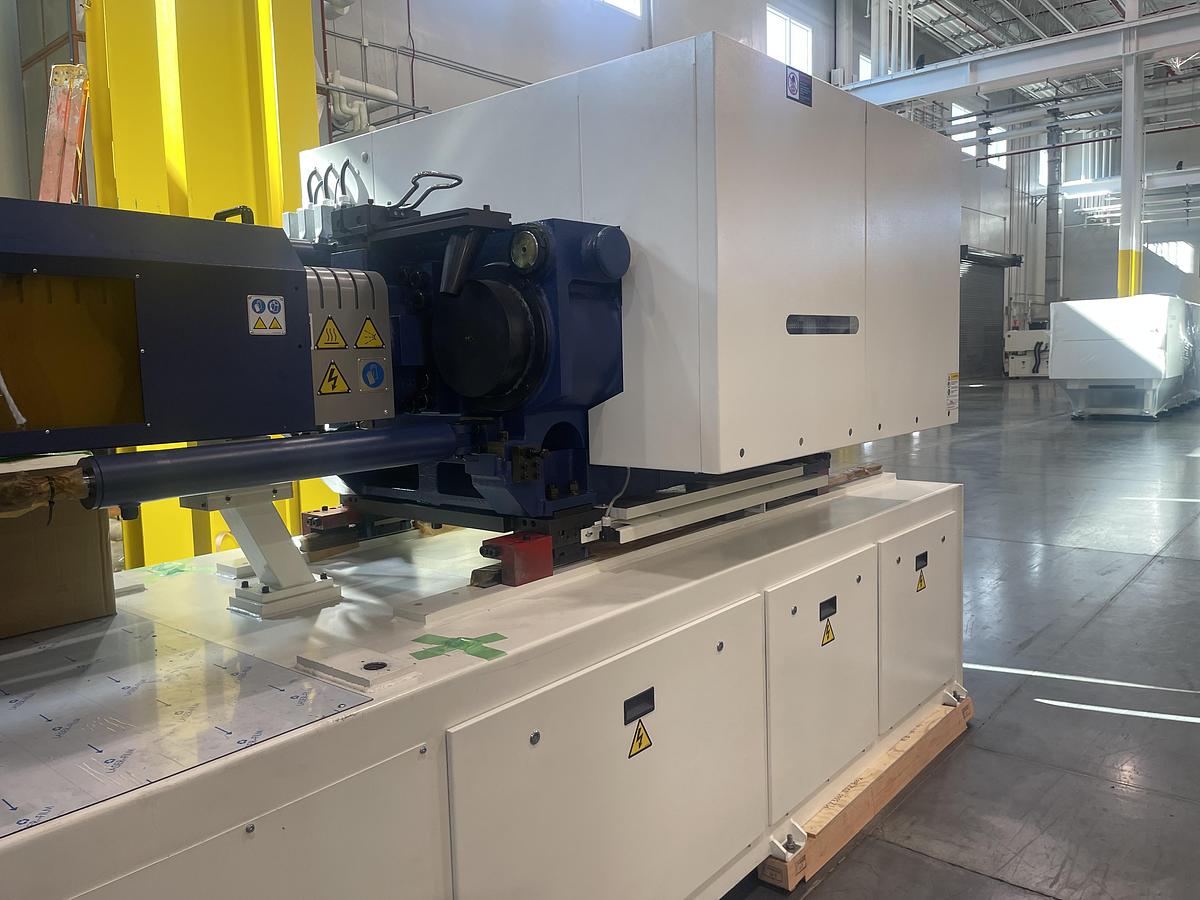

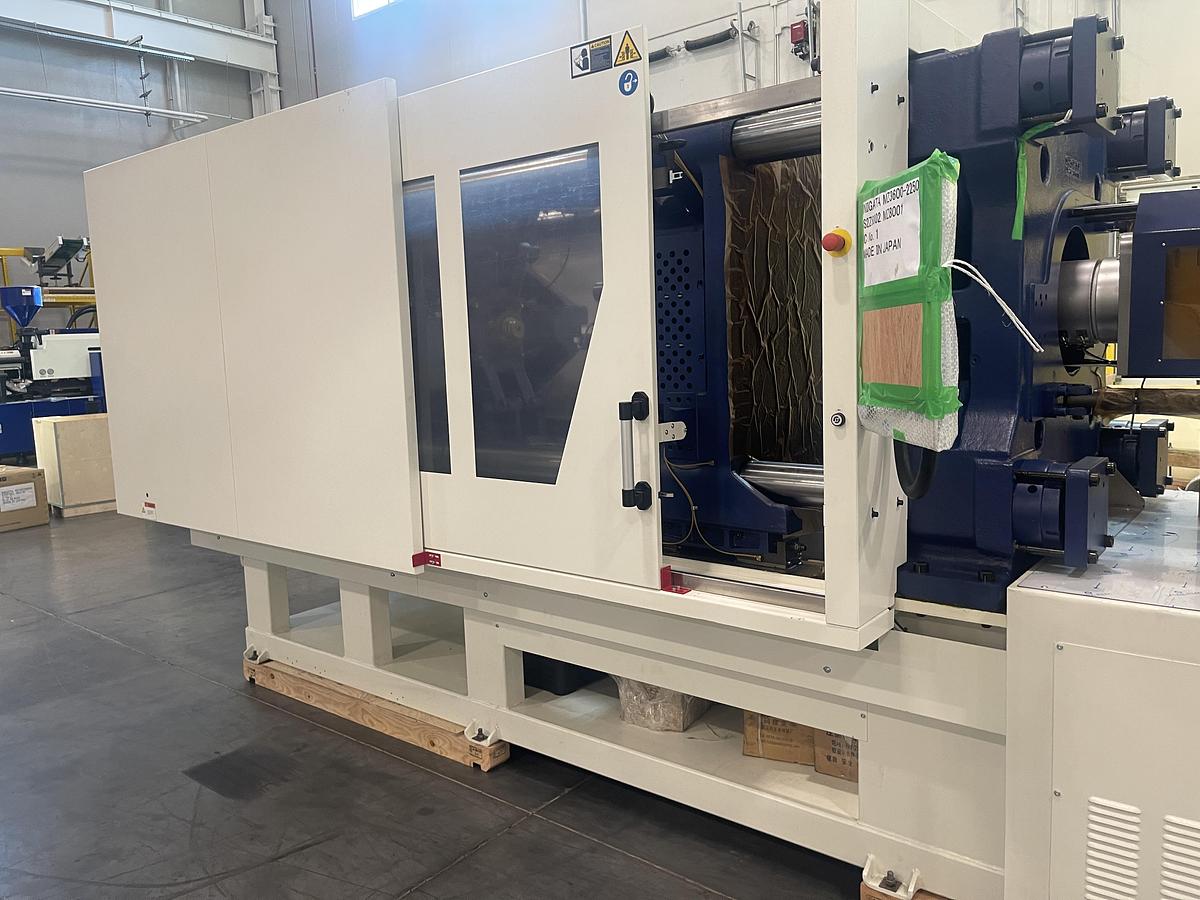

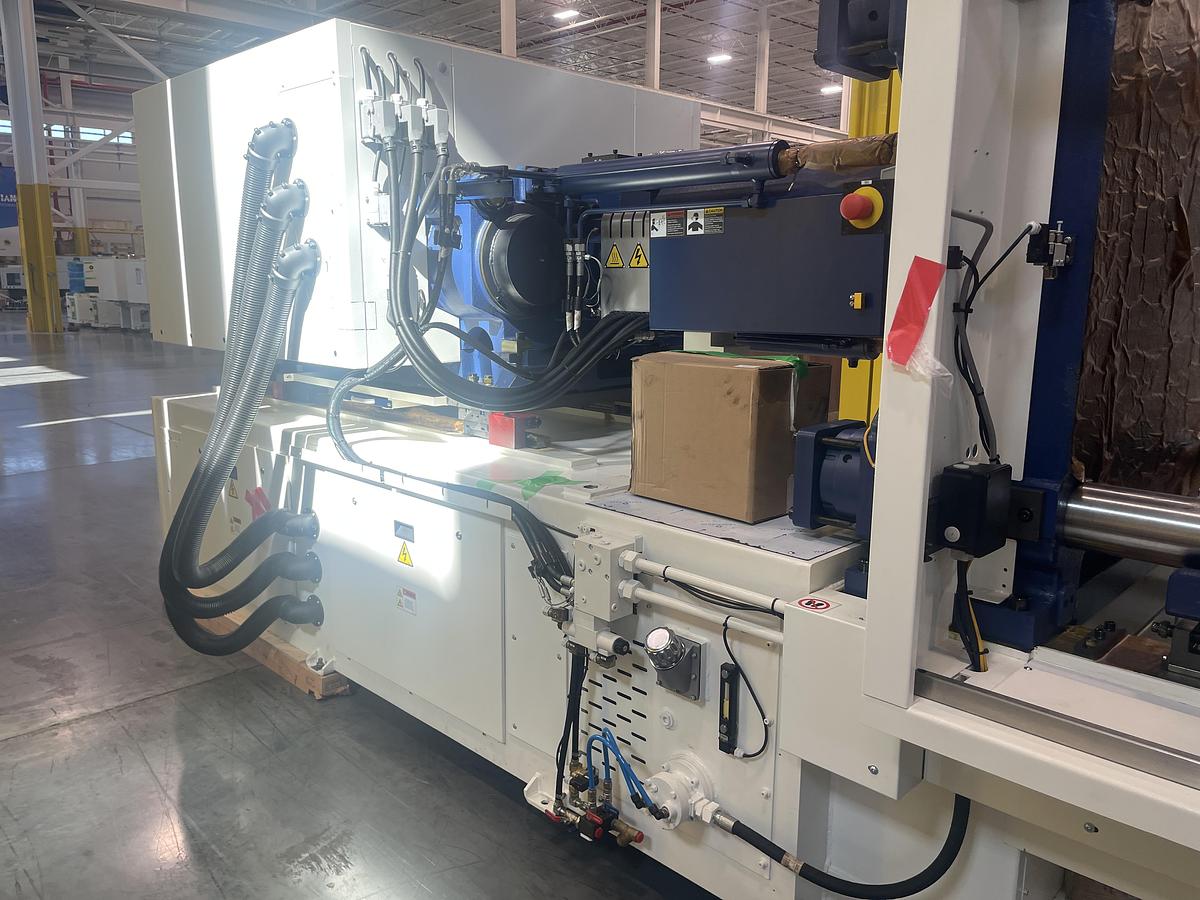

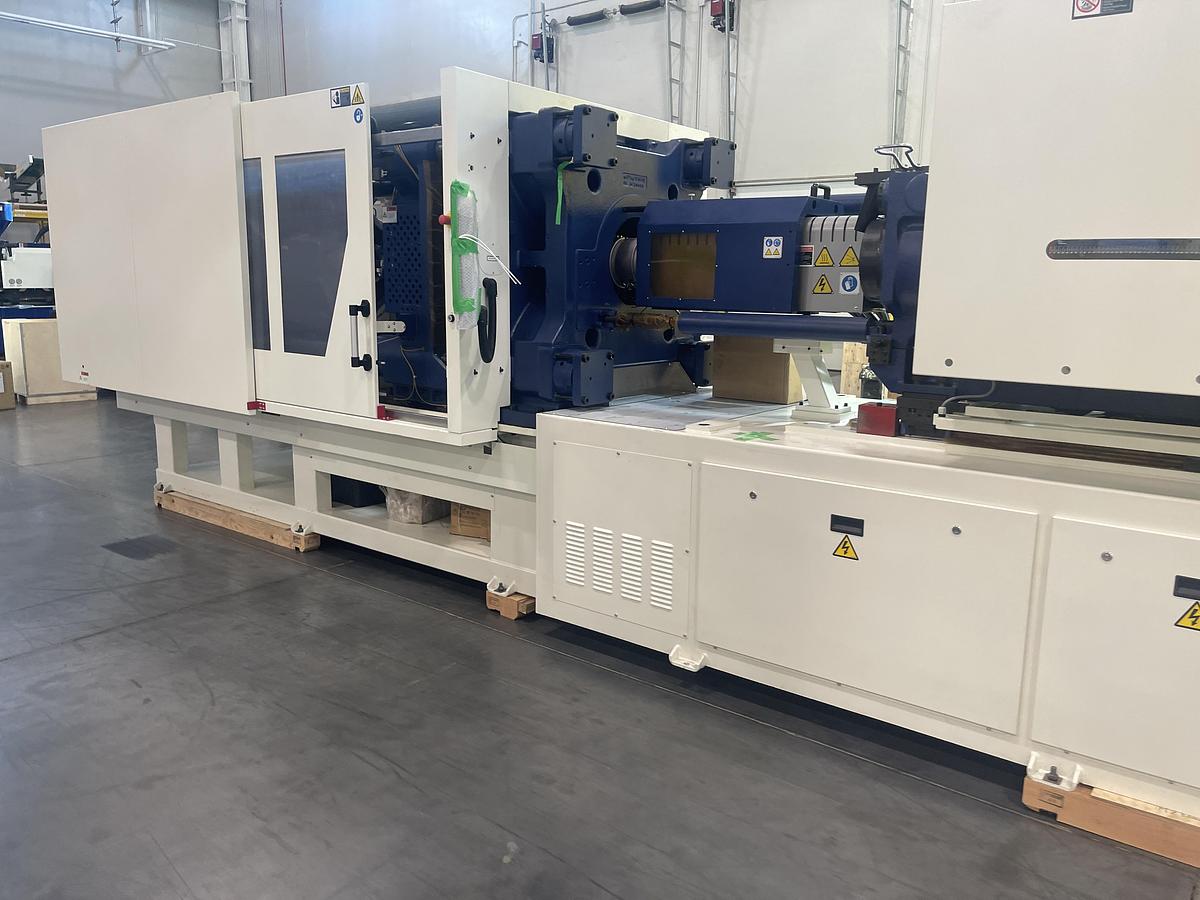

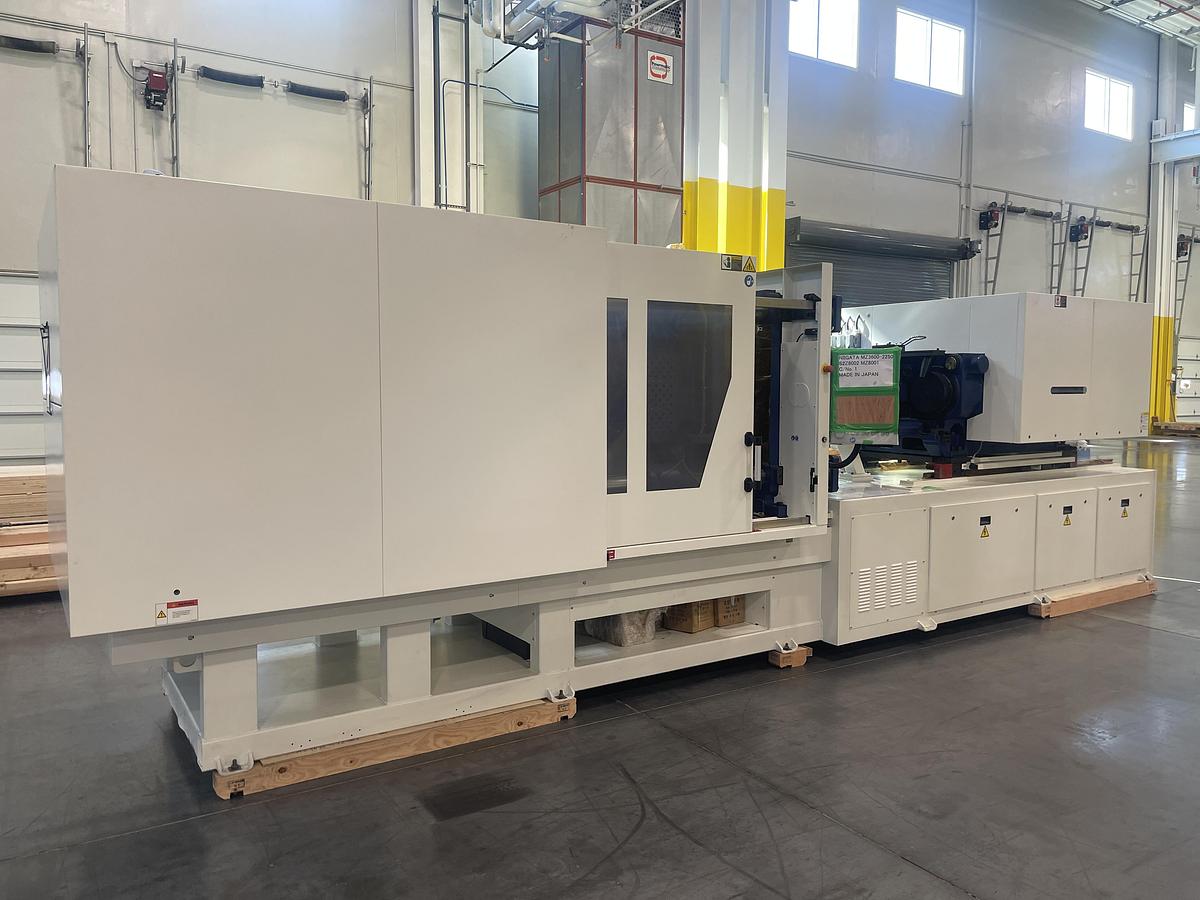

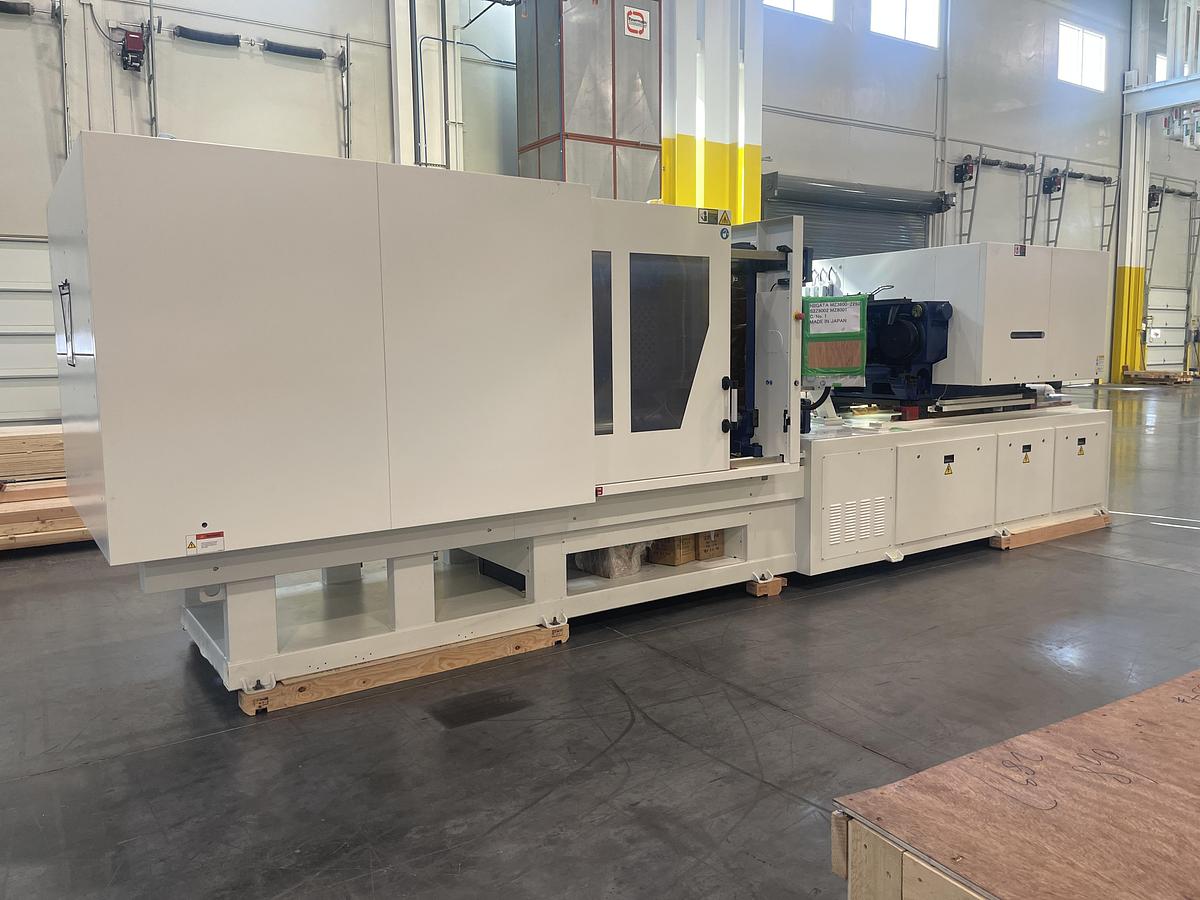

405 Ton, 39.73 oz Niigata MZ 3600/2250 Injection Molding Machine (2025)
405 Ton, 39.73 oz Niigata MZ 3600/2250 Injection Molding Machine (2025)
Available quantity:1
Description
The Niigata MZ 3600/2250 is a new injection molding machine with a clamping force of 405 tons and a shot size capacity of 39.75 oz. It features a screw diameter of 2.76 inches and offers a platen size of 44.88" x 44.88", with tiebar spacing measuring 32.28" x 32.28". The machine accommodates mold heights ranging from 12.6" to a maximum of 27.95", with an opening stroke of 28.74" and open daylight of 56.69". Designed for efficiency, this model includes a 6.3" ejector stroke and a hopper capacity of 13 gallons. The Niigata MZ 3600/2250 stands at 98" high, spans 298" in length, and 78" in width, making it a robust equipment choice for various industrial applications. Weighing in at 41,403 lbs., it provides stability and reliability in operation. This injection molding machine represents advanced technology in plastic manufacturing, ensuring consistent performance for producing high-quality products. Whether you are expanding your production line or upgrading existing equipment, this model offers impressive capabilities tailored for demanding production needs.
Specifications
| Manufacturer | Niigata |
| Model | MZ 3600/2250 |
| Year | 2025 |
| Condition | New |
| Stock Number | 14515 |
| Model | MZ 3600/2250 |
| US Tonnage | 405 |
| Shot Size (oz. of PS) | 39.75 oz |
| Screw Diameter | 2.76" |
| Platen Size (in.) | 44.88" x 44.88" |
| Tiebar Spacing (HxV) in. | 32.28" x 32.28" |
| Max Mold Height (in.) | 27.95" |
| Min Mold Height (in.) | 12.6" |
| Opening Stroke (in.) | 28.74" |
| Open Daylight (in.) | 56.69" |
| Ejector Stroke (in.) | 6.3" |
| Hopper Capacity | 13 gallon |
| Machine Length (in) | 298" |
| Machine Width (in) | 78" |
| Machine Height (in) | 98" |
| Machine Weight (lbs) | 41,403 lbs. |
