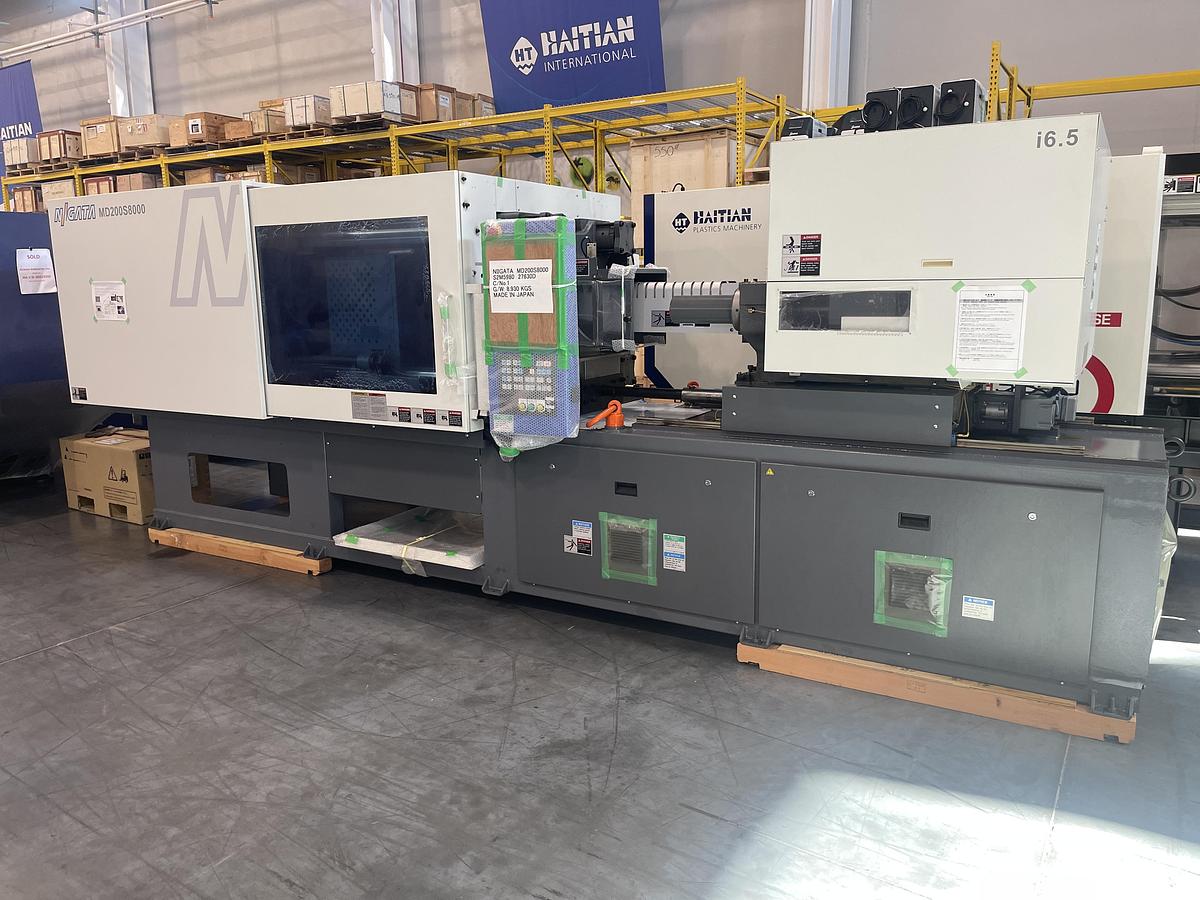

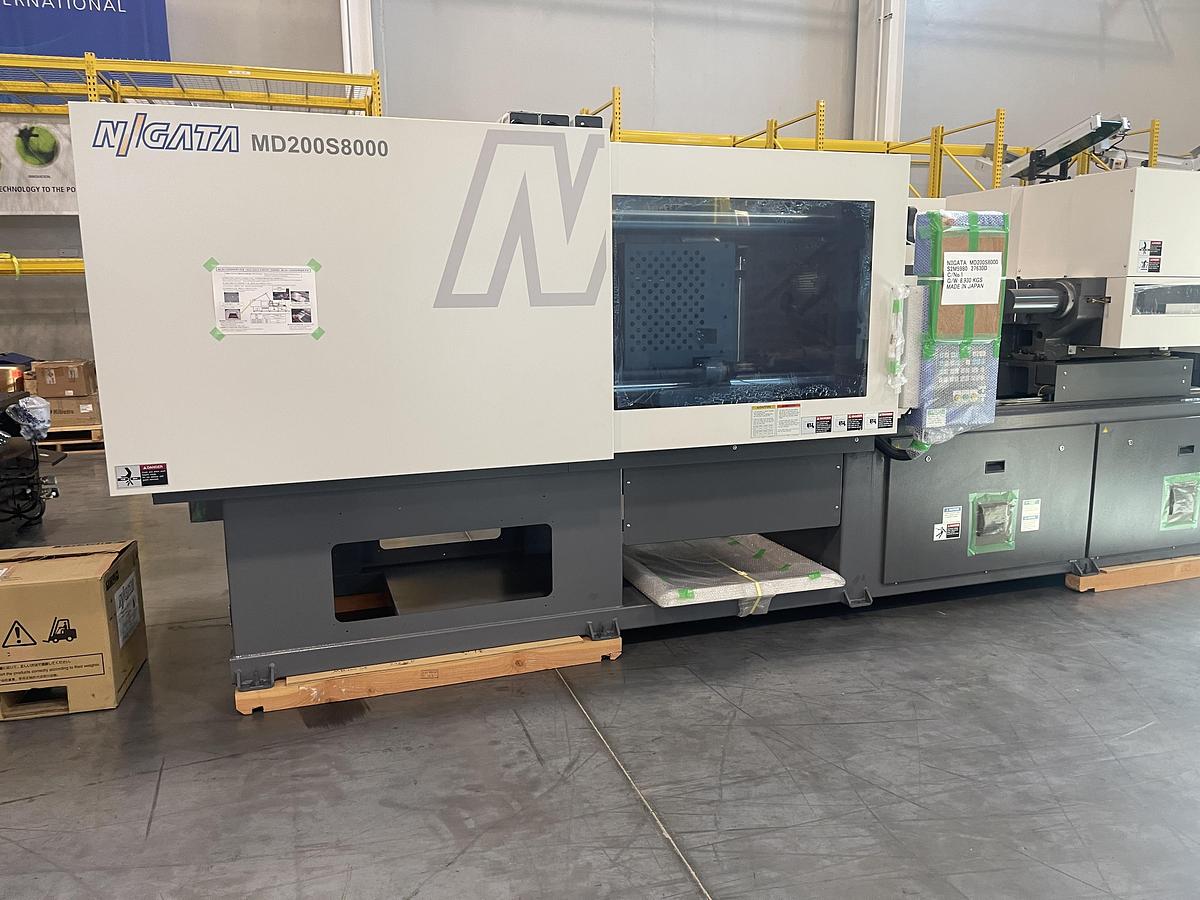

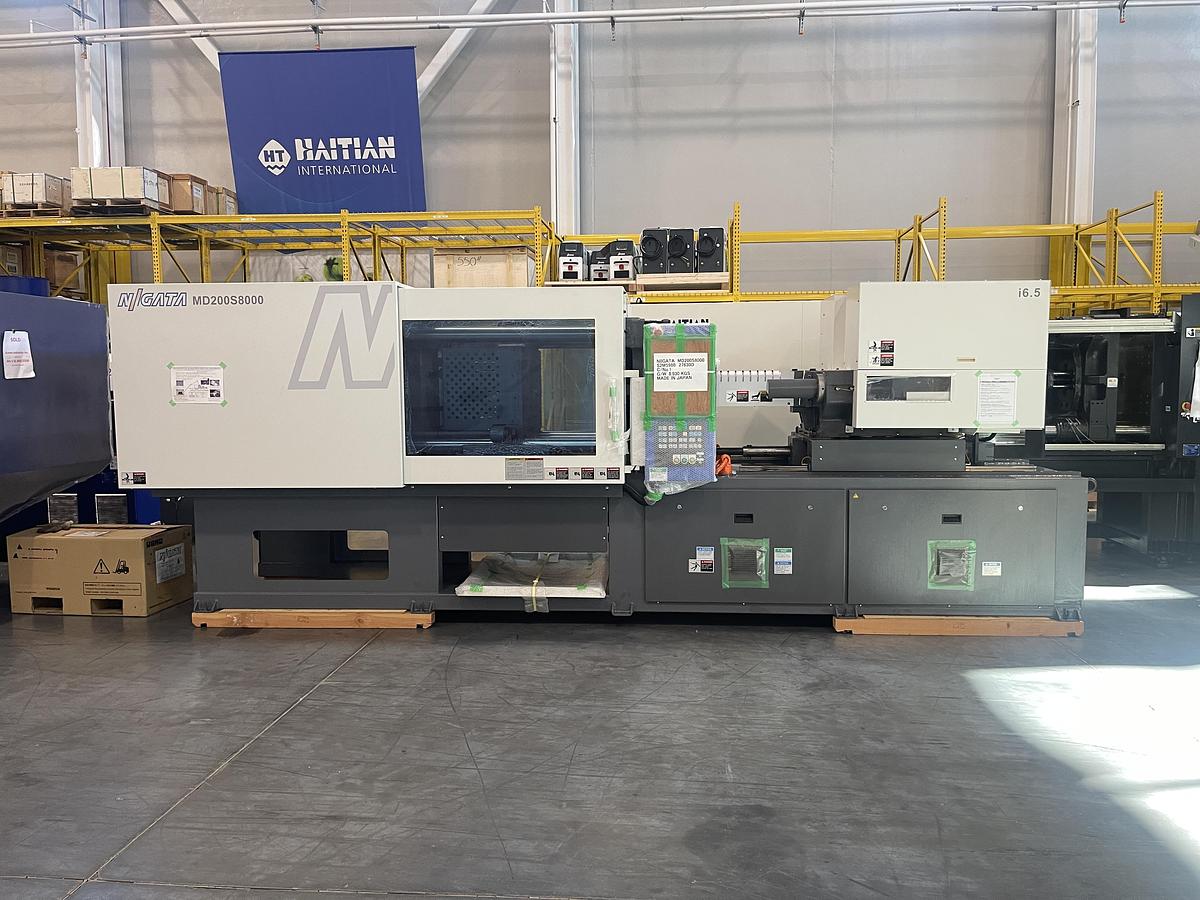

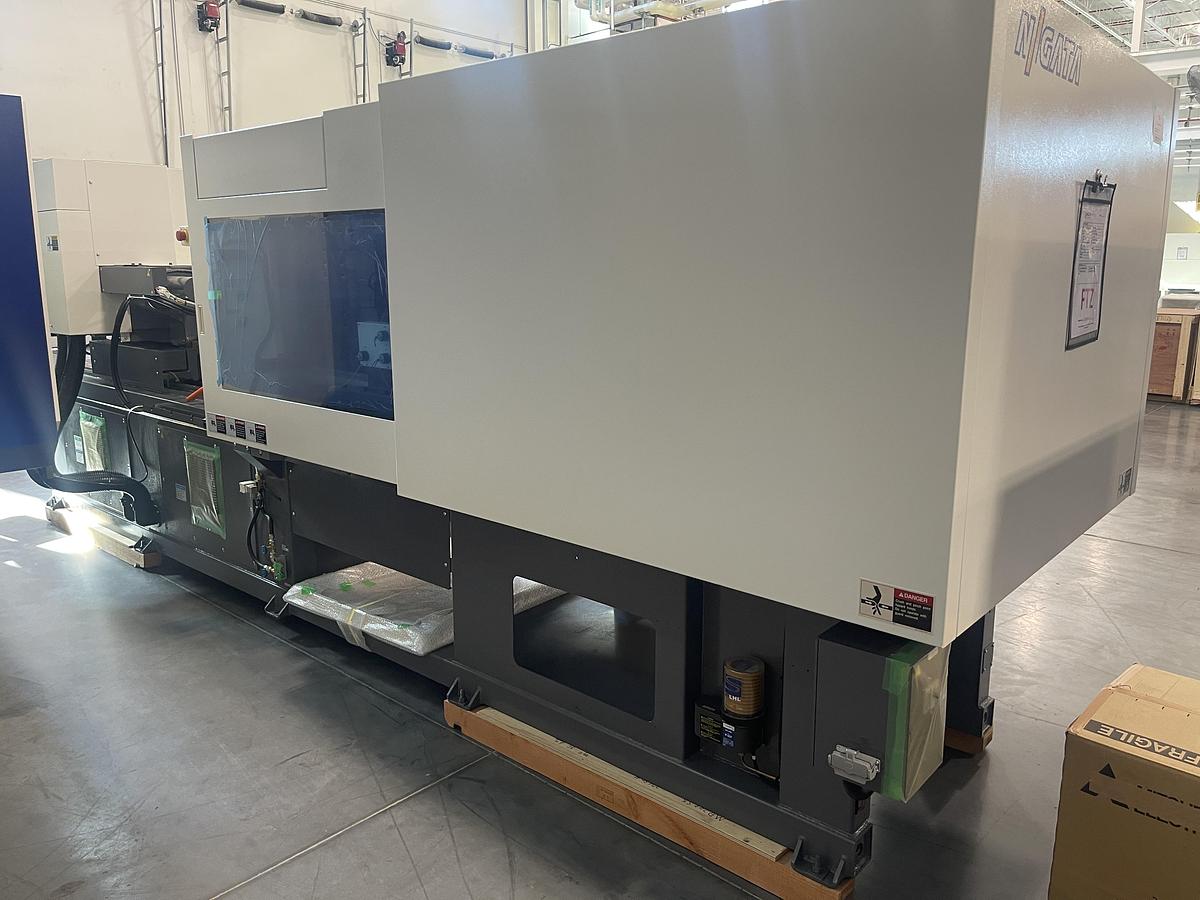

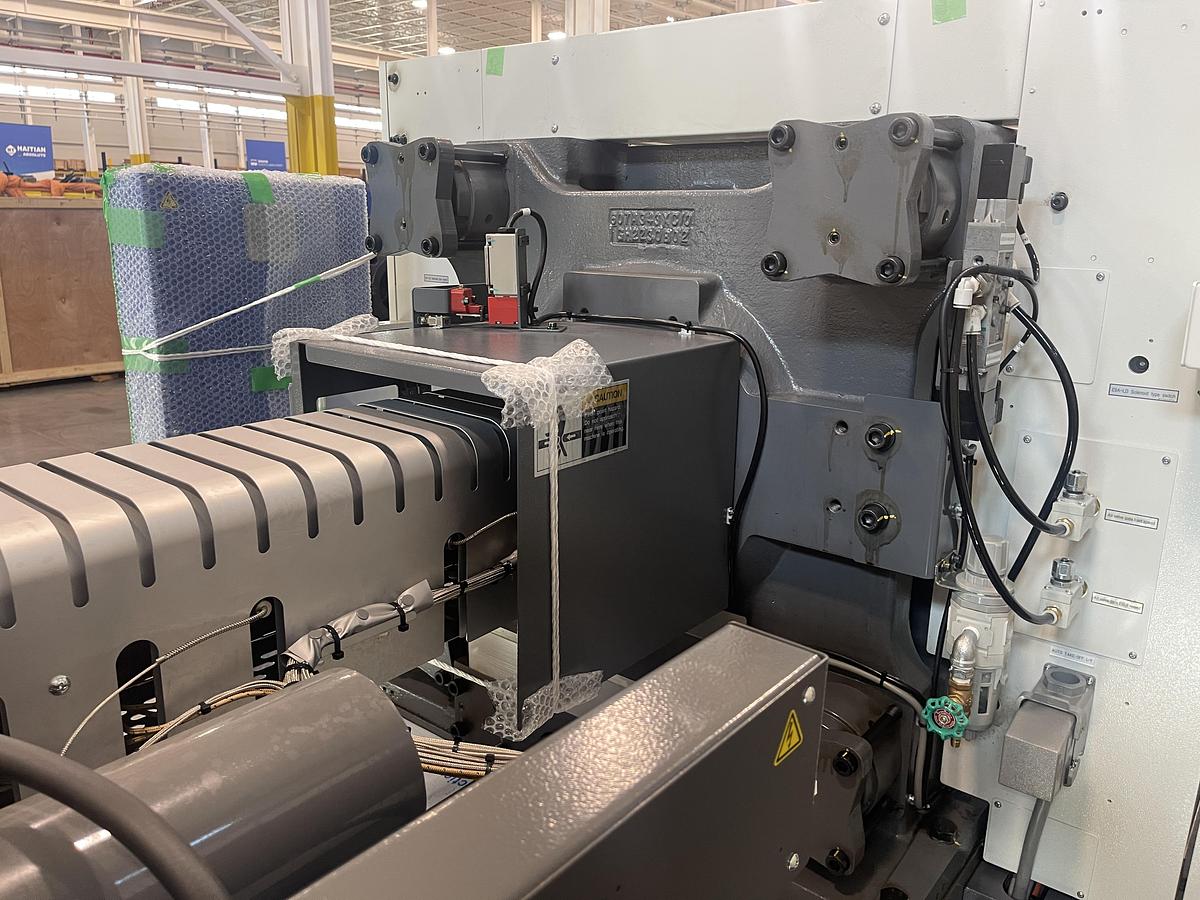

202 Ton, 14.14 oz Niigata MD 200S8000 i6.5 Injection Molding Machine (2025)

The Niigata MD 200S8000 i6.5 is a robust injection molding machine, designed for a variety of plastic manufacturing applications. It offers a substantial clamping force of 202 tons, ensuring reliable molding performance. The machine supports a shot size of 14.14 ounces, facilitated by a 2.05-inch screw diameter, making it suitable for medium-scale production runs. With platen dimensions of 33.07 by 33.07 inches and a tiebar spacing of 22.44 inches both horizontally and vertically, the MD 200S8000 i6.5 can accommodate a range of mold sizes. The machine provides a flexible mold height range, from a minimum of 7.87 inches to a maximum of 25.59 inches, supplemented by an 18.50-inch opening stroke and a total open daylight of 44.09 inches. This versatility allows for efficient handling of diverse molding projects. Built to industrial standards, this model features an ejector stroke of 5.91 inches and a hopper capacity of 11.89 gallons. It is powered by a 220V electrical system and maintains a substantial footprint with dimensions of 218.5 inches in length, 59.8 inches in width, and 77.2 inches in height. Weighing in at 20,062 lbs, the MD 200S8000 i6.5 is engineered for durability and high-performance output in demanding production environments.
