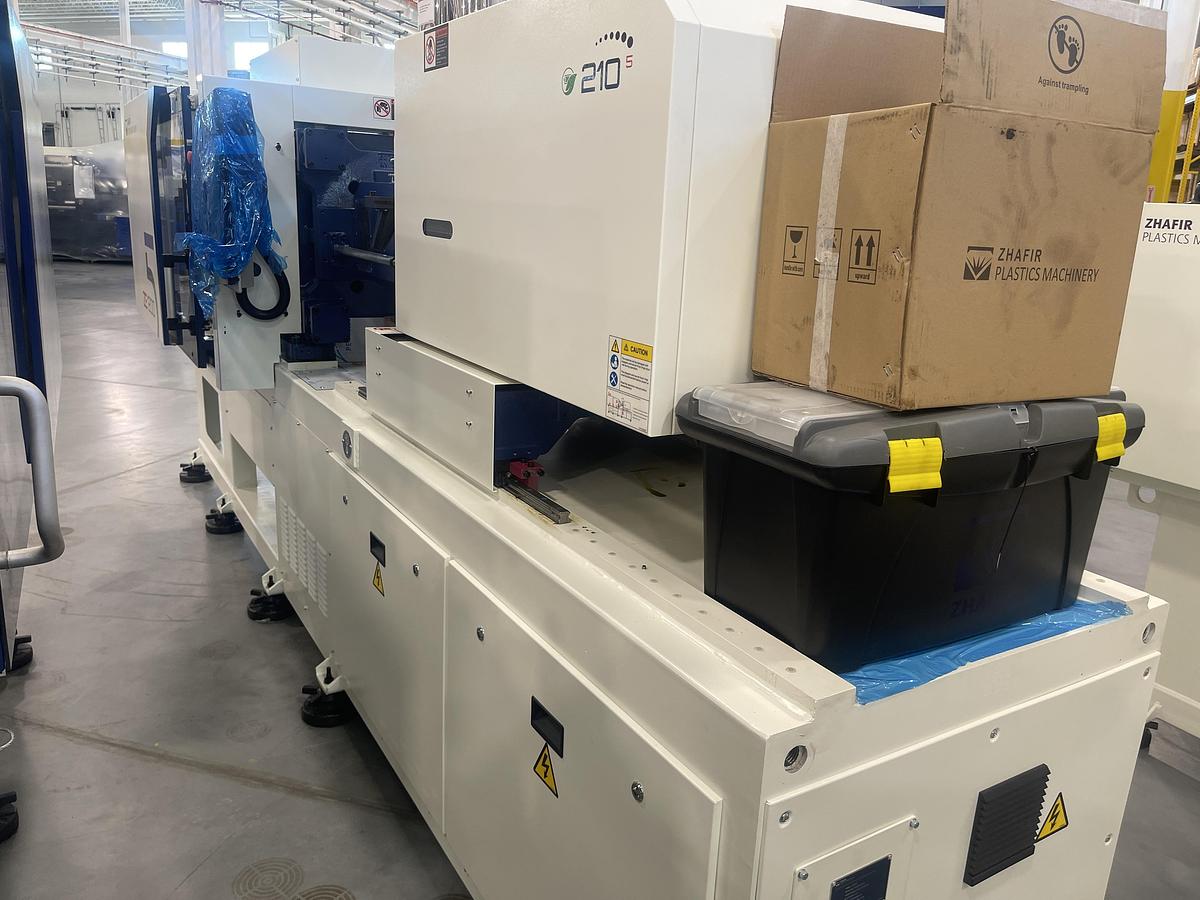

135 Ton, 3.21 oz Haitian ZEV 1200/210 Injection Molding Machine (2024)
135 Ton, 3.21 oz Haitian ZEV 1200/210 Injection Molding Machine (2024)
Available quantity:1
Description
The Haitian ZEV 1200/210 is a brand-new injection molding machine, designed for robust performance with a clamping force of 135 tons. This machine is equipped to handle a shot size of 3.21 ounces of PS. It features a screw diameter of 1.26 inches and offers a platen size of 25.2 inches by 25.2 inches, which is fitting for various applications. The tiebar spacing measures 18.5 inches horizontally and vertically, allowing ample room for operations. This injection molding machine can accommodate a maximum mold height of 18.9 inches and a minimum of 5.91 inches, paired with an opening stroke of 14.17 inches and overall open daylight of 33.07 inches. The machine's efficient design includes an ejector stroke of 3.94 inches. For material handling, it has a hopper capacity of 7 gallons, ensuring smooth workflow during production cycles. Measuring 189 inches in length, 54 inches in width, and 83 inches in height, the Haitian ZEV 1200/210 is both compact and sturdy, weighing 10,648 pounds. Suitable for diverse industrial applications, this machine is a reliable choice for those seeking precision and efficiency in injection molding processes.
Specifications
| Manufacturer | Haitian |
| Model | ZEV 1200/210 |
| Year | 2024 |
| Condition | New |
| Stock Number | 14512 |
| Model | ZEV 1200/210 |
| US Tonnage | 135 |
| Shot Size (oz. of PS) | 3.21 oz |
| Screw Diameter | 1.26" |

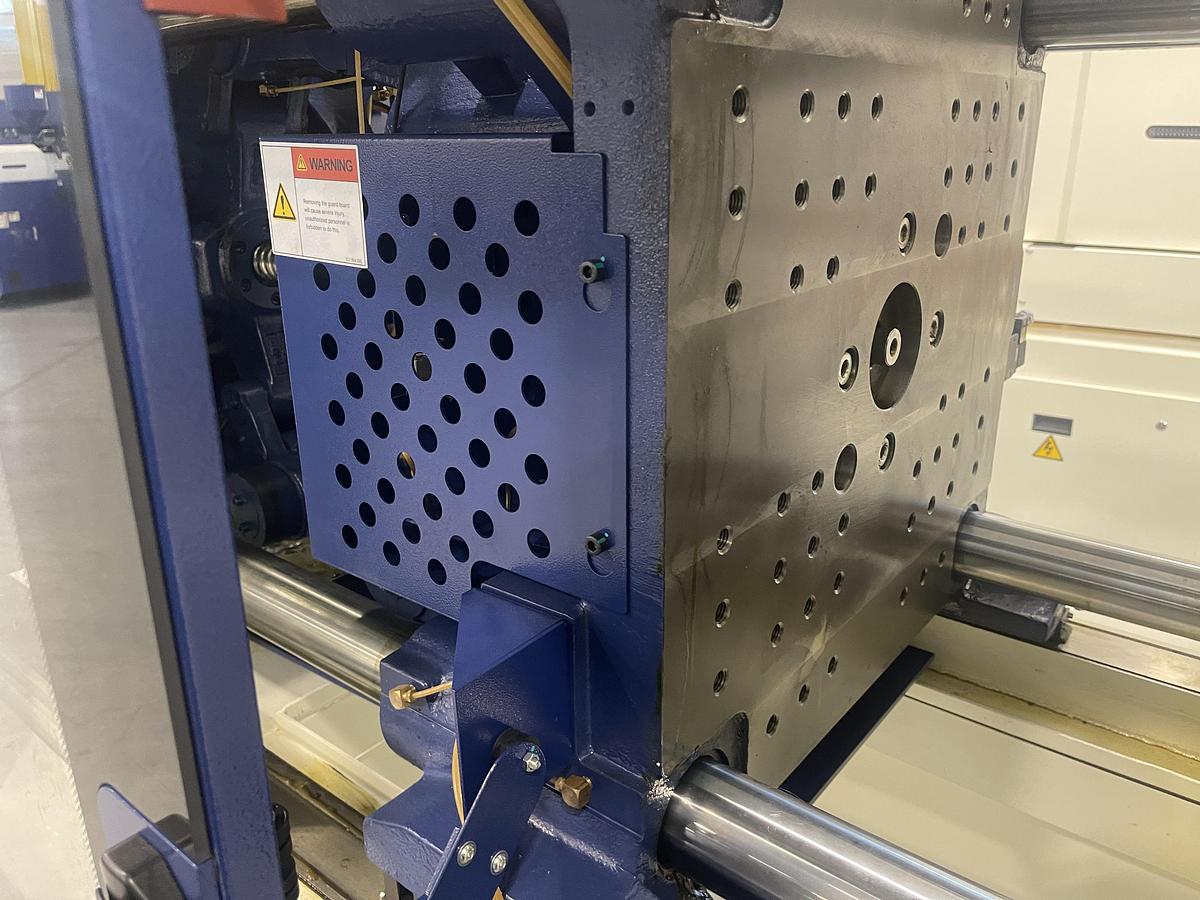

| Platen Size (in.) | 25.2" x 25.2" |
| Tiebar Spacing (HxV) in. | 18.5" x 18.5" |
| Max Mold Height (in.) | 18.9" |
| Min Mold Height (in.) | 5.91" |
| Opening Stroke (in.) | 14.17" |
| Open Daylight (in.) | 33.07" |
| Ejector Stroke (in.) | 3.94" |
| Hopper Capacity | 7 gallons |
| Machine Length (in) | 189" |
| Machine Width (in) | 54" |
| Machine Height (in) | 83" |
| Machine Weight (lbs) | 10,648 lbs. |
