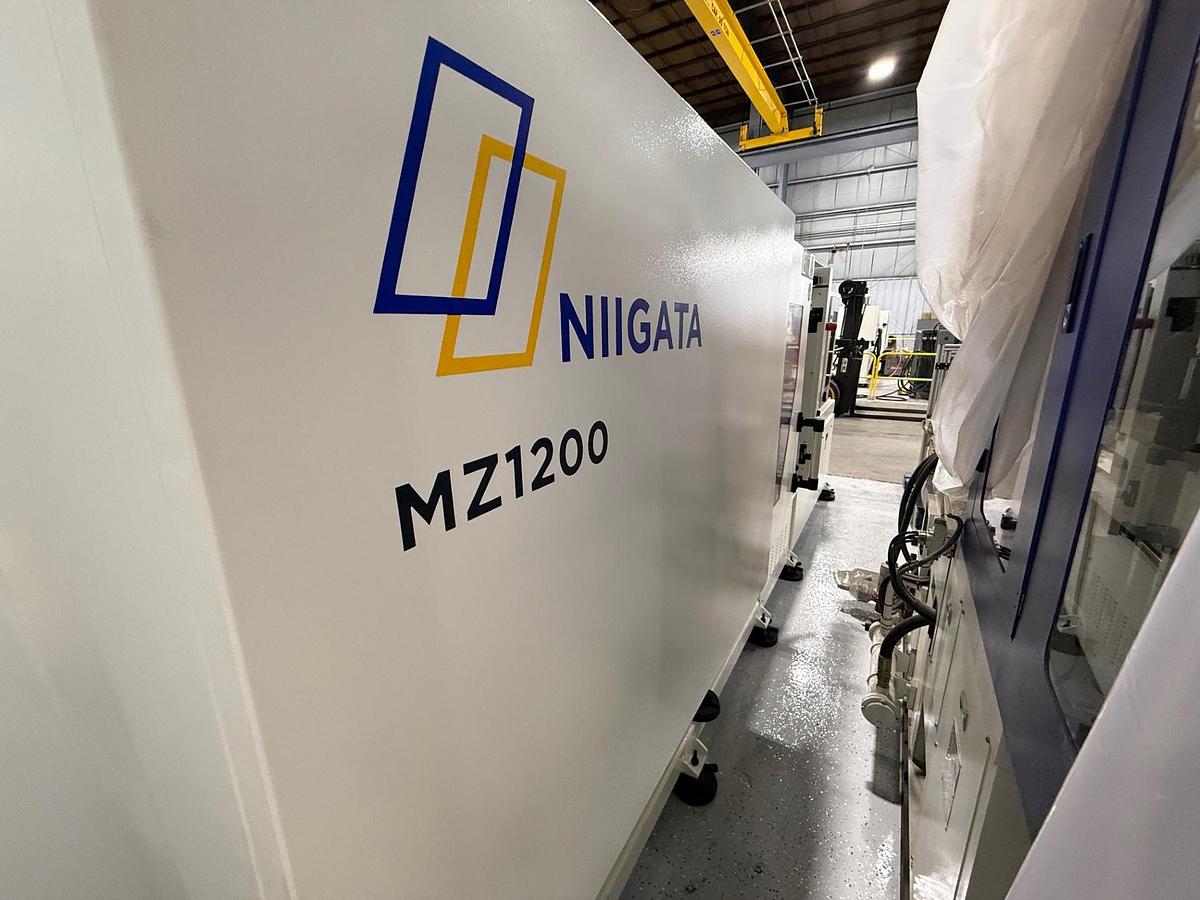

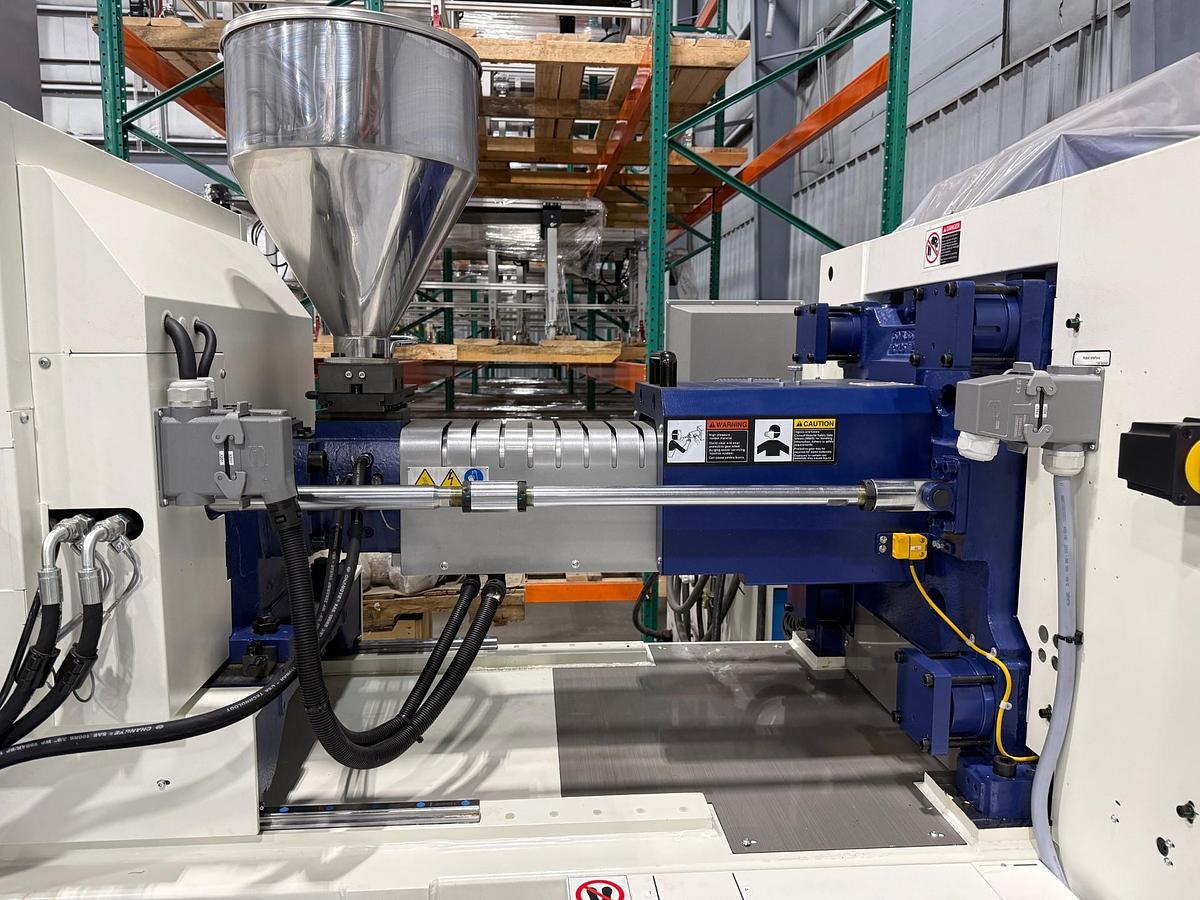

135 Ton, 4.73 oz Niigata MZ 1200/300 Injection Molding Machine (2025)
135 Ton, 4.73 oz Niigata MZ 1200/300 Injection Molding Machine (2025)
Available quantity:1
Description

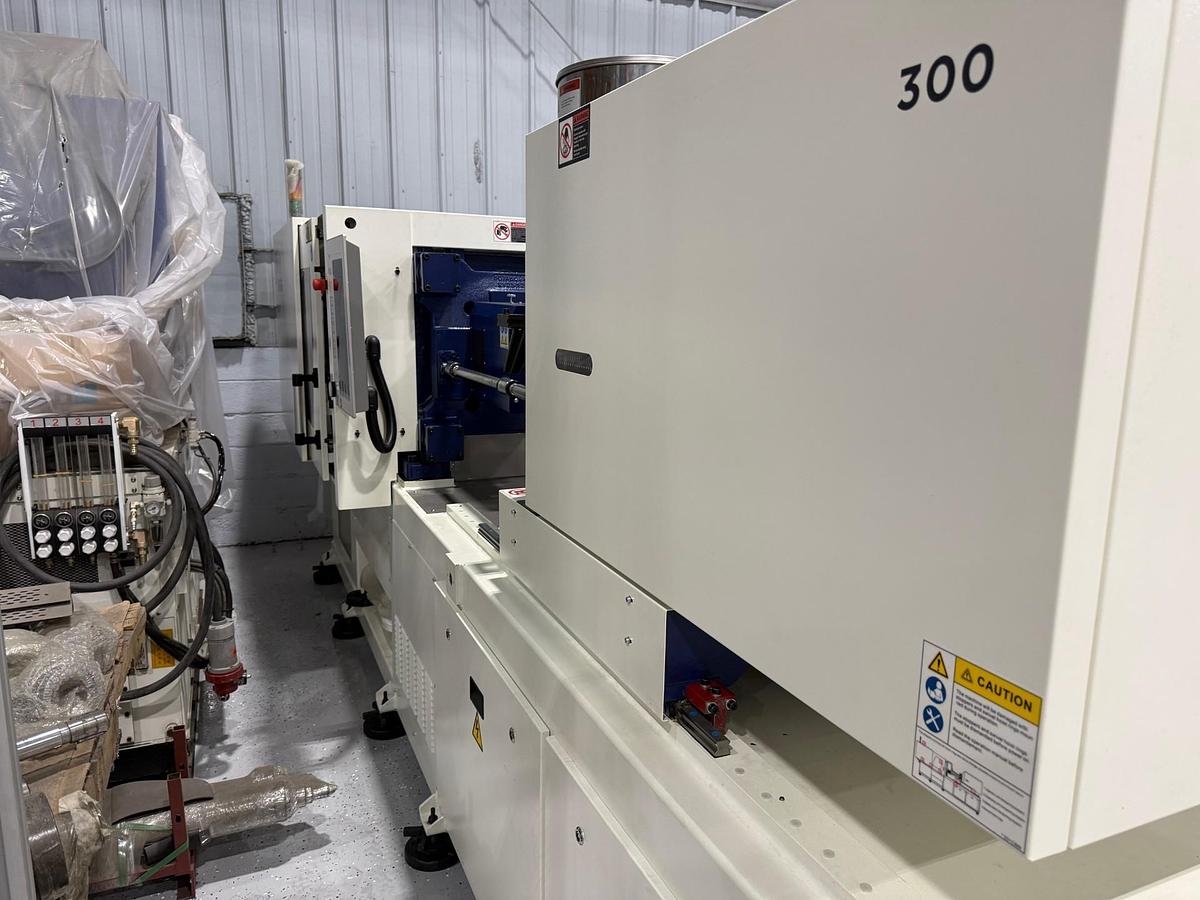

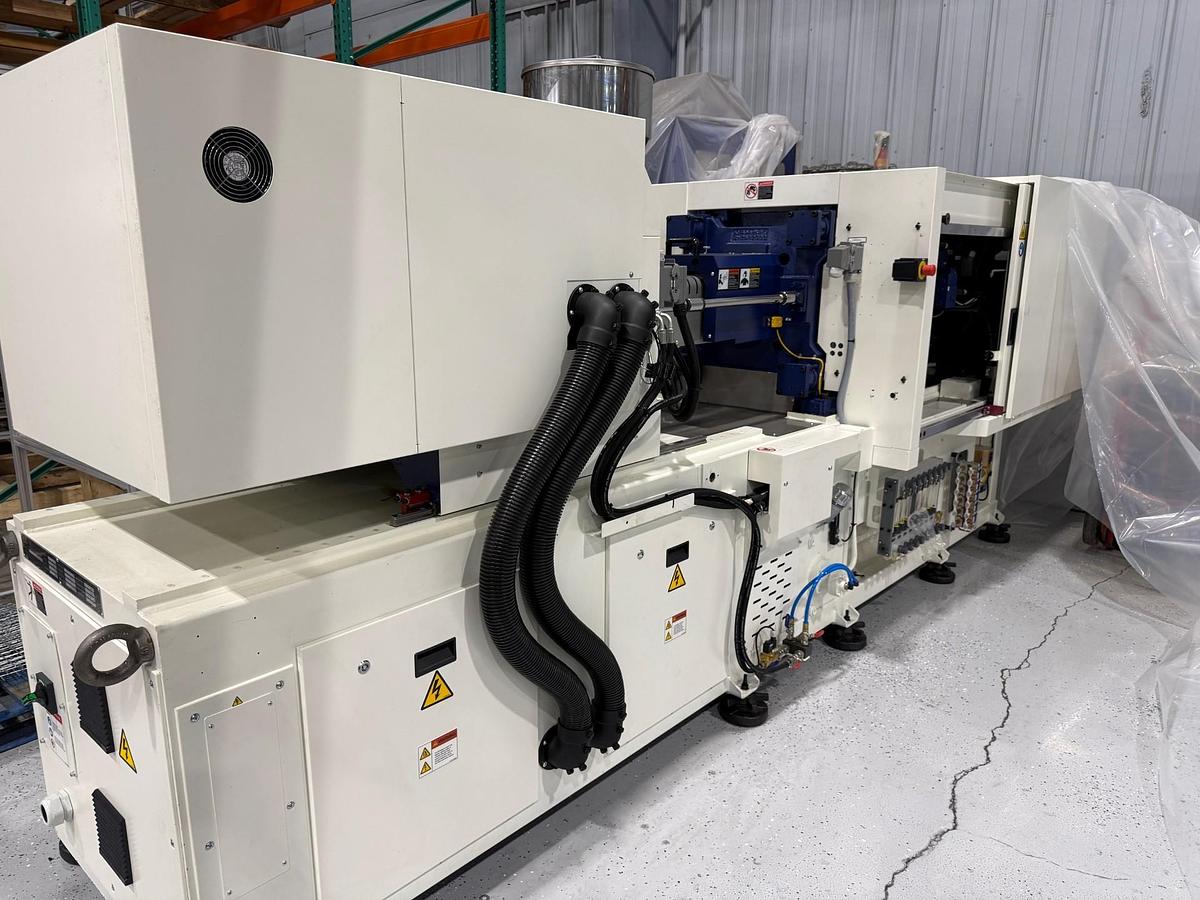

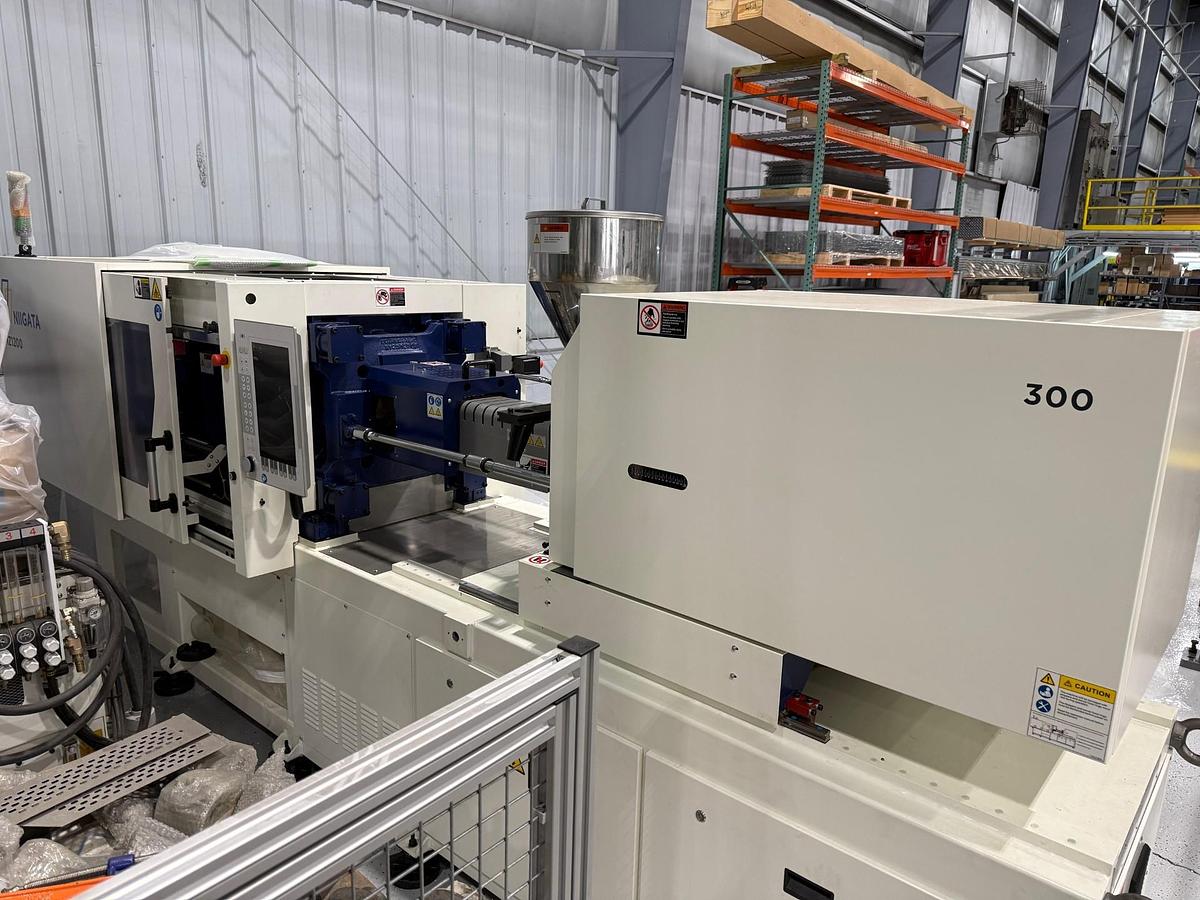

The Niigata MZ 1200/300 Injection Molding Machine is a robust and reliable choice for heavy-duty plastic manufacturing processes. With a clamping force of 135 tons and a shot size of 4.73 ounces of PS, this machine efficiently handles demanding production needs. The screw diameter is 1.42 inches, ensuring precision in polymer injection. Designed with user convenience in mind, the MZ 1200/300 features a platen size of 25.2 inches by 25.2 inches, and tie bar spacing of 18.5 inches by 18.5 inches, accommodating a variety of mold sizes. The machine offers a maximum mold height of 18.9 inches and a minimum of 5.91 inches. An opening stroke of 14.17 inches and an open daylight of 33.07 inches allow for ample space to facilitate easy mold changes and maintenance. The machine's physical dimensions include a length of 190 inches, width of 54 inches, and a height of 83 inches, while its substantial weight of 11,023 pounds ensures stability during operation. The built-in 3.94-inch ejector stroke and 7-gallon hopper capacity add to its operational efficiency. The Niigata MZ 1200/300, set for production in 2025, epitomizes advanced engineering for enhanced productivity in plastic injection molding.
Specifications
| Manufacturer | Niigata |
| Model | MZ 1200/300 |
| Year | 2025 |
| Condition | New |
| Stock Number | 14510 |
| Model | MZ-1200/300 |
| US Tonnage | 135 |
| Shot Size (oz. of PS) | 4.73 oz |
| Screw Diameter | 1.42" |

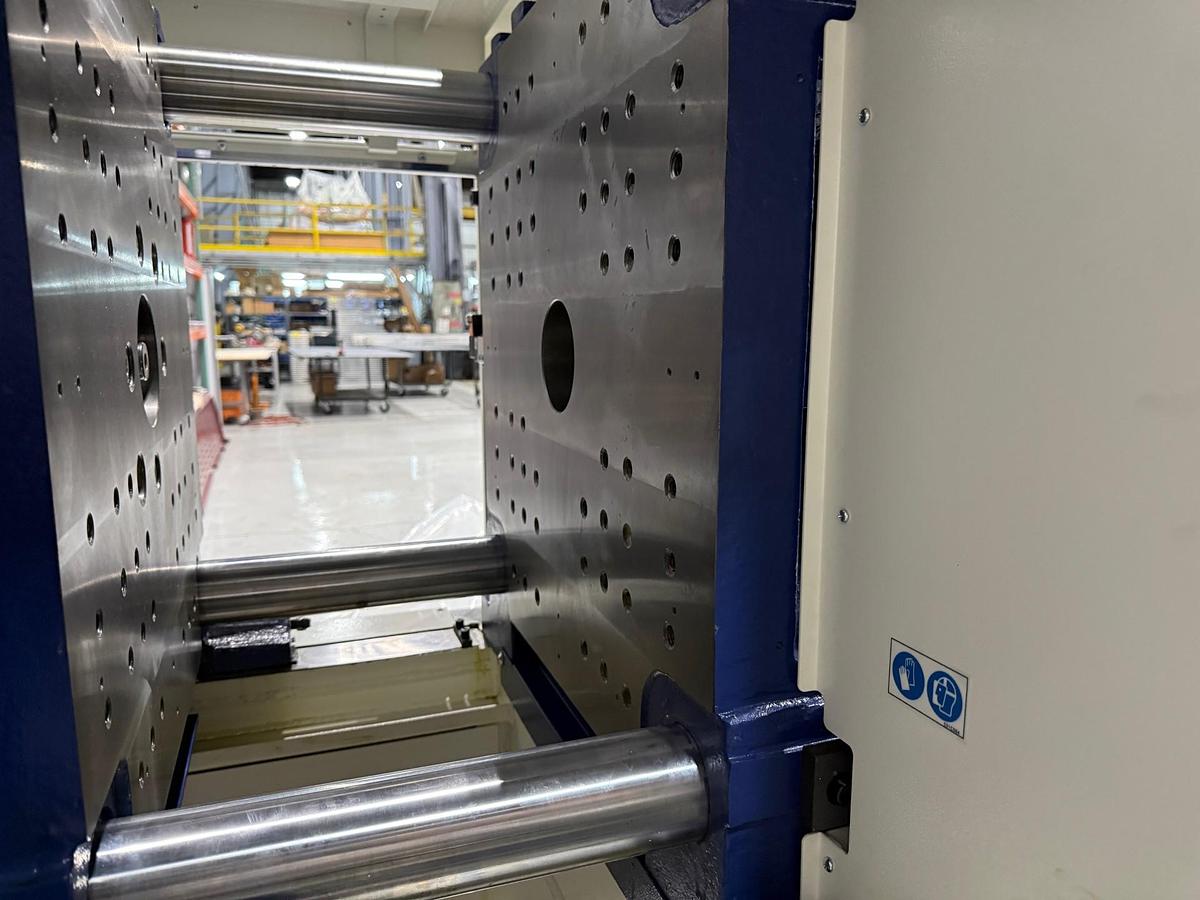

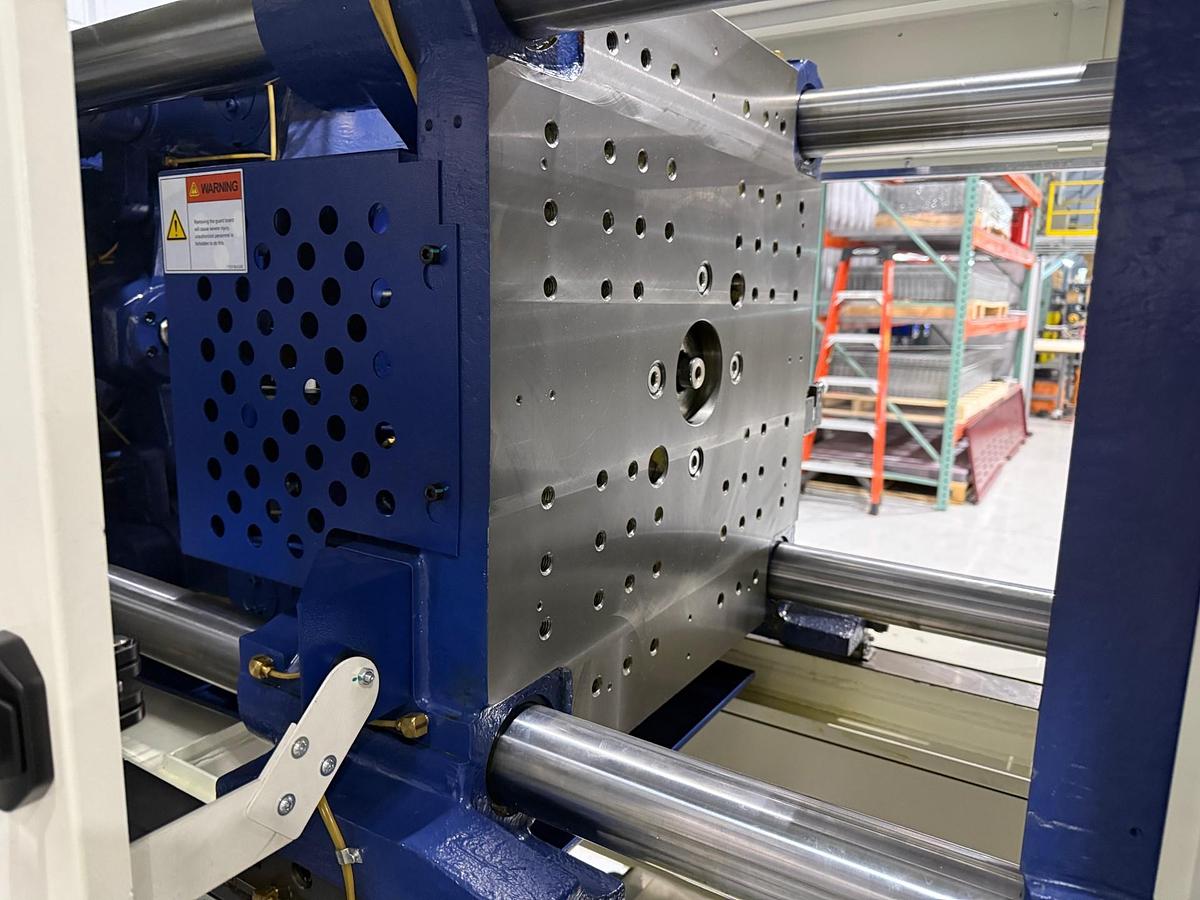

| Platen Size (in.) | 25.2" x 25.2" |
| Tiebar Spacing (HxV) in. | 18.5" x 18.5" |
| Max Mold Height (in.) | 18.9" |
| Min Mold Height (in.) | 5.91" |
| Opening Stroke (in.) | 14.17" |
| Open Daylight (in.) | 33.07" |
| Ejector Stroke (in.) | 3.94" |
| Hopper Capacity | 7 gallons |
| Machine Length (in) | 190" |
| Machine Width (in) | 54" |
| Machine Height (in) | 83" |
| Machine Weight (lbs) | 11,023 lbs |
