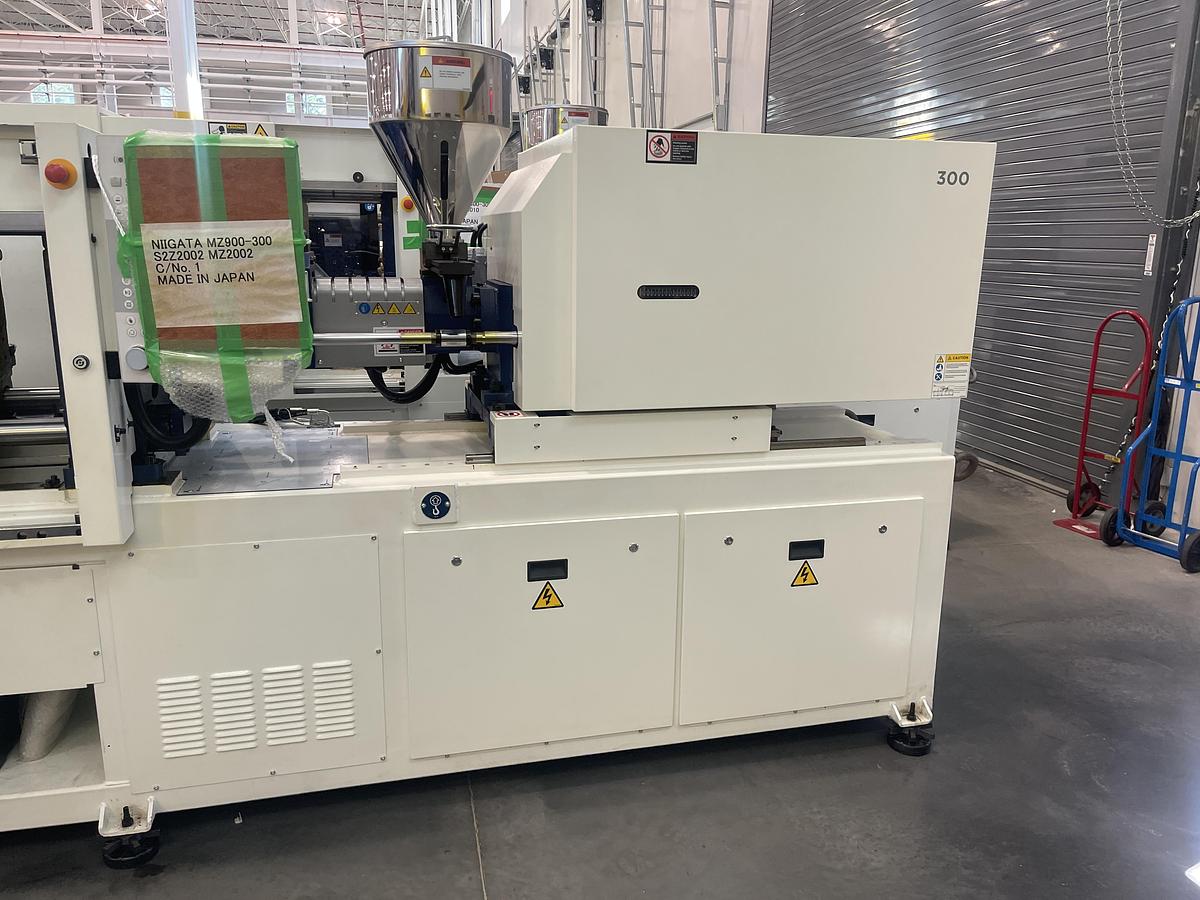

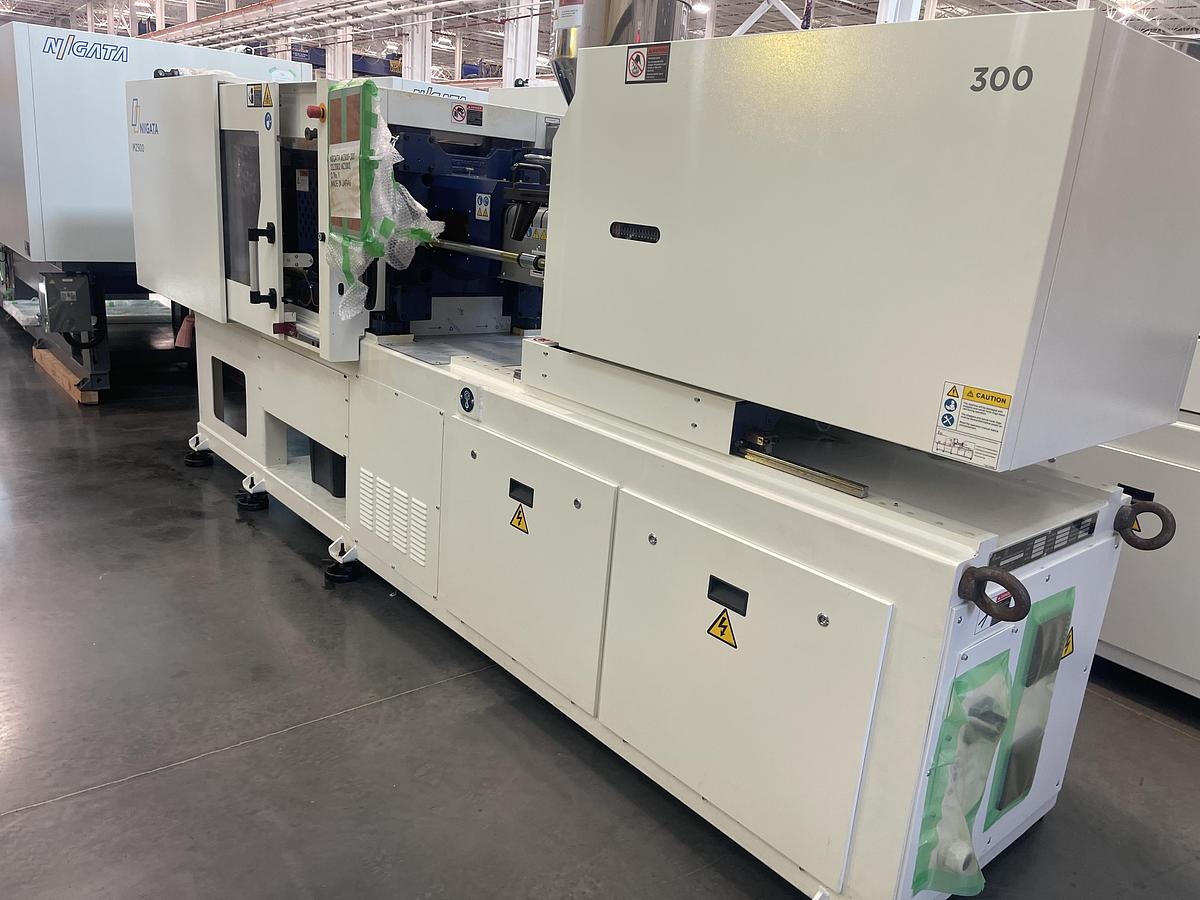

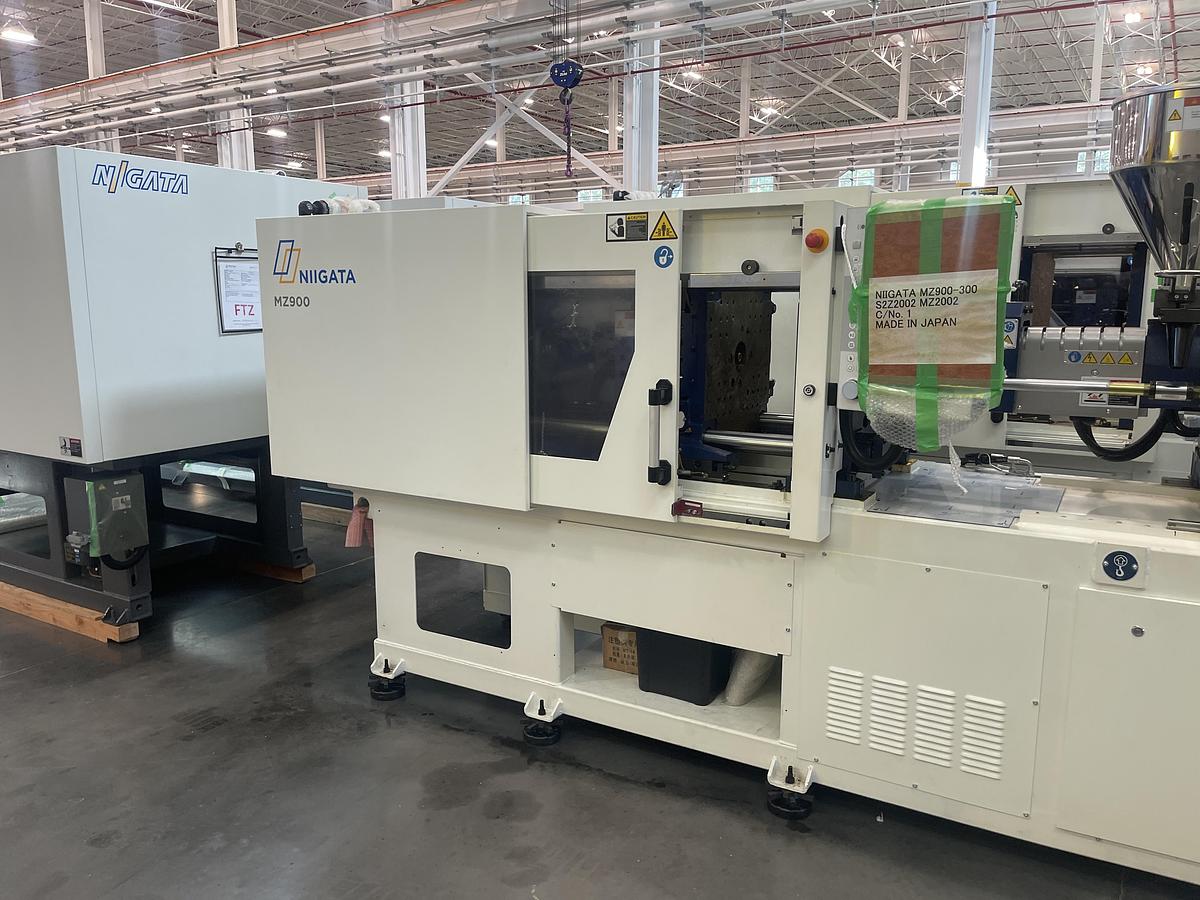

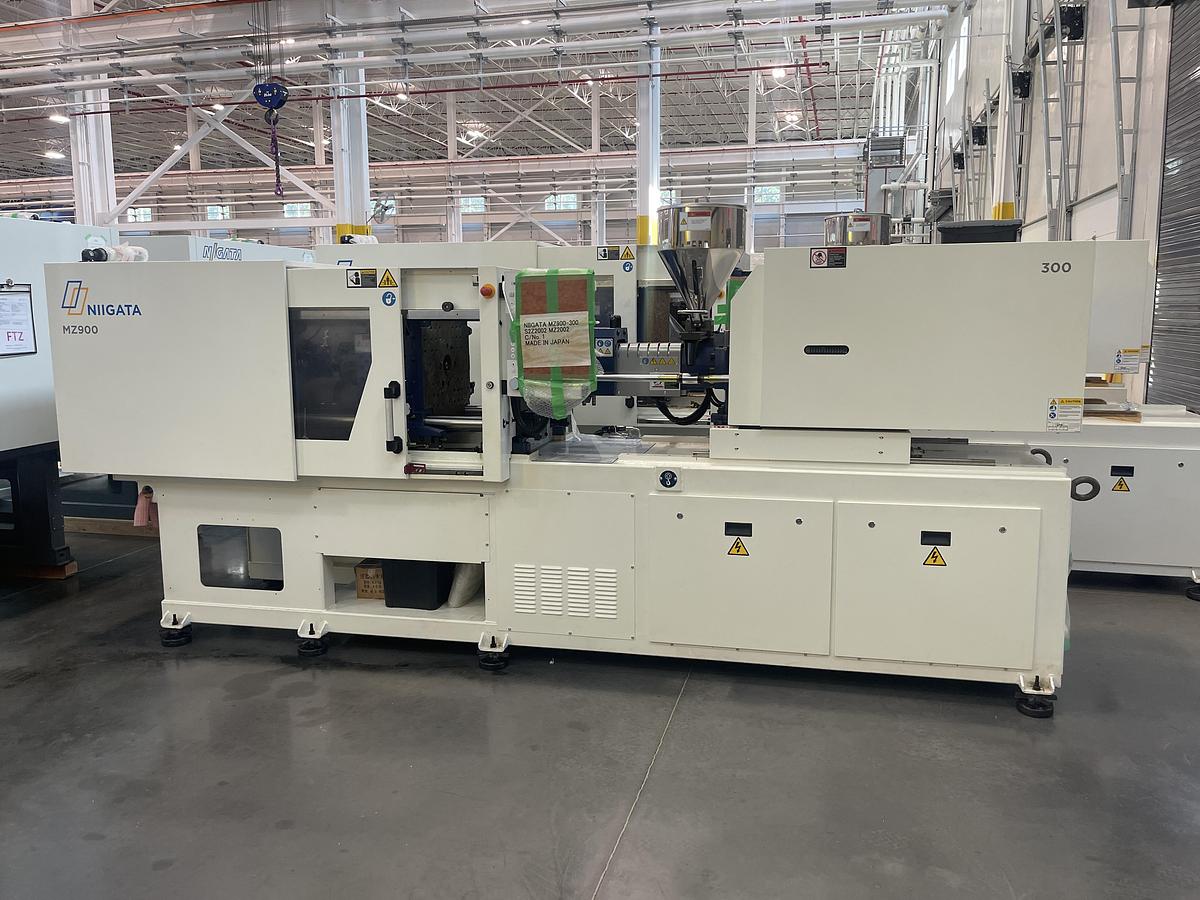

101 Ton, 3.73 oz Niigata MZ 900/300 Injection Molding Machine (2024)
101 Ton, 3.73 oz Niigata MZ 900/300 Injection Molding Machine (2024)
Available quantity:1
Description
The Niigata MZ 900/300 is a new injection molding machine designed for robust performance and precision. With a clamping force of 101 tons, it provides a shot size of 3.73 ounces, suitable for producing smaller plastic components. Its screw diameter measures 1.02 inches, allowing for efficient material processing. This horizontal machine features a platen size of 22.83 inches by 22.83 inches and offers a tiebar spacing of 16.54 inches by 16.54 inches, facilitating the accommodation of various mold sizes. The machine is engineered with a mold height capacity ranging from 5.91 to 16.14 inches, ensuring flexibility in production. With an opening stroke of 12.6 inches and open daylight of 28.74 inches, it supports easy manipulation of molds. For operator convenience, the ejector stroke measures 3.15 inches and includes a hopper capacity of 7 gallons, minimizing the need for frequent refills. The machine's dimensions are 173 inches in length, 48 inches in width, and 80 inches in height, with a total weight of 8,466 pounds, making it a substantial yet manageable addition to any facility.
Specifications
| Manufacturer | Niigata |
| Model | MZ 900/300 |
| Year | 2024 |
| Condition | New |
| Stock Number | 14509 |
| Model | MZ-900/300 |
| US Tonnage | 101 |
| Shot Size (oz. of PS) | 3.73 oz |
| Screw Diameter | 1.02" |

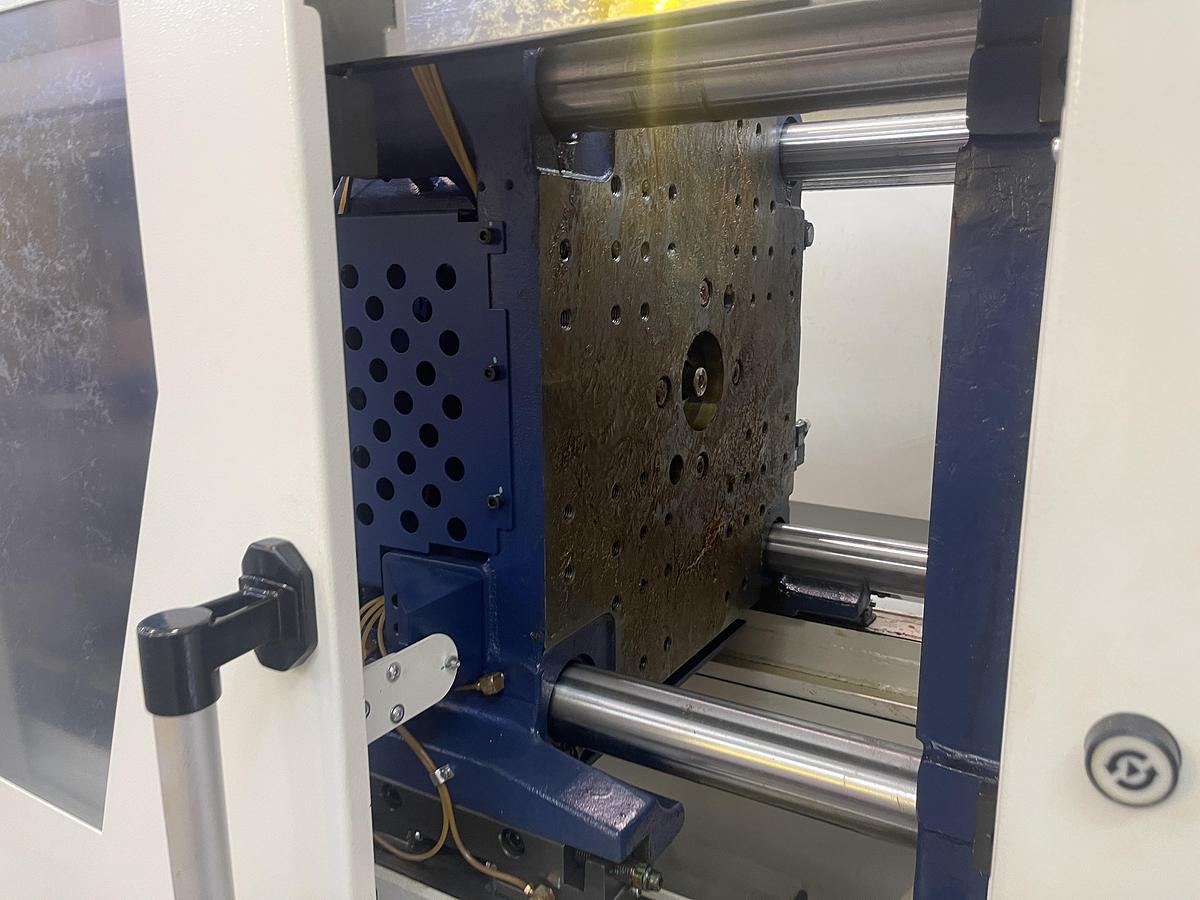

| Platen Size (in.) | 22.83" x 22.83" |
| Tiebar Spacing (HxV) in. | 16.54" x 16.54" |
| Max Mold Height (in.) | 16.14" |
| Min Mold Height (in.) | 5.91" |
| Opening Stroke (in.) | 12.6" |
| Open Daylight (in.) | 28.74" |
| Ejector Stroke (in.) | 3.15" |
| Hopper Capacity | 7 gallons |
| Machine Length (in) | 173" |
| Machine Width (in) | 48" |
| Machine Height (in) | 80" |
| Machine Weight (lbs) | 8,466 lbs. |
