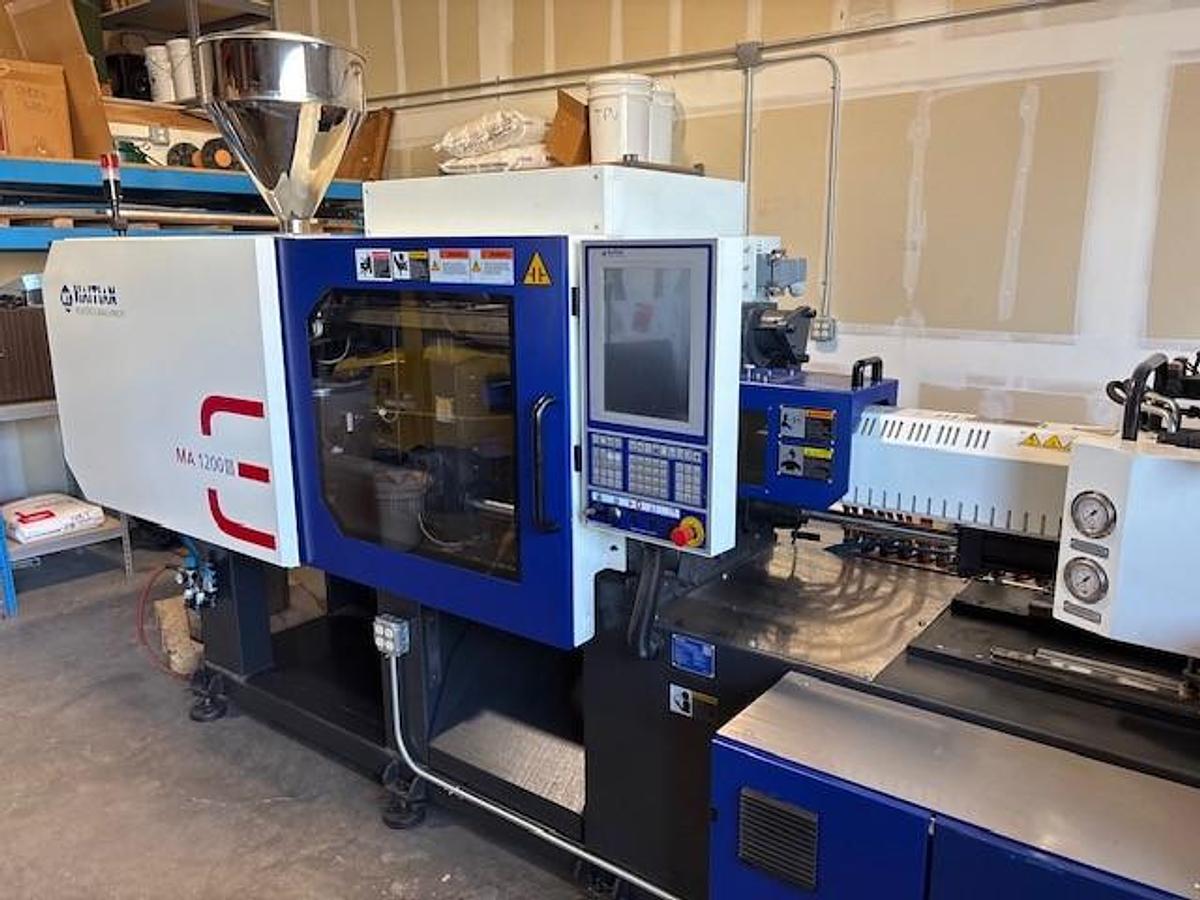

135 Ton, 6.8 oz Haitian MAIII 1200/400 Injection Molding Machine/Low hours
Featured
135 Ton, 6.8 oz Haitian MAIII 1200/400 Injection Molding Machine/Low hours
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Haitian |
| Model | MAIII 1200 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 14504 |
| Model | MAIII 1200/400 |
| US Tonnage | 135 |
| Shot Size (oz. of PS) | 6.8 oz |
| Screw Diameter | 40mm |
| Platen Size (in.) | 24.21" x 24.21" |
| Tiebar Spacing (HxV) in. | 16.14" x 16.14" |
| Max Mold Height (in.) | 17.72" |
| Min Mold Height (in.) | 5.91" |
| Open Daylight (in.) | 31.89" |
| Ejector Stroke (in.) | 4.72" |
| Voltage | 460V/3P/60Hz |
| Amps | 28 FLA |
| Hopper Capacity (lbs) | 55.12 lbs. |
| Machine Length | 191" |
| Machine Width | 47" |
| Machine Height | 81" |
| Machine Weight (lbs) | 9,590 lbs. |
Included Options
Europmap 67 Robot Interface**LESS THAN 2000 HOURS**
