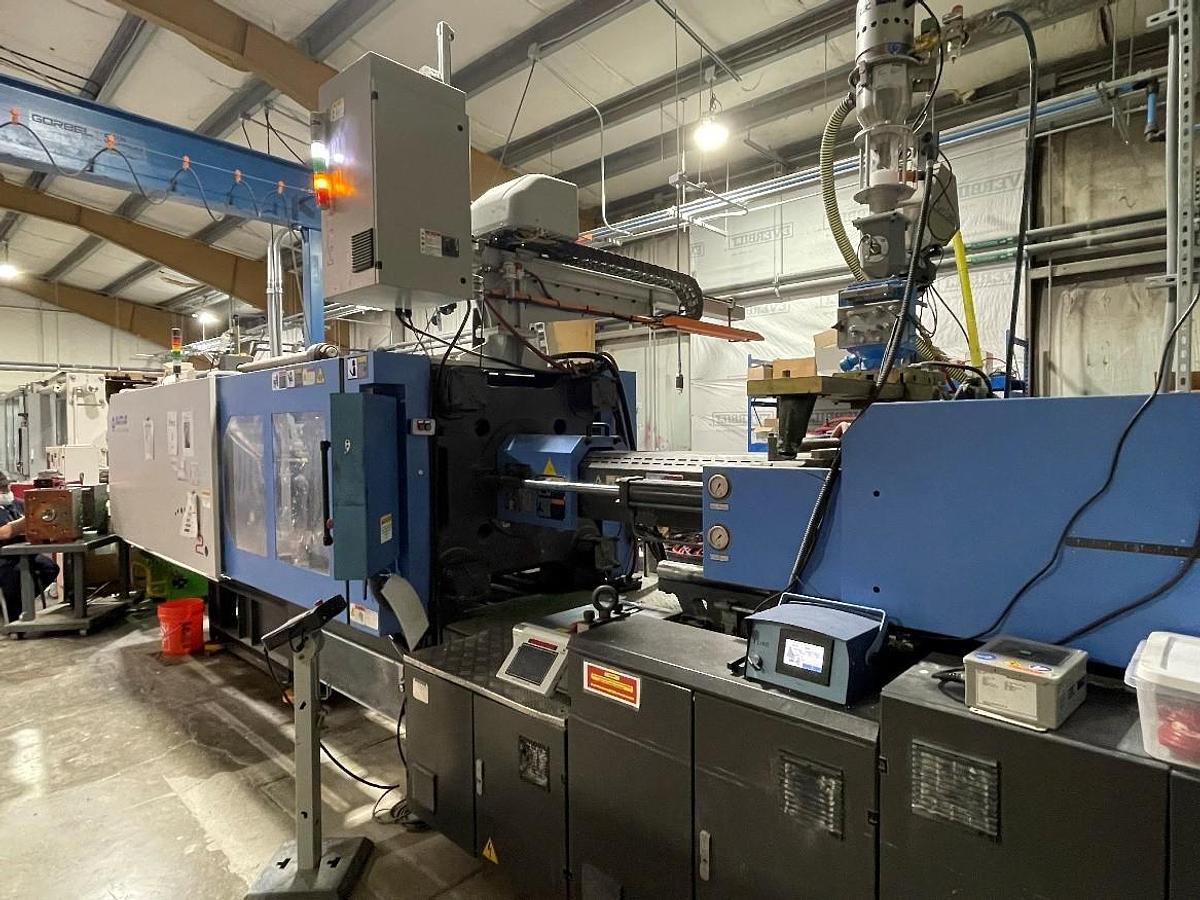

427 Ton, 45.68 Oz., Haitian MA II 3800/2250 Injection Molding Machine w/ARI MaxA05 Robot (2013)
Sold
427 Ton, 45.68 Oz., Haitian MA II 3800/2250 Injection Molding Machine w/ARI MaxA05 Robot (2013)
Specifications
| Manufacturer | Haitian |
| Model | MA II 3800/2250 (C) |
| Year | 2013 |
| Condition | Used |
| Stock Number | 14441 |
| US Tonnage | 427 |
| Shot Size (oz. of PS) | 45.68 |
| Screw Diameter | 75 mm |
| Platen Size (in.) | 41.18 x 41.18 |
| Tiebar Spacing (HxV) in. | 28.74 x 28.74 |
| Max Mold Height (in.) | 28.74 |
| Min Mold Height (in.) | 11.02 |
| Opening Stroke (in.) | 27.56 |
| Open Daylight (in.) | 56.30 |
| Ejector Stroke (in.) | 7.09 |
| Voltage | 460V/3P/60Hz |
Included Options

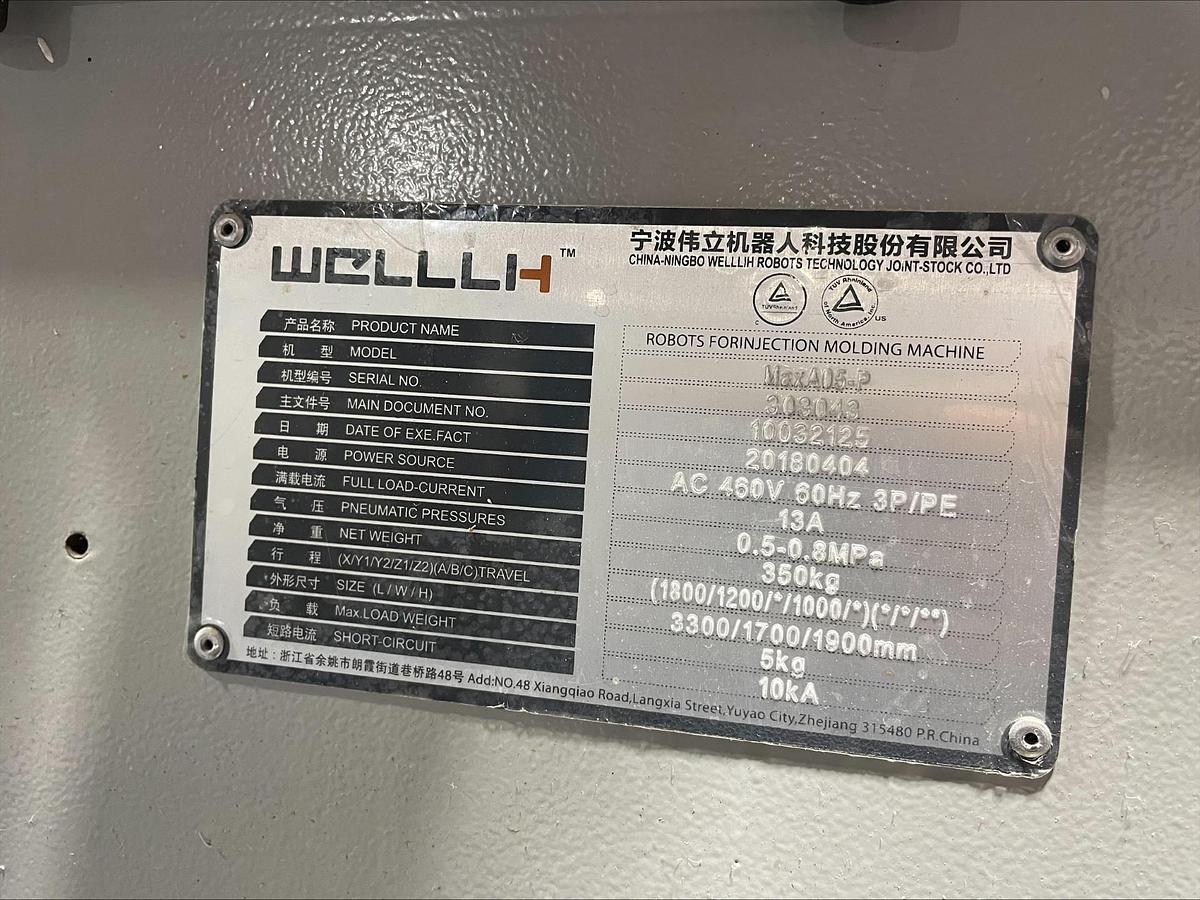

ARI MaxA05-P Robot included with Machine.
Air Blast, Core Pull, Robot Interface
