427 Ton, 65.17 oz Haitian MA 3800/2250 Series II S Injection Molding Machine (2019)
427 Ton, 65.17 oz Haitian MA 3800/2250 Series II S Injection Molding Machine (2019)
Available quantity:1
Description

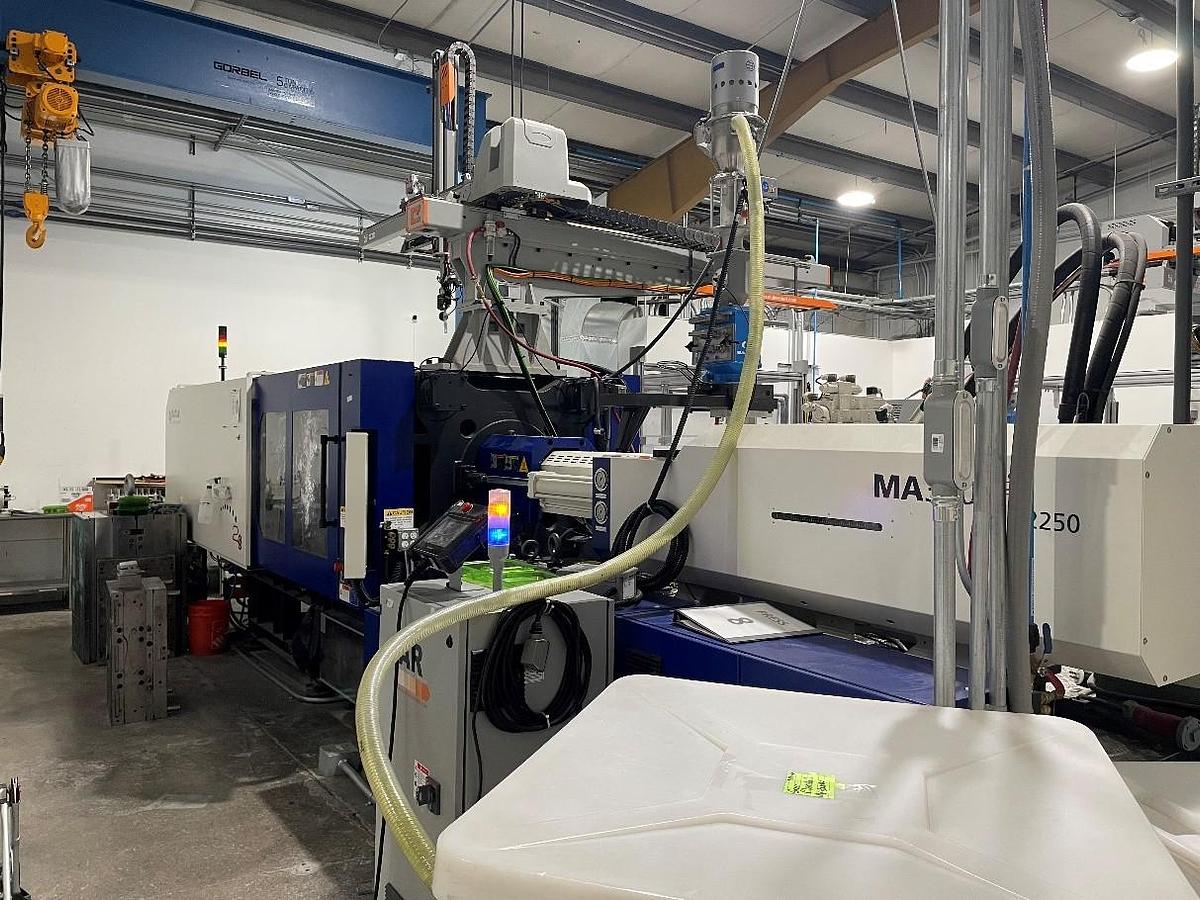

This used Haitian MA 3800/2250 Series II S Injection Molding Machine, manufactured in 2019, offers a robust 427-ton clamping force. It features a shot size of 65.17 ounces with a 65mm screw diameter, making it suitable for high-volume production needs. The machine is designed for efficiency with a platen size of 41.18 inches square and tie bar spacing of 28.74 inches both horizontally and vertically. The versatile mold height accommodates a maximum of 28.74 inches and a minimum of 11.02 inches, along with a generous open daylight of 56.30 inches. This allows for the handling of a range of mold sizes. The ejector stroke spans 7.09 inches, facilitating effective ejection of finished products. Operating on a voltage of 460V/3P/60Hz, it demands a full load amperage of 74, indicating its power efficiency and compatibility with industrial power supplies. Measuring 294 inches in length, 70 inches in width, and 92 inches in height, the machine fits into various production spaces, despite its substantial weight of 32,408 pounds. Its comprehensive design supports extensive injection molding applications, providing reliable performance and durability for industrial use.
Specifications
| Manufacturer | Haitian |
| Model | MA 3800II S |
| Year | 2019 |
| Condition | Used |
| Stock Number | 14430 |
| Model | MA 3800 IIS |
| US Tonnage | 427 |
| Shot Size (oz. of PS) | 65.17 oz |
| Screw Diameter | 65mm |
| Platen Size (in.) | 41.18" x 41.18" |
| Tiebar Spacing (HxV) in. | 28.74" x 28.74" |
| Max Mold Height (in.) | 28.74" |
| Min Mold Height (in.) | 11.02" |
| Open Daylight (in.) | 56.30" |
| Ejector Stroke (in.) | 7.09" |
| Voltage | 460V/3P/60Hz |
| Amps | 74 FLA |
| Length (in) | 294" |
| Width (in) | 70" |
| Height (in) | 92" |
| Machine Weight (lbs) | 32,408 |
