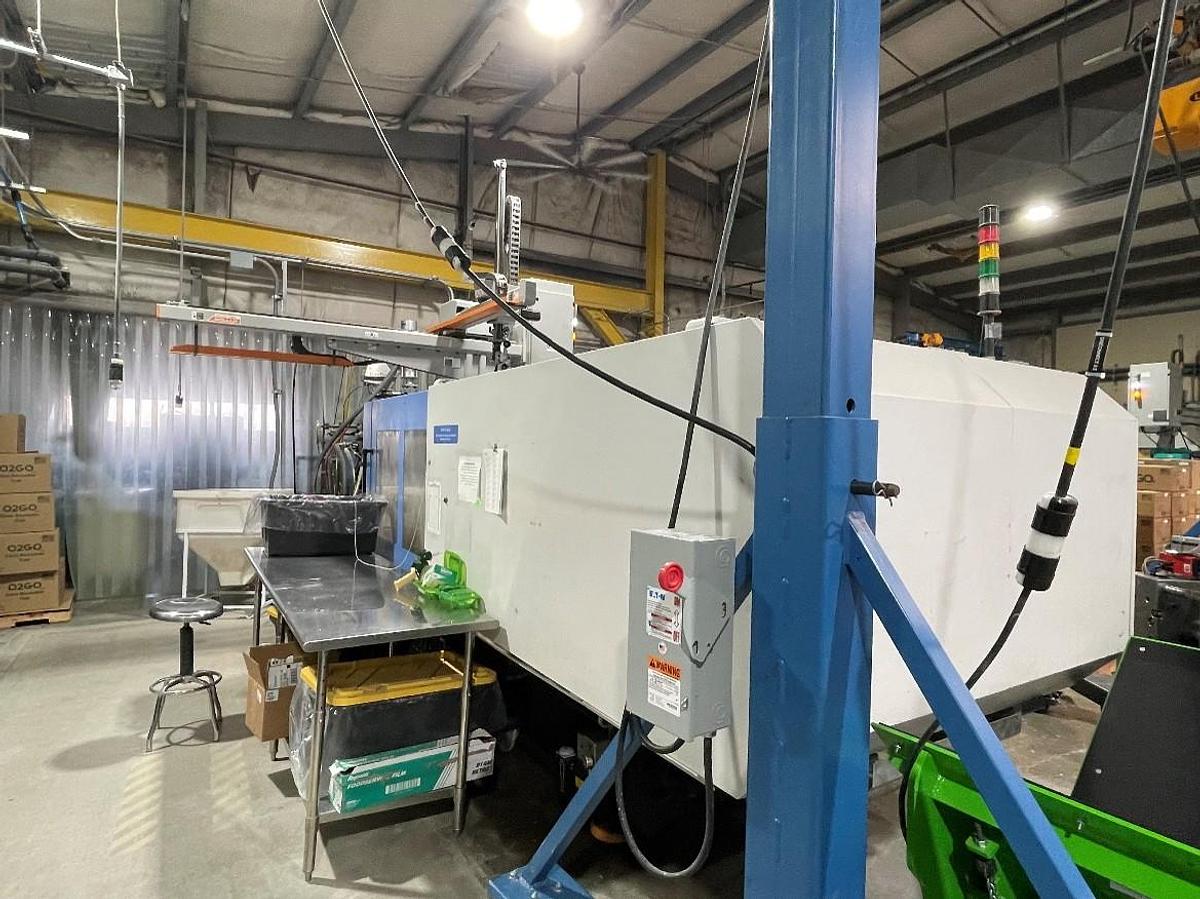

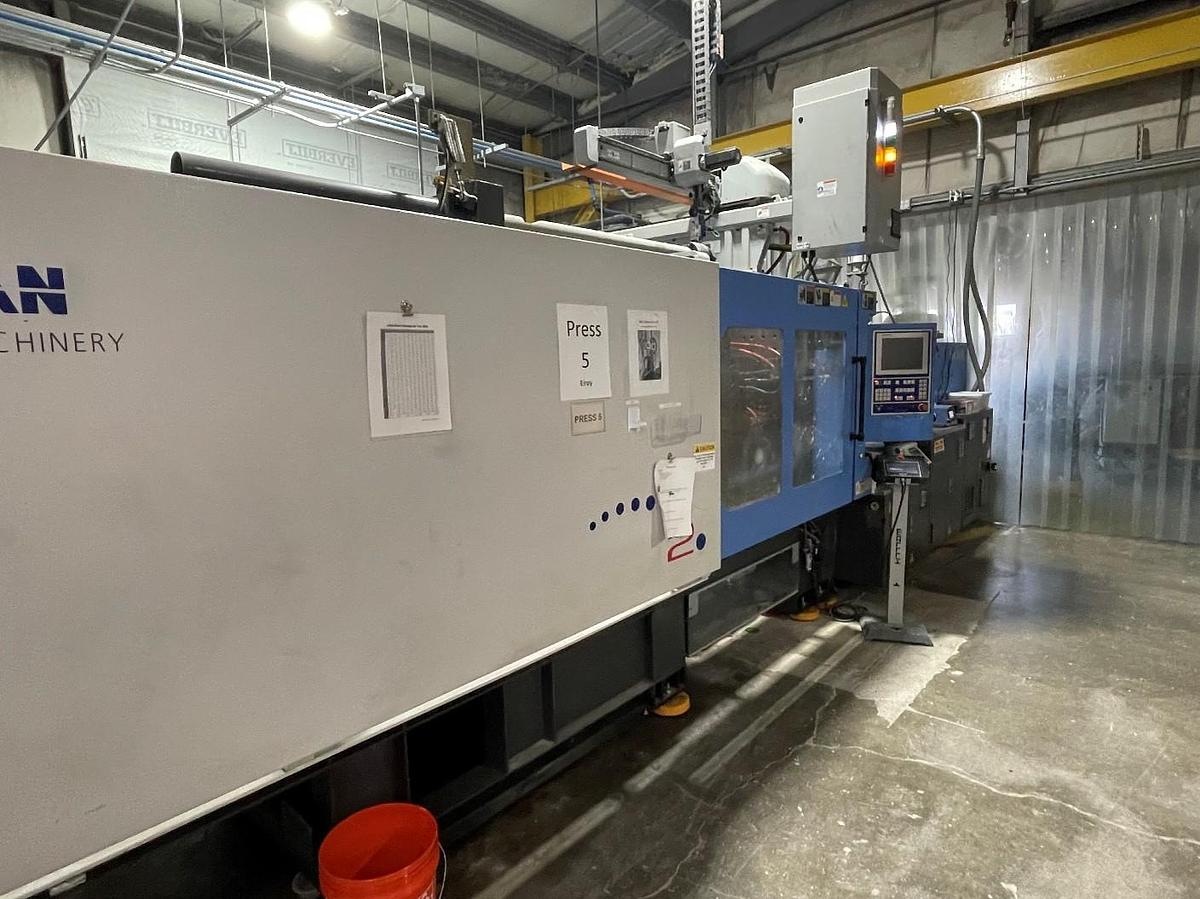

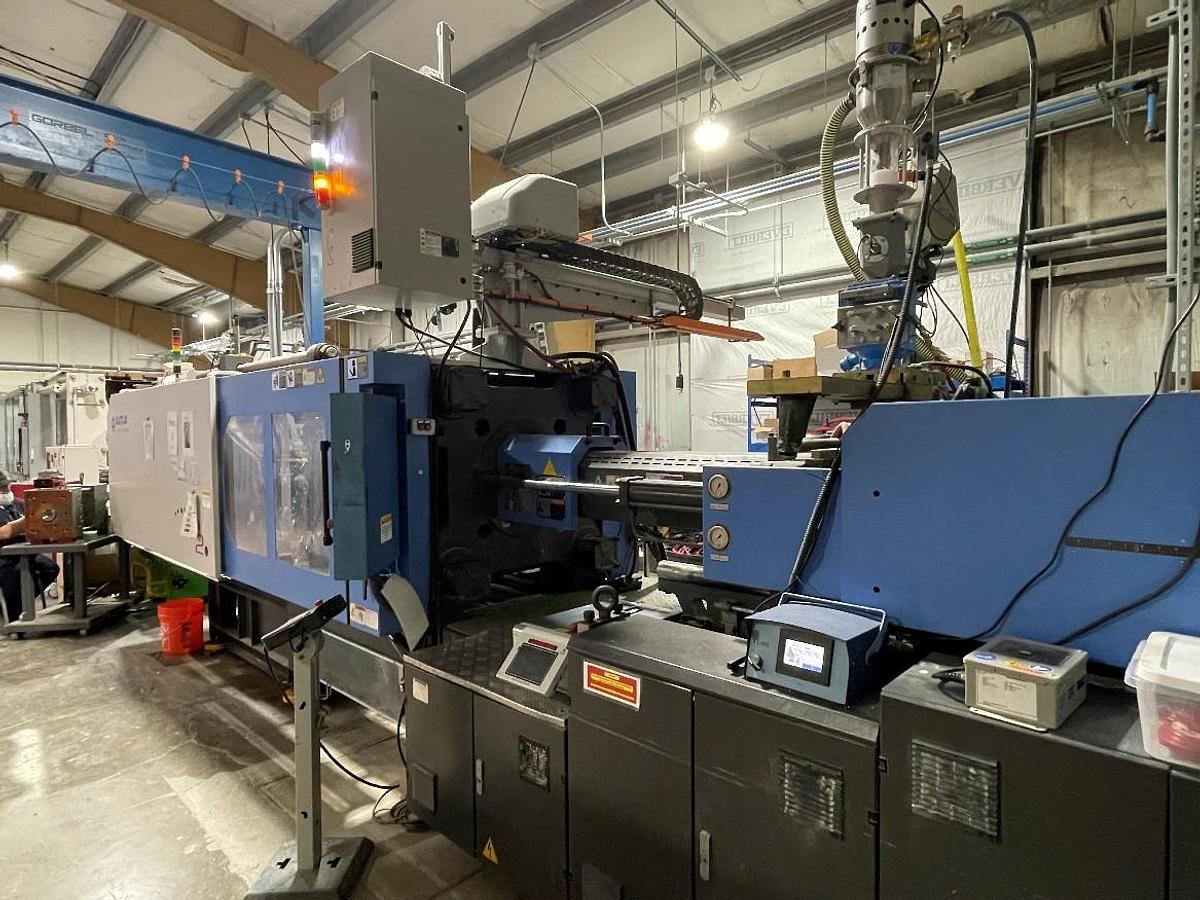

427 Ton, 86.8 oz Haitian MA 3800/2250 Series II Injection Molding Machine (2013)

The 427 Ton Haitian MA 3800/2250 Series II Injection Molding Machine, manufactured in 2013, is a used horizontal plastic machinery suitable for large-scale production. With a shot size of 86.8 ounces and a screw diameter of 75mm, this machine is ideal for handling significant molding tasks efficiently. The machine’s platen size measures 4.145" x 41.18", providing ample space for various mold sizes. It has a tiebar spacing of 28.74" x 28.74", accommodating molds of different dimensions with a maximum mold height of 28.74 inches. Designed for flexibility, its ejector stroke reaches 7.09 inches, and it offers a notable open daylight measurement of 56.30 inches, enhancing its adaptability to varied production needs. The machine operates on 460V/3P/60Hz power, ensuring it delivers robust performance consistently. Although it is substantial in size, with a length of 312 inches, width of 79 inches, and height of 95 inches, its operational weight is 32,414 pounds, highlighting its solid construction and durability. This machine is a reliable choice for manufacturers seeking a proven and efficient solution for injection molding tasks in the 301-500 ton range. The Haitian MA 3800/2250 Series II balances power and precision, making it a valuable asset in any production facility that prioritizes efficiency and high-quality output.
