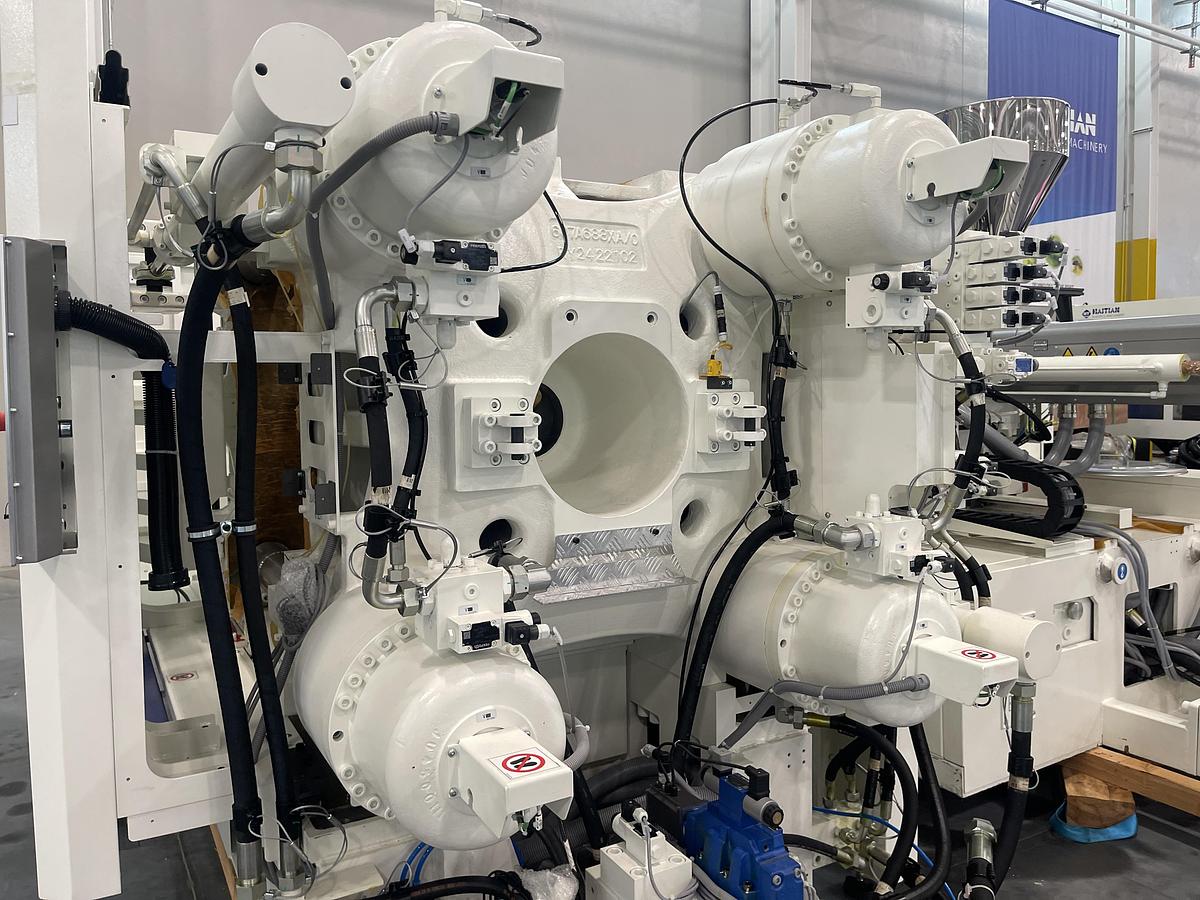

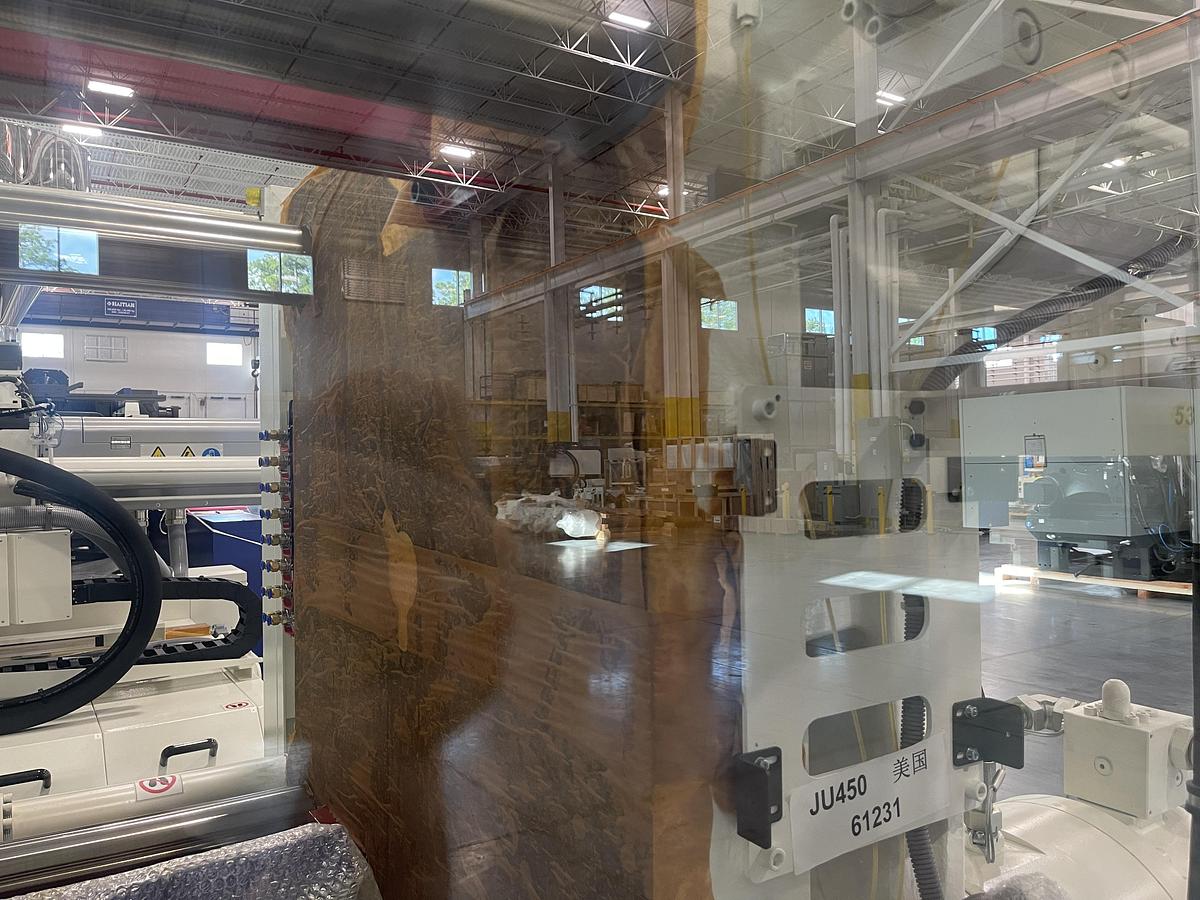

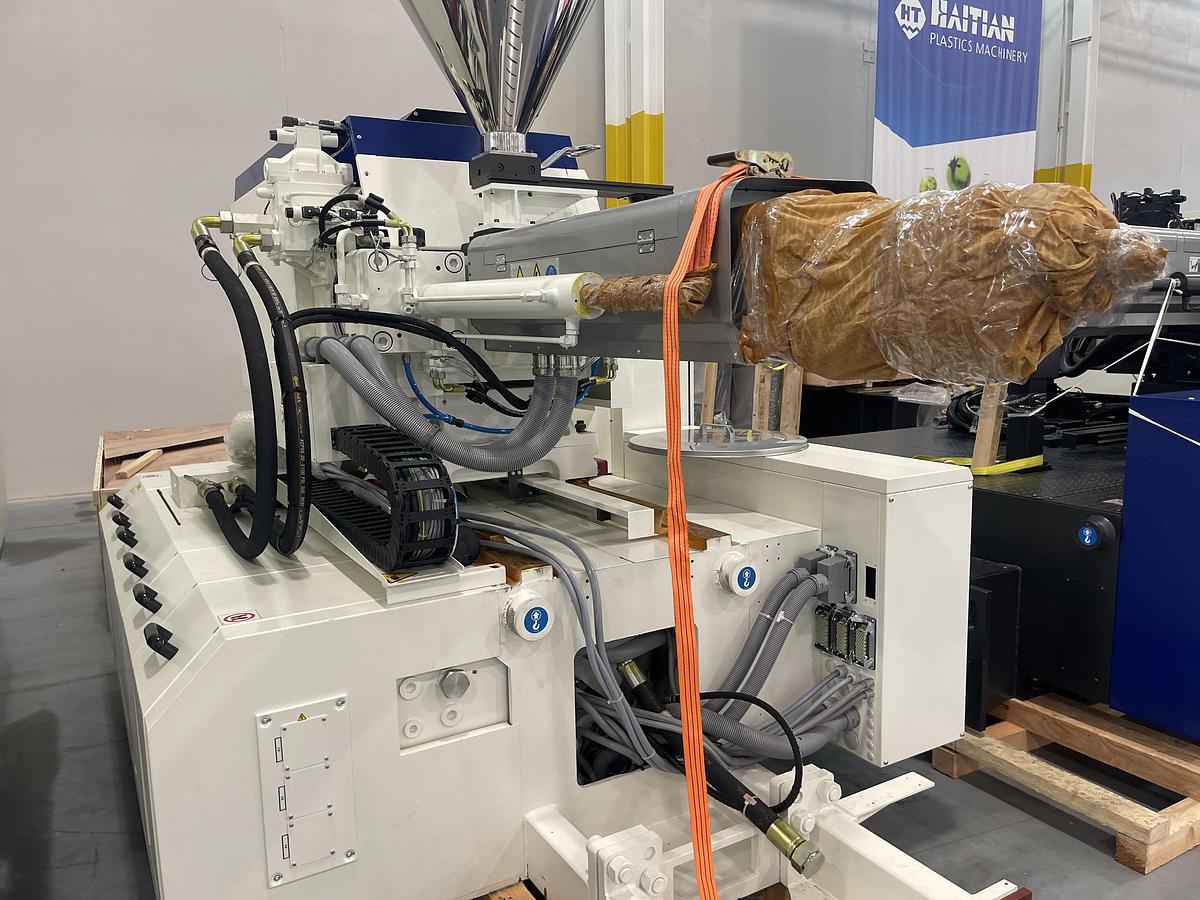

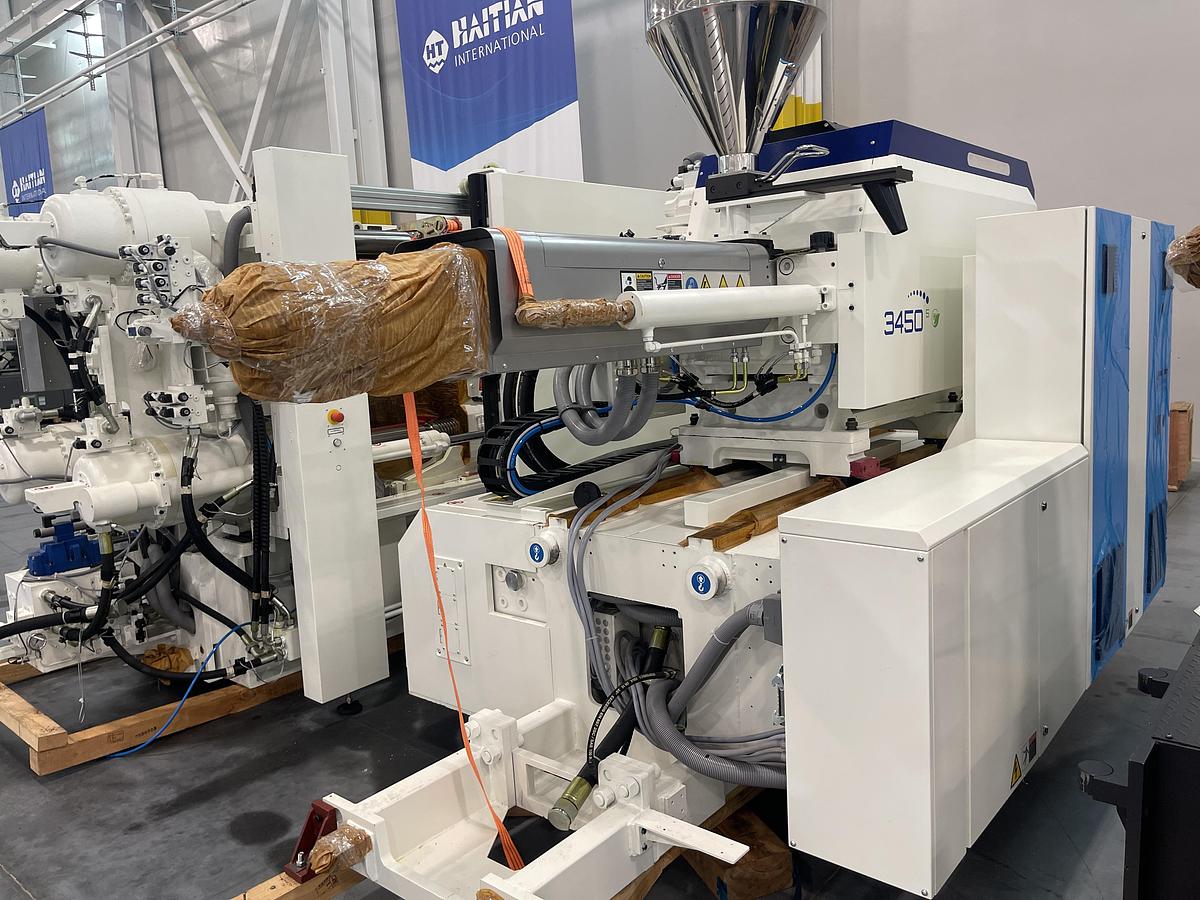

506 Ton, 45.6 oz Haitian JUV 4500/3450 Injection Molding Machine (2025)
506 Ton, 45.6 oz Haitian JUV 4500/3450 Injection Molding Machine (2025)
Available quantity:1
Description
The 506 Ton Haitian JUV 4500/3450 Injection Molding Machine, manufactured in 2025, exemplifies advanced plastic machinery with its robust capabilities. It boasts a clamping force of 506 tons and a shot size of 45.6 ounces, making it suitable for a variety of injection molding applications. The machine is equipped with a 70mm screw, providing efficient material processing. The machine features a substantial platen size of 42.91 inches by 46.46 inches, with tie bar spacing measured at 31.89 inches both horizontally and vertically. It accommodates molds of varying heights, with a minimum mold height of 13.78 inches and a maximum height of 33.46 inches. The opening stroke ranges from 21.65 inches to 41.34 inches, ensuring versatility in mold handling, while the maximum mold weight capacity is 14,330 pounds. Powered by a KEBA control system, the machine operates on a voltage of 460V/3P/60Hz, emphasizing its industrial-grade efficiency. The hopper can hold 110 pounds of material, facilitating consistent operation. With an overall machine weight of 46,297 pounds, this injection molding machine is a reliable and sturdy option for high-demand production environments.
Specifications

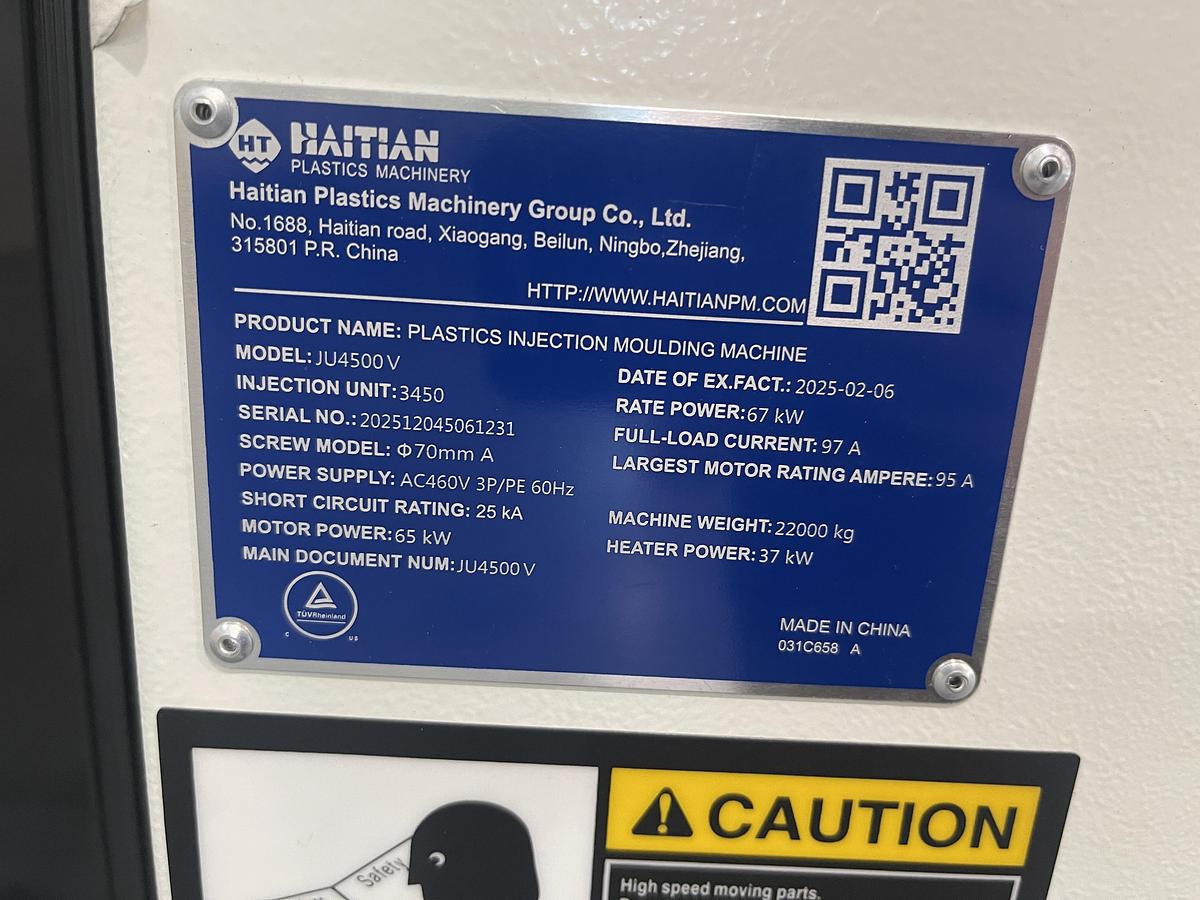

| Manufacturer | Haitian |
| Model | JUV 4500/3450 |
| Year | 2025 |
| Condition | New |
| Stock Number | 14340 |
| Model | JUV 4500/3450 |
| US Tonnage | 506 |
| Shot Size (oz. of PS) | 45.6 |
| Screw Diameter | 70mm (2.75") |
| Platen Size (in.) | 42.91" x 46.46" |

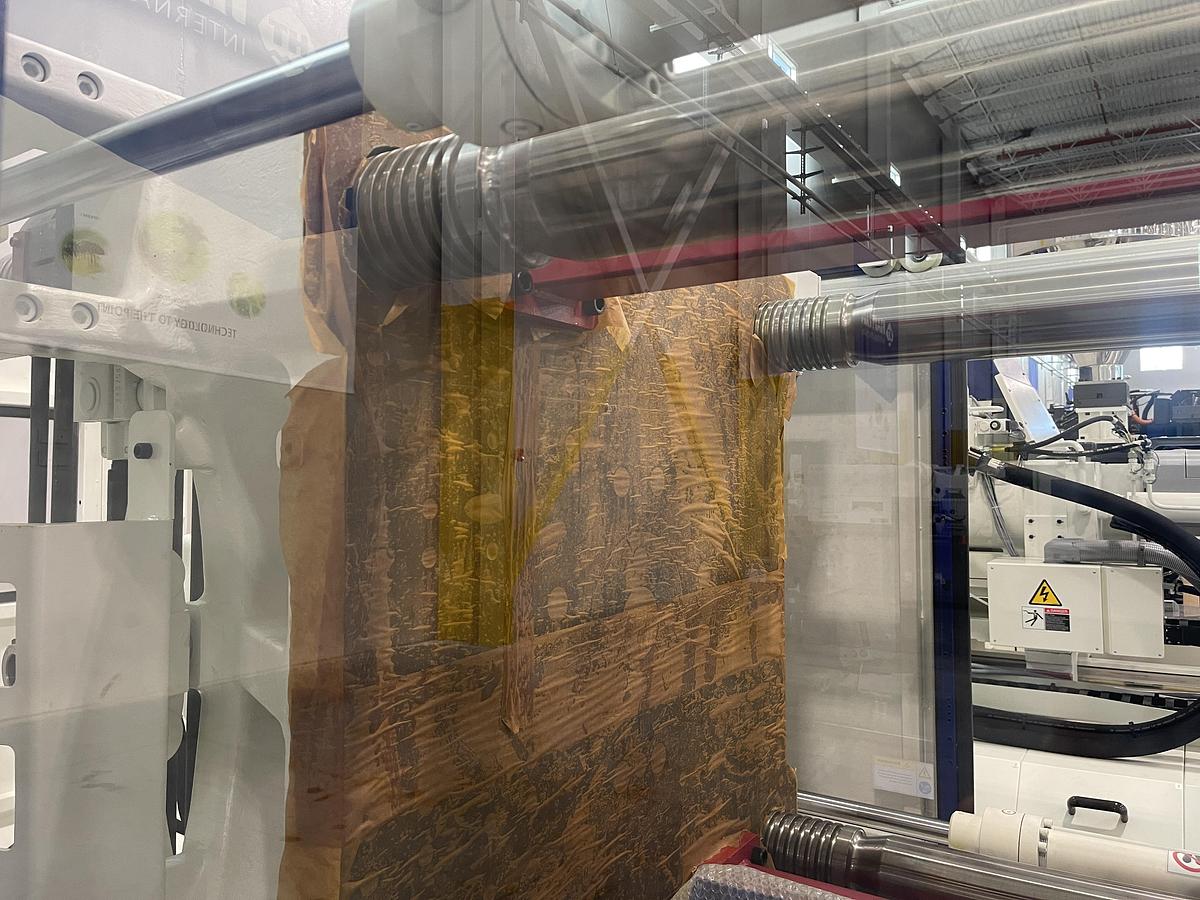

| Tiebar Spacing (HxV) in. | 31.89" x 31.89" |
| Max Mold Height (in.) | 33.46" |
| Min Mold Height (in.) | 13.78" |
| Max Mold Weight (lbs.) | 14,330 |
| Opening Stroke (in.) | 21.65 min - 41.34" max |
| Open Daylight (in.) | 55.12" |
| Ejector Stroke (in.) | 9.84" |

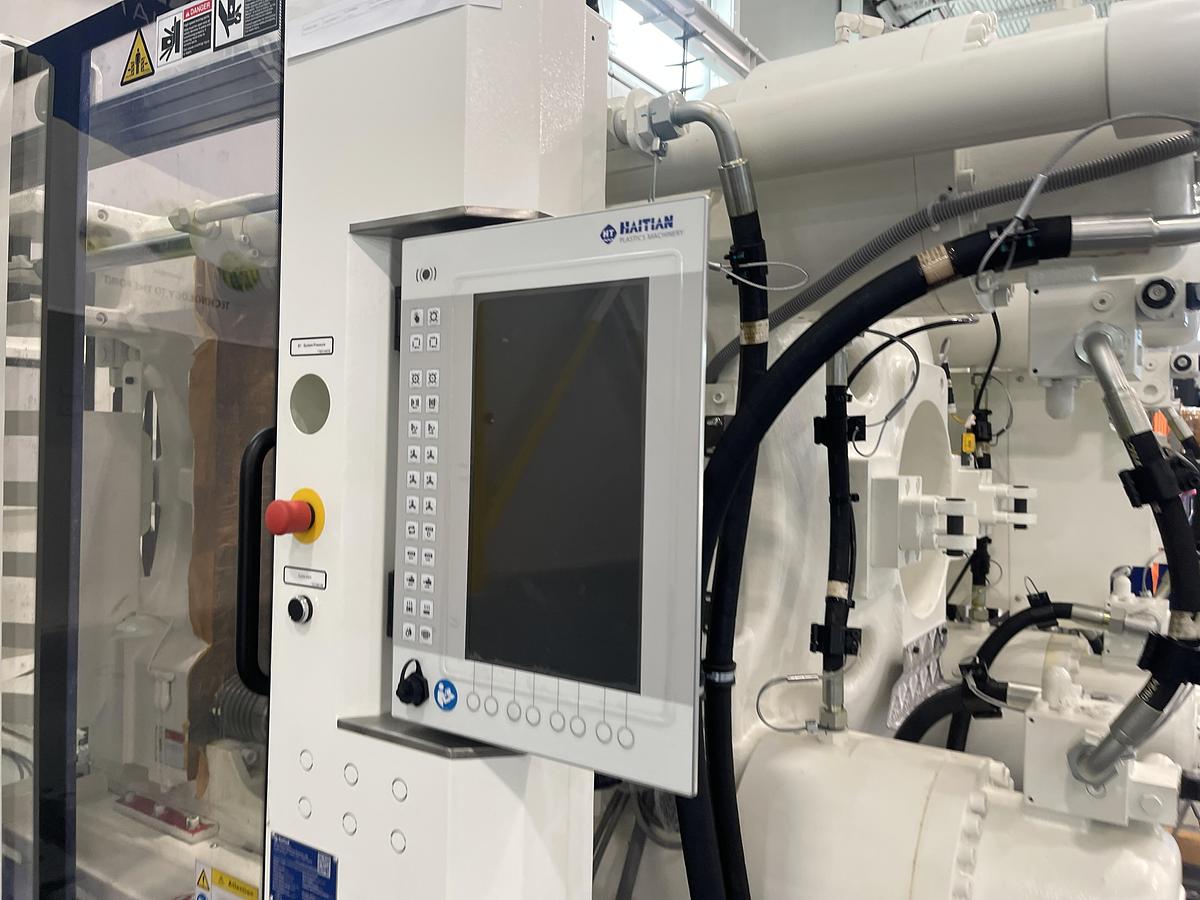

| Control | KEBA |
| Voltage | 460V/3P/60Hz |
| Hopper Capacity | 110 lbs. |
| Machine Weight (lbs.) | 46,297 |
