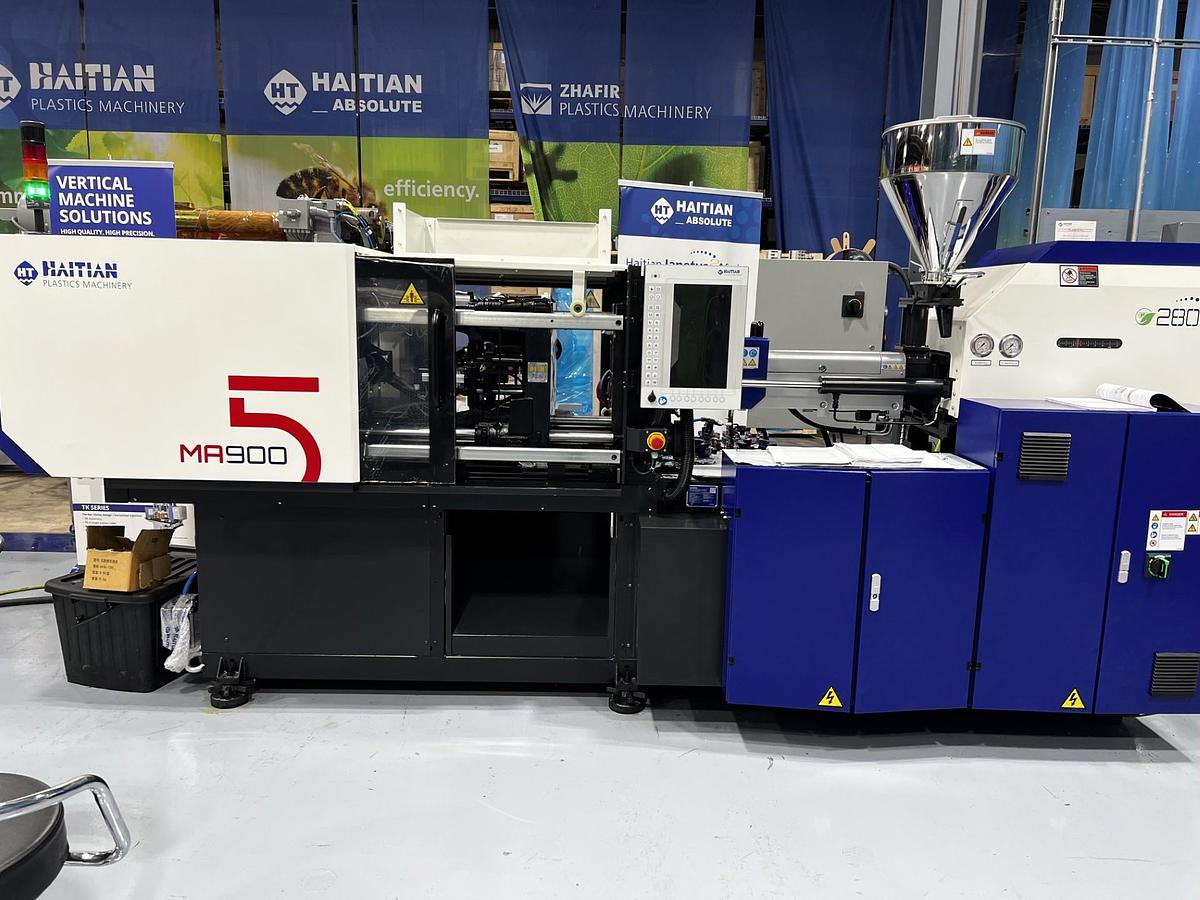

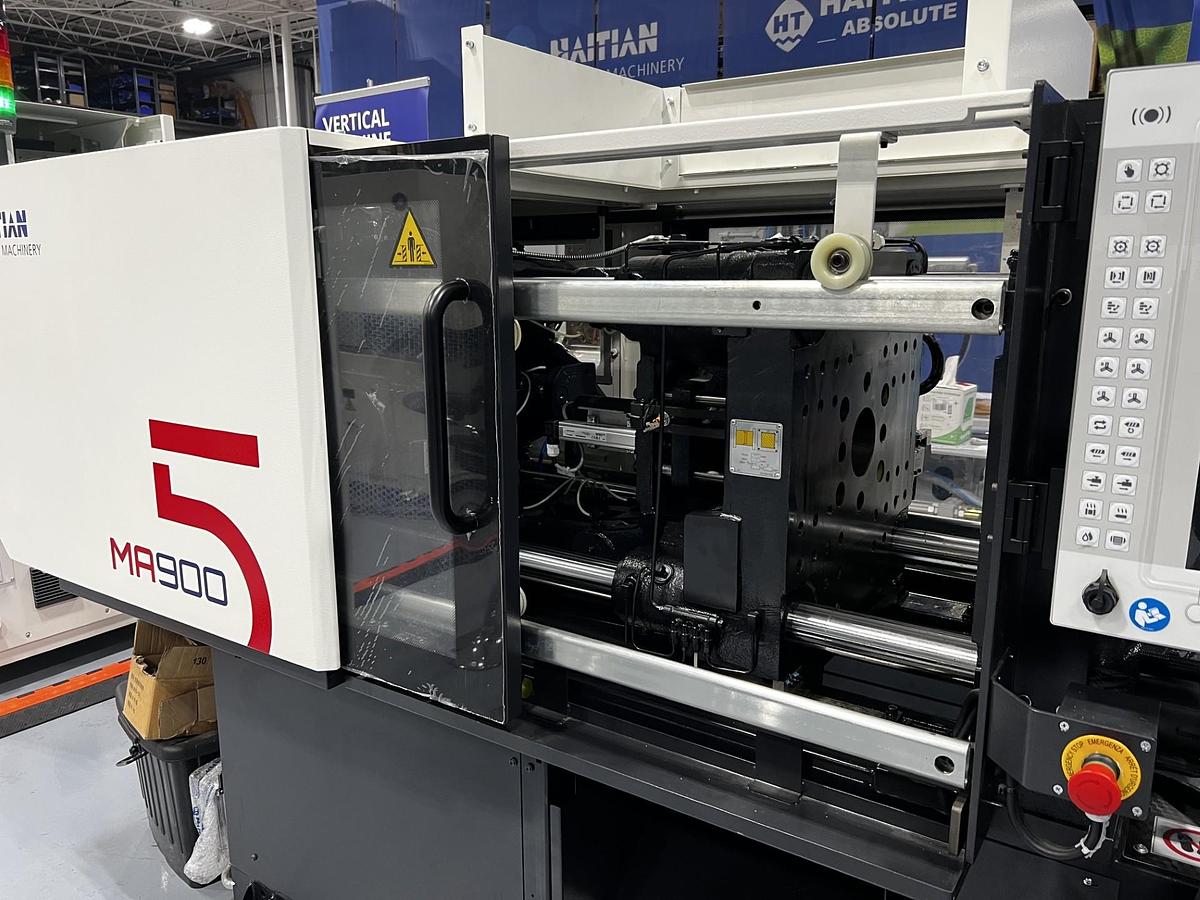

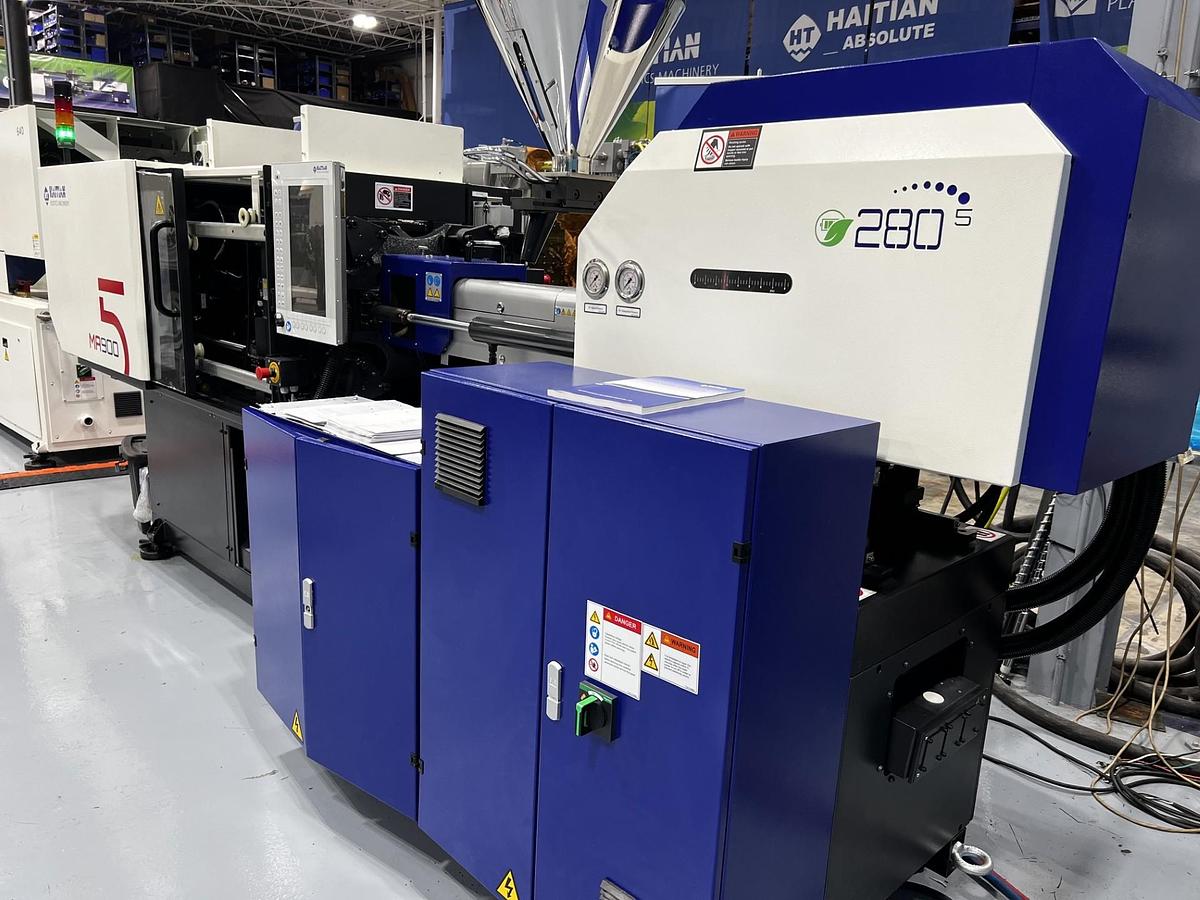

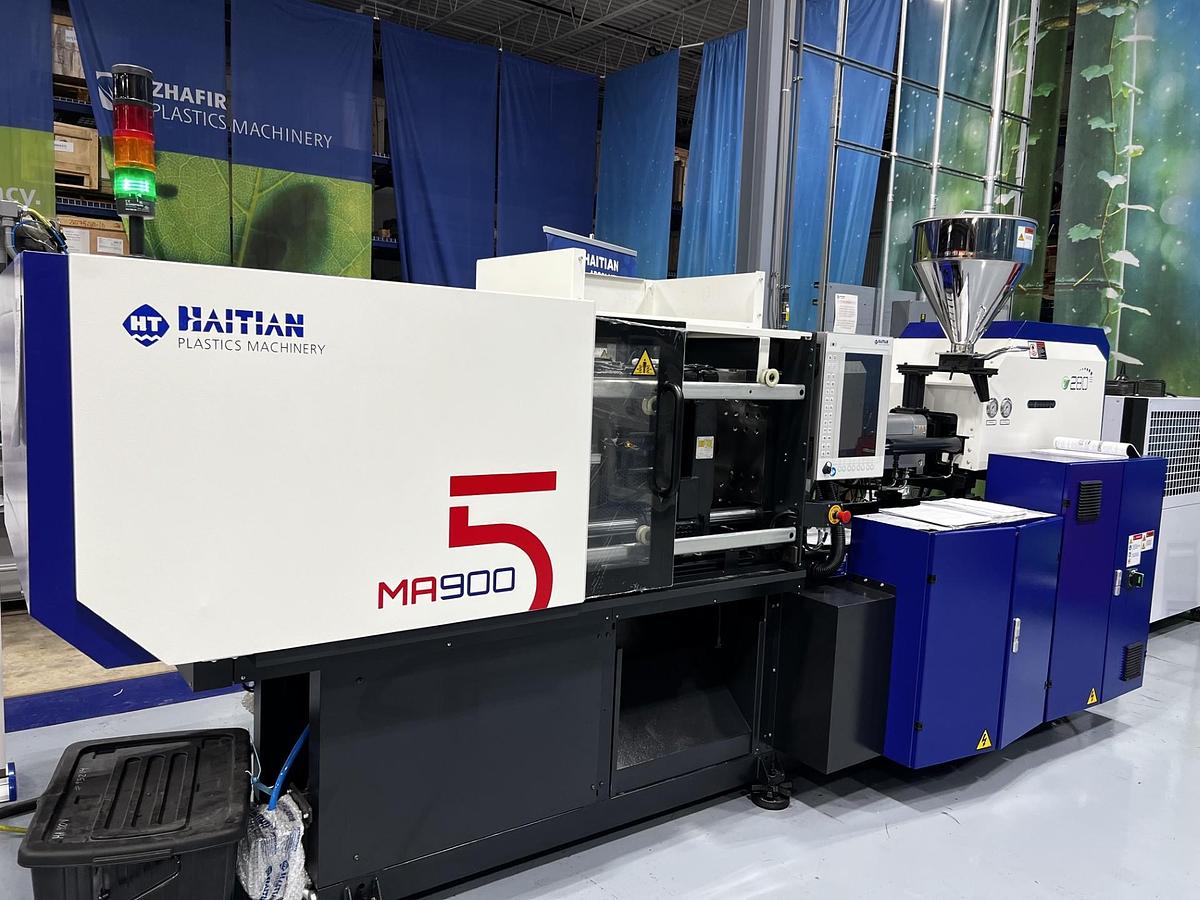

101 Ton, 4.86 oz Haitian MAV 900/280 Injection Molding Machine (2024)
101 Ton, 4.86 oz Haitian MAV 900/280 Injection Molding Machine (2024)
Available quantity:1
Description
The Haitian MAV 900/280 Injection Molding Machine is a new, robust solution for your plastic manufacturing needs. With a clamping force of 101 tons, this machine is designed for efficiency and reliability in producing high-quality plastic components. Featuring a 4.86 oz shot size, a 36mm (1.42") screw diameter, and a compact design, it accommodates a versatile range of injection molding applications. The machine’s platen size is 21.26" x 21.14" with tiebar spacing of 14.17" x 14.17", allowing for flexible mold configuration. It offers a maximum mold height of 15.35" and a minimum of 5.91", along with an opening stroke of 12.2" and an open daylight of 27.56". The KEBA control system ensures precise and user-friendly operation, while the ejector stroke of 3.94" aids in efficient production cycles. Built for industrial environments, the machine operates at 460V/3P/60Hz and features a 55 lbs. hopper capacity. Weighing 6,834 lbs., the Haitian MAV 900/280 combines strength with innovation, meeting a broad spectrum of plastic molding demands. This machine represents a valuable addition to any manufacturing floor, offering consistent performance and energy efficiency.
Specifications
| Manufacturer | Haitian |
| Model | MAV 900/280 |
| Year | 2024 |
| Condition | New |
| Stock Number | 14339 |
| Model | MAV 900/280 |
| US Tonnage | 101 |
| Shot Size (oz. of PS) | 4.86 |
| Screw Diameter | 36mm (1.42") |
| Platen Size (in.) | 21.26" x 21.14"27.56" |
| Tiebar Spacing (HxV) in. | 14.17" x 14.17" |
| Max Mold Height (in.) | 15.35" |
| Min Mold Height (in.) | 5.91" |
| Opening Stroke (in.) | 12.2" |
| Open Daylight (in.) | 27.56" |
| Ejector Stroke (in.) | 3.94" |
| Control | KEBA |
| Voltage | 460V/3P/60Hz |
| Hopper Capacity | 55 lbs. |
| Machine Weight (lbs) | 6,834 |
