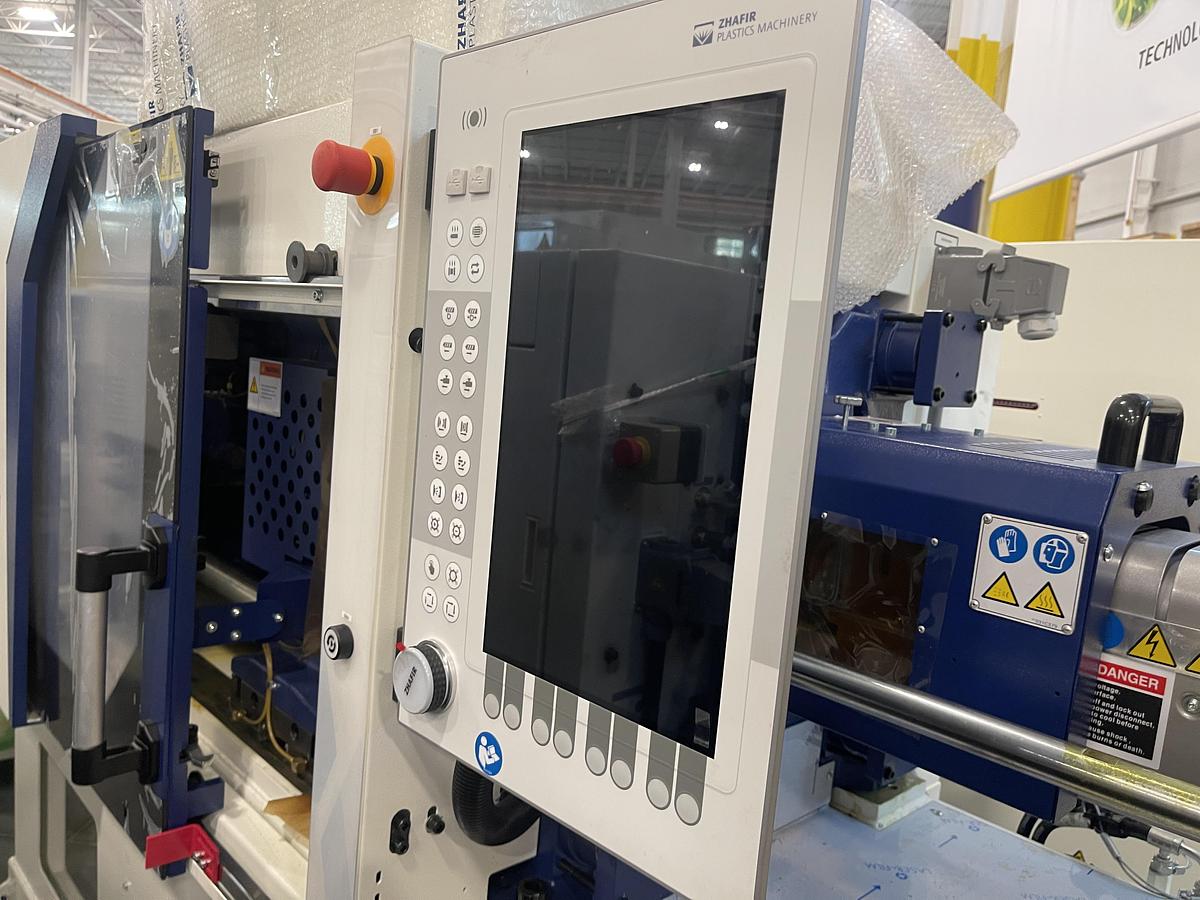

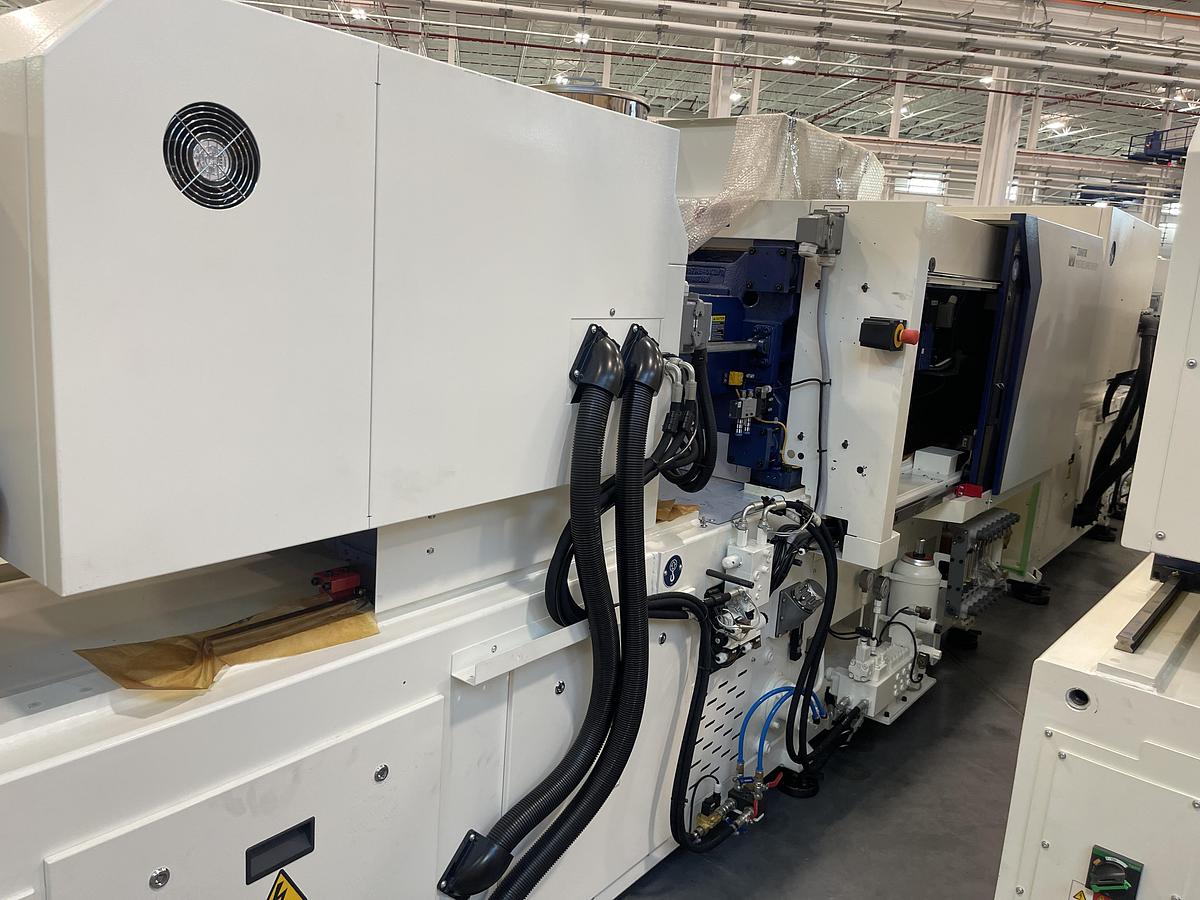

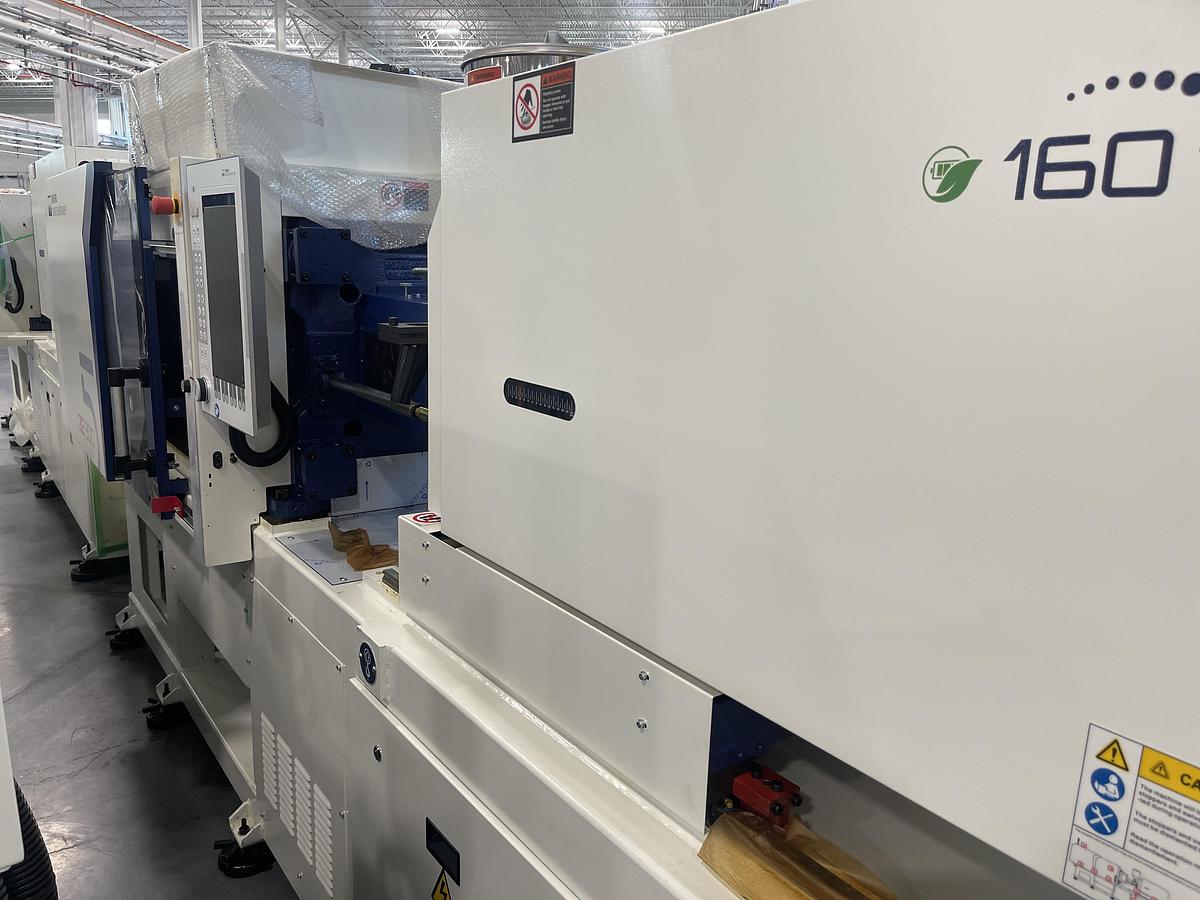

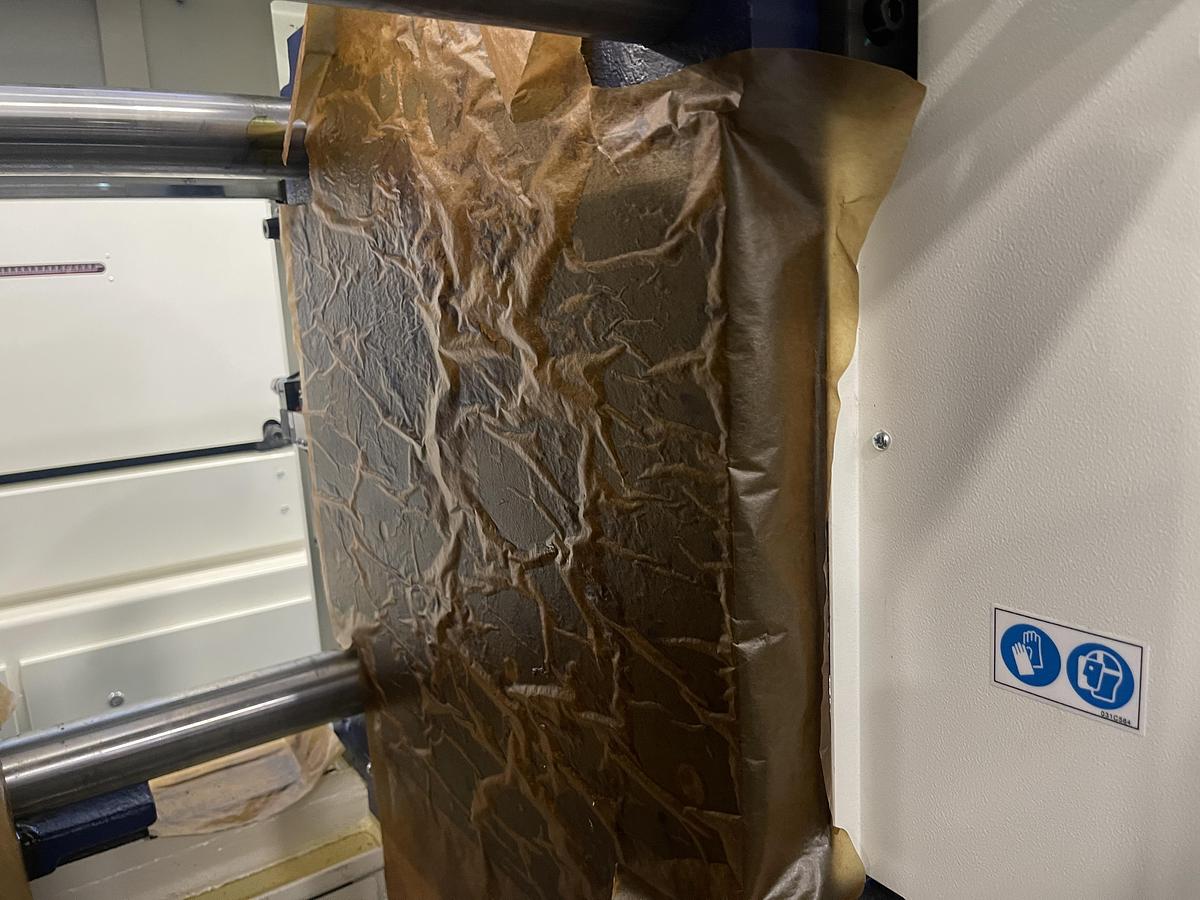

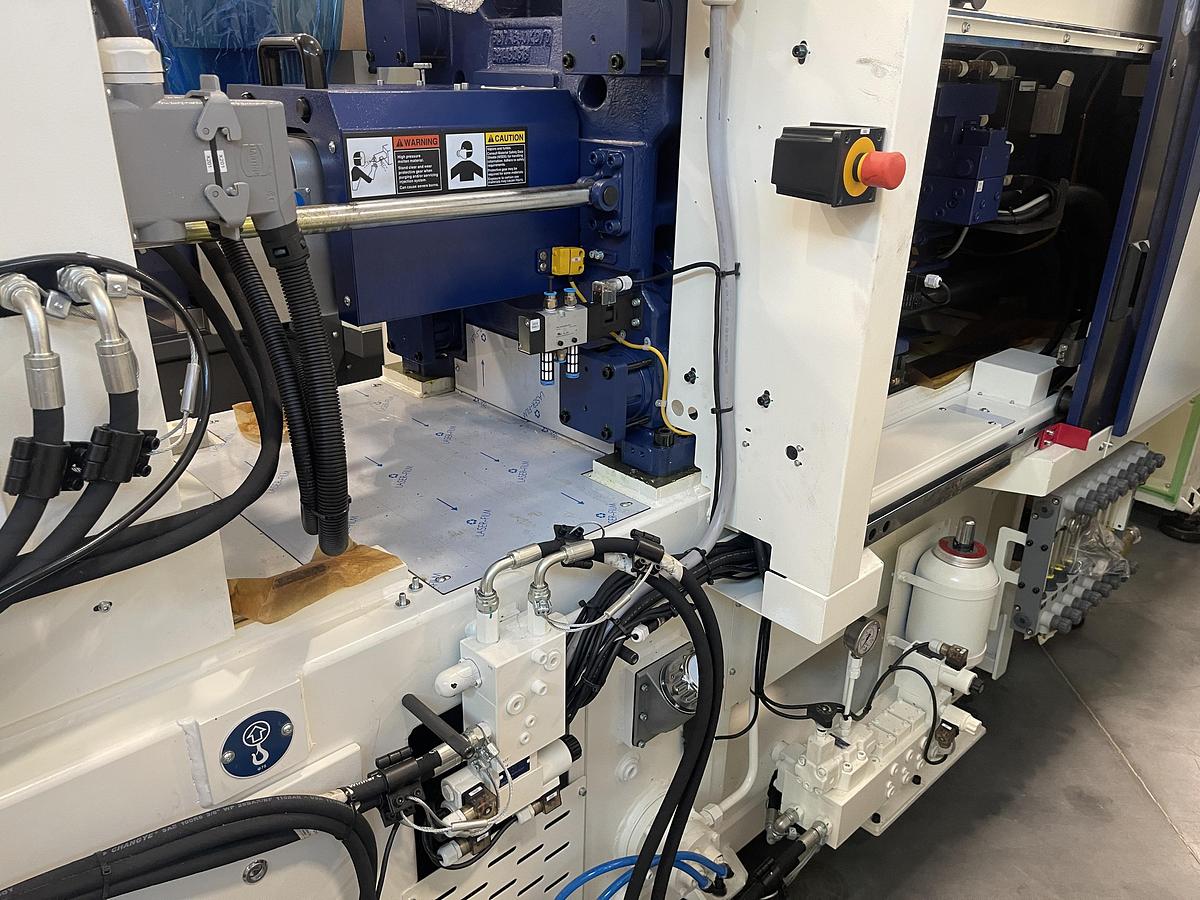

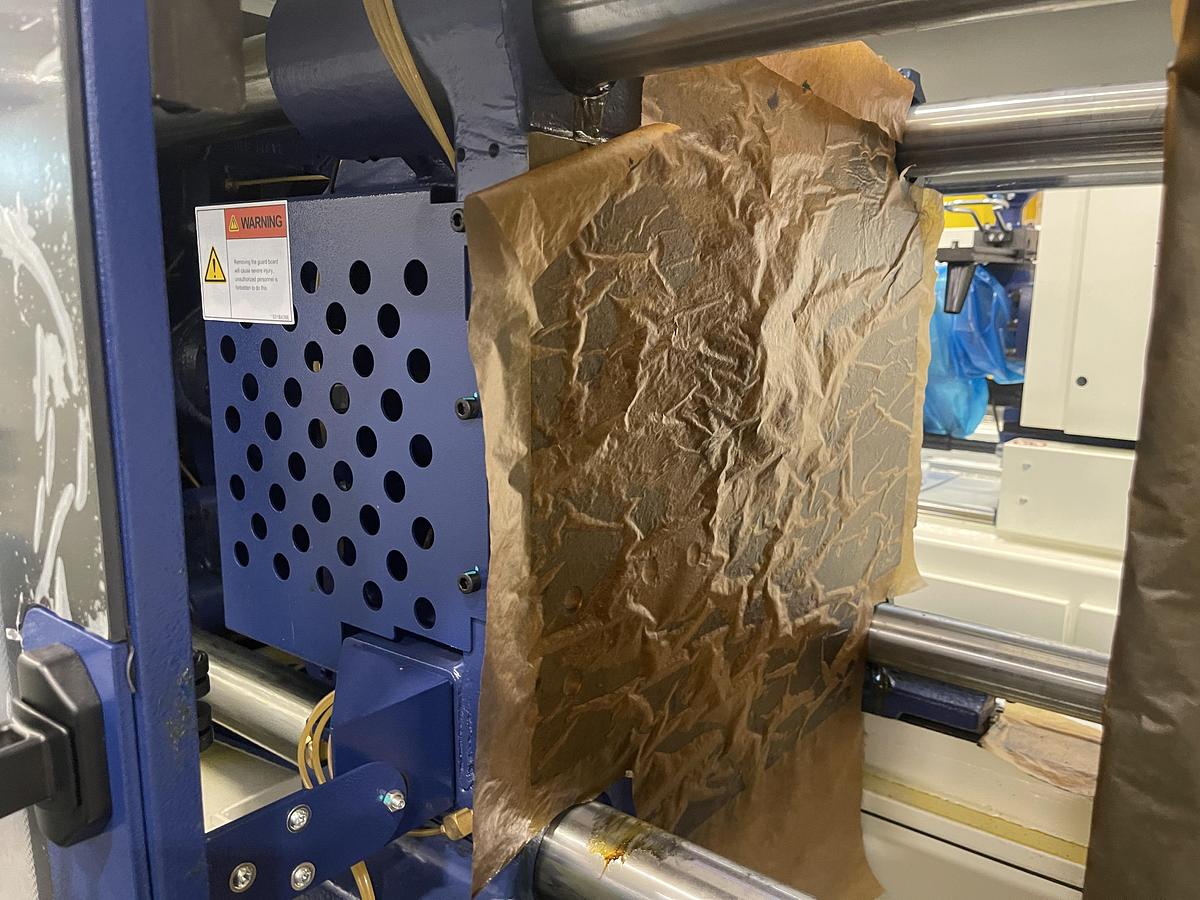

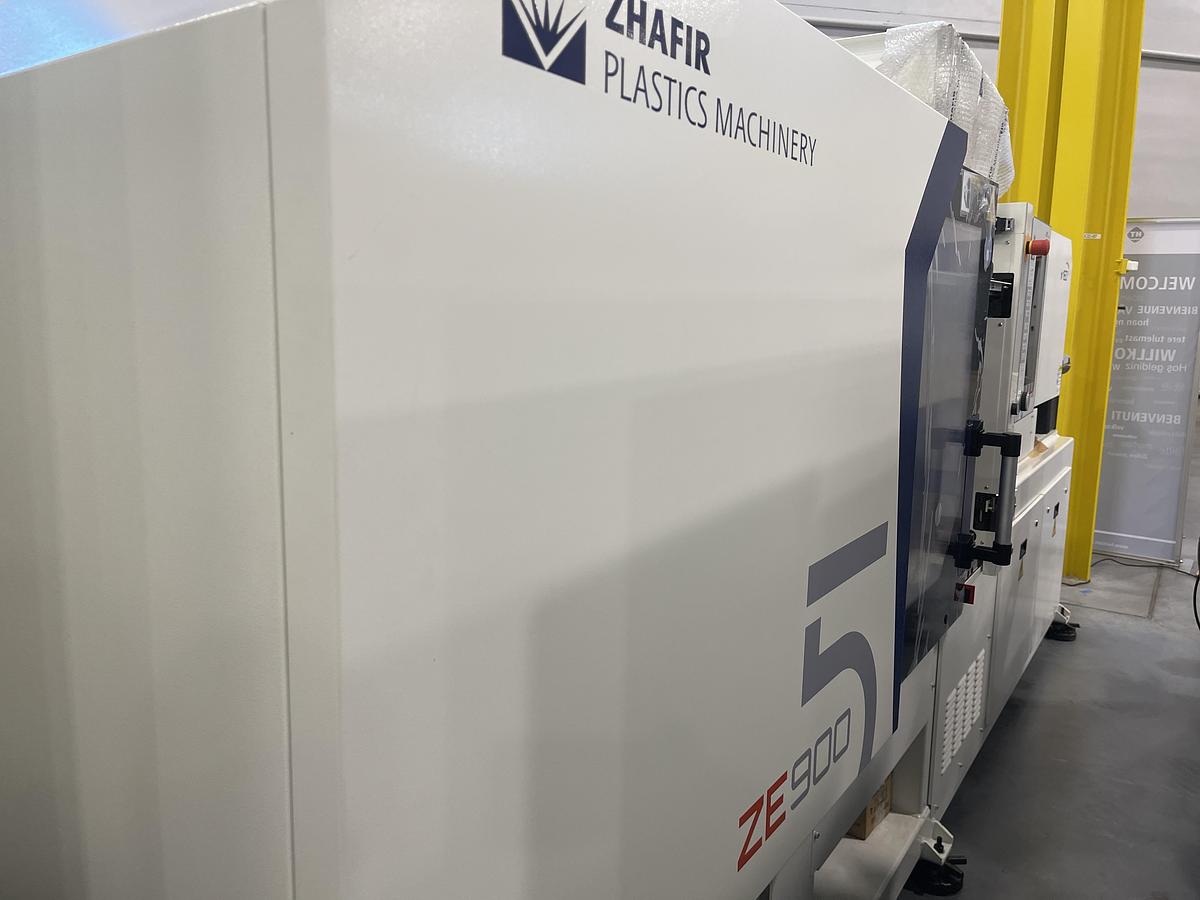

101 Ton, 2.15 oz Haitian ZEV 900/160 Injection Molding Machine (2024)

The Haitian ZEV 900/160 is a new injection molding machine designed for efficiency and precision in plastic production. With a clamping force of 101 tons, this machine is suitable for medium-scale manufacturing processes requiring durable and high-quality output. The machine features a shot size of 2.15 ounces and a screw diameter of 28mm, allowing for accurate material injection and consistent product quality. Measuring 22.83 inches by 22.83 inches, the platen size accommodates moderate-size molds, while the 16.54 inches by 16.54 inches tiebar spacing offers flexibility for various mold configurations. The machine supports varying mold heights with a maximum of 16.14 inches and a minimum of 5.91 inches, along with an opening stroke of 12.6 inches and an open daylight of 28.74 inches, enabling a broad range of operations. Equipped with a KEBA control system, the ZEV 900/160 offers reliable and user-friendly operation. It operates on a voltage of 460V/3P/60Hz. The machine includes a 4-gallon hopper and boasts an ejector stroke of 3.15 inches to ensure efficient material handling. Weighing 8,356 pounds, this robust machine is suitable for a variety of industrial environments.
