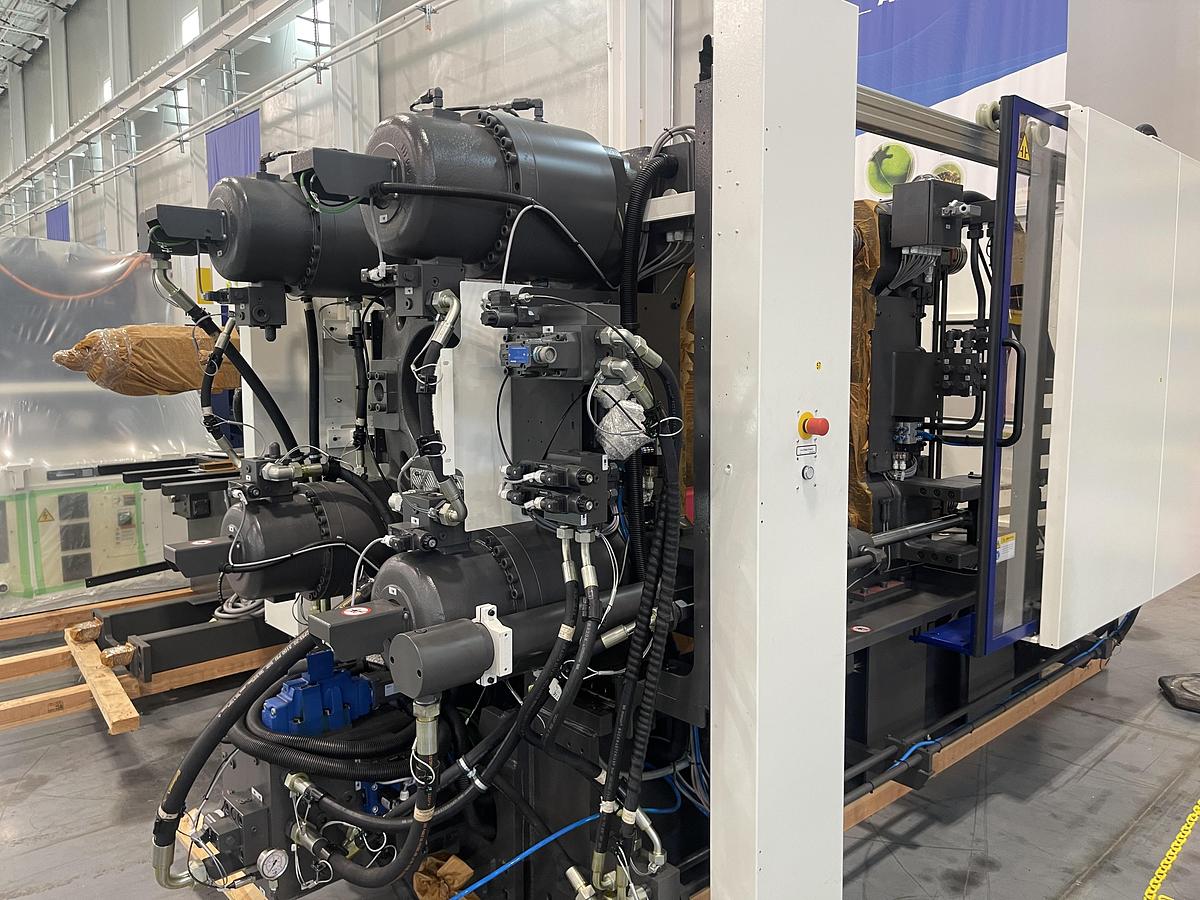

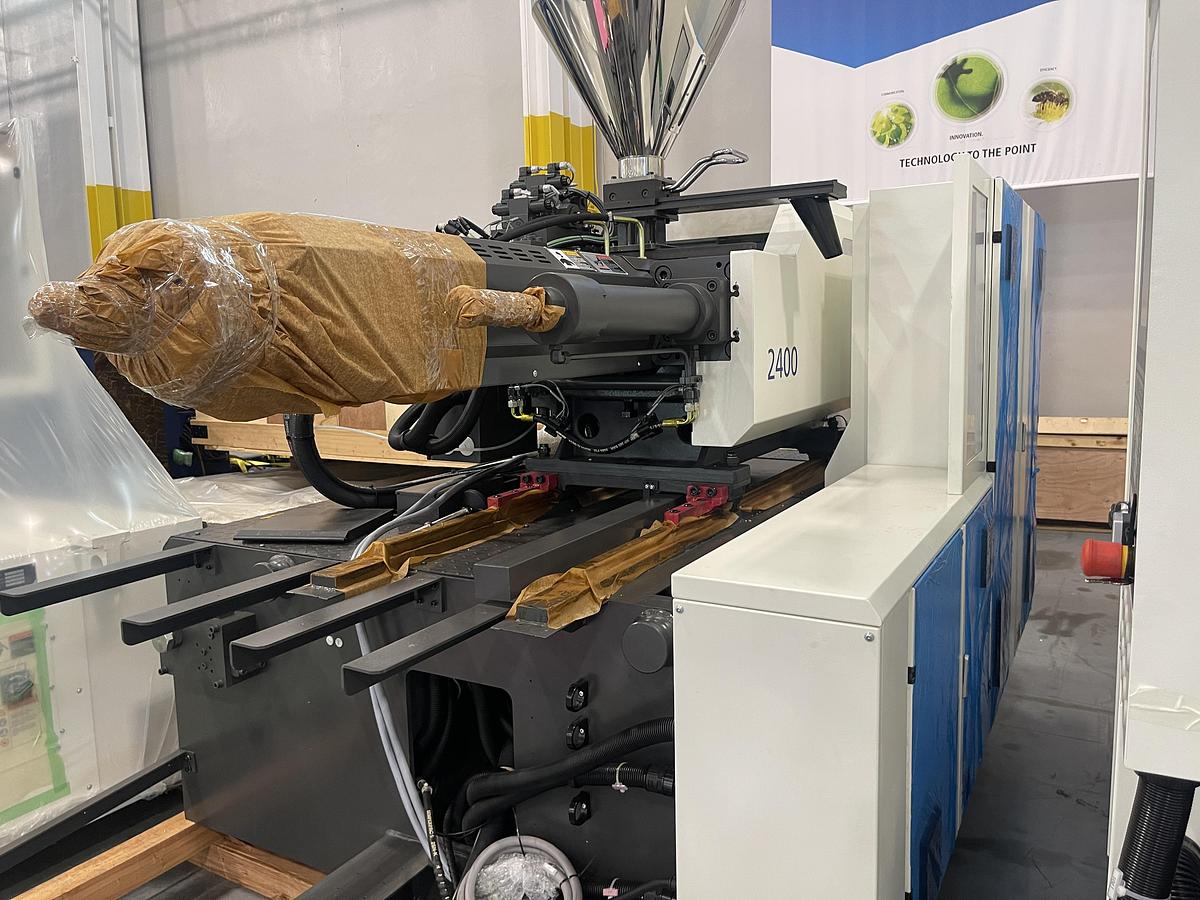

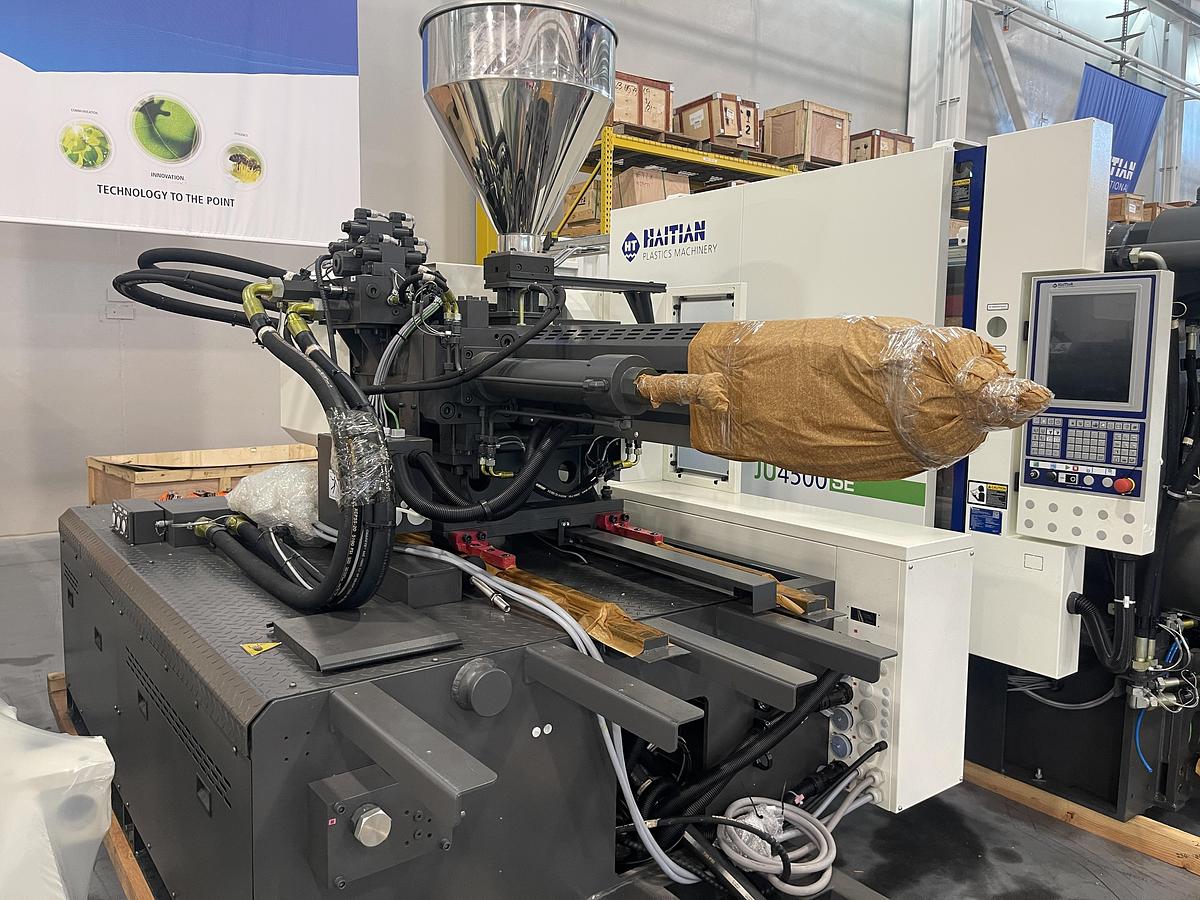

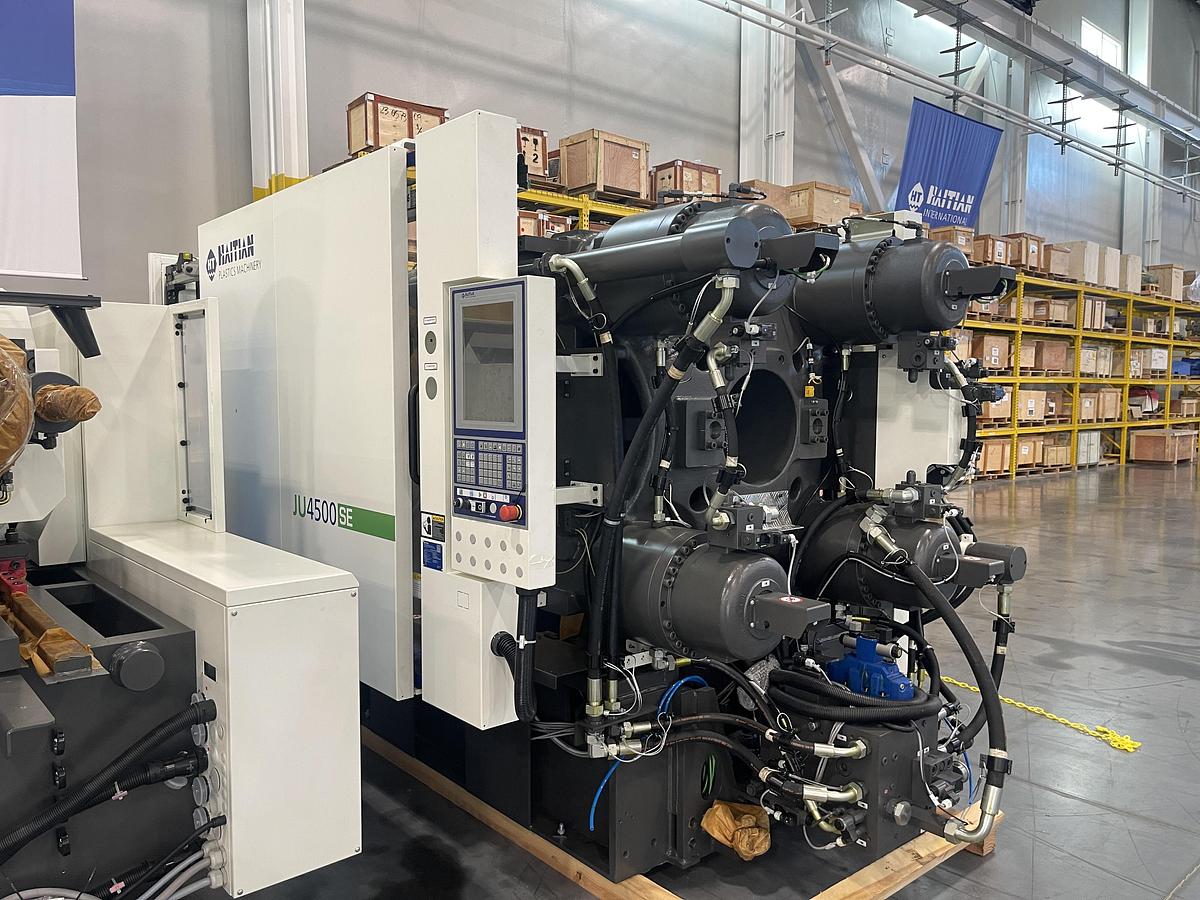

506 Ton, 39.68 oz Haitian JUVSE 4500/2400 Injection Molding Machine (2025)

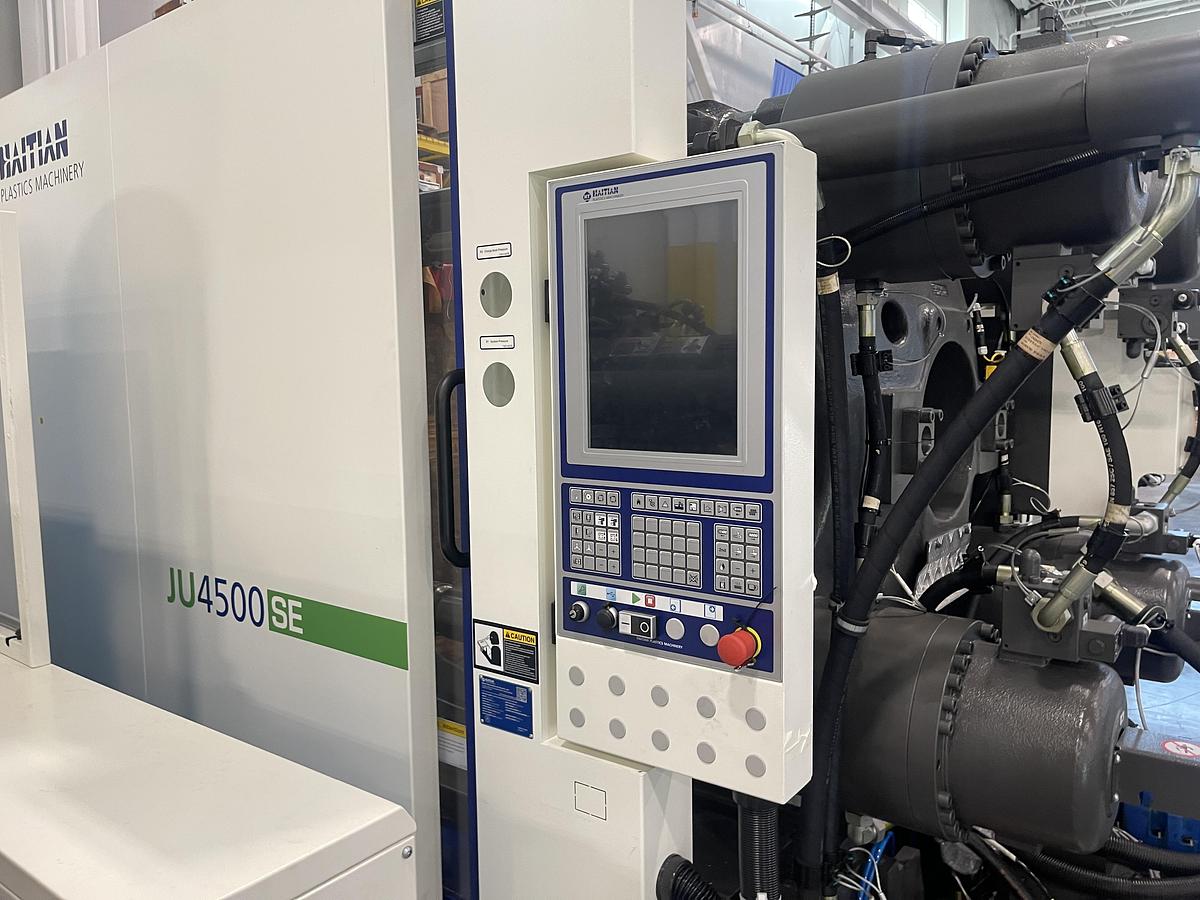

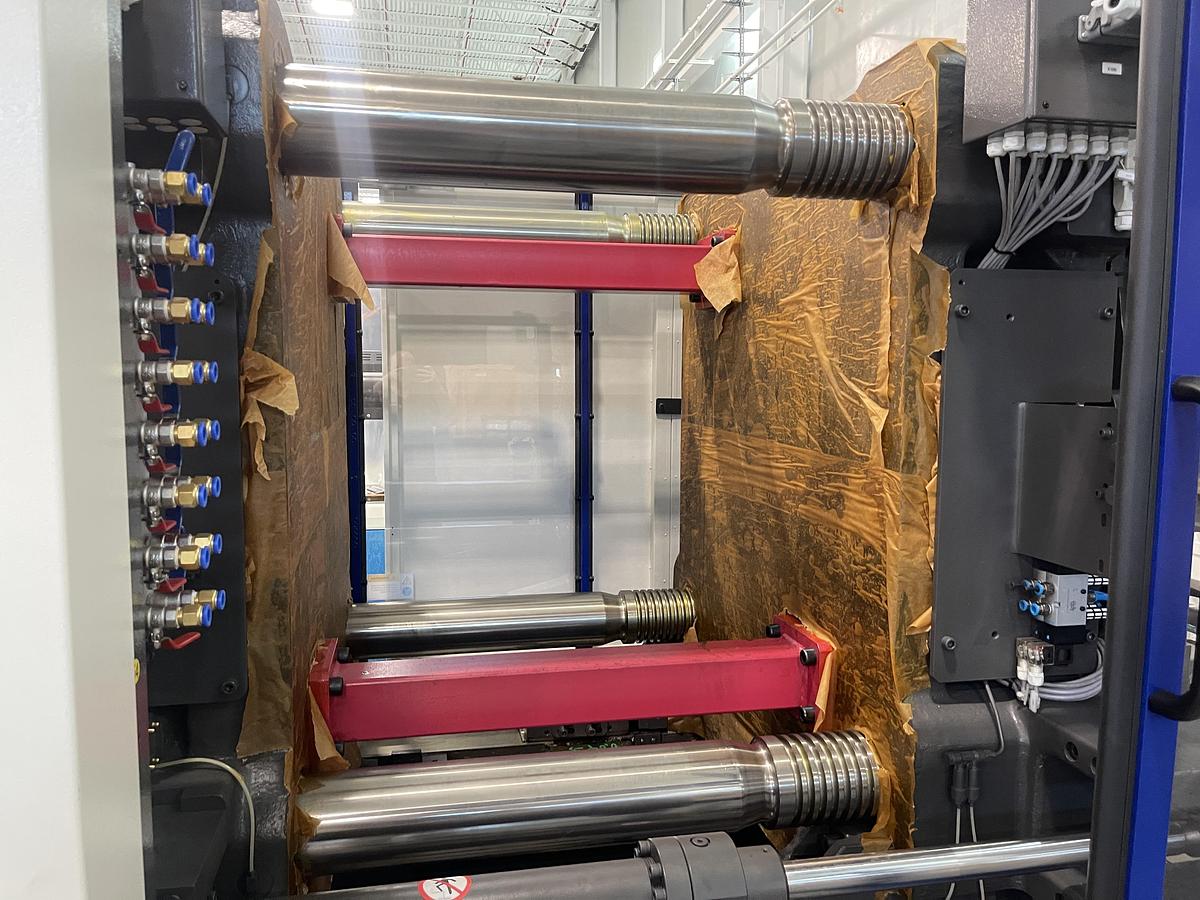

The Haitian JUVSE 4500/2400 is a robust and reliable injection molding machine, perfect for large-scale production needs. With a clamping force of 506 tons, it is capable of handling significant molding tasks with precision. The machine features a shot size of 39.68 ounces and an 80mm screw diameter, ensuring efficient and accurate material injection. Its substantial platen size of 41.34" x 21.65" and tiebar spacing of 31.89" x 31.89" provide ample space for varied mold dimensions. This new machine boasts an impressive opening stroke, ranging from 21.65 inches to a maximum of 41.34 inches, and offers an open daylight of 55.12 inches, accommodating a range of mold sizes with ease. Designed with versatility in mind, it supports a maximum mold height of 33.46 inches and a minimum of 13.78 inches, while the 9.84-inch ejector stroke ensures efficient part removal. Equipped with a KEBA control system, the machine operates on 460V/3P/60Hz, facilitating seamless integration into industrial setups. Additional features include a hopper capacity of 110 pounds and a machine weight of 46,297 pounds, underscoring its capability to handle demanding applications. Ideal for industries requiring substantial production capacity, this machine represents a dependable choice in injection molding technology.
