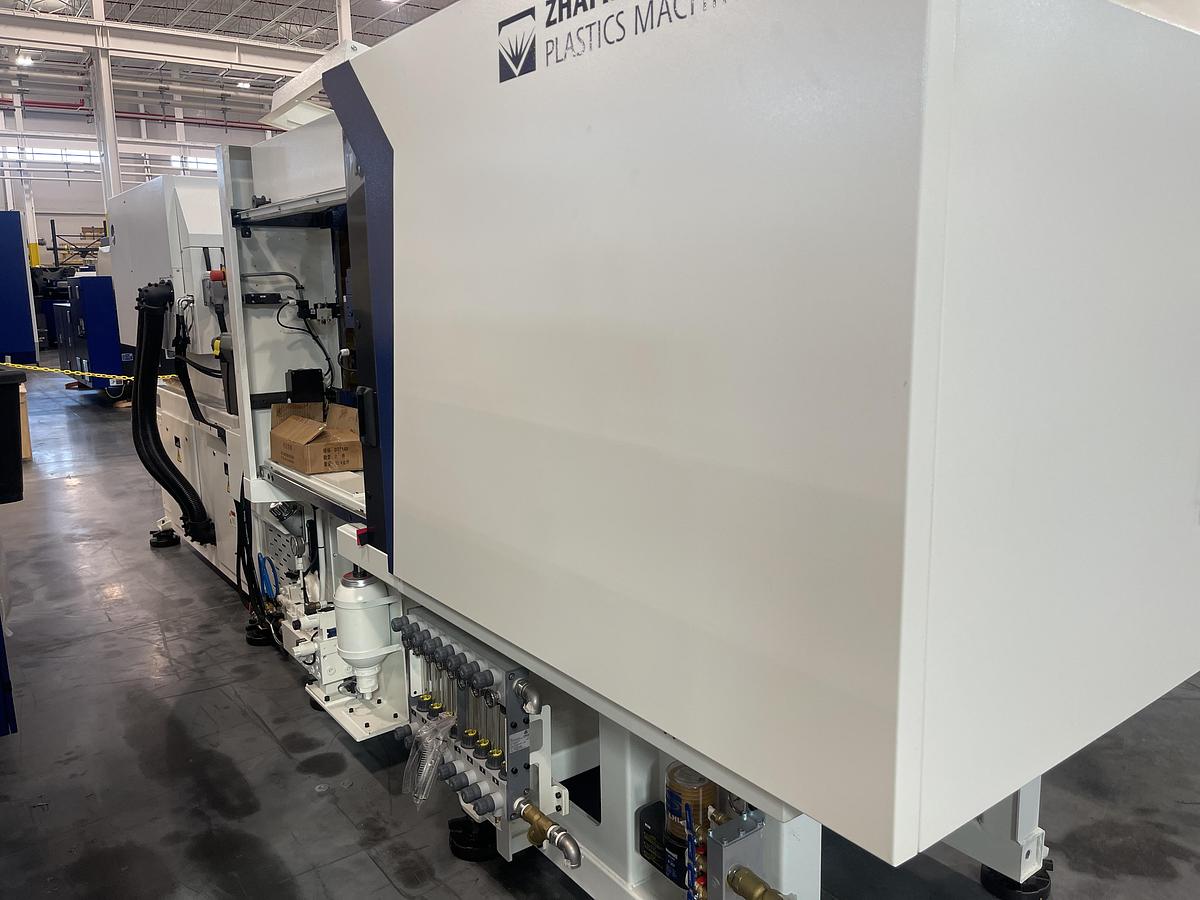

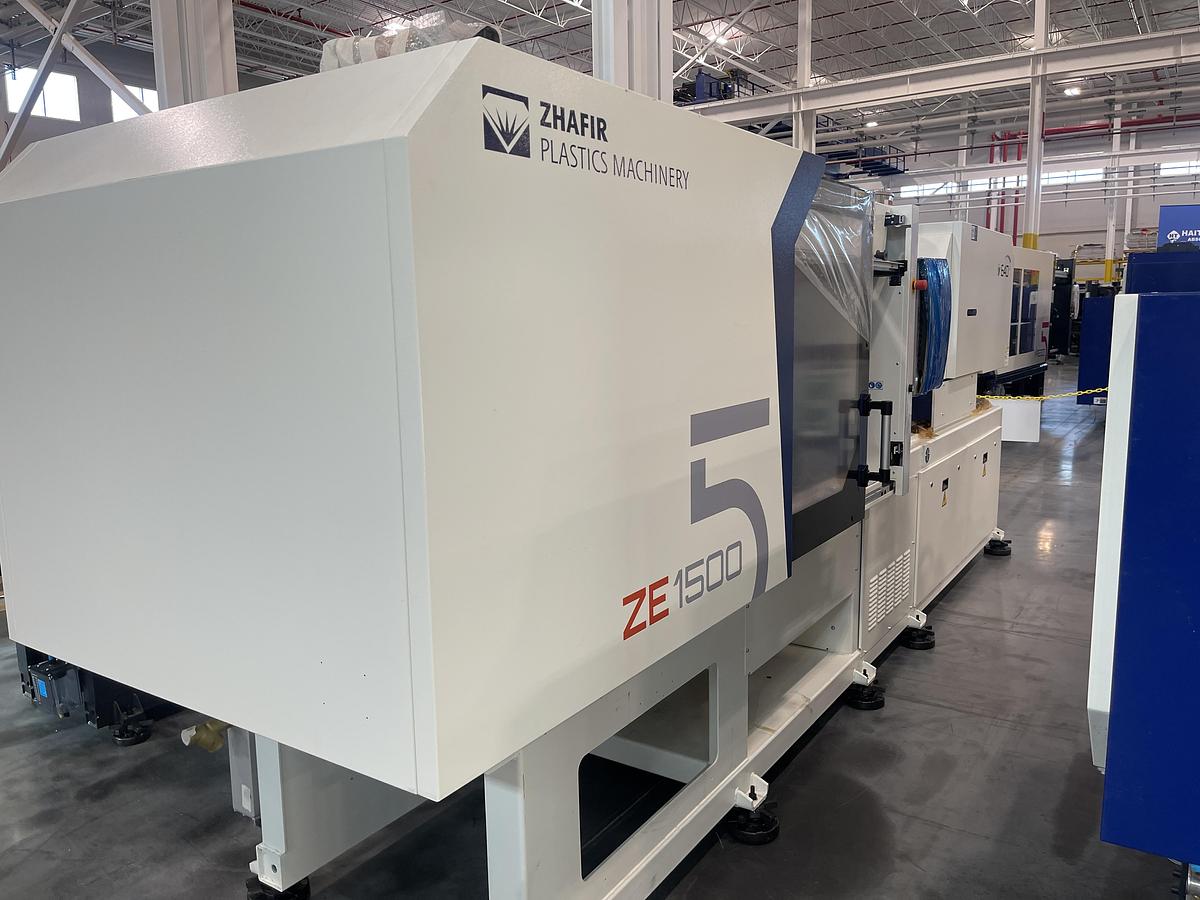

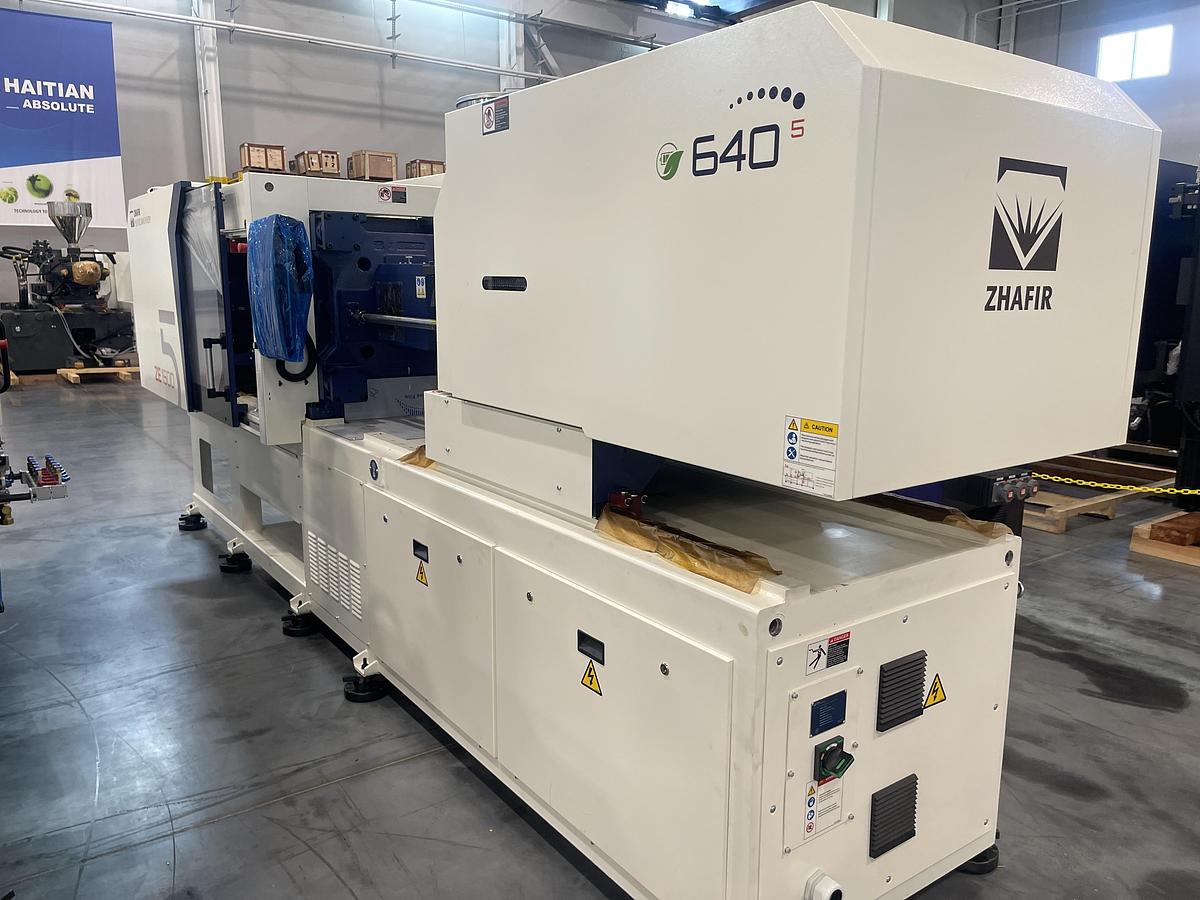

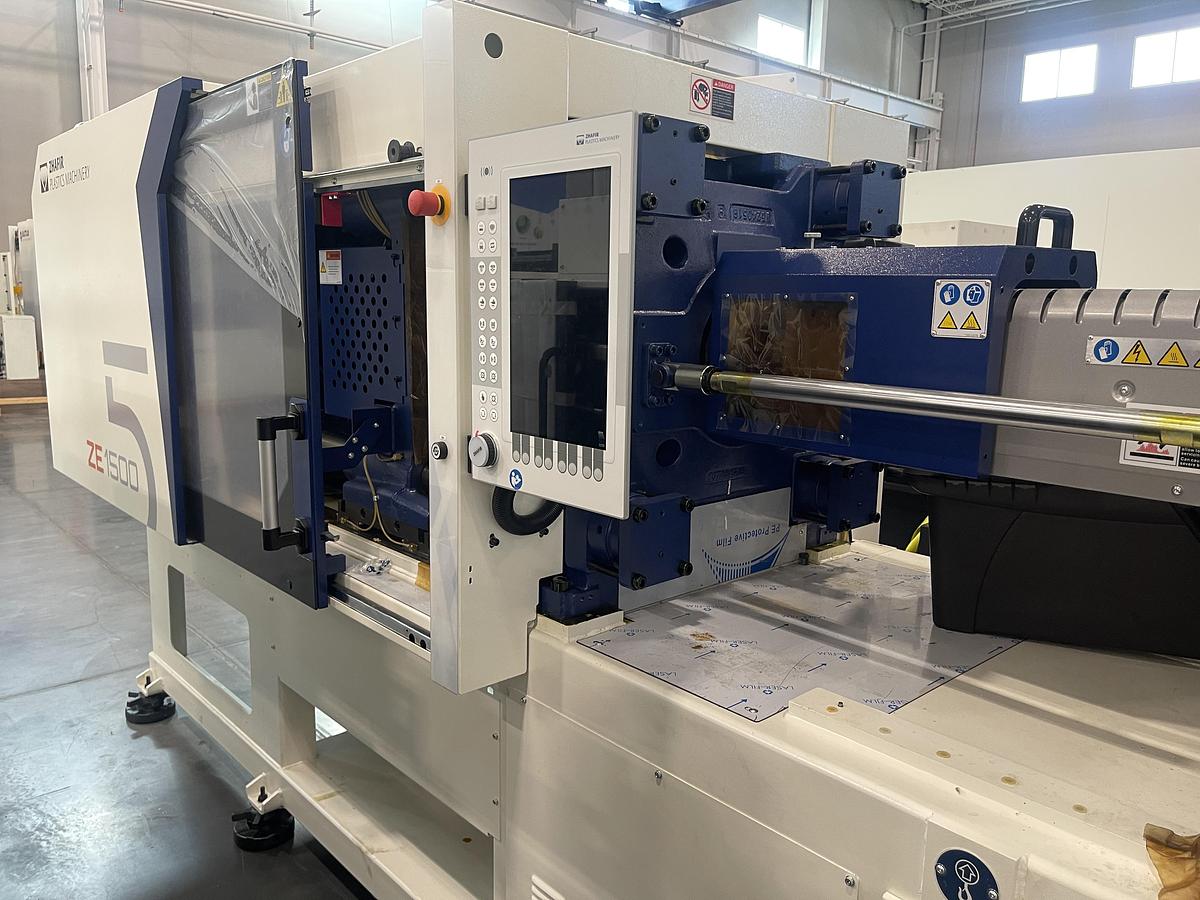

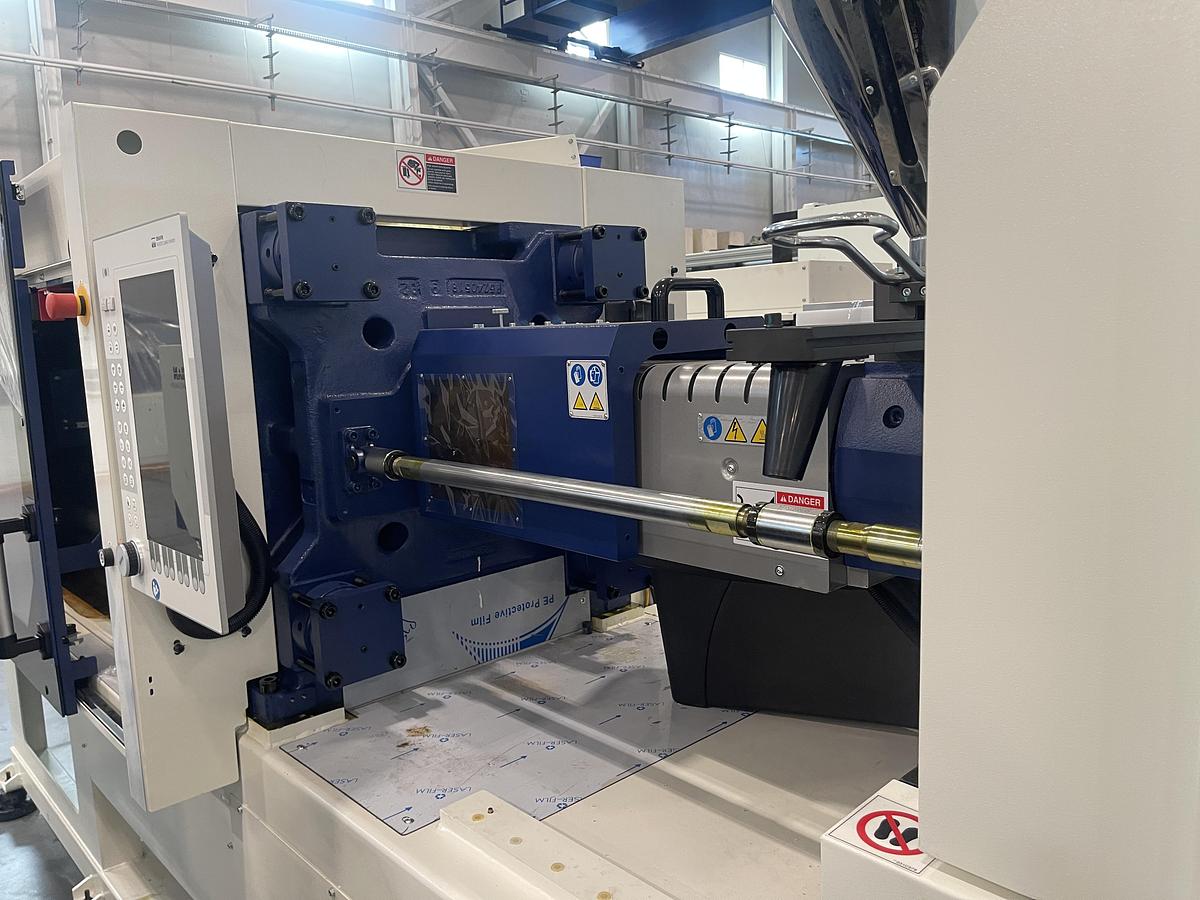

169 Ton, 10.21 oz Haitian ZEV 1500/640 Injection Molding Machine (2024)

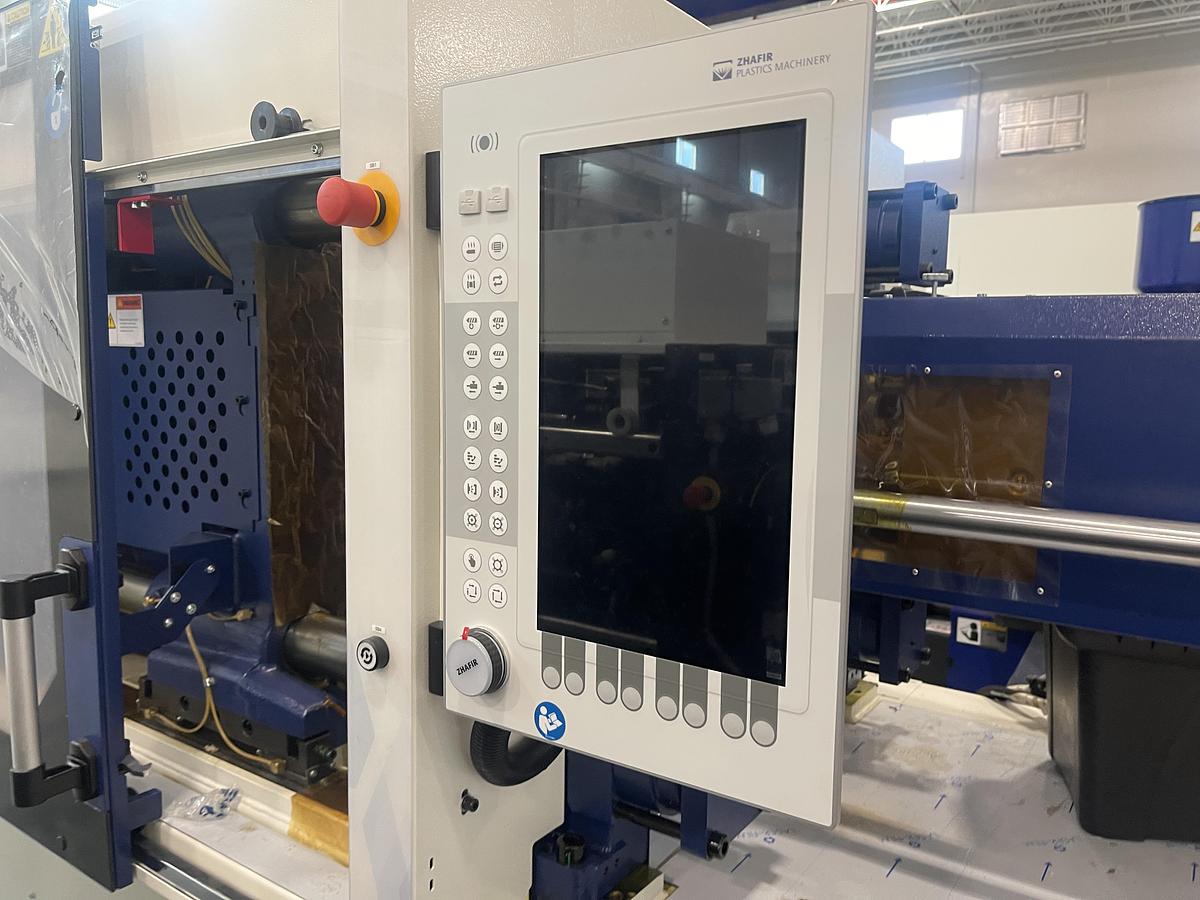

The Haitian ZEV 1500/640 Injection Molding Machine is a robust addition to any manufacturing process, offering a clamp force of 169 US tons. Ideal for medium-sized operations, this 2024 model is designed for precision and efficiency in plastic molding. Key specifications include a shot size of 10.21 ounces of PS and a 45mm screw diameter, providing the necessary capability for a variety of injection tasks. The machine's platen size is 29.13" x 29.13", with tie bar spacing at 20.47" x 20.47", enabling accommodation of different mold sizes. Mold adjustments are supported with a maximum mold height of 20.47" and a minimum of 7.09", further complemented by an opening stroke of 16.54" and open daylight of 37.01". Additionally, the machine is equipped with a 4.72" ejector stroke ensuring efficient part removal. Equipped with a KEBA control system and operating at 460V/3P/60Hz, this injection molding machine is designed for reliability and convenience. The machine has a hopper capacity of 7 gallons and weighs 14,462 lbs, offering a sturdy and durable solution for industrial plastic production needs.
