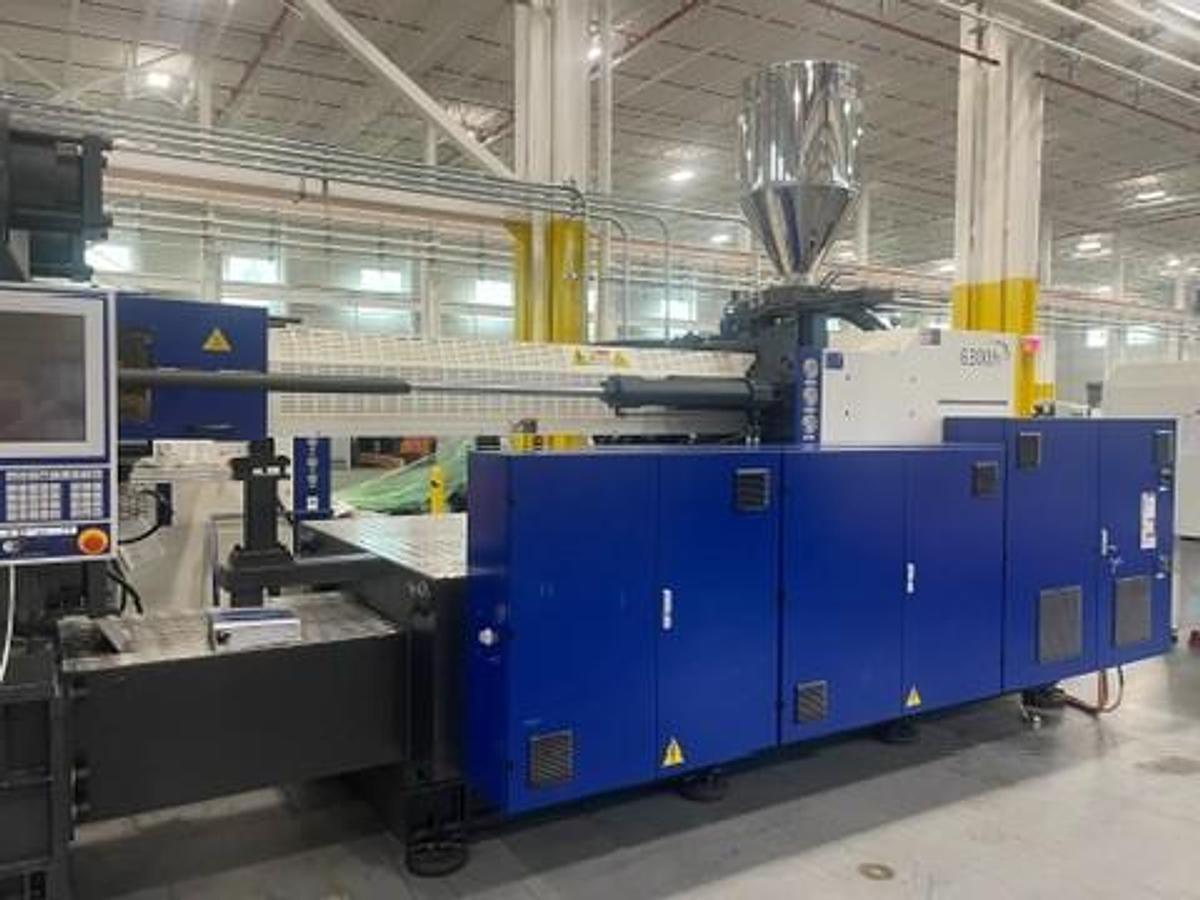

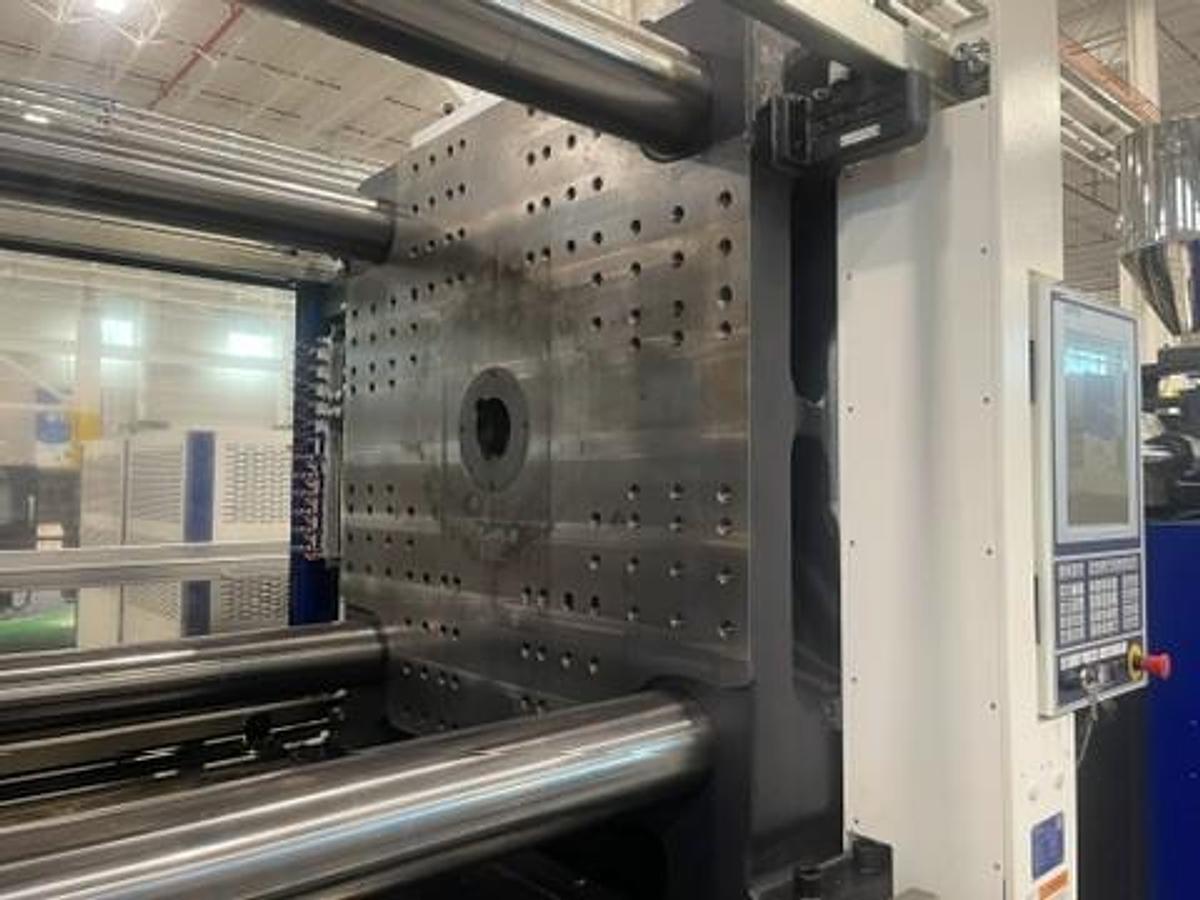

731 Ton, 143 oz. High-Speed Haitian Injection Molding Machine
731 Ton, 143 oz. High-Speed Haitian Injection Molding Machine
Available quantity:1

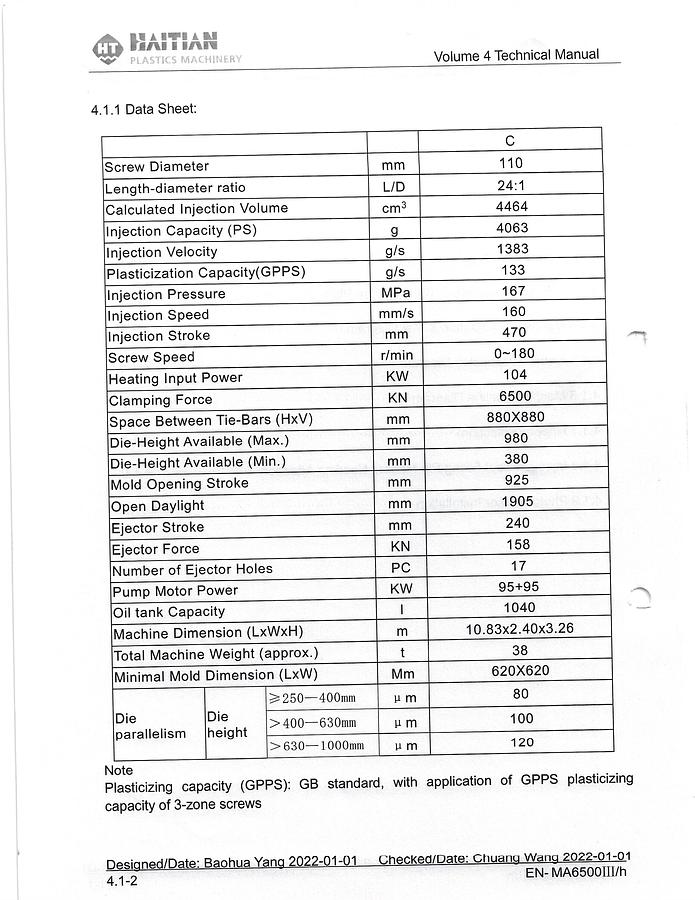

Specifications
| Manufacturer | Haitian |
| Model | MAII 6500/6300h |
| Year | 2023 |
| Condition | Used |
| Stock Number | 14308 |
| Model | MAII 6500/6300h |
| US Tonnage | 731 |
| Shot Size (oz. of PS) | 143 |
| Screw Diameter | 110mm |

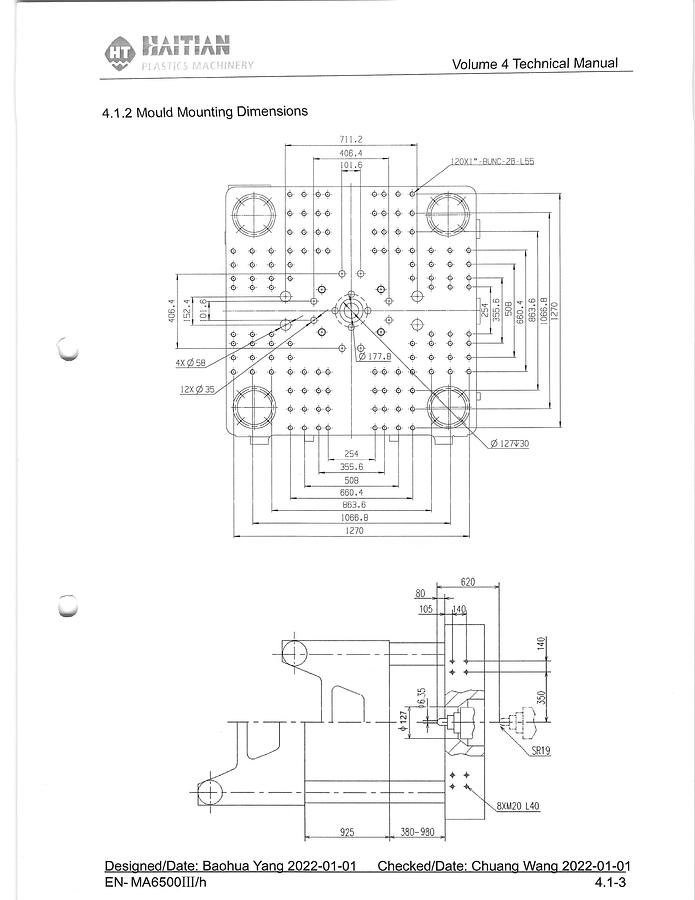

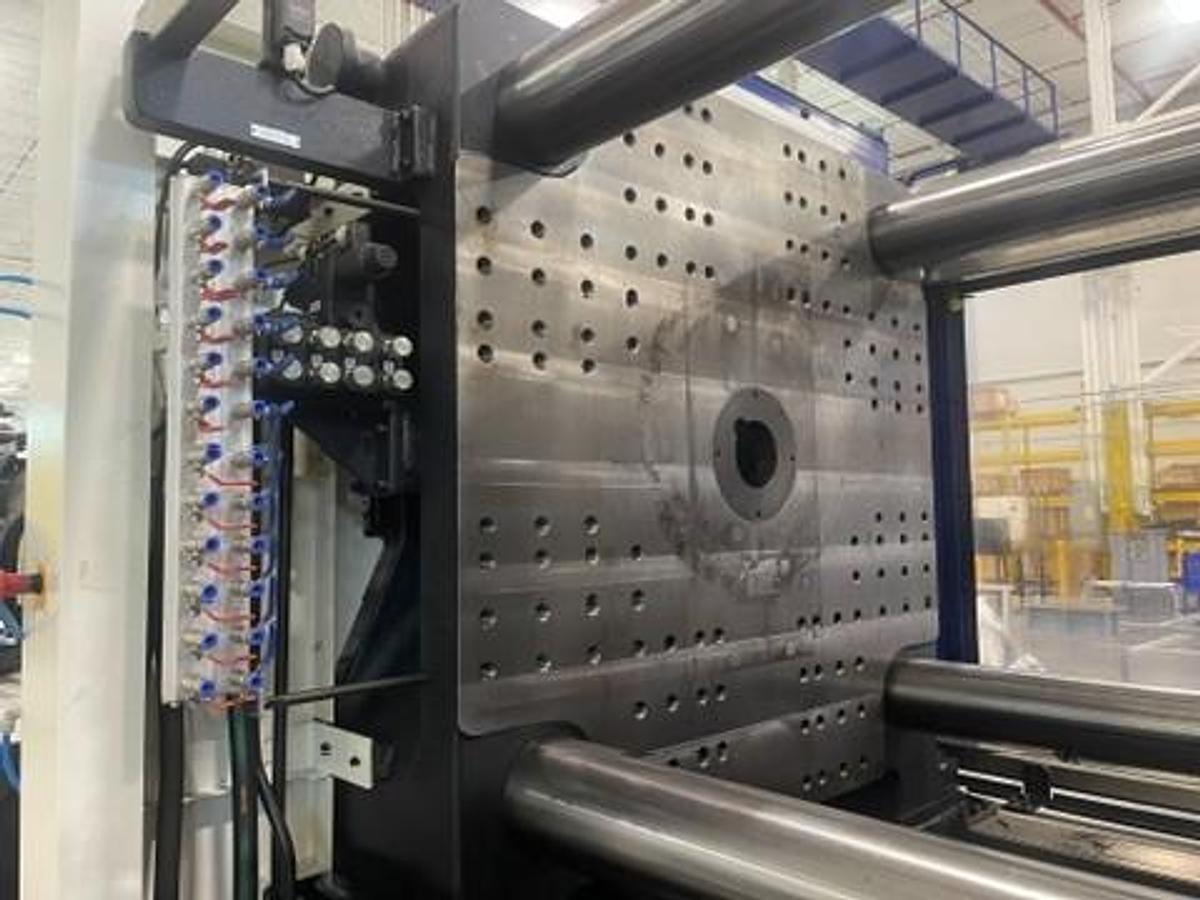

| Platen Size (in.) | 50" x 50" |
| Tiebar Spacing (HxV) in. | 34.64" x 34.64" |
| Max Mold Height (in.) | 38.58" |
| Min Mold Height (in.) | 14.96" |
| Opening Stroke (in.) | 36.41" |
| Open Daylight (in.) | 75" |
| Ejector Stroke (in.) | 9.44" |
| Control | Keba 5000 |
| Voltage | 460V/3P/60Hz |
Included Options
Euromap 67 robot interface, variable pitch screw w/mixing, 24:1 L/D, increased motor power 95kw+95kw, special base, increase heater power/intensity, parallel motion for cores and ejectors during clamp open (eject on the fly)
Increase max mold height by 100mm
Increased air blast circuits for part removal
Part drop photo eye
Proportional Valve for Injection
Opening at operator-side of machine base (open to floor with increase height) for part drop by 200mm

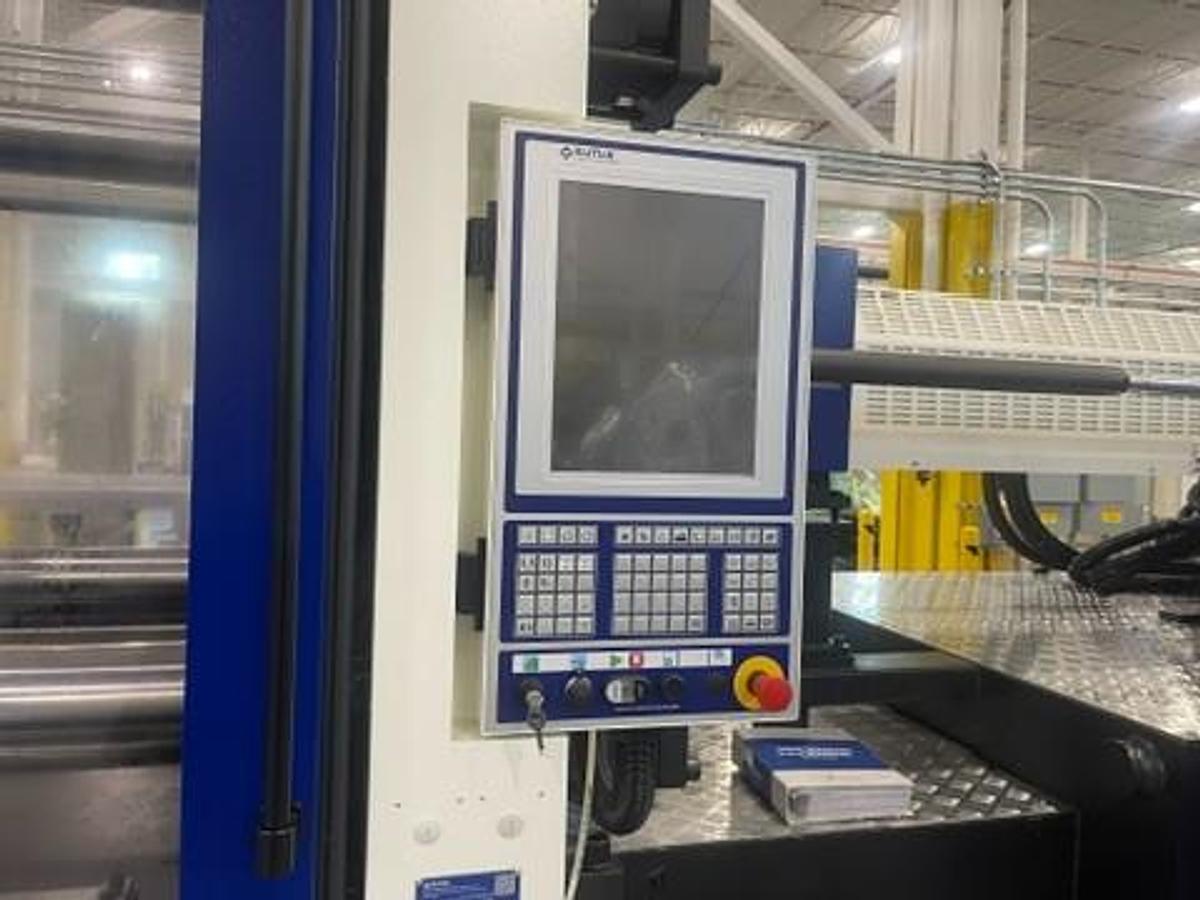

Optional KEBA5000 controller-High End controlller with 15" touch screen panel

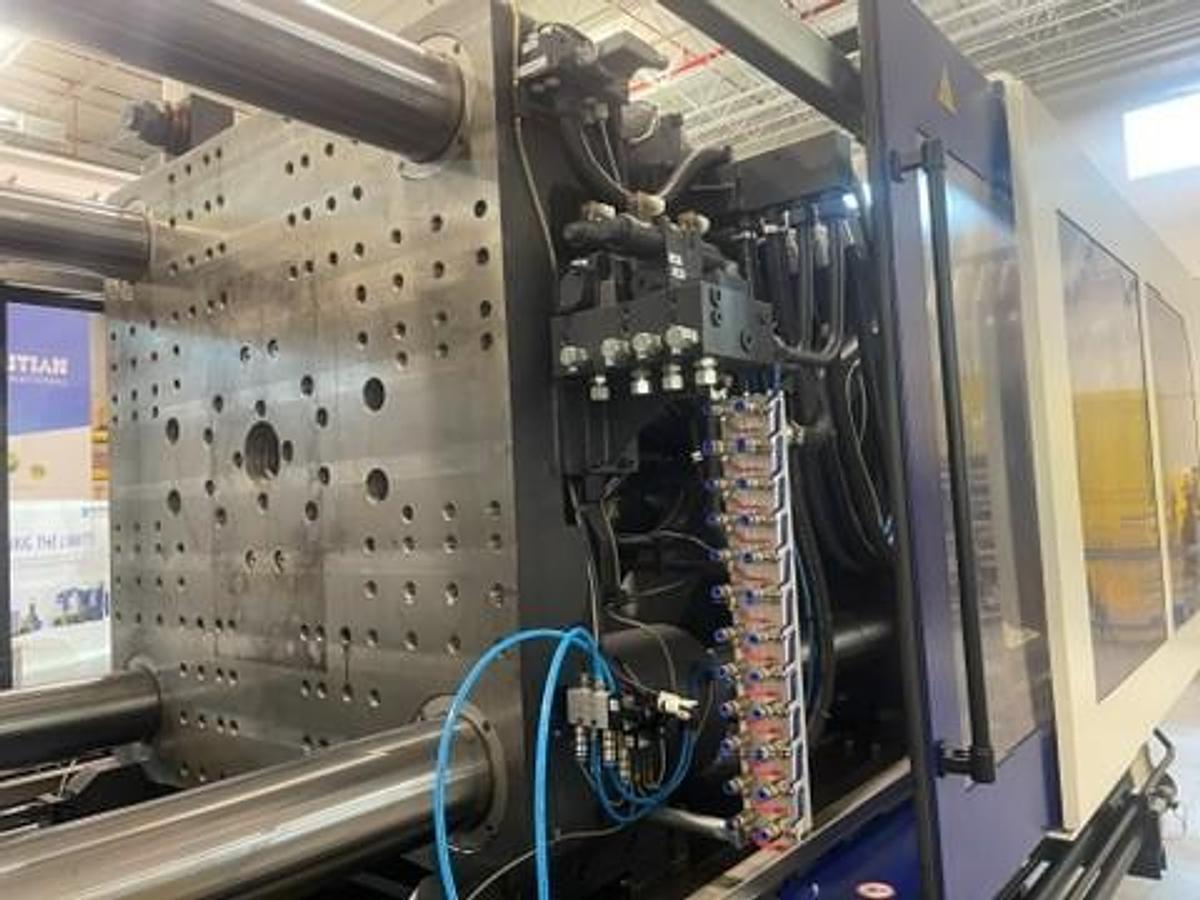

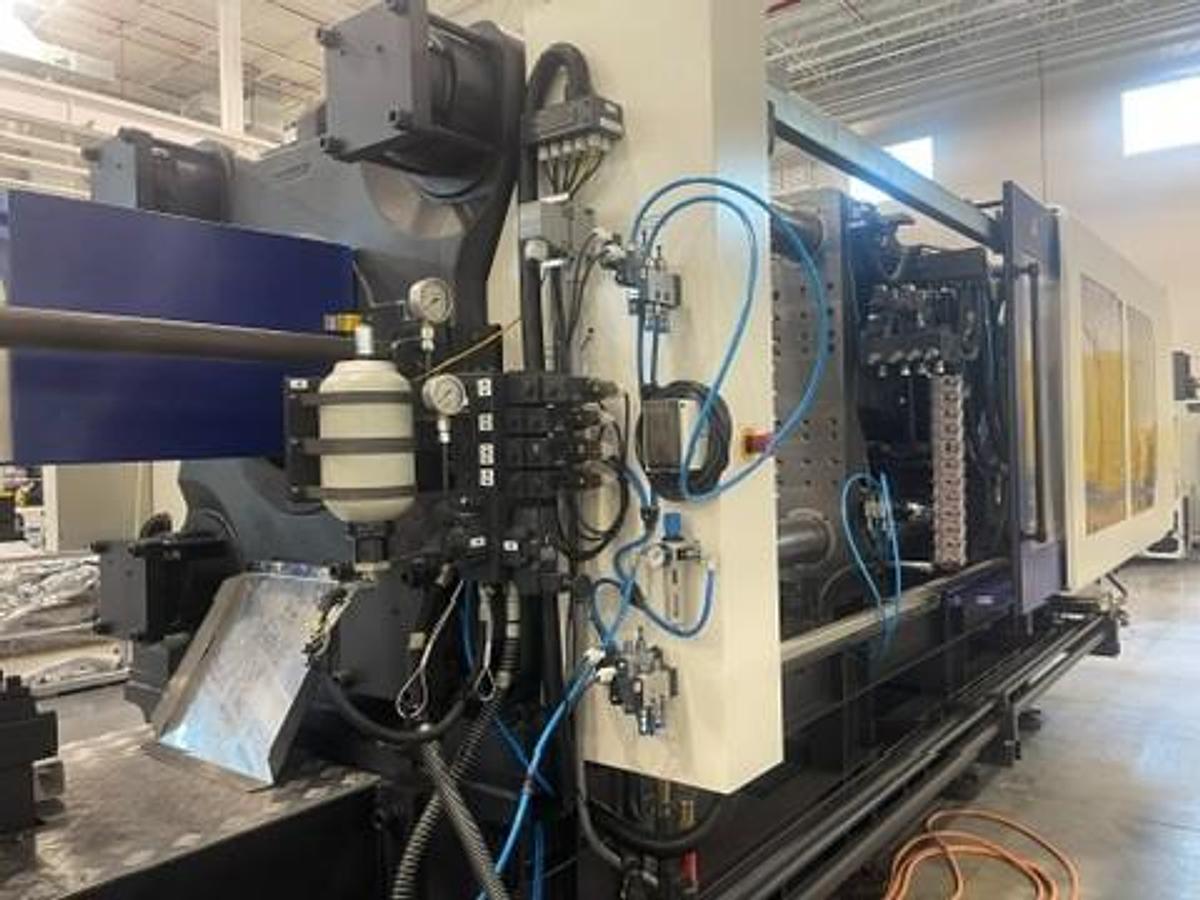

Installed: 2 circuit pneumatic valve gate, water block for mold cooling.
water manifold main in/out water fitting 1-1/2".
Mold Open Close Proportional Valve/Rexroth
Installed: 4 hyd valve gates with 2.5 liter accumulator to hold pressure
