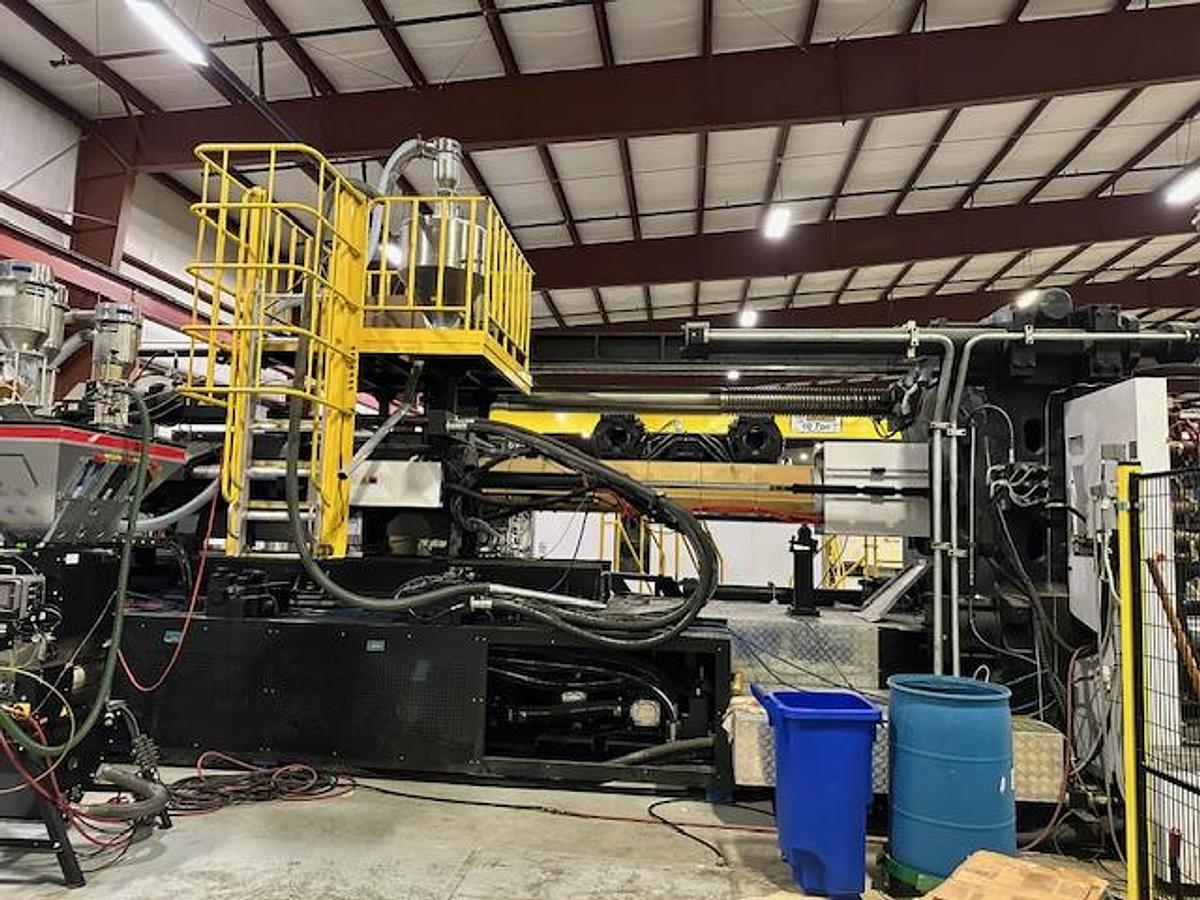

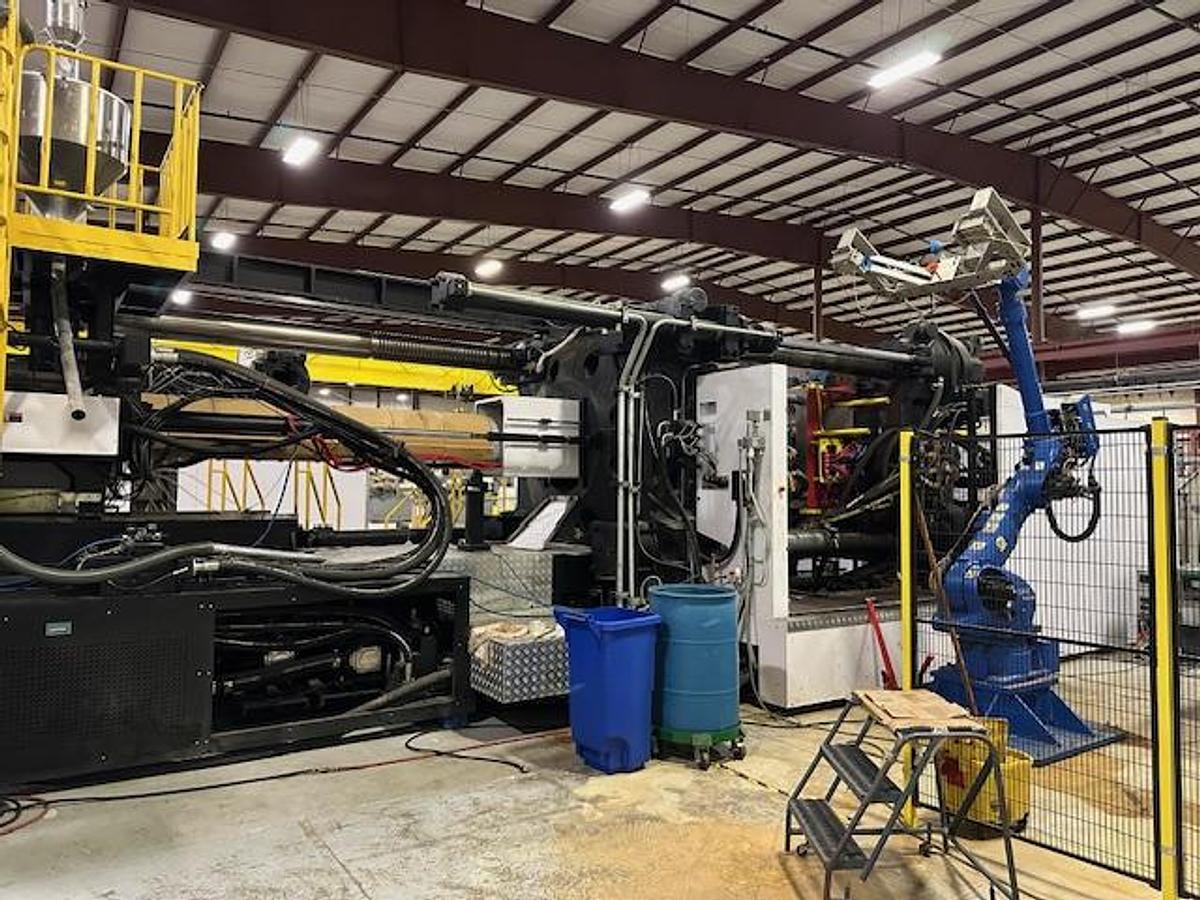

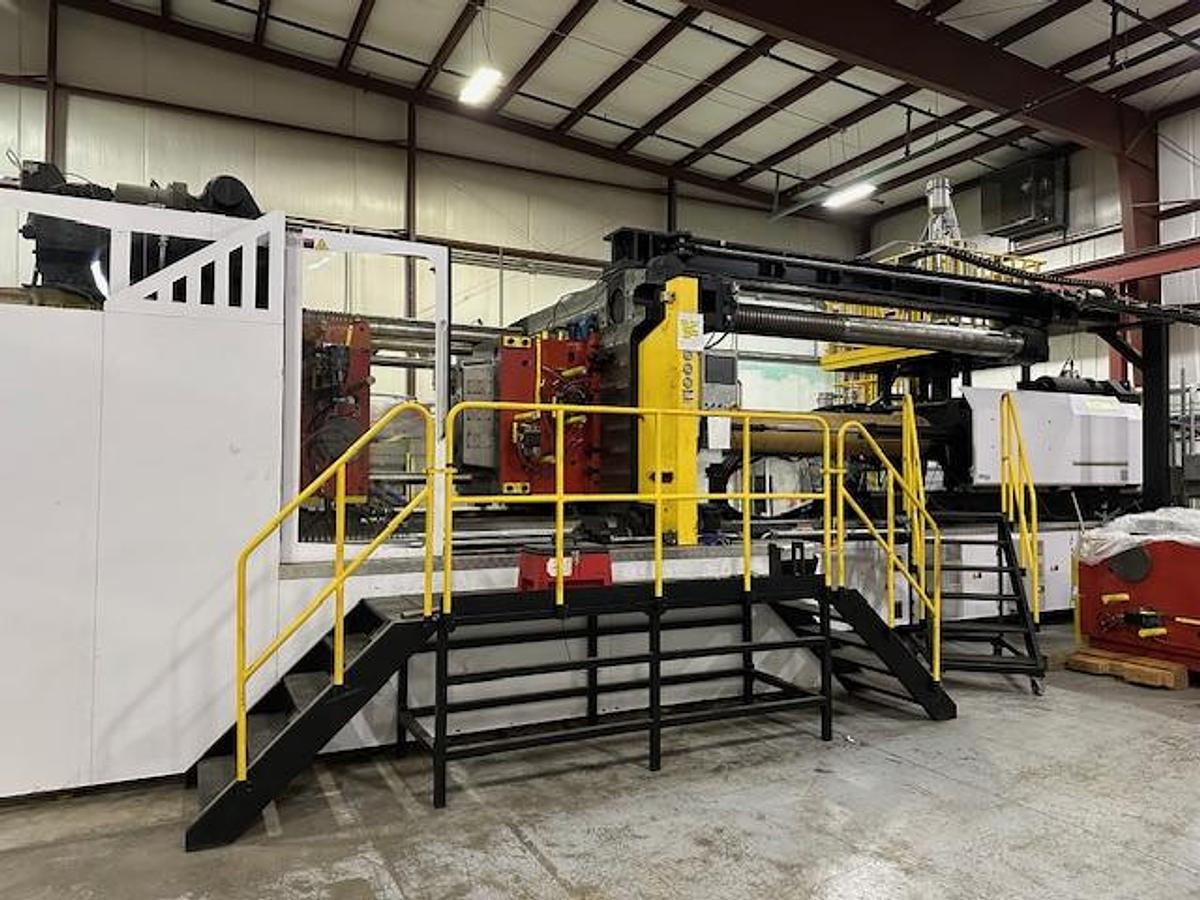

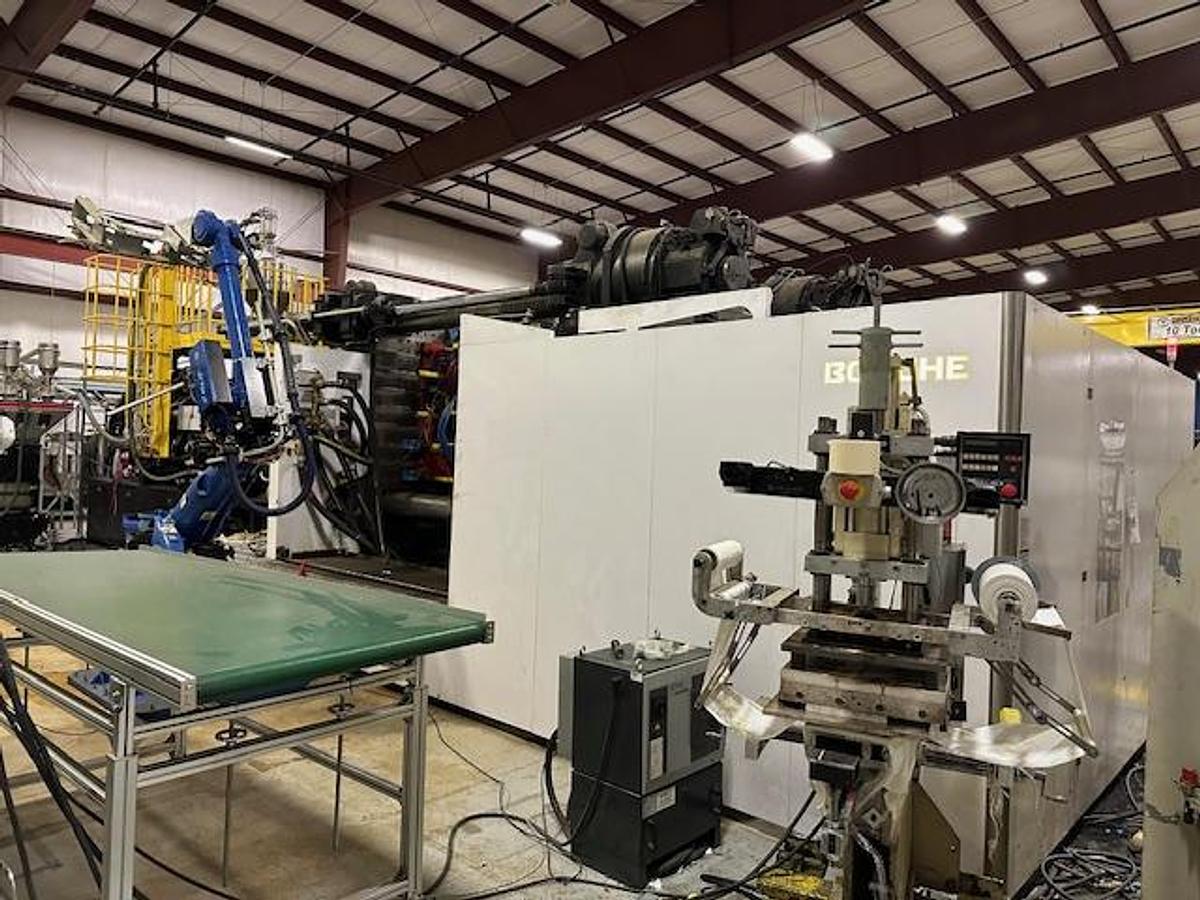

2,200 Ton, 533 Oz., Borche BU2200-V Injection Molding Machine with Yaskawa Robot (2024)(IN)
Featured
2,200 Ton, 533 Oz., Borche BU2200-V Injection Molding Machine with Yaskawa Robot (2024)(IN)
Available quantity:1
or
Call +1 508-792-4305

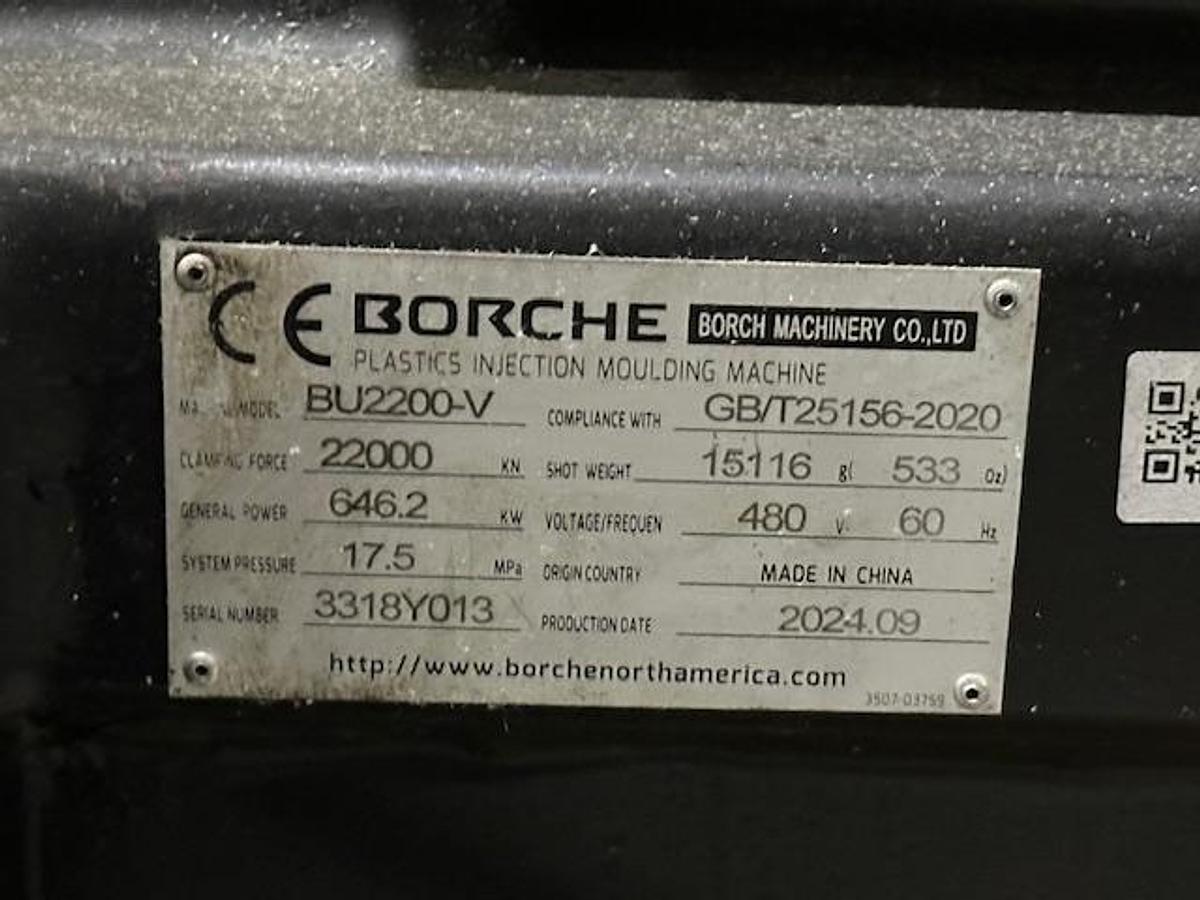

Specifications
| Manufacturer | Borche |
| Model | BU2200-V |
| Year | 2024 |
| Condition | Used |
| Stock Number | 14297 |
| Model | BU2200-V |
| US Tonnage | 2,200 |
| Shot Size (oz. of PS) | 533 |
| Screw Diameter | 150mm |
| Platen Size (in.) | 103.14" x 93.30" |
| Tiebar Spacing (HxV) in. | 72.83" x 62.99" |
| Max Mold Height (in.) | 66.92" |
| Min Mold Height (in.) | 31.49" |
| Opening Stroke (in.) | 110.23"/74.80" |
| Open Daylight (in.) | 141.73" |
| Ejector Stroke (in.) | 17.71" |

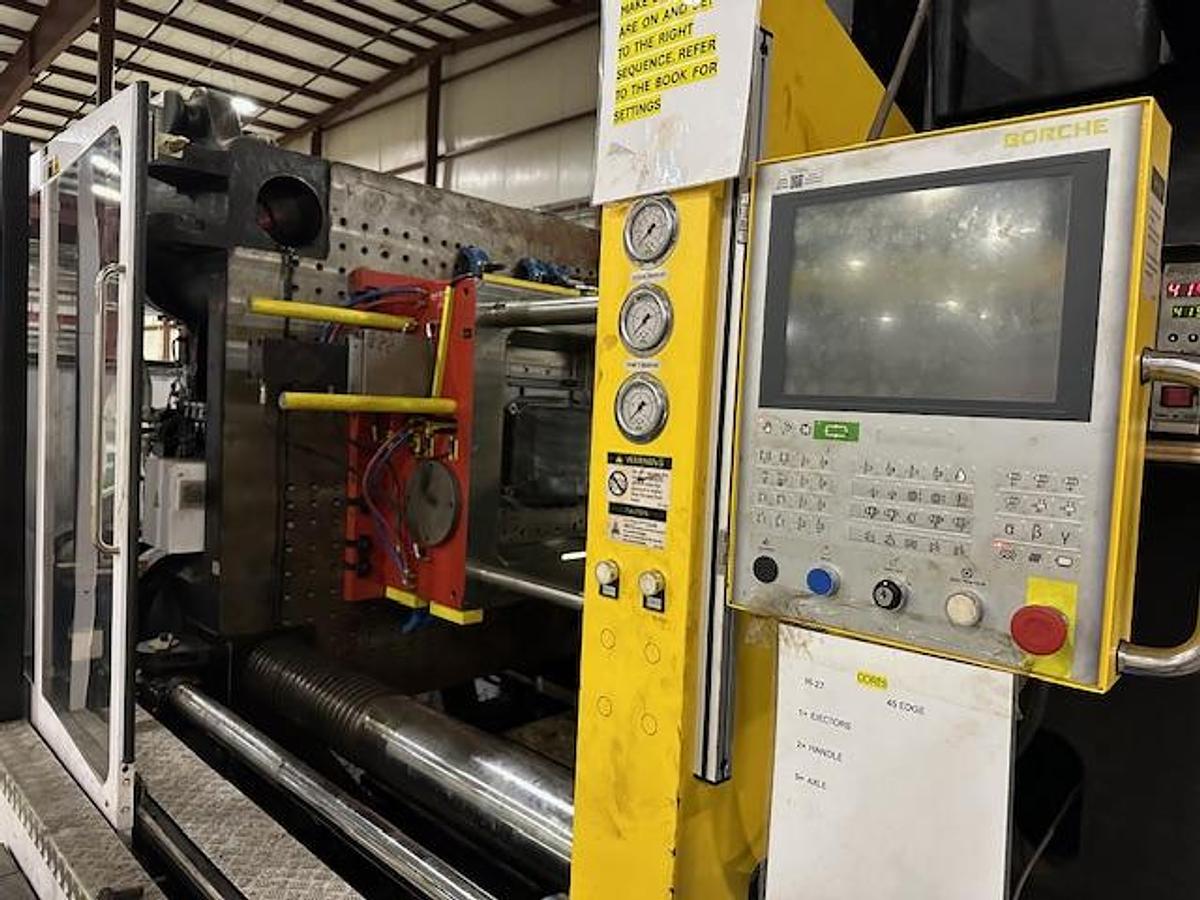

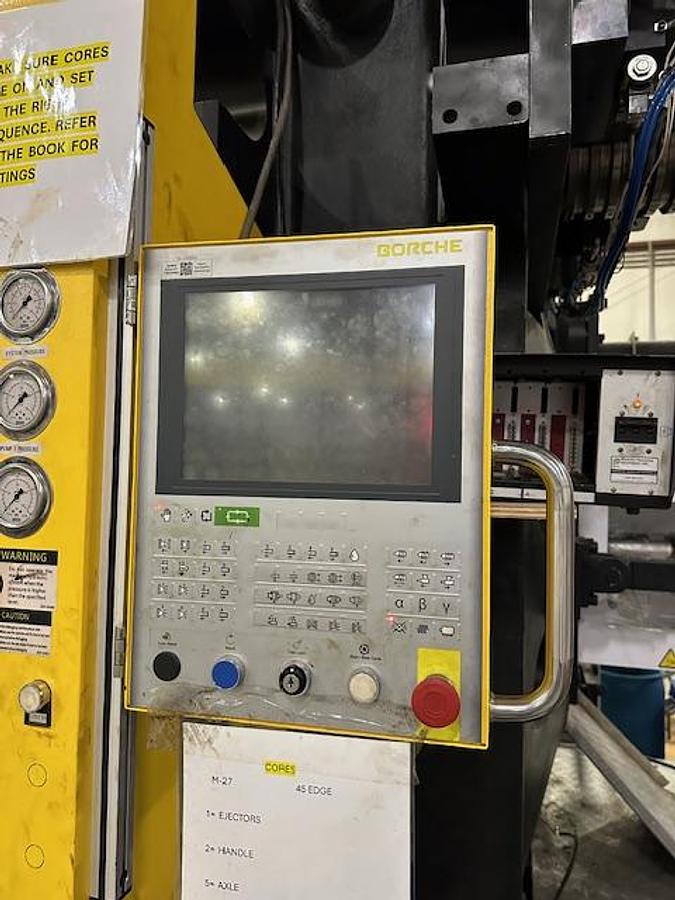

| Control | Keba |
| Voltage | 480/3/60 |
| Weight (lbs) | 339, 511 |

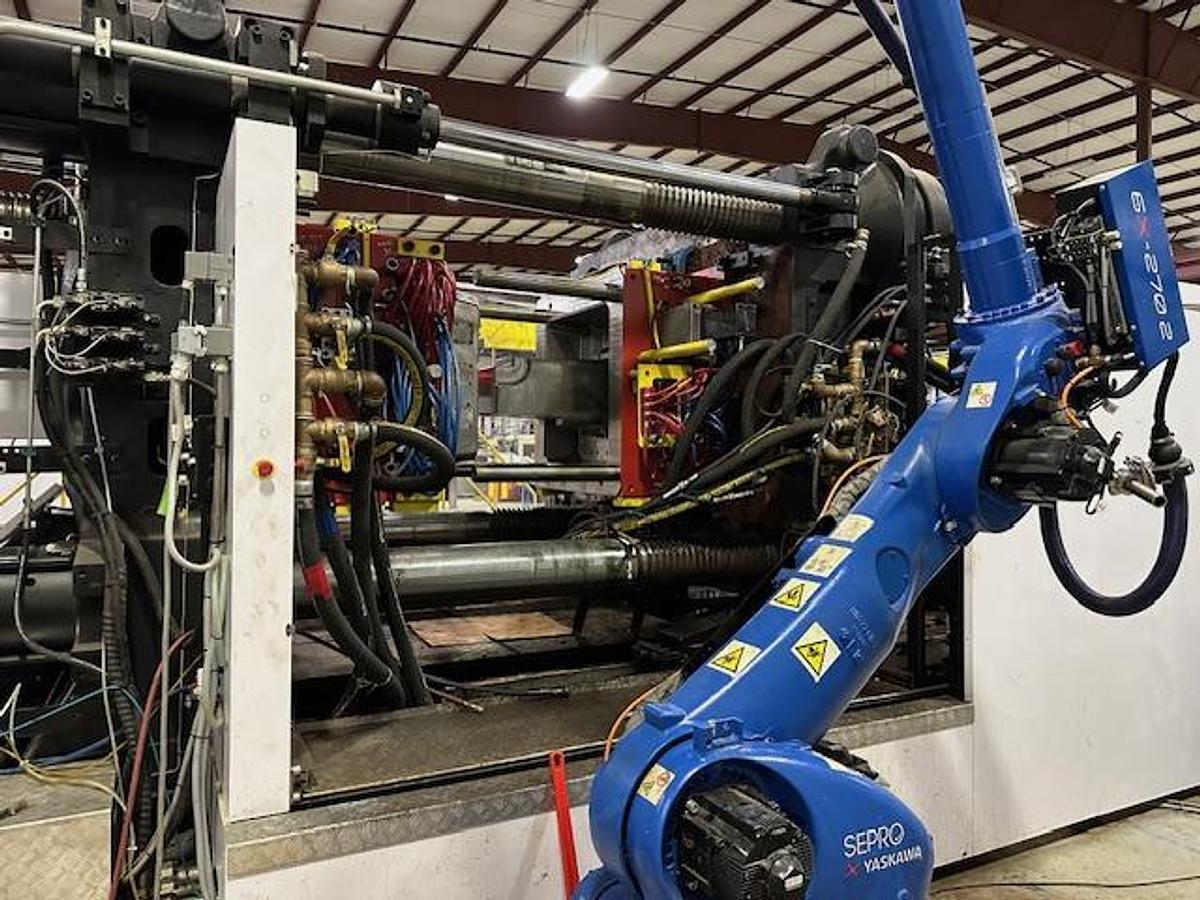

| Includes | Yaskawa Robot |
Included Options
Price Includes Loading; Retractable Tie Bar (Operator Side), Electric Screw Drive, & Yaskawa Robot
