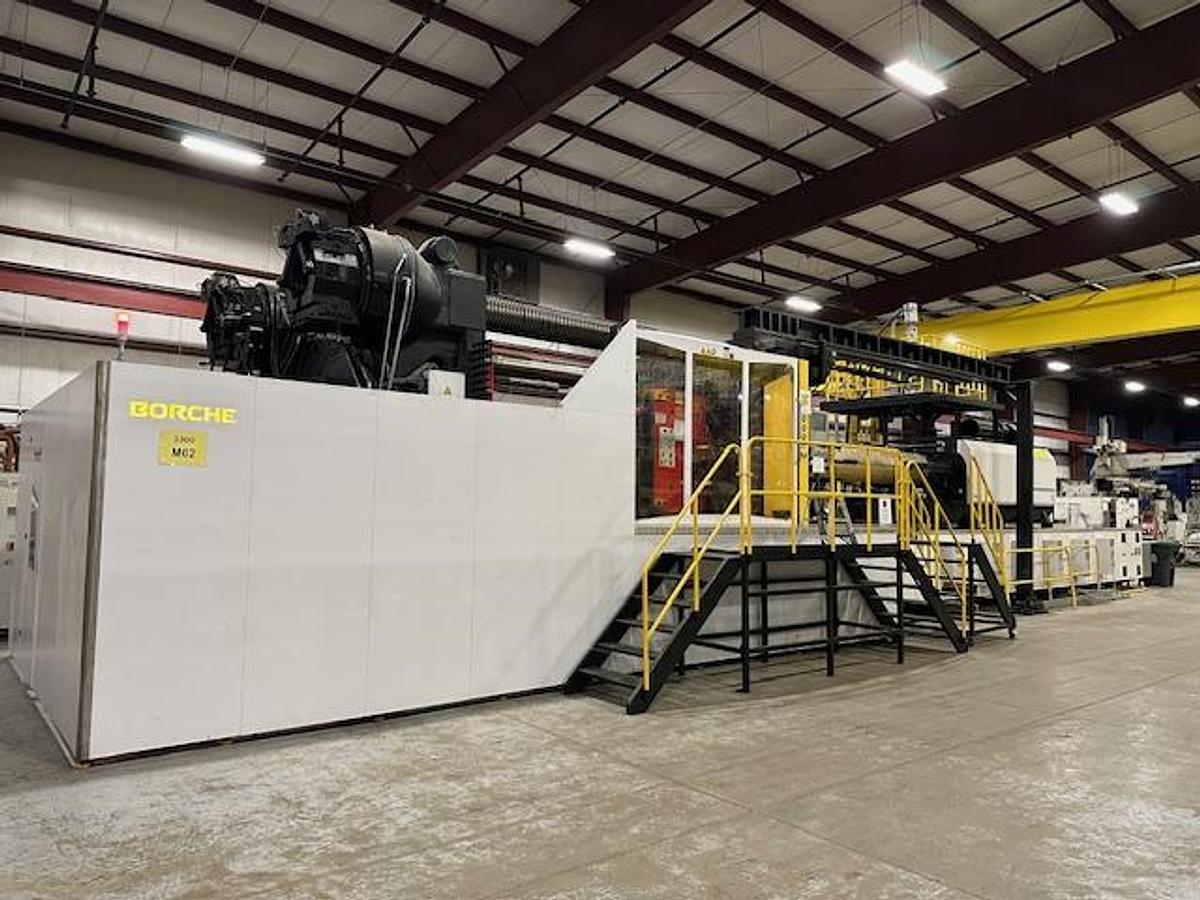

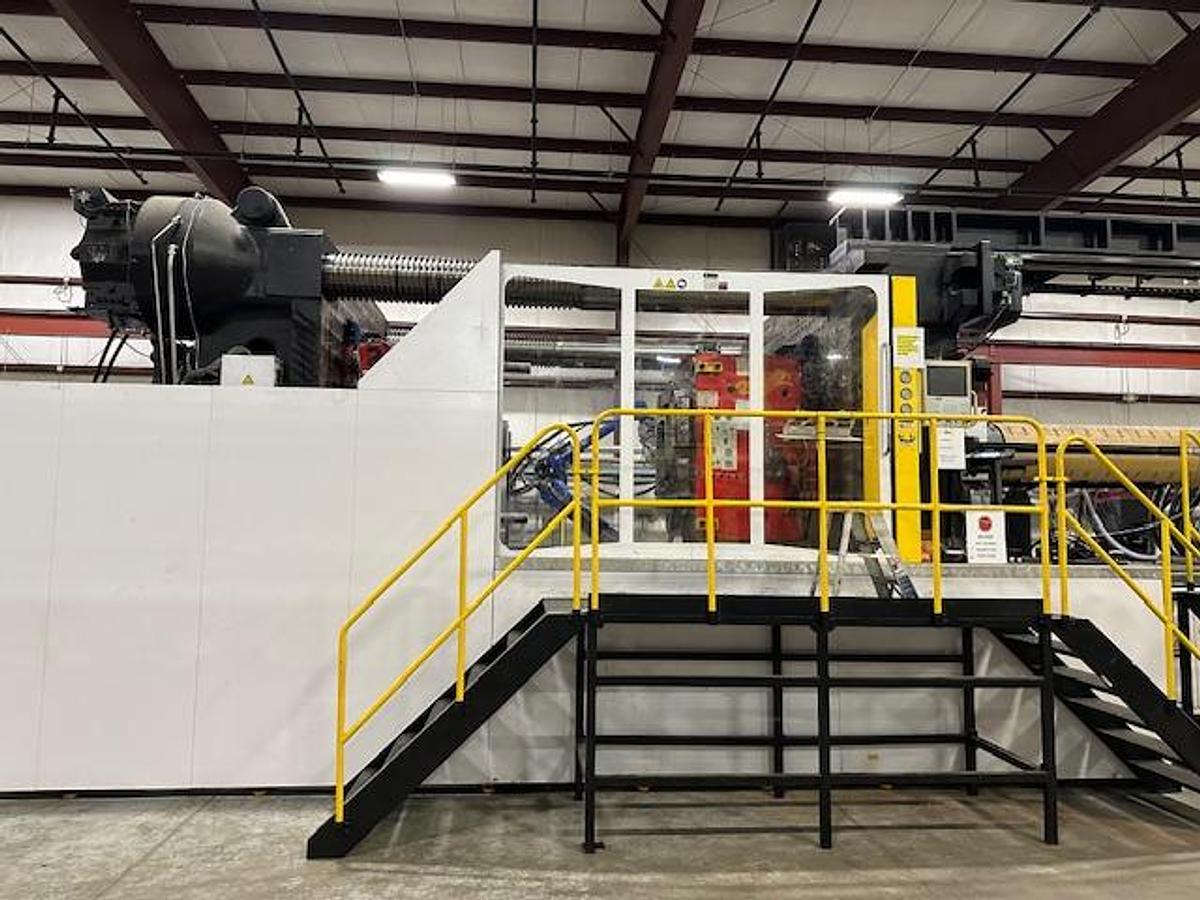

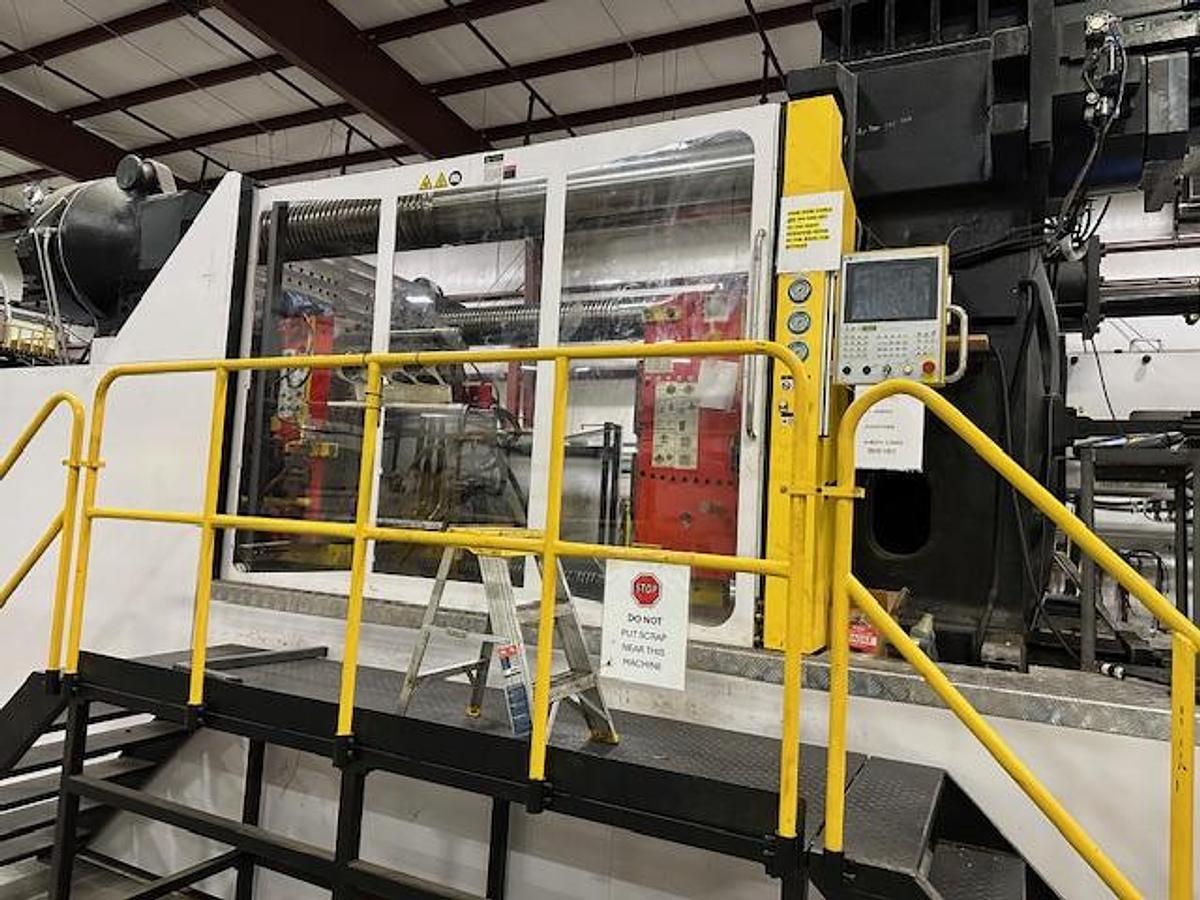

3,300 Ton, 1,029 Oz., Borche BU3300-V Injection Molding Machine with Yaskawa Robot (2024)(IN)
Featured
3,300 Ton, 1,029 Oz., Borche BU3300-V Injection Molding Machine with Yaskawa Robot (2024)(IN)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Borche |
| Model | BU3300-V |
| Year | 2024 |
| Condition | Used |
| Stock Number | 14296 |
| Model | BU3300-V |
| US Tonnage | 3,300 |
| Shot Size (oz. of PS) | 1,029 |
| Screw Diameter | 205mm |
| Platen Size (in.) | 120.47" x 110.23" |
| Tiebar Spacing (HxV) in. | 85.03" x 74.80" |
| Max Mold Height (in.) | 78.74" |
| Min Mold Height (in.) | 39.37" |
| Opening Stroke (in.) | 124.40" / 88.97" |
| Open Daylight (in.) | 163.77" |
| Ejector Stroke (in.) | 21.65" |

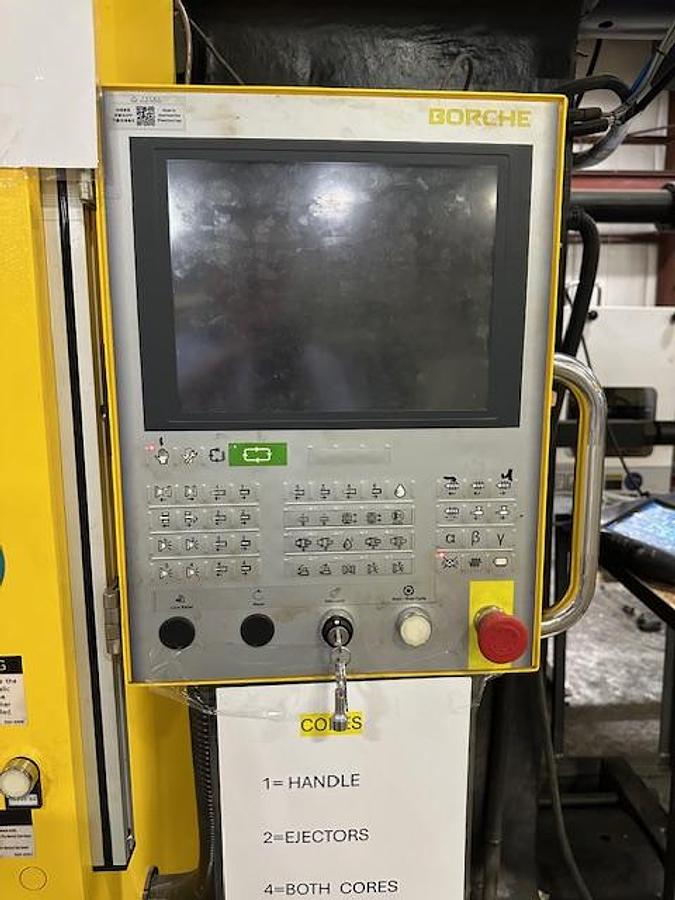

| Control | Keba |
| Voltage | 480/3/60 |
| Weight (lbs) | 357,148 |

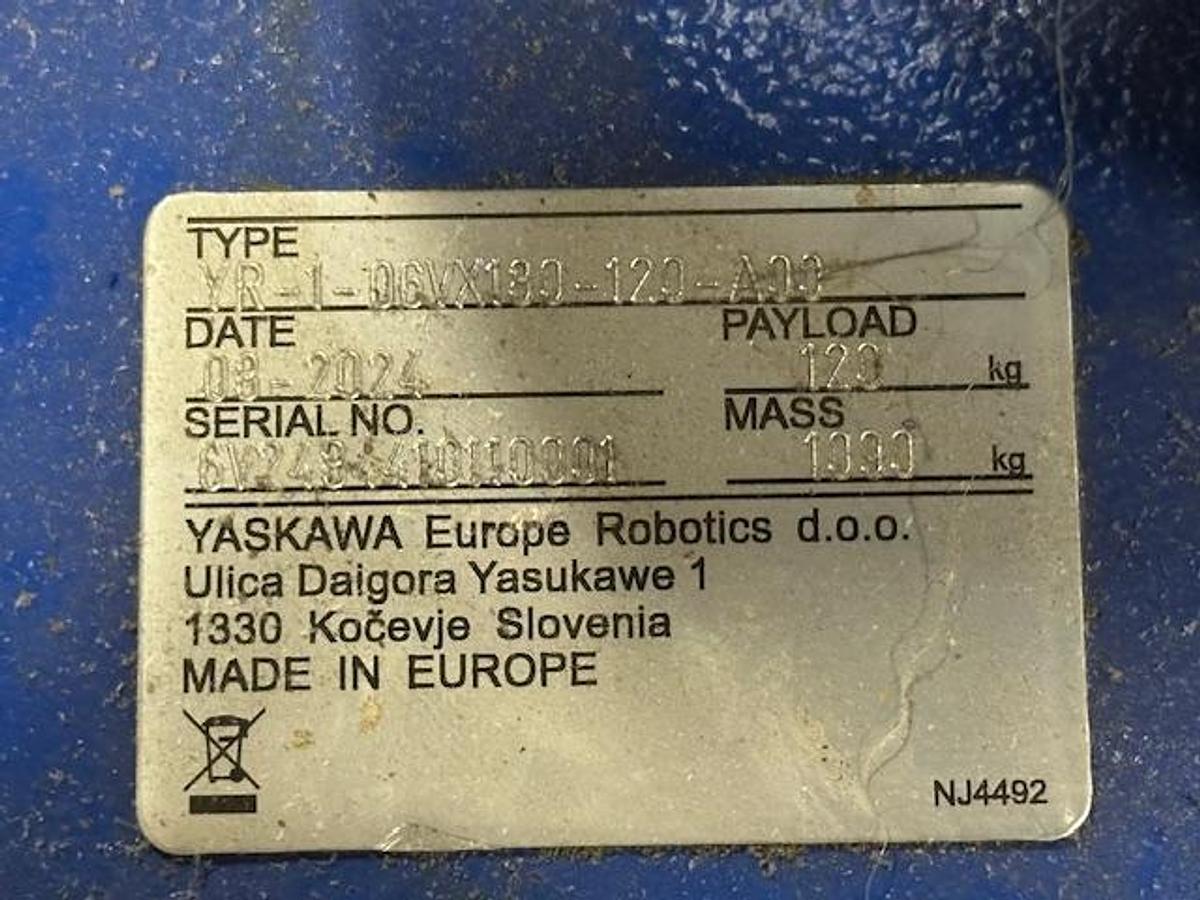

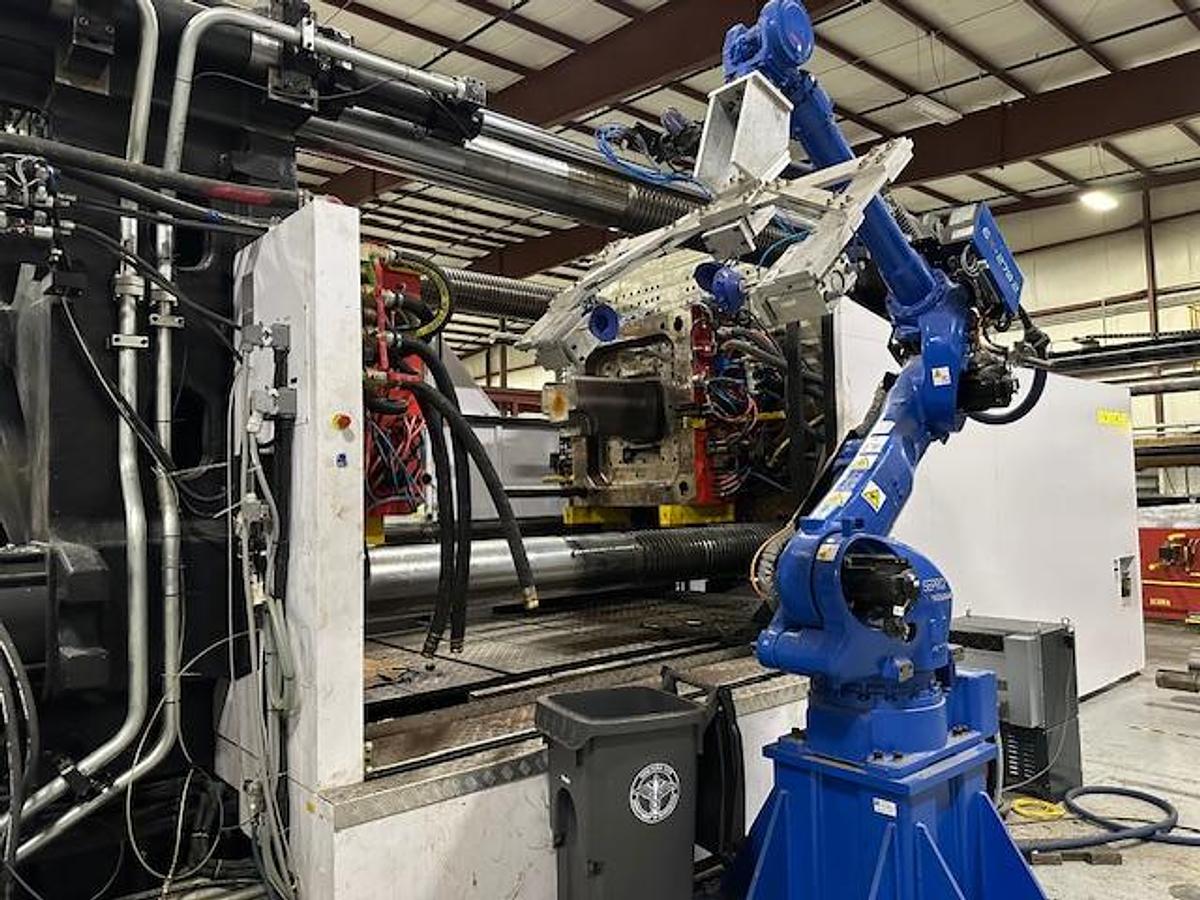

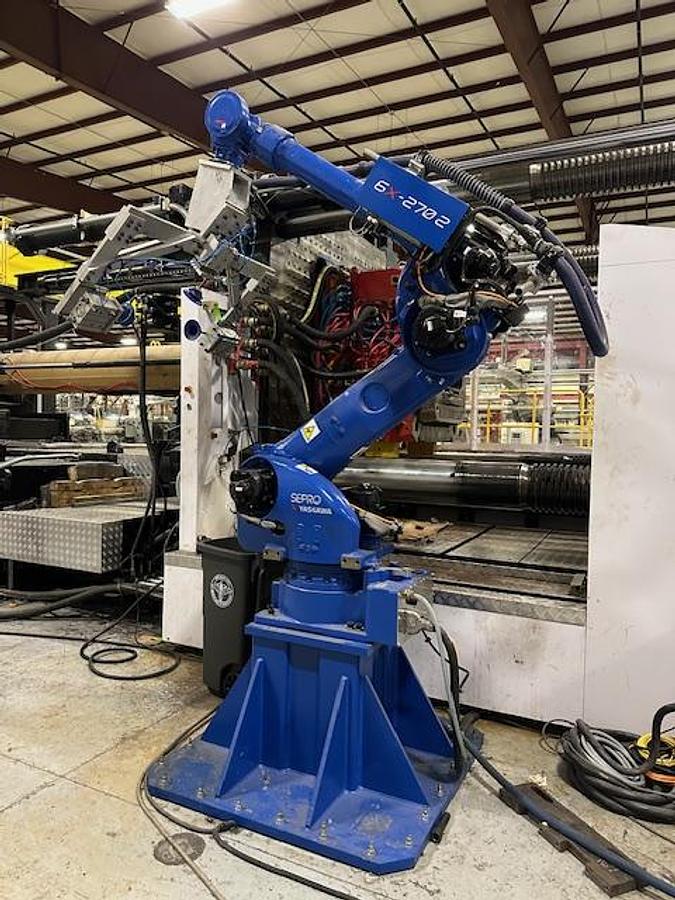

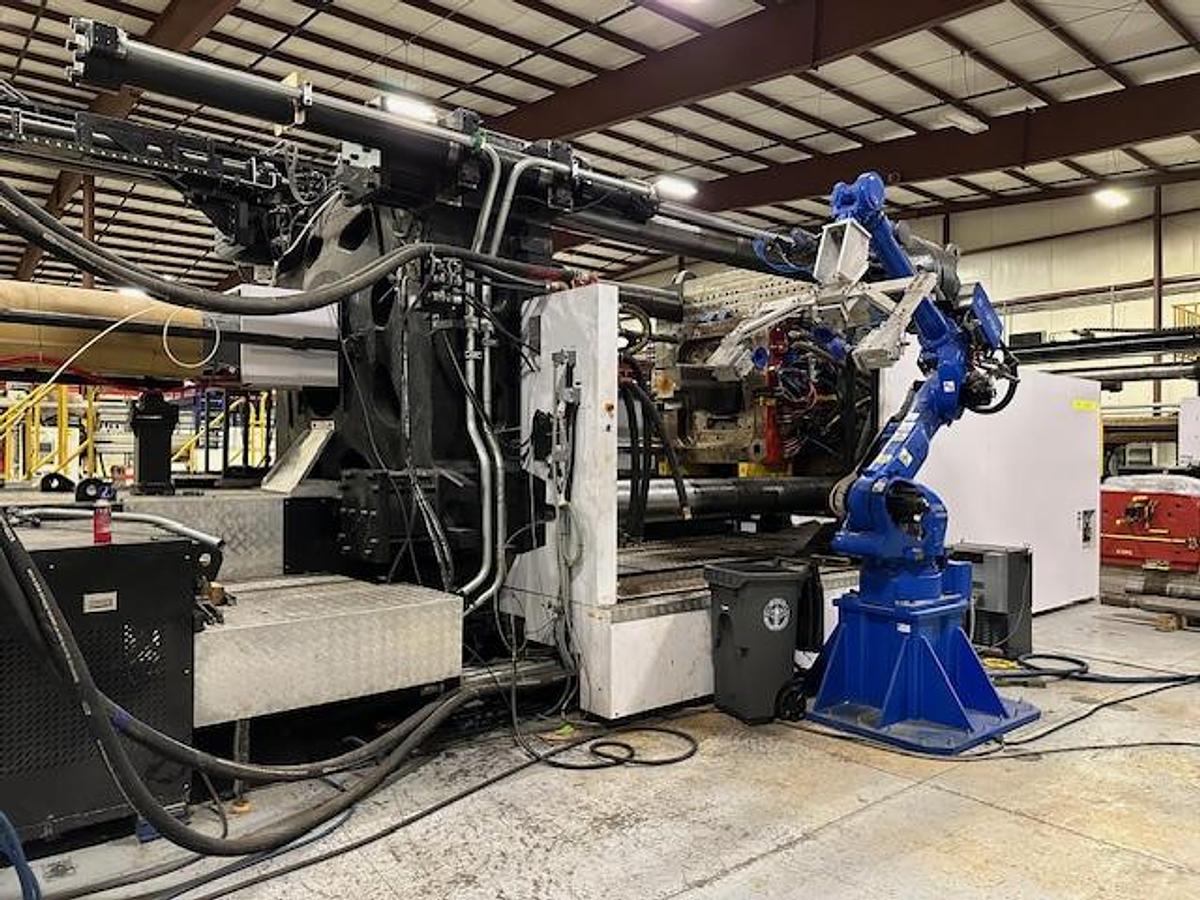

| Includes | Yaskawa YR-1-06VX130 Robot |
Included Options
Price Includes Loading; Retractable Tie Bar (Non-Operator Side), Electric Screw Drive, & Yaskawa Robot
