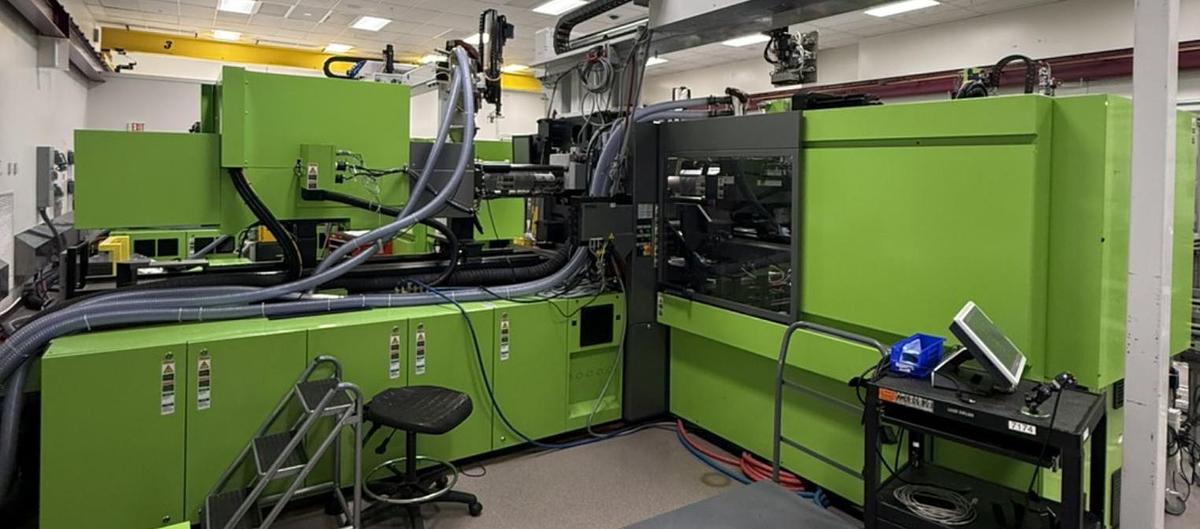

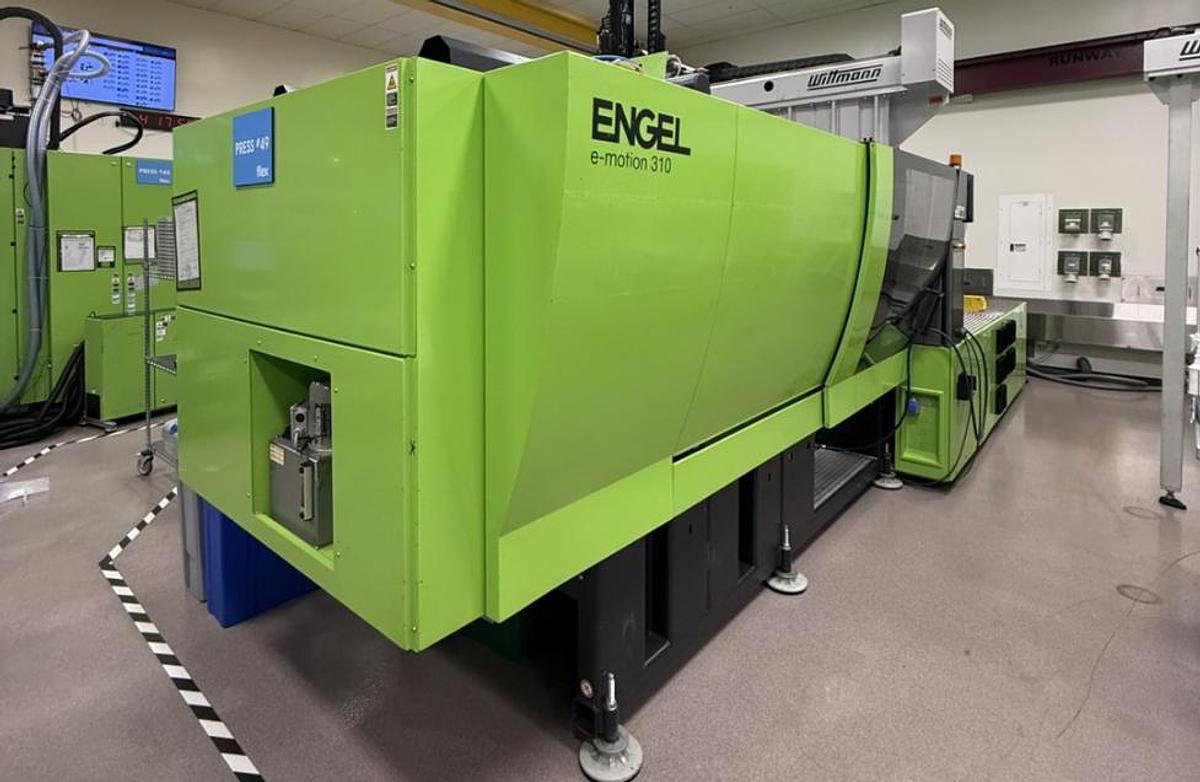

314 Ton, Engel Electric 2-Shot, 3.6 oz.+3.6 oz. with Rotary Table, "L" Configuration, E-Motion Injection Molding Machine (2017)

The 2017 Engel E-Motion 310H-310L-310 T injection molding machine offers reliable performance with a dual injection capability, perfect for sophisticated molding processes. With a US tonnage of 314, it features a two-shot injection system, each with a capacity of 3.6 ounces, and a well-coordinated "L" configuration that includes a rotary table for enhanced operational efficiency. The machine is equipped with 33 mm screw diameters for both primary and secondary shots, supported by precise control using the CC300 system. Occupying a compact footprint, the machine’s platen size measures 38.2 x 38.2 inches, and it offers a tiebar spacing of 30.7 x 30.7 inches. It accommodates molds with a maximum height of 23.62 inches and a minimum height of 3.93 inches, accompanied by an opening stroke of 23.62 inches and an ejector stroke of 4.72 inches. The rotary table, designed with a 5.91-inch thickness and a 43.3-inch diameter, provides added versatility for complex production processes. Operating on a 460V/3P/60Hz power supply, this machine is ideal for manufacturers seeking efficient and robust injection molding solutions. The combination of flexibility, precision, and advanced technology makes it suitable for a variety of industrial applications.
