1124 Ton, 217.28 Oz., Haitian MAII 10000/8400 (D) Injection Molding Machine (2013)

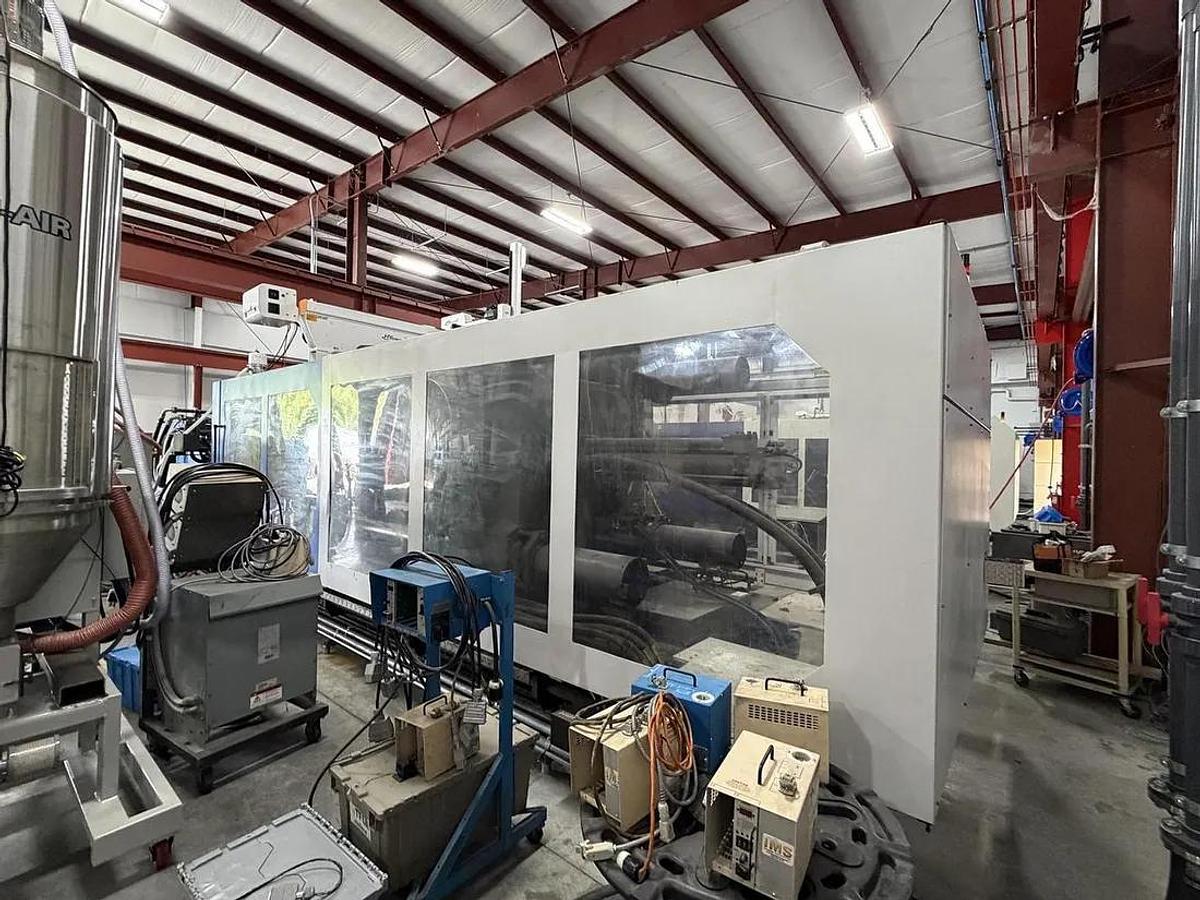

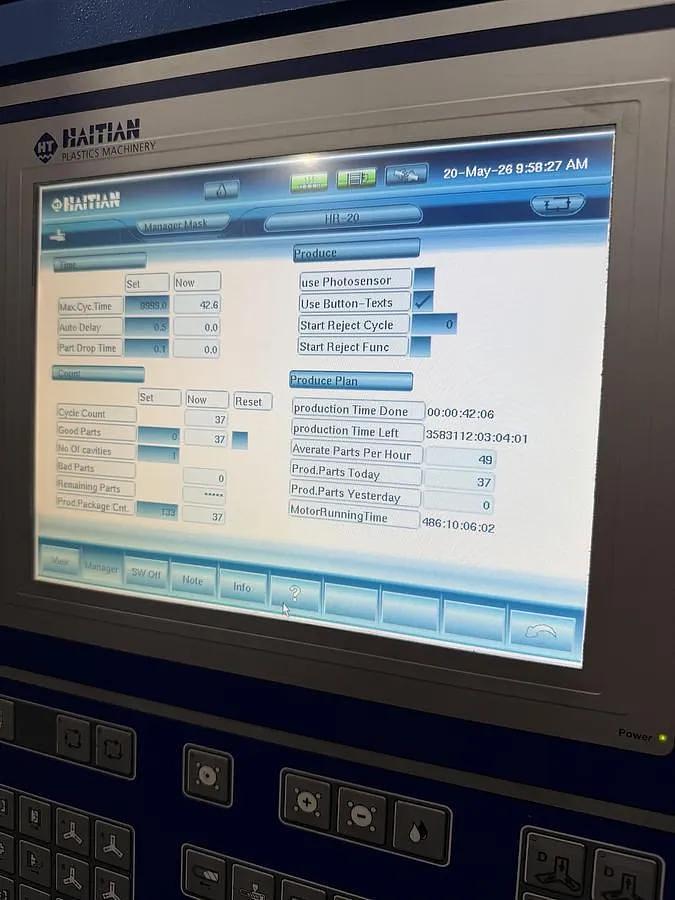

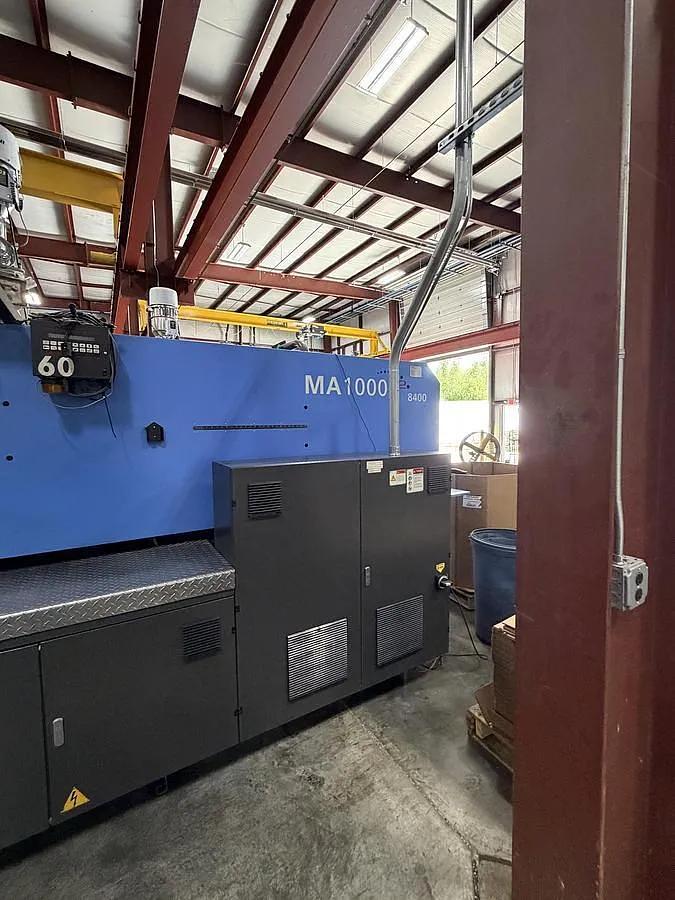

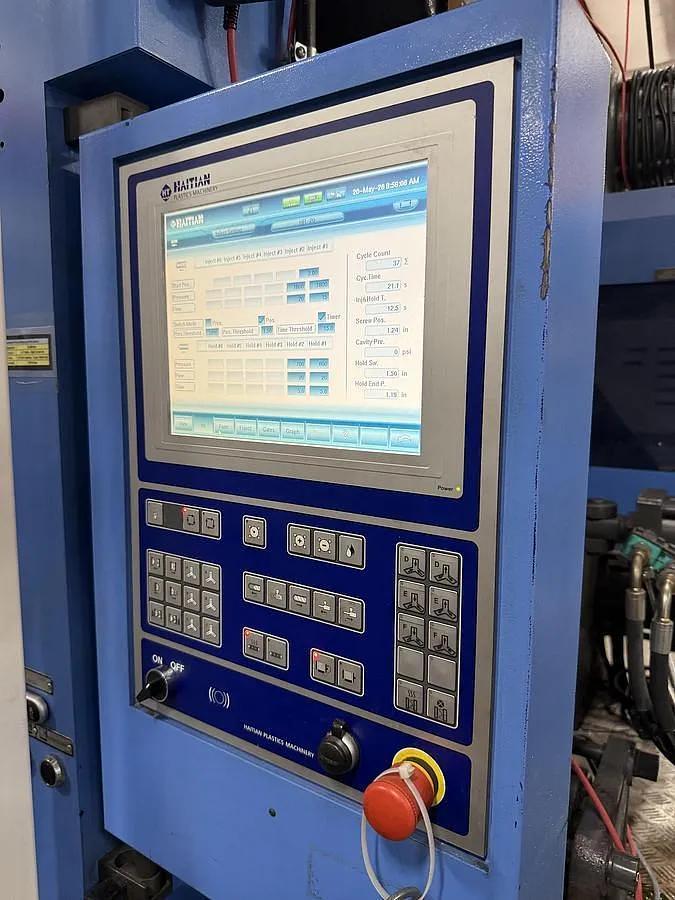

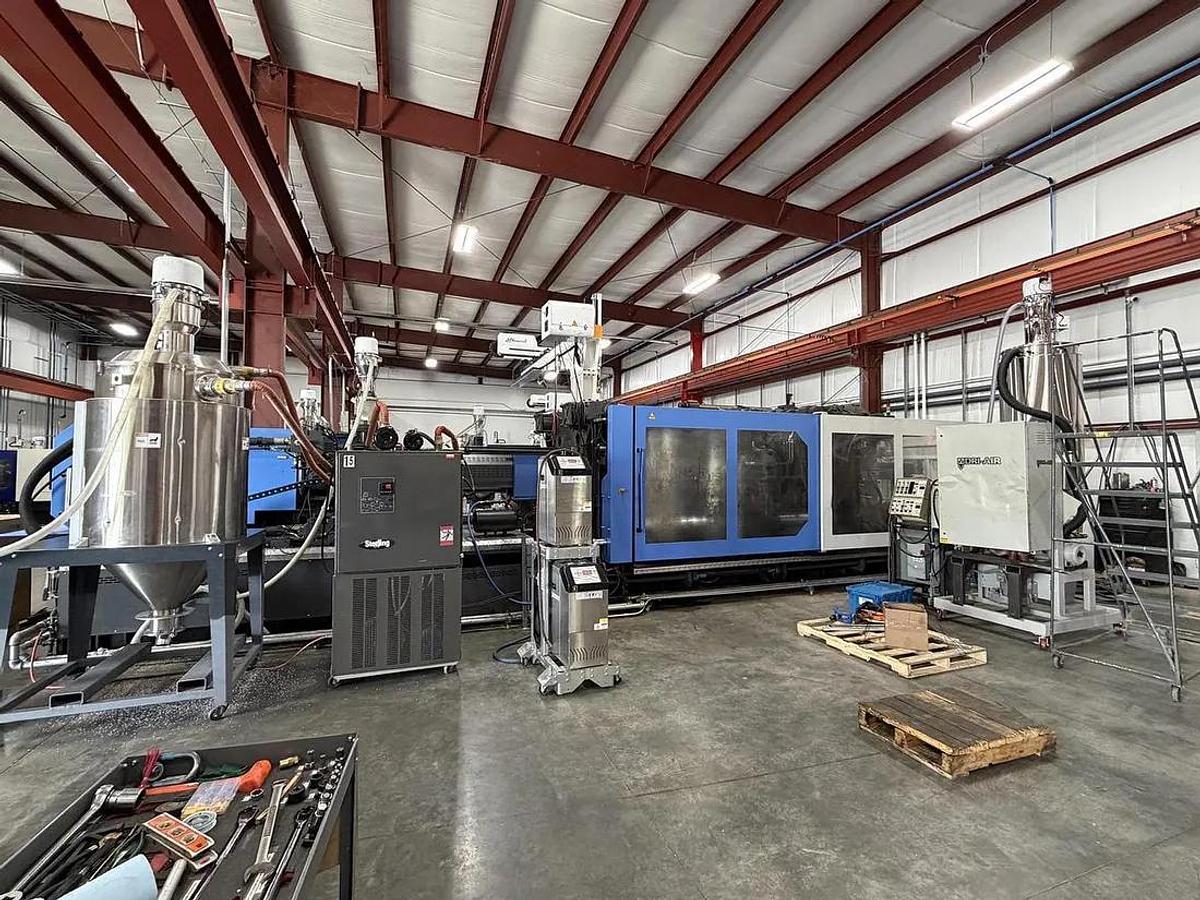

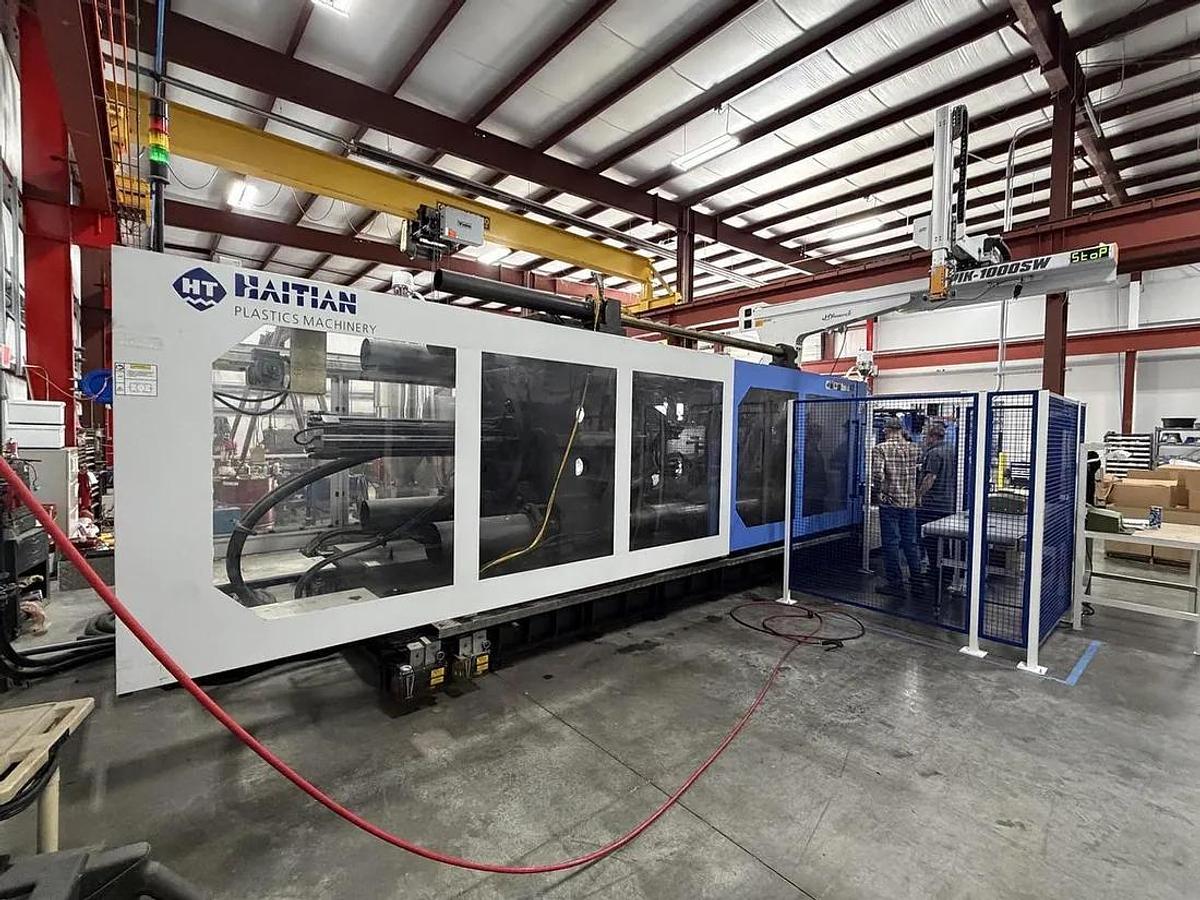

The Haitian MAII 10000-8400 B is a robust used horizontal injection molding machine, suitable for high-capacity production with a clamping force of 1124 US tons. This machine is equipped with a screw diameter of 130 mm and a shot size of 217.28 oz of PS, capable of handling large-scale projects efficiently. The platen size measures 64.96 x 66.93 inches, with tie bar spacing of 45.67 x 45.67 inches, allowing for molding versatility. With a maximum mold height of 45.67 inches and a minimum of 19.69 inches, along with an opening stroke of 48.03 inches and an open daylight of 93.7 inches, this machine can accommodate a wide range of mold dimensions, ensuring flexibility in production. It also features an ejector stroke of 12.60 inches, which enhances efficiency in the mold release process. The machine is controlled by the reliable KEBA system, providing precision and ease of operation. Overall, the Haitian MAII 10000-8400 B is an excellent choice for manufacturers needing a dependable, high-capacity injection molding machine. Its specifications and control features make it a valuable asset for substantial production requirements.
