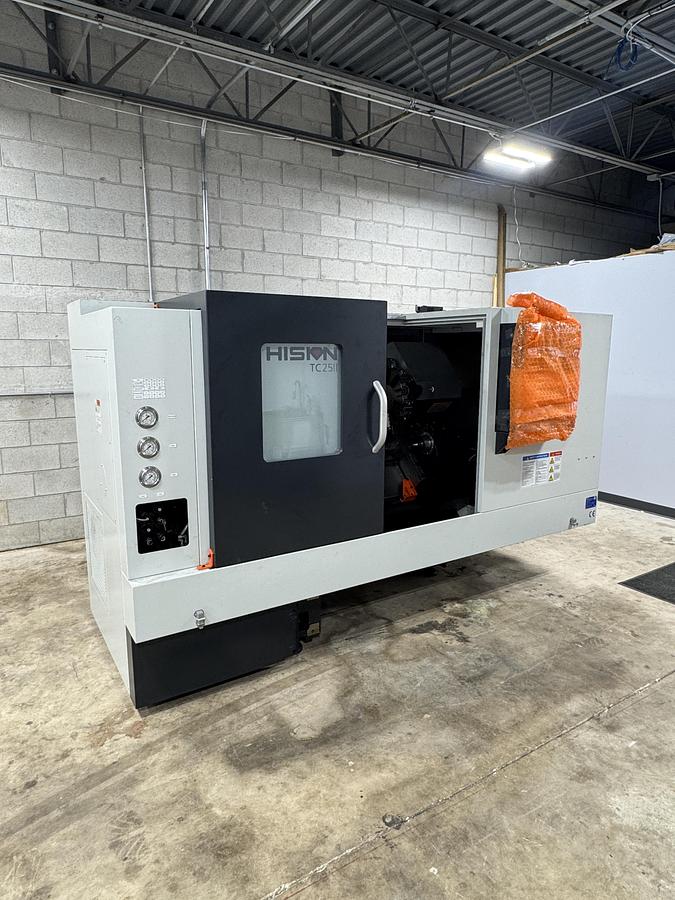

Haitian Precision TC25x500 Horizontal Box Way Lathe

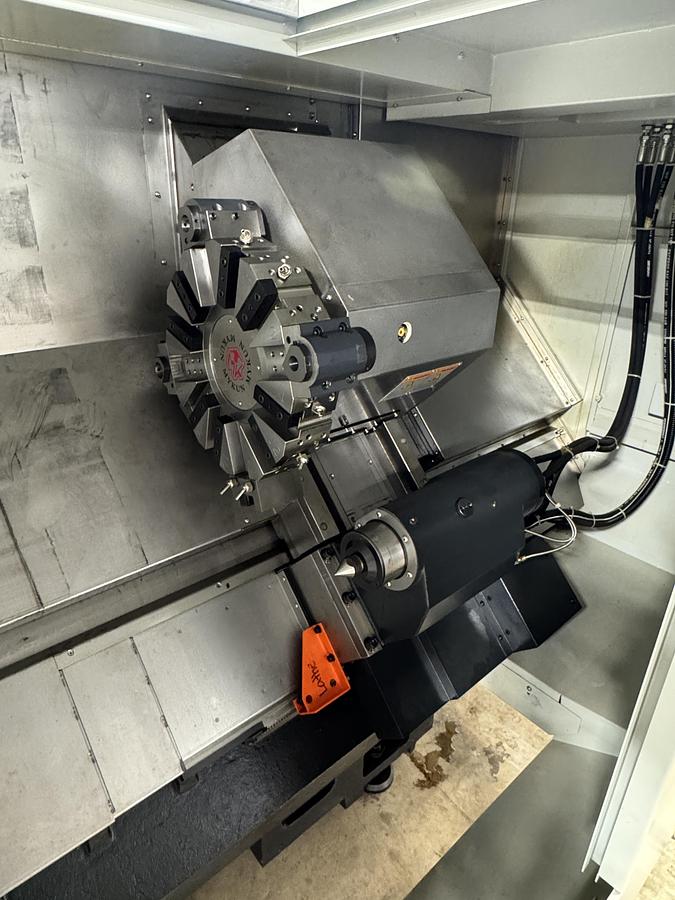

The Haitian Precision TC25x500II is a new horizontal box way lathe offering robust performance for various metalworking applications. This model supports a maximum swing over bed of 22 inches and a swing over saddle of 12.6 inches, accommodating diverse workpiece dimensions. It provides a maximum turning diameter of 15.7 inches and a turning length of 21.6 inches, making it versatile for medium-sized jobs. Powerful yet precise, the lathe operates with a spindle speed reaching up to 4500 rpm. The spindle power is 20.1 HP under S6 duty and 14.8 HP under S1 duty, delivering substantial torque for efficient material removal. The hydraulic turret accommodates 12 tools with a swift tool-changing time of 0.55 seconds, enhancing productivity during operations. Featuring a Fanuc 0i TF PLUS control system, this machine ensures ease of operation alongside precision. Rapid feeds of up to 1181 ipm for the X-axis and 945 ipm for the Z-axis allow for fast and accurate positioning. With additional features like a hydraulic tailstock and a 53-gallon coolant tank, the TC25x500II is well-equipped for reliable, high-performance machining tasks. Weighing 9921 lbs, it is built for stability and durability in demanding industrial environments.
