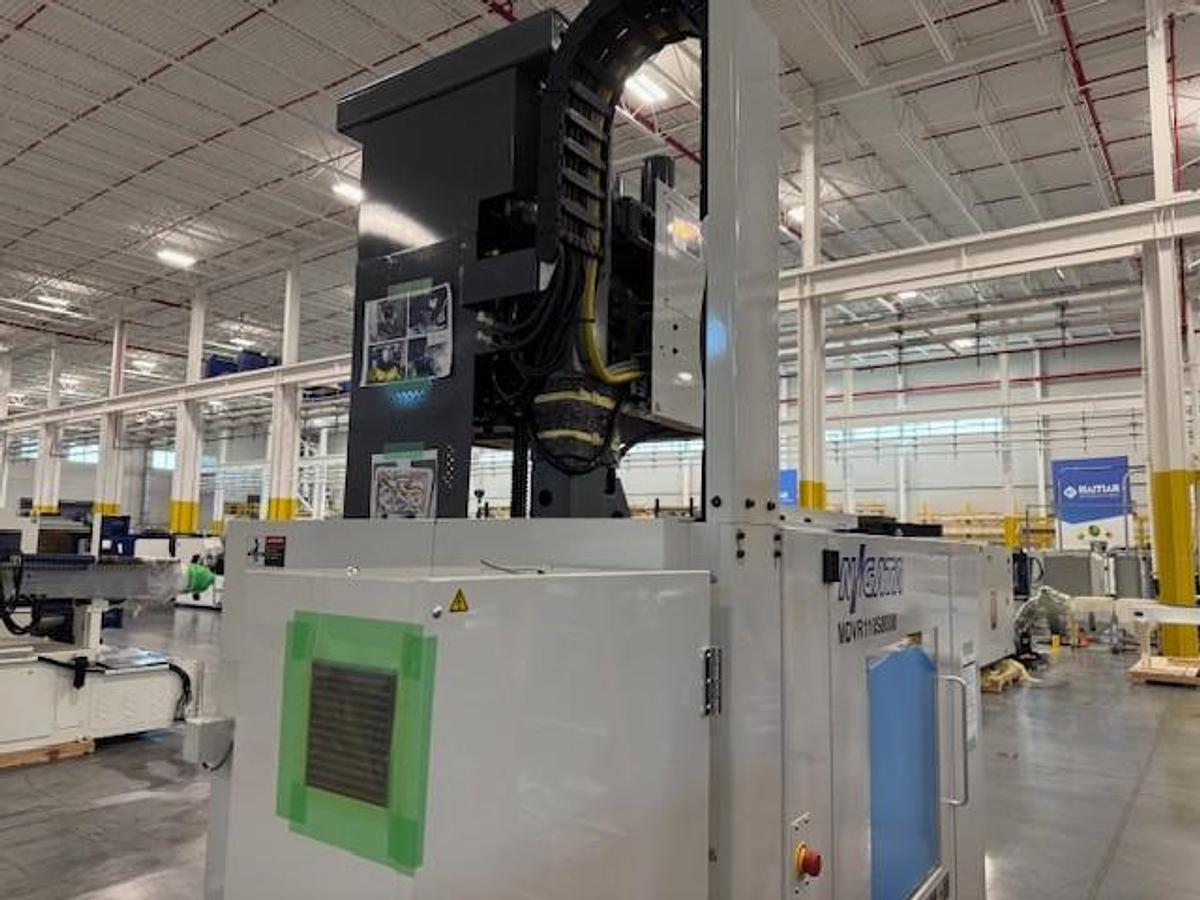

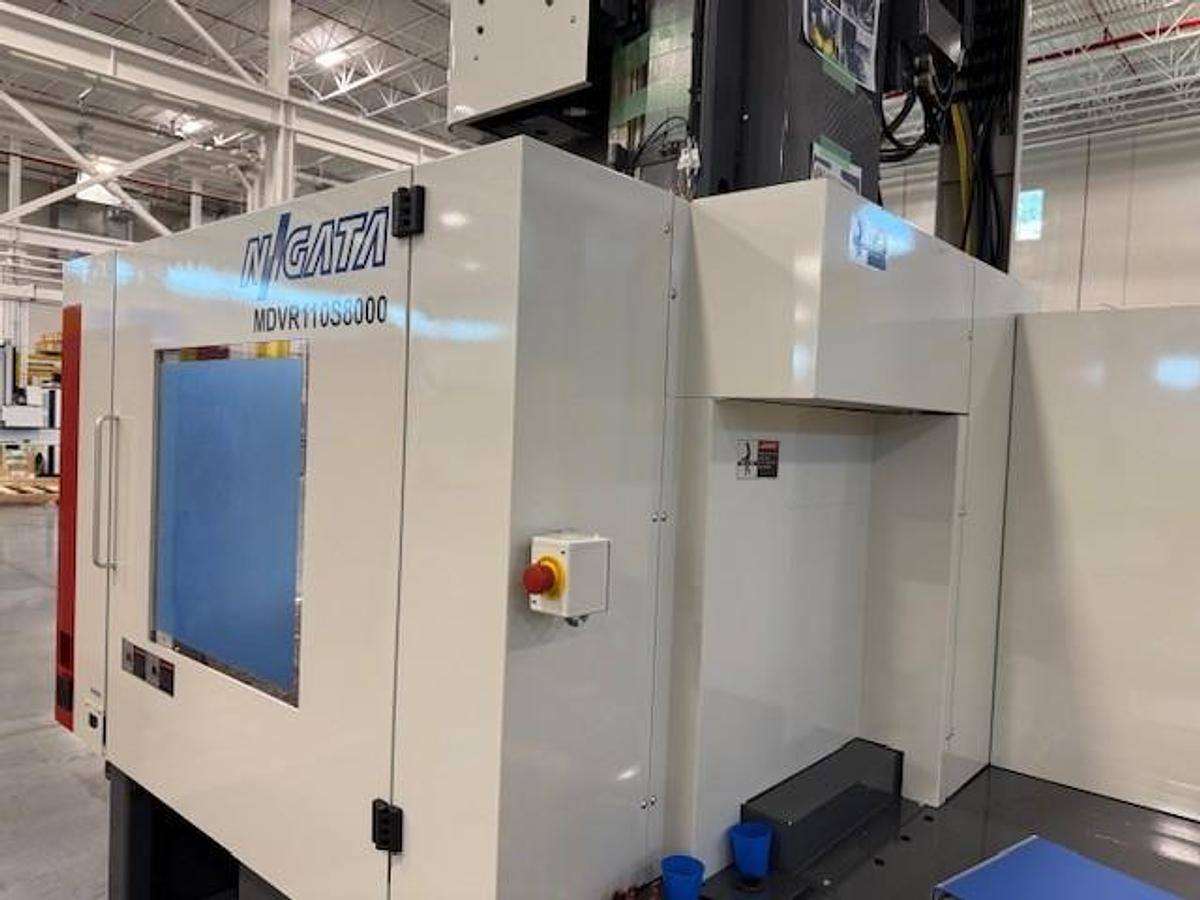

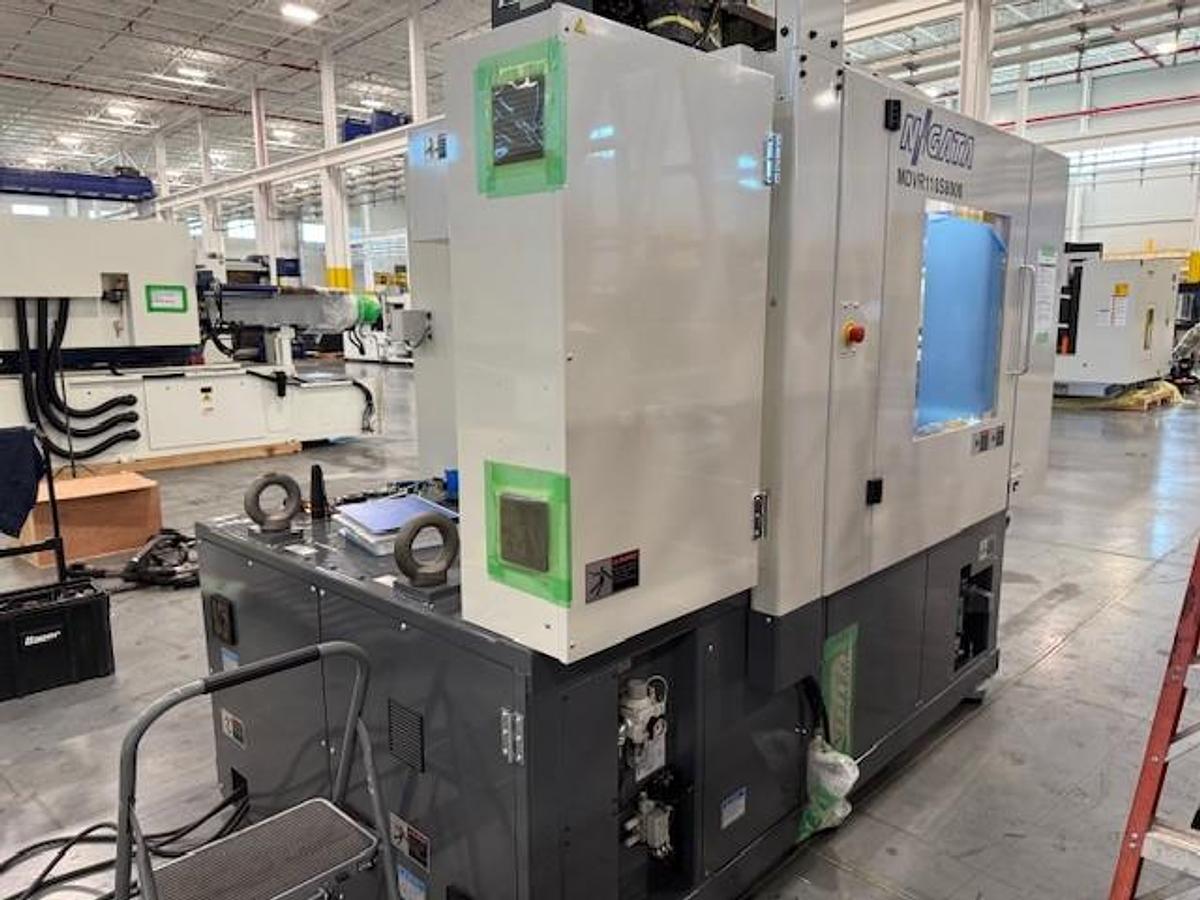

112 Ton, 2.4 Oz. Niigata Vertical 2-Station Rotary Injection Molding Machine (2022)
Featured
112 Ton, 2.4 Oz. Niigata Vertical 2-Station Rotary Injection Molding Machine (2022)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Niigata |
| Model | MDVR110S8000-IM1142 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 14117 |
| Model | MDVR110S8000-IM1142 |
| US Tonnage | 112 |
| Shot Size (oz. of PS) | 2.40 |
| Screw Diameter | 1.18" |
| Table Diameter (in.) | 56.02" |
| Max Mold Size (LxW) (in.) | 19.96 x 19.96 |
| Max Mold Height (in.) | 17.72" |
| Min Mold Height (in.) | 13.78" |
| Opening Stroke (in.) | 11.02" |
| Open Daylight (in.) | 24.8 |
| Stations | 2 |
| Ejector Stroke (in.) | 2.95" |

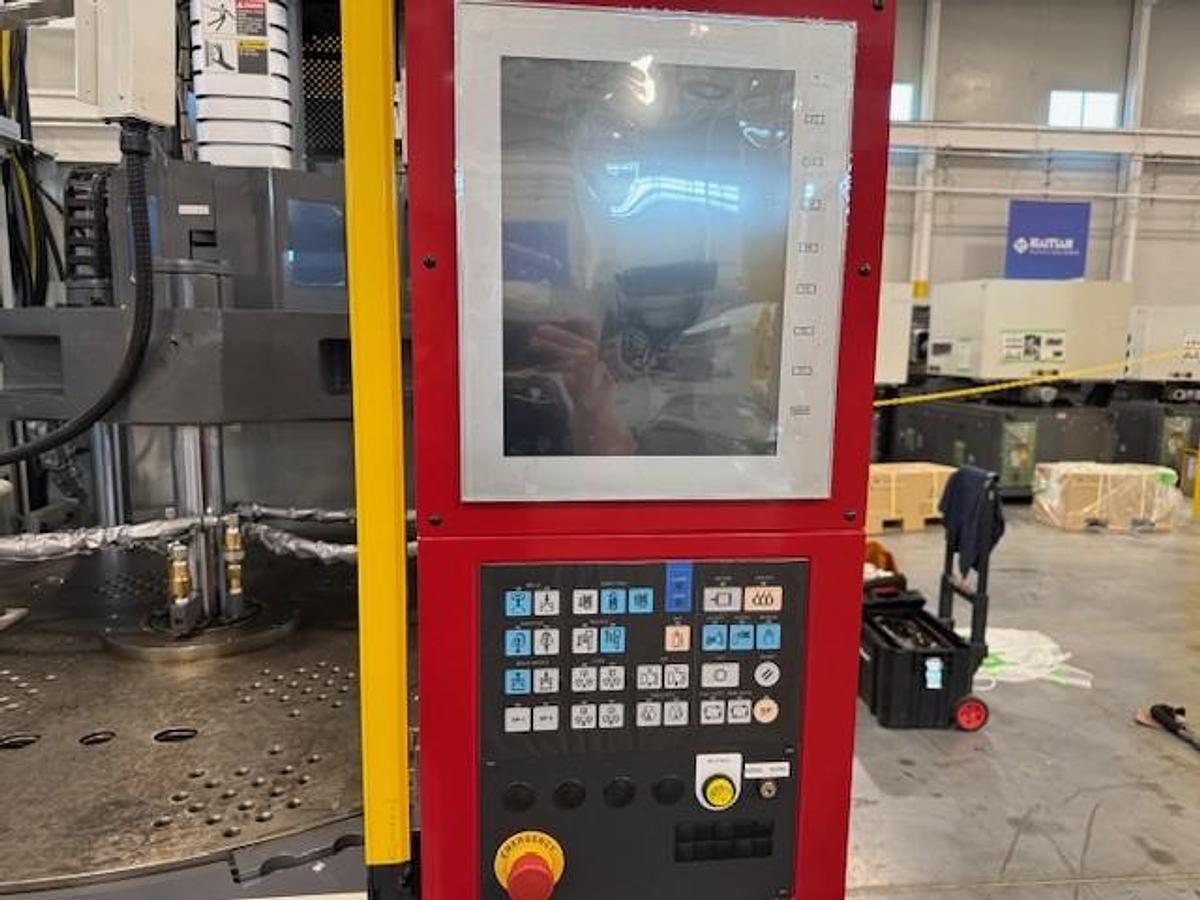

| Control | Niigata Hiper |
| Voltage | 220V |
| Injection Pressure (psi) | 35530 |
| Max Mold Weight (lbs) | Upper: 440 lbs, Lower: 992 |
