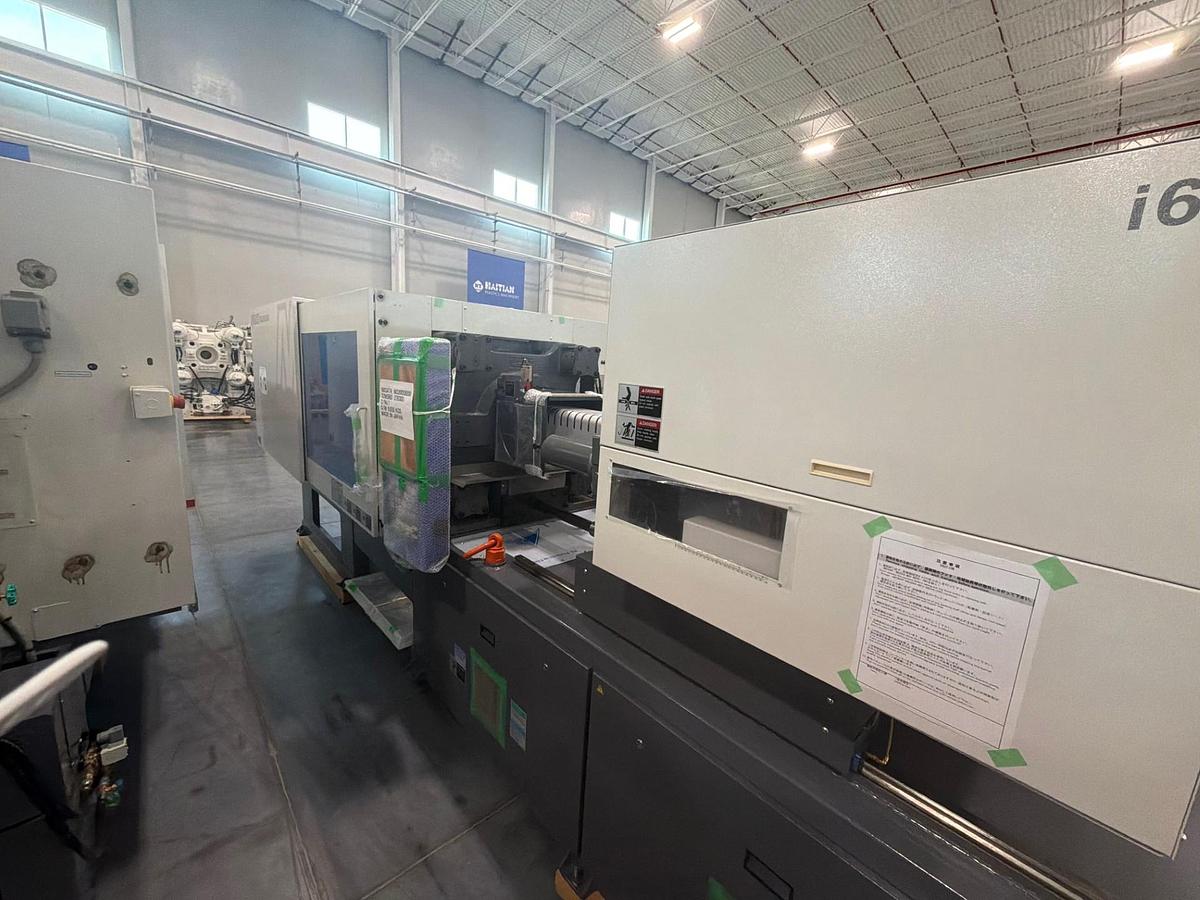

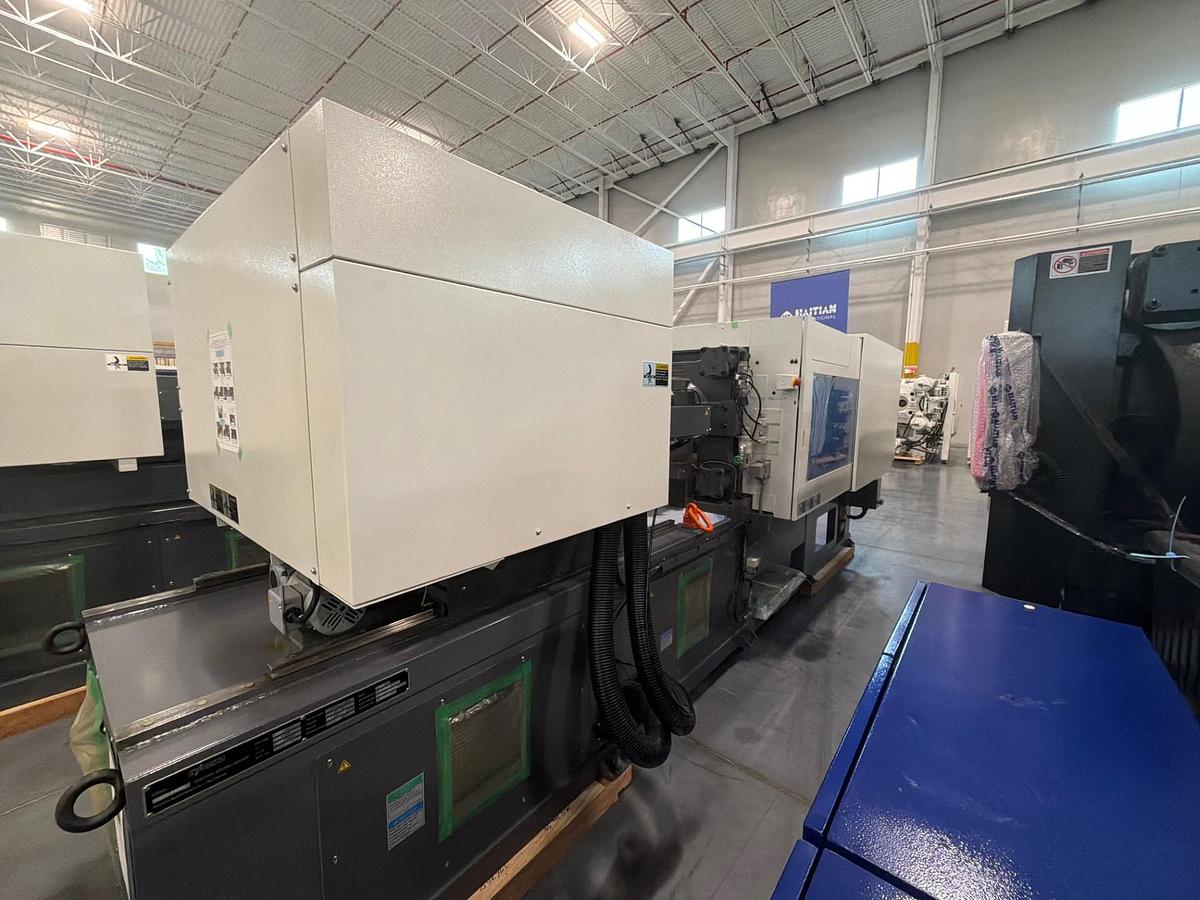

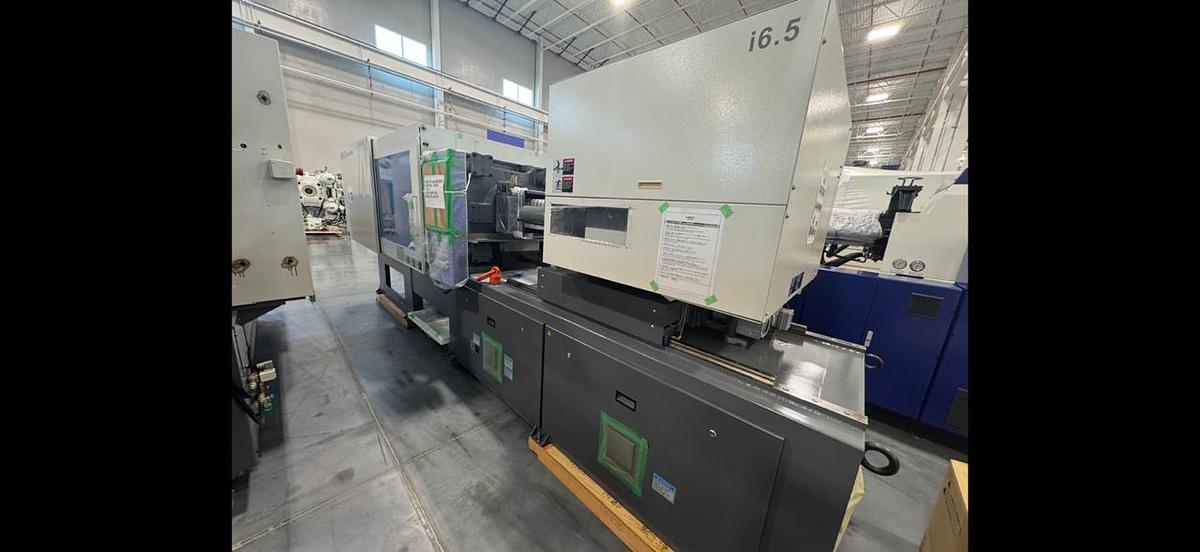

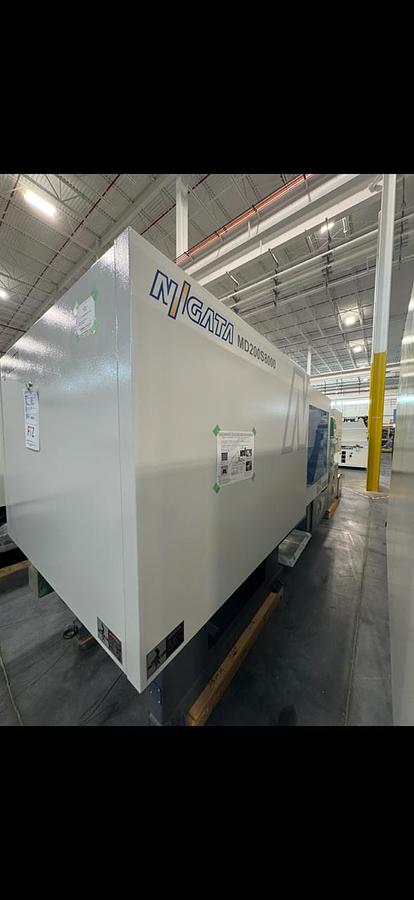

202 Ton, 14.12 Oz., Niigata MD200S8000 Injection Molding Machine

202 Ton, 14.12 Oz., Niigata MD200S8000 Injection Molding Machine

Available quantity:1

or
Call +1 508-792-4305

Specifications

ManufacturerNiigata
ModelMD200S8000
Year2025
ConditionNew
Stock Number14113
ModelMD200S8000 B-Screw
US Tonnage202
Shot Size (oz. of PS)14.12
Screw Diameter52mm
Platen Size (in.)33.07 x 33.07
Tiebar Spacing (HxV) in.22.44 x 22.44
Max Mold Height (in.)25.91
Min Mold Height (in.)7.87
Opening Stroke (in.)18.50
Open Daylight (in.)44.09
Ejector Stroke (in.)5.91
ControlNiigata S8000 Touchscreen
Voltage220V/3P/60Hz
