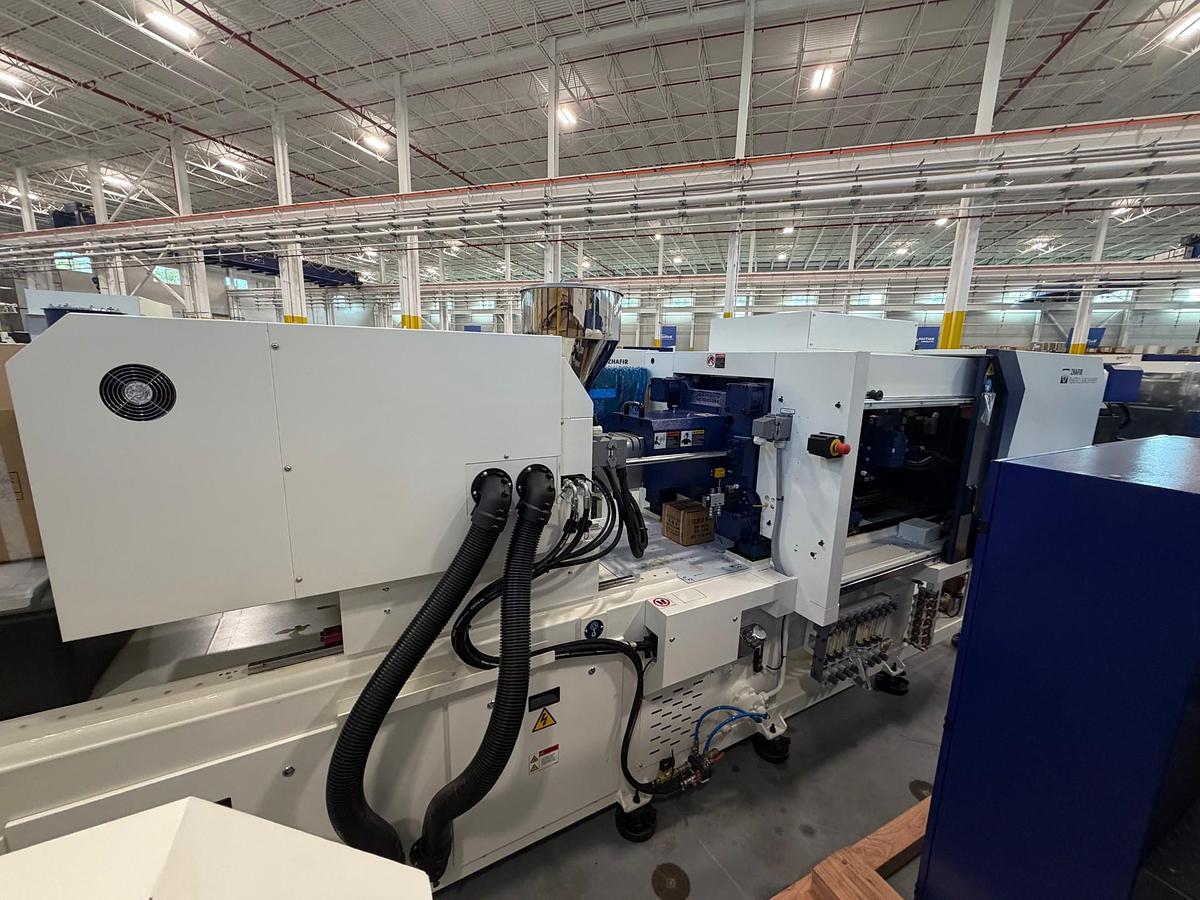

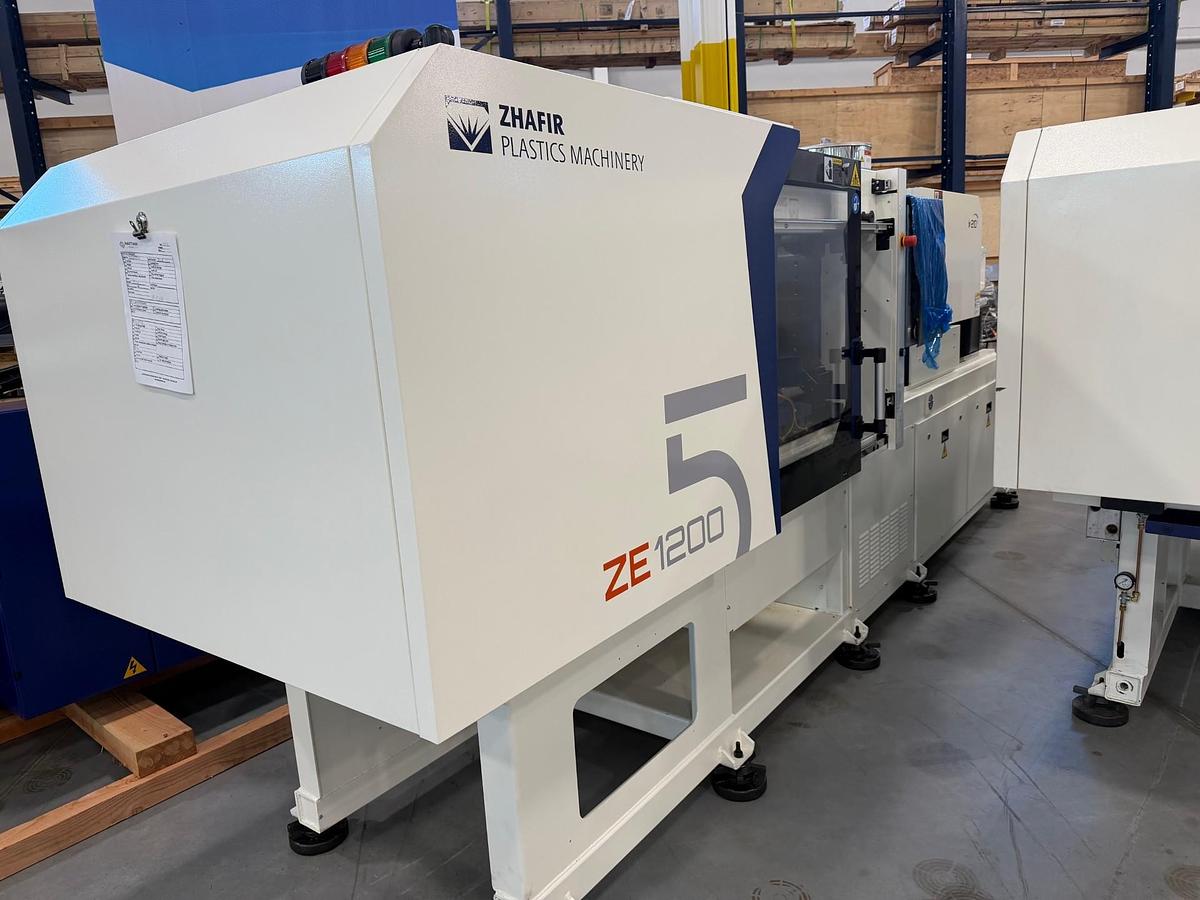

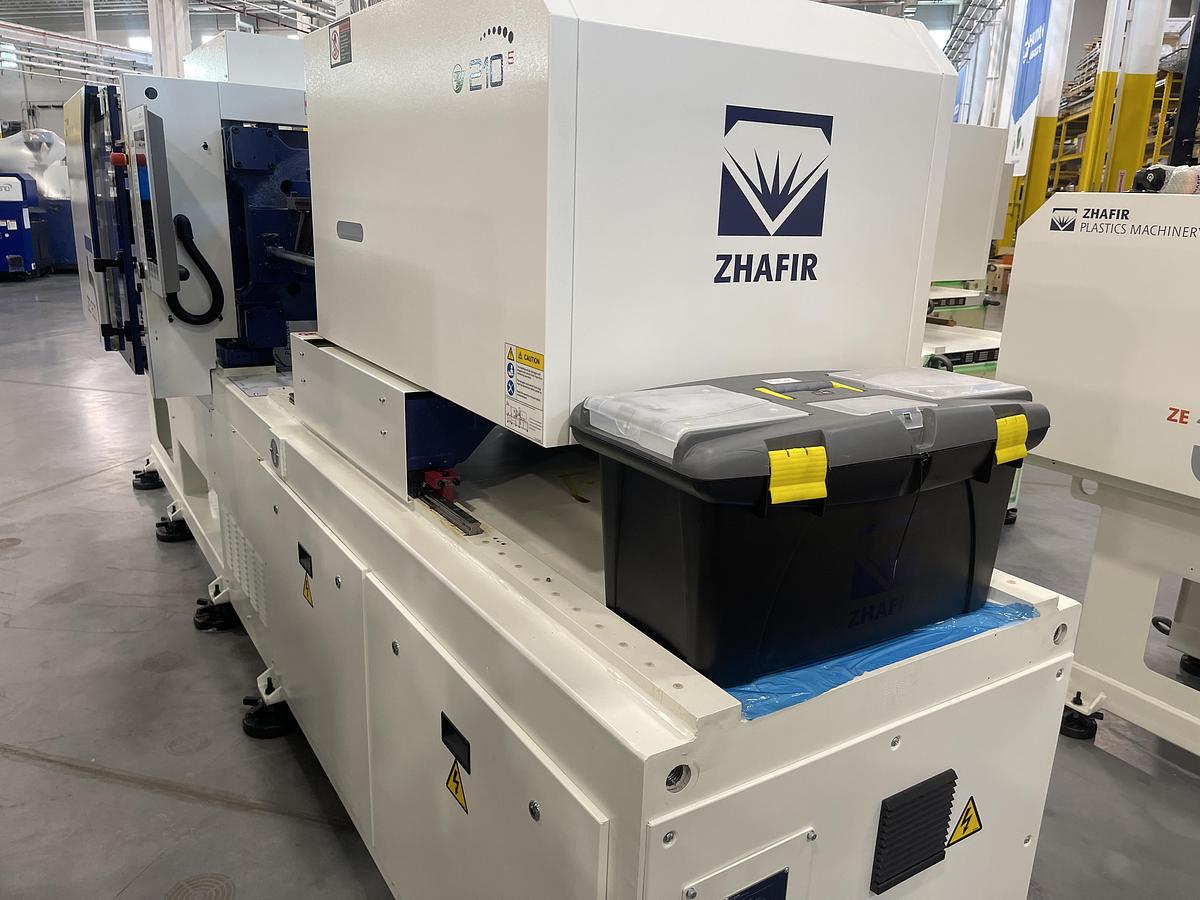

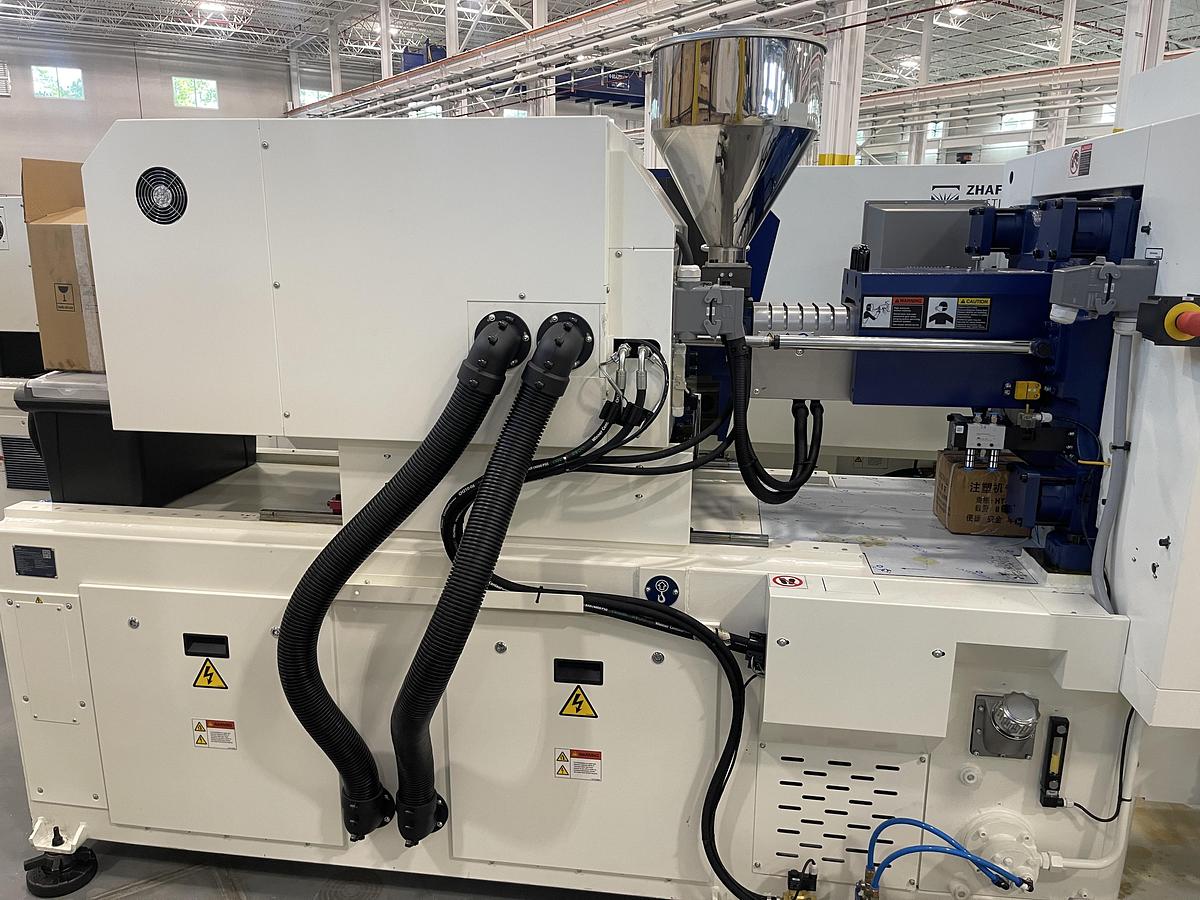

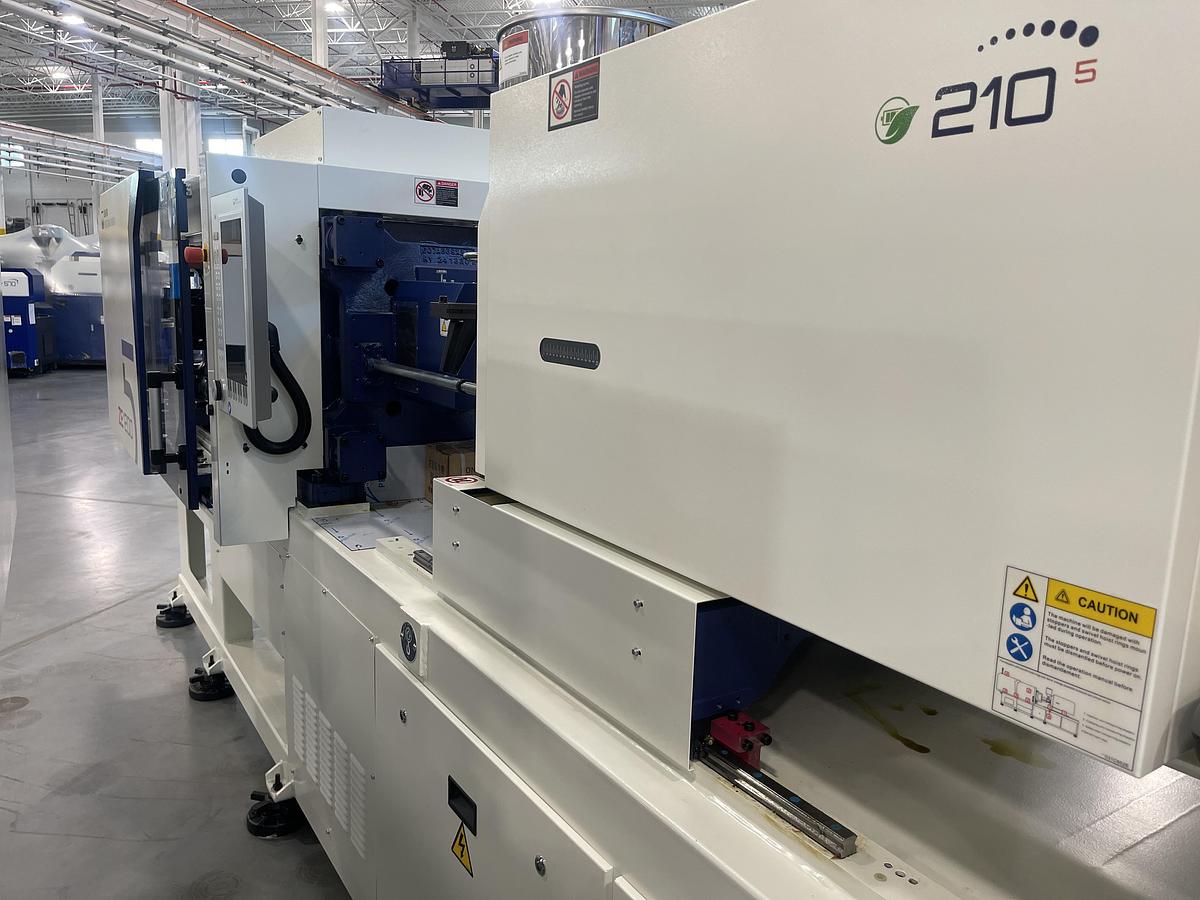

135 Ton, 3.21 Oz., Haitian ZEV 1200/210 Injection Molding Machine

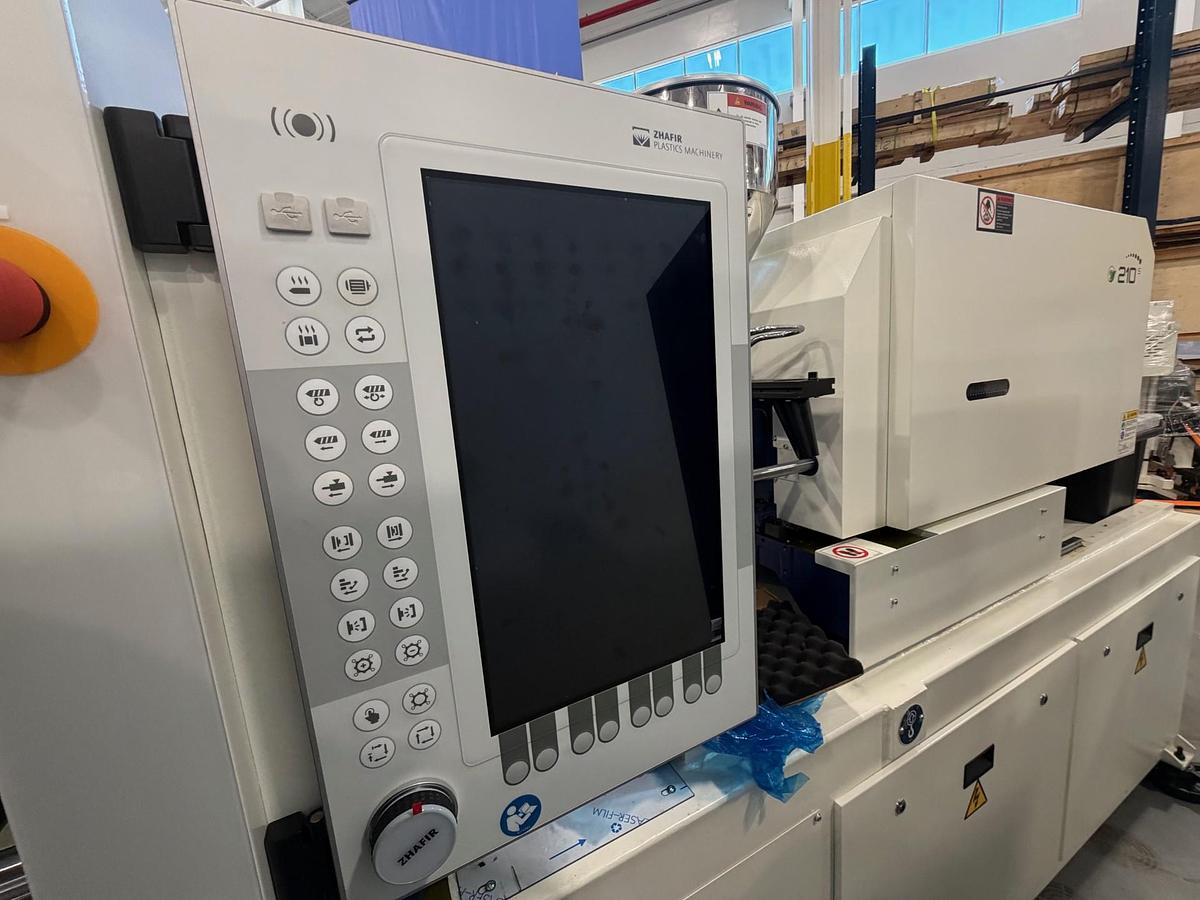

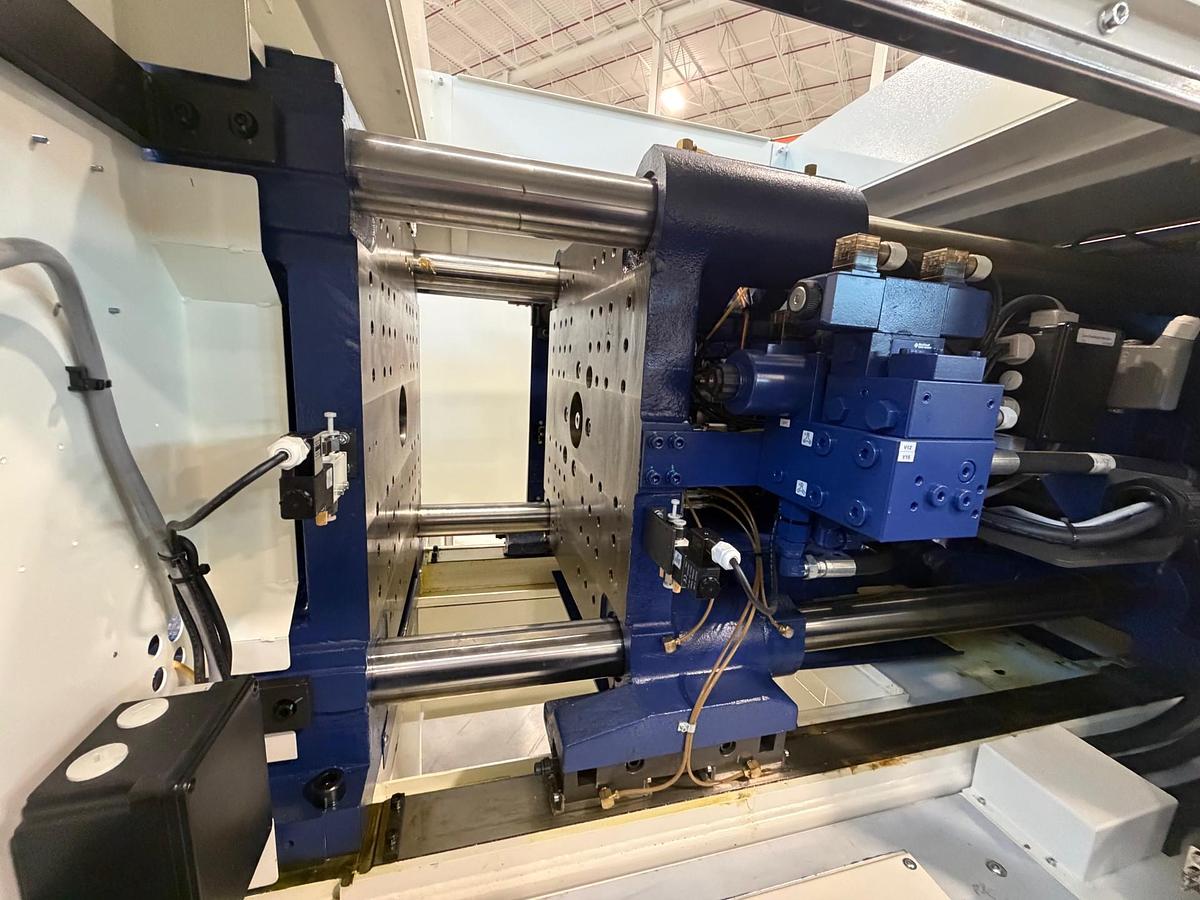

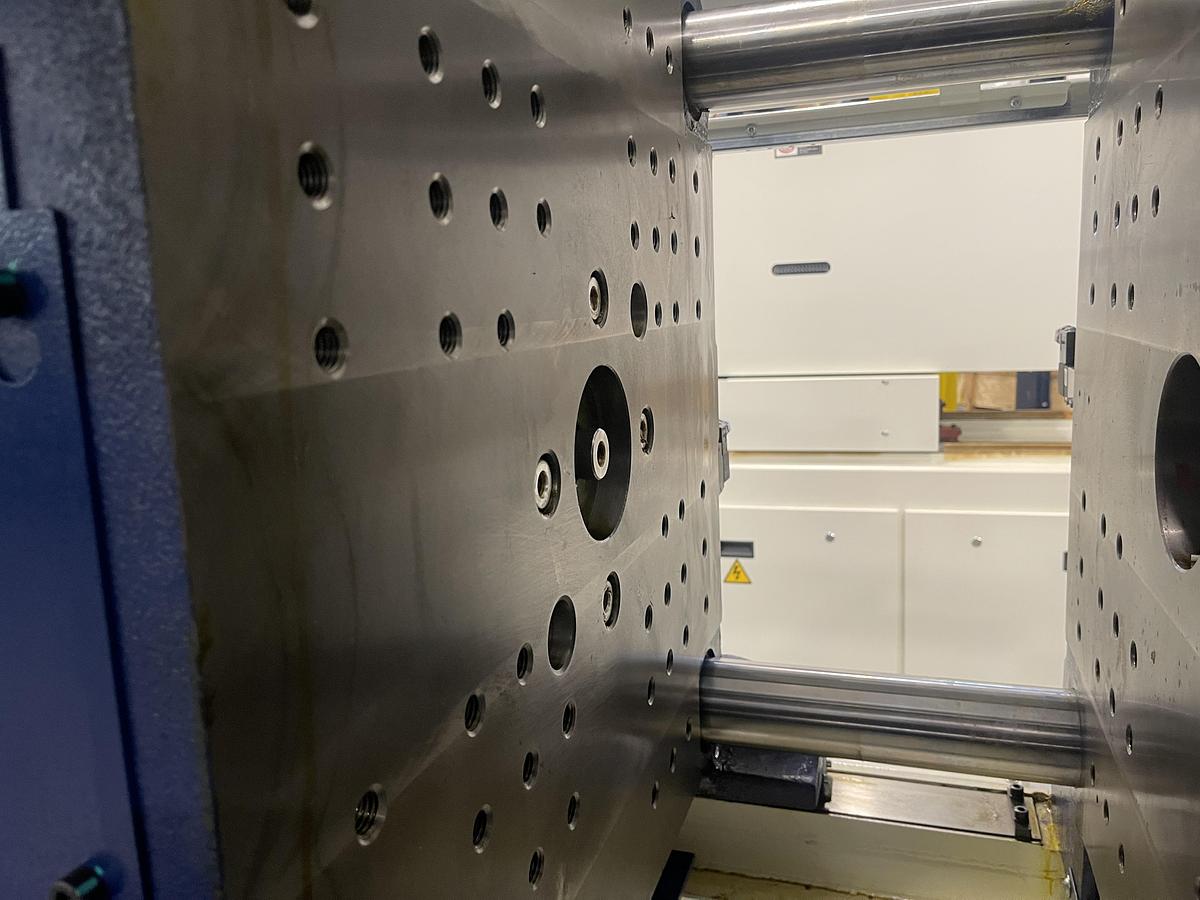

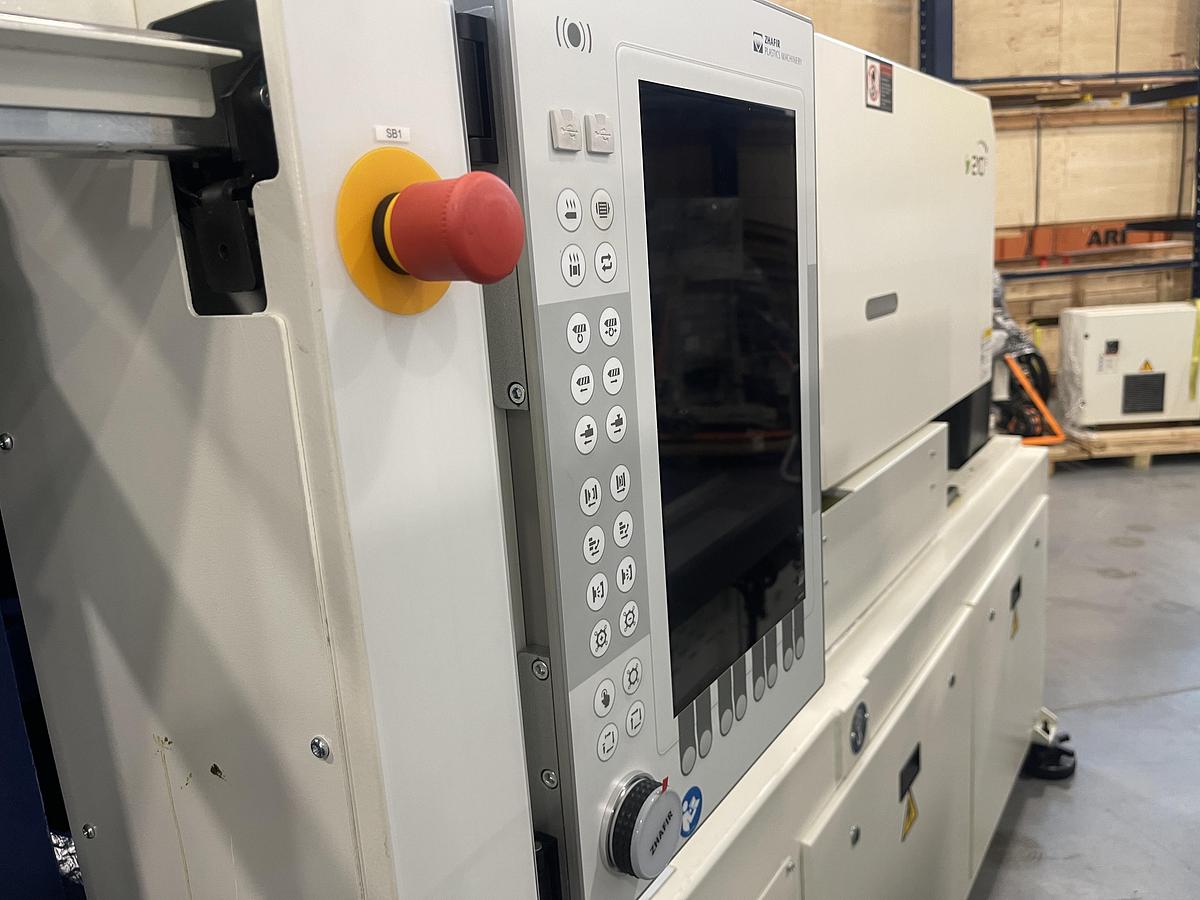

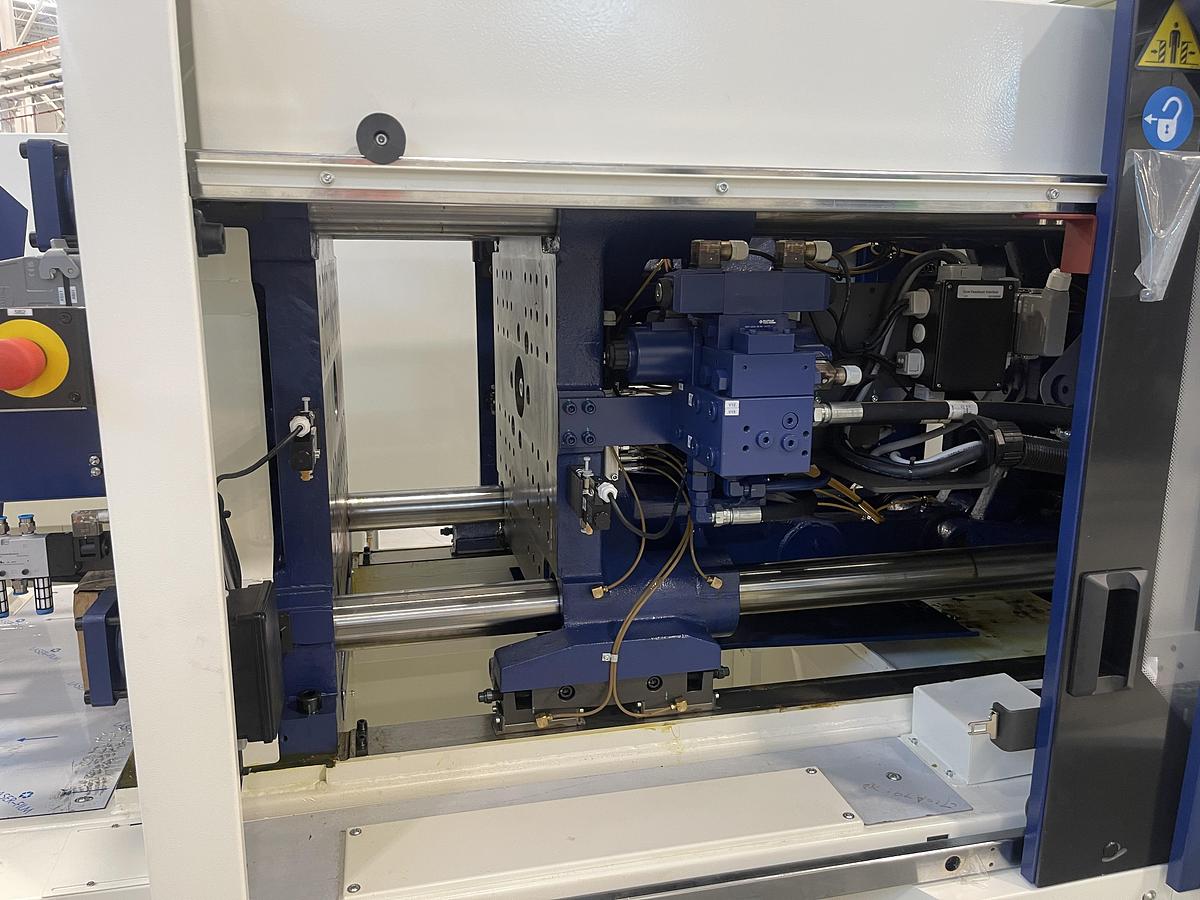

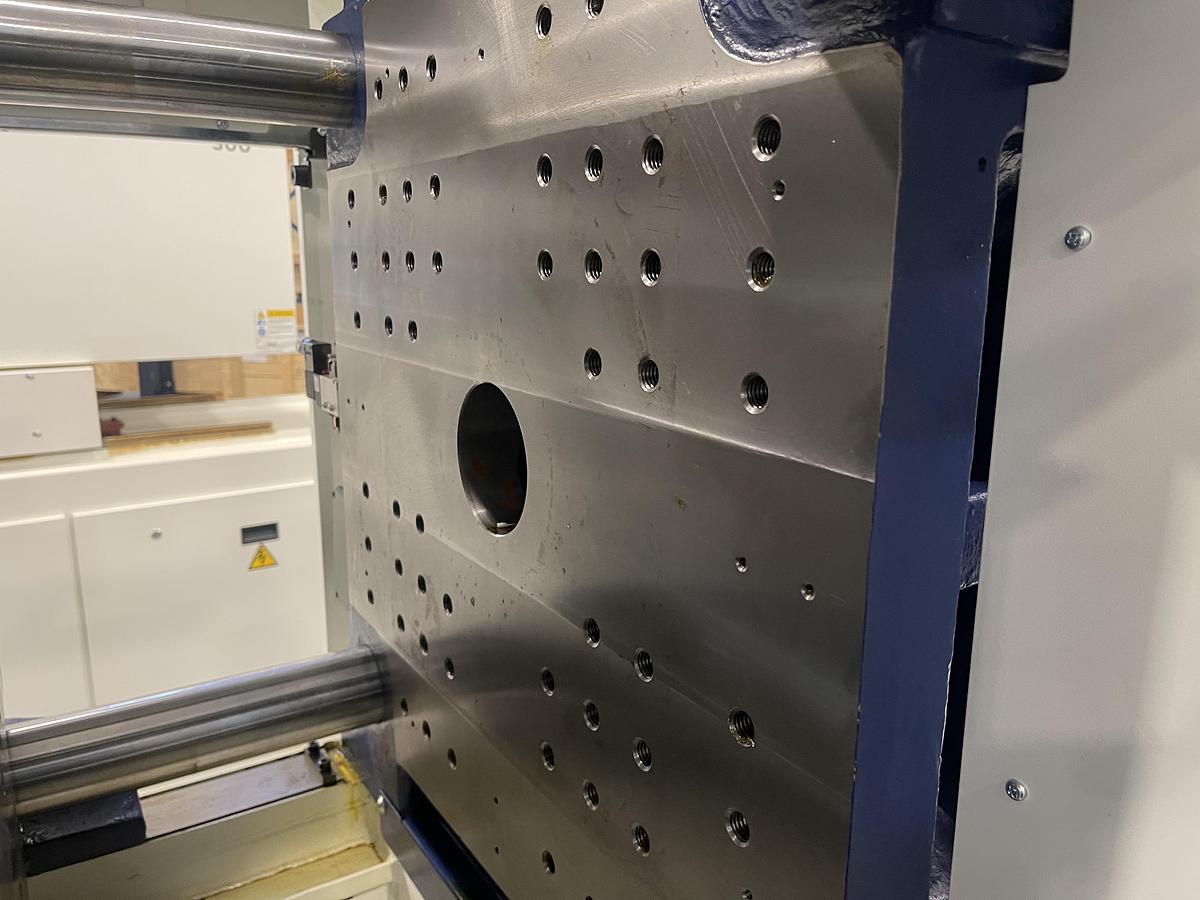

The Haitian ZEV 1200/210 is a new horizontal injection molding machine with a clamping force of 135 tons, ideal for various plastic manufacturing applications. This machine features a shot size of 3.21 ounces of PS and is equipped with a 32mm screw diameter, catering to different molding requirements. Its platen size measures 25.2 x 25.2 inches, with a tiebar spacing of 18.5 x 18.5 inches, allowing sufficient space for mold installation. For versatility, the machine accommodates a wide range of molds, with a maximum mold height of 18.9 inches and a minimum mold height of 5.91 inches. The machine also offers an opening stroke of 14.17 inches and an open daylight of 33.07 inches, enhancing its flexibility in processing different mold sizes. Additionally, the Haitian ZEV 1200/210 is equipped with a KEBA control system, offering precise and reliable control over the injection molding process. Designed to operate on a voltage of 460V/3P/60Hz, this injection molding machine is not only efficient but also ensures smooth and continuous operation. With an ejector stroke of 3.94 inches, it effectively manages the ejection process, increasing production efficiency. This equipment is a valuable addition to facilities seeking reliable performance and adaptability in their plastic production processes.
