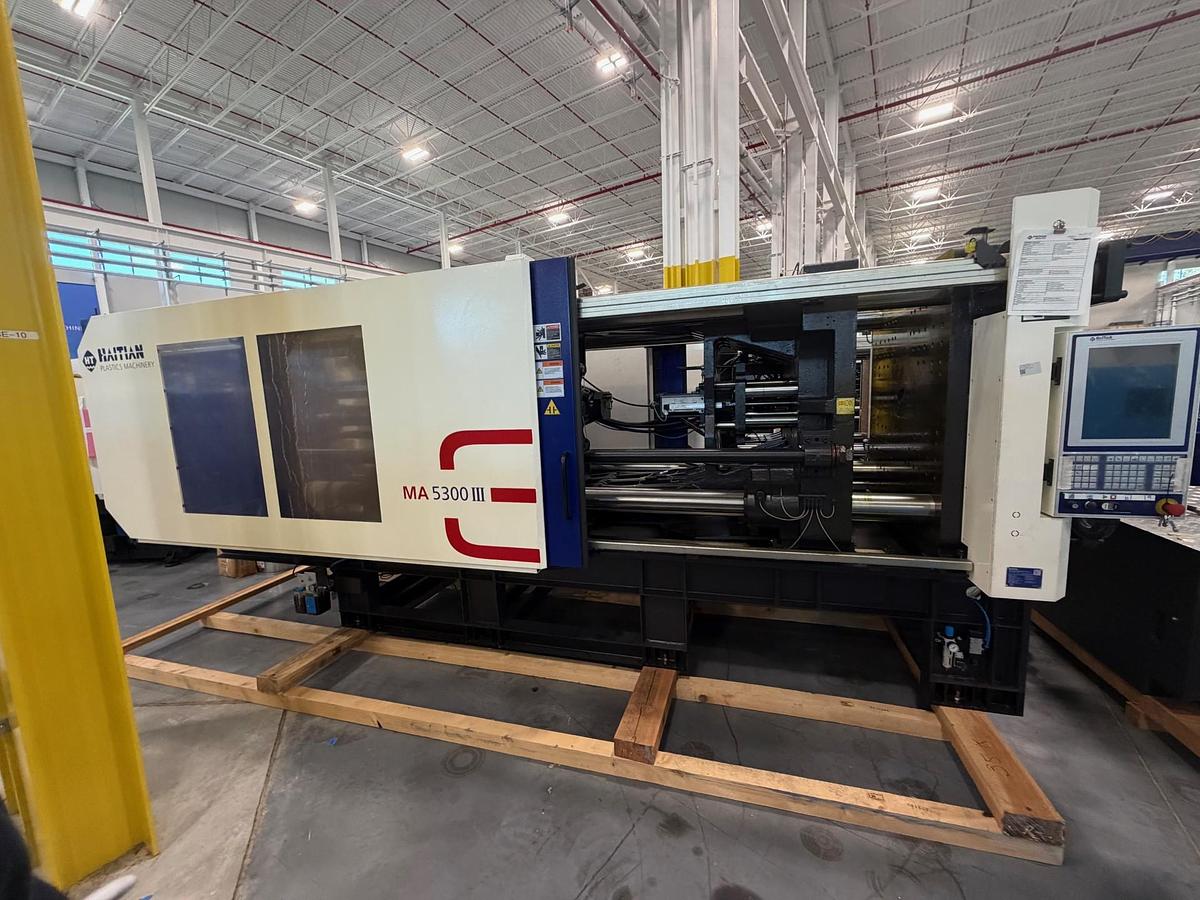

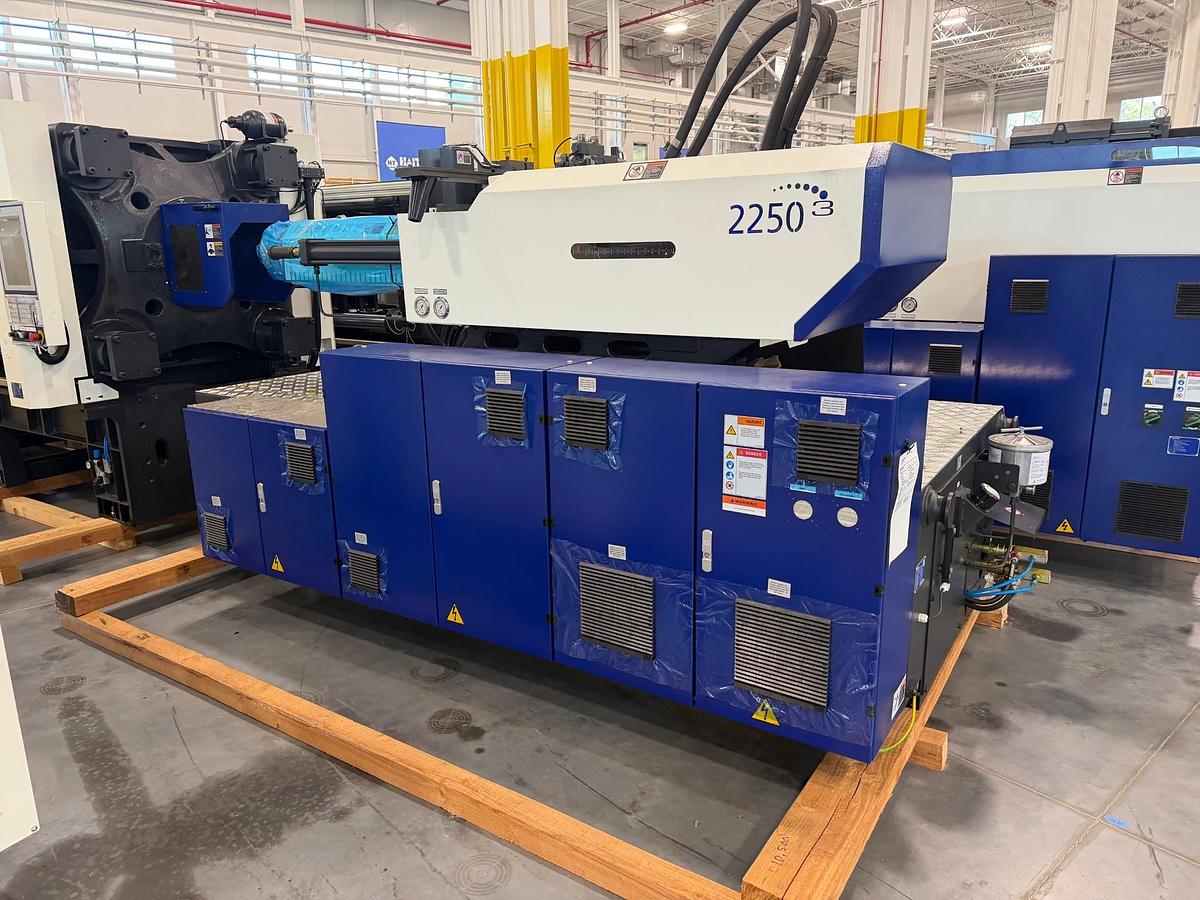

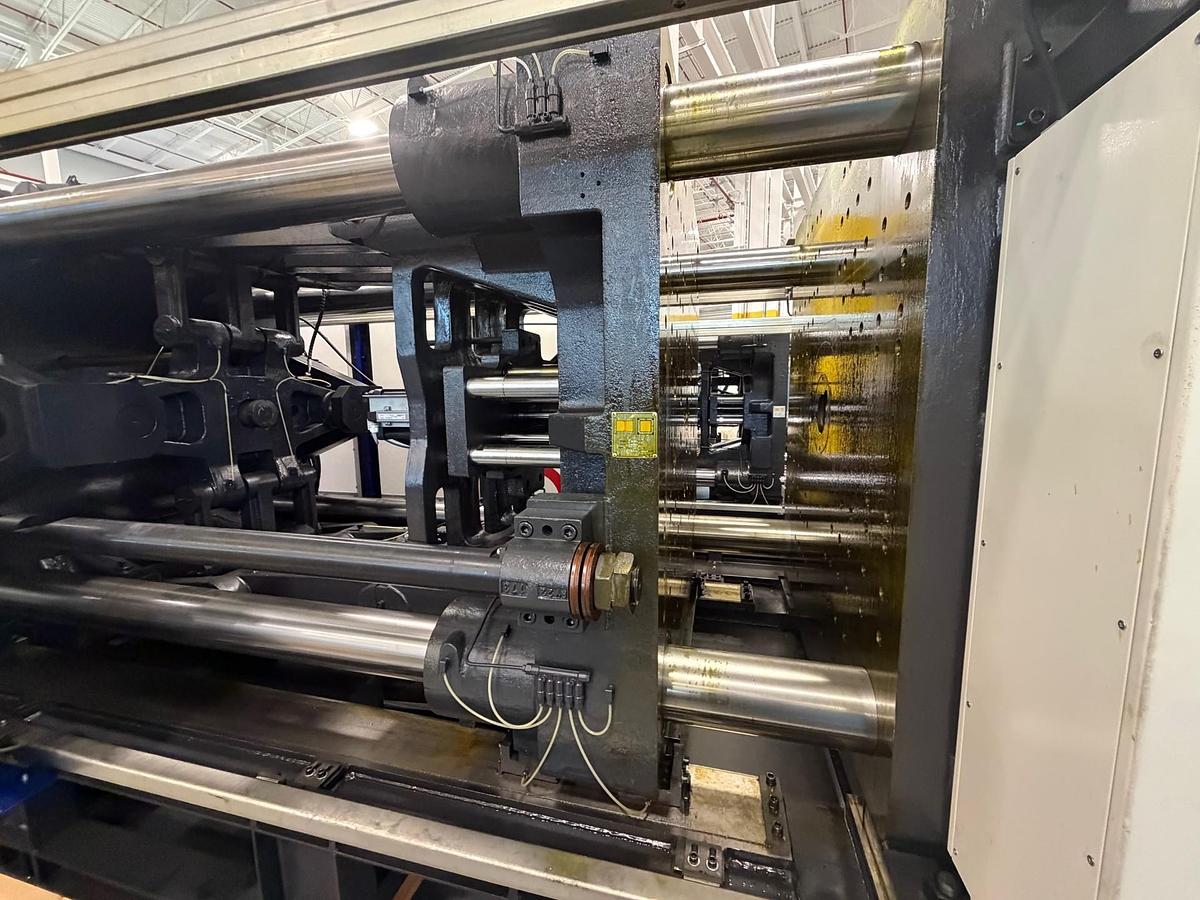

596 Ton, 34.23 Oz., Haitian MAIII 5300/2250 Injection Molding Machine
596 Ton, 34.23 Oz., Haitian MAIII 5300/2250 Injection Molding Machine
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Haitian |
| Model | MAIII 5300/2250 |
| Year | 2023 |
| Condition | New |
| Stock Number | 14108 |
| Model | MA5300III/2250 A-Screw |
| US Tonnage | 596 |
| Shot Size (oz. of PS) | 34.23 |
| Screw Diameter | 65mm |
| Platen Size (in.) | 48.82 x 49.21 |
| Tiebar Spacing (HxV) in. | 33.07 x 32.68 |
| Max Mold Height (in.) | 33.46 |
| Min Mold Height (in.) | 13.78 |
| Opening Stroke (in.) | 33.46 |
| Open Daylight (in.) | 66.93 |
| Ejector Stroke (in.) | 8.66 |

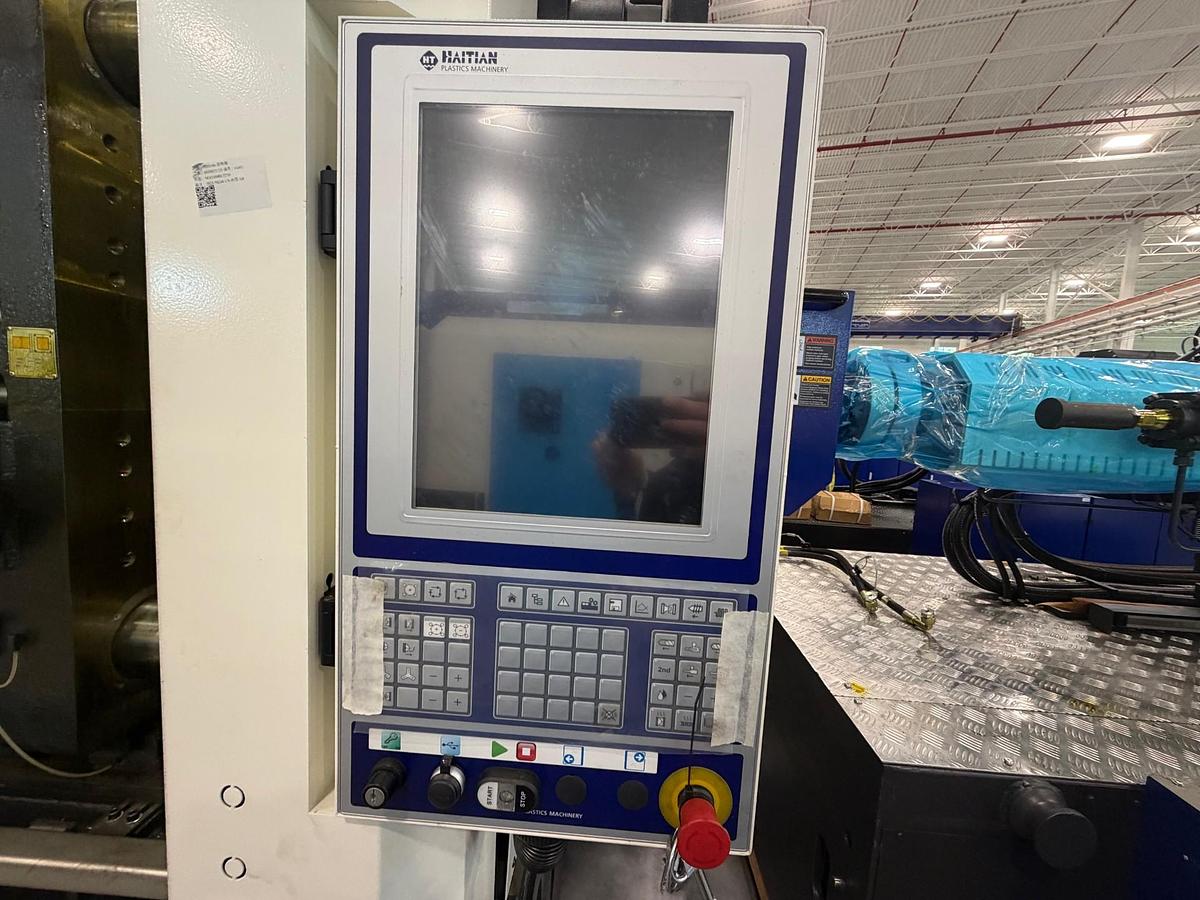

| Control | KEBA |
| Voltage | 460V/3P/60Hz |
