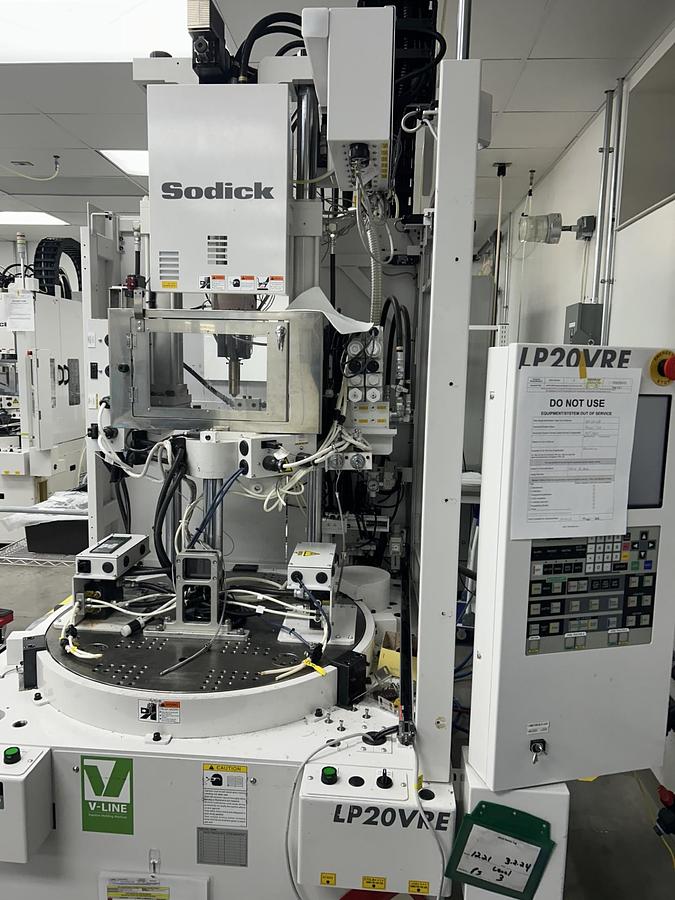

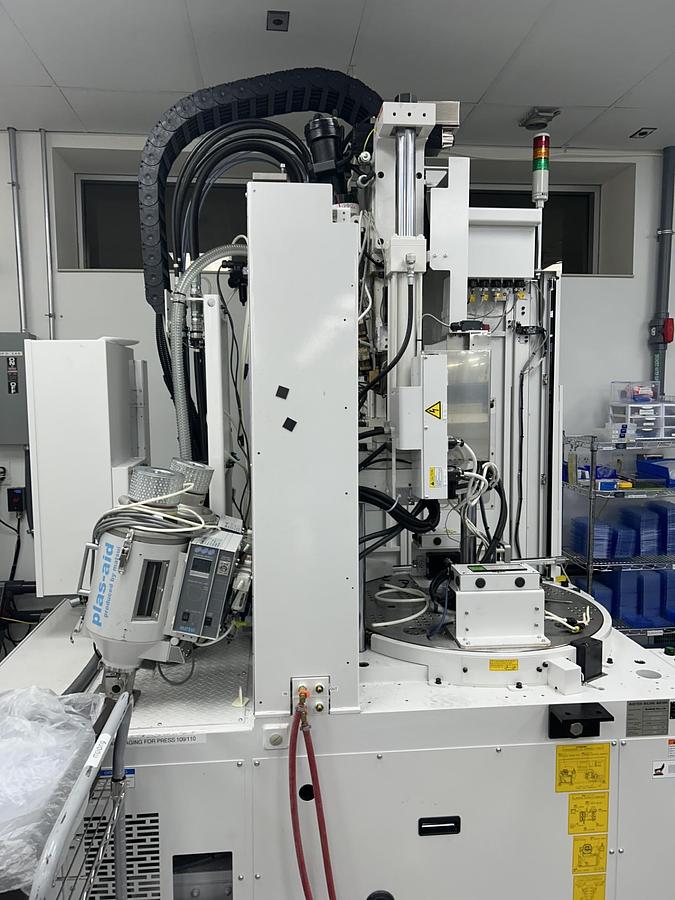

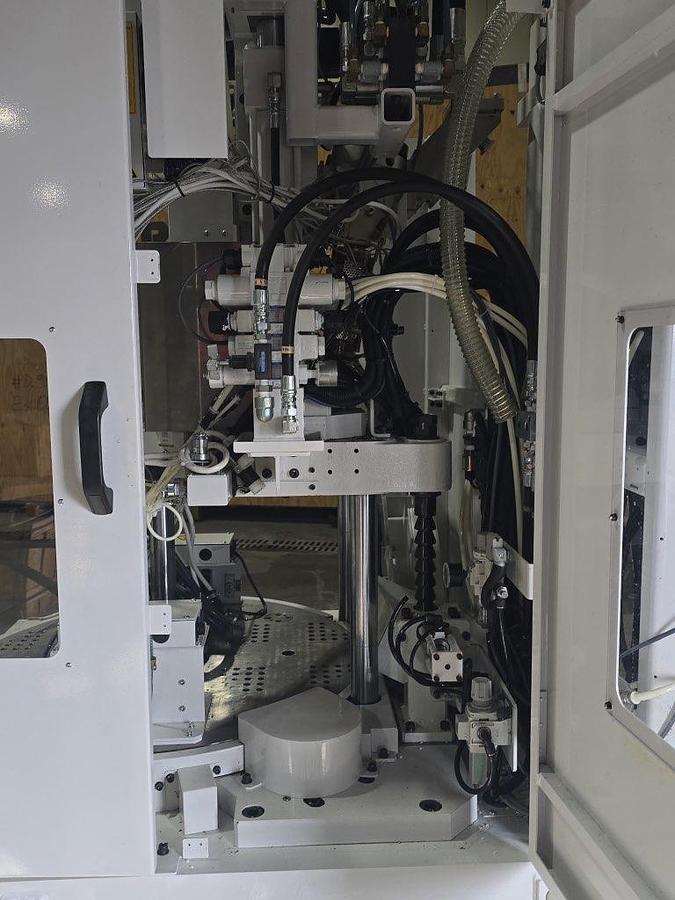

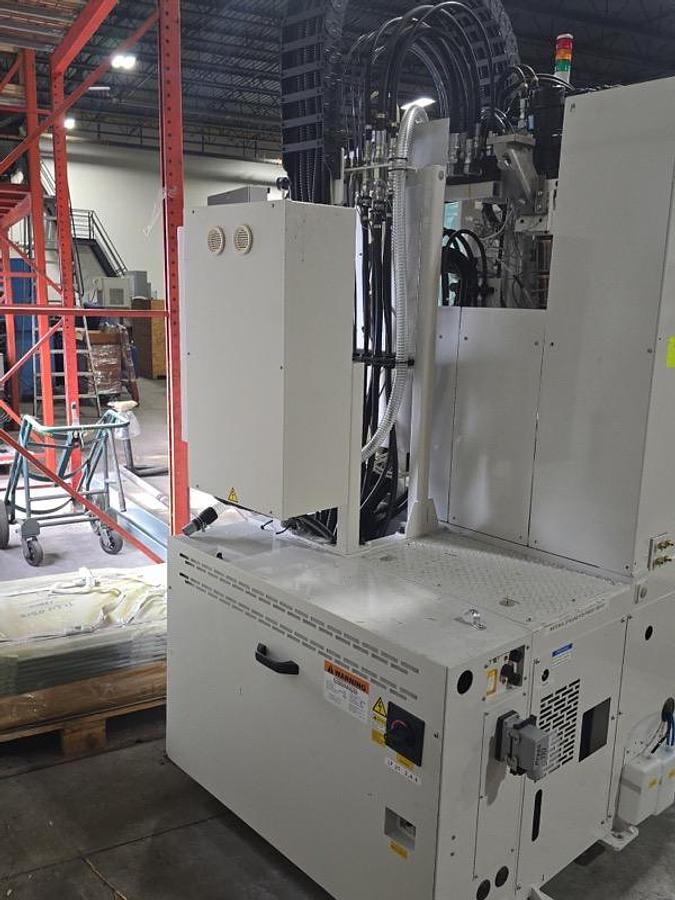

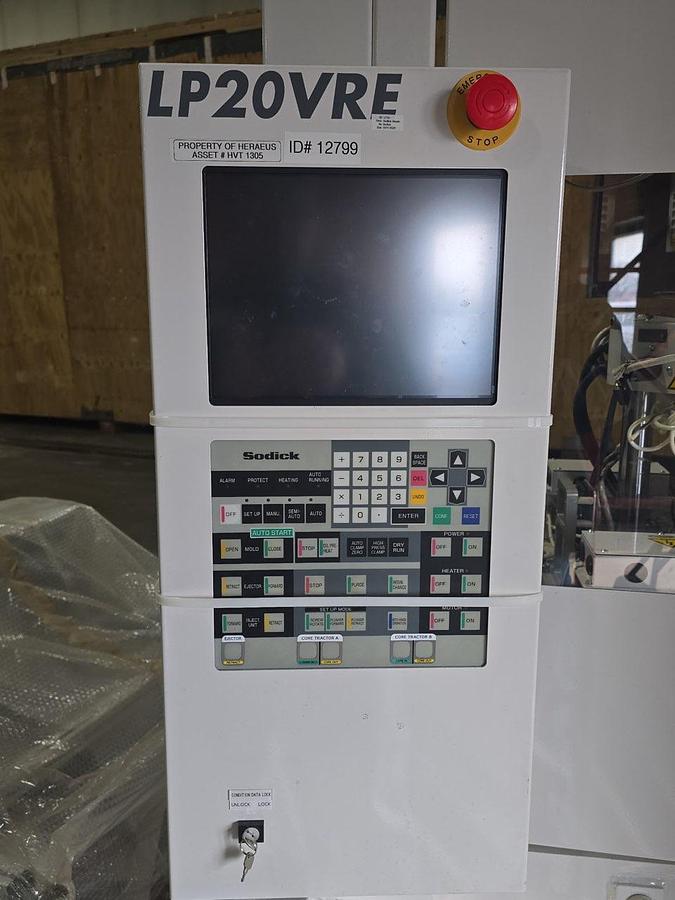

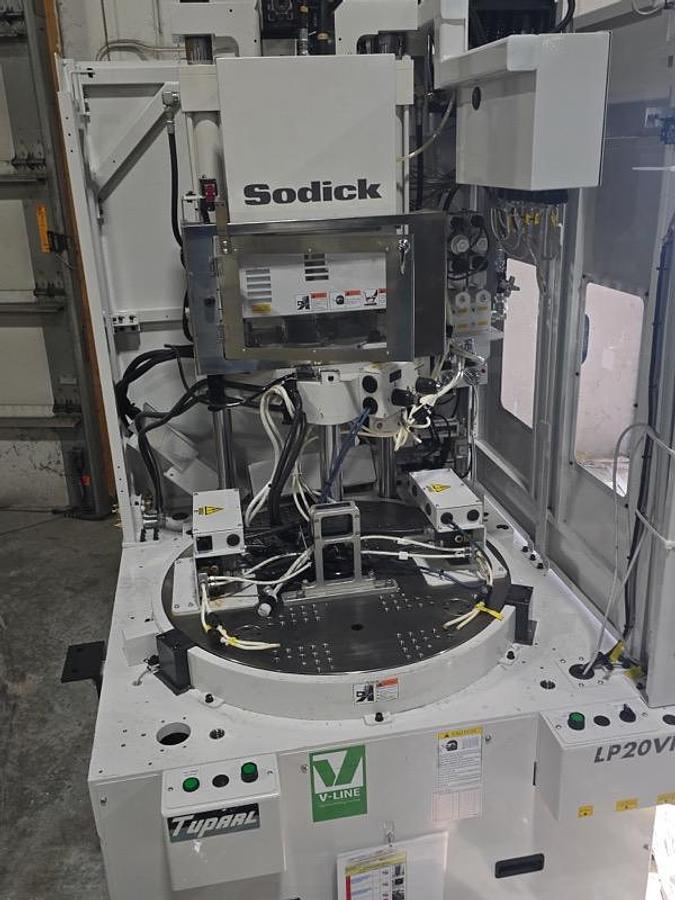

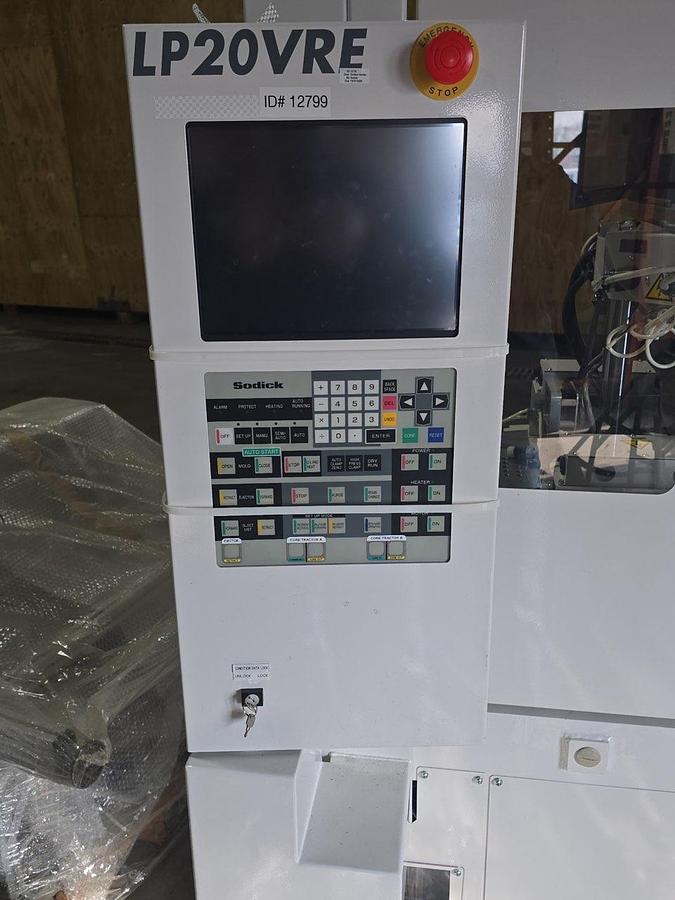

22 Ton, 0.15 Oz., Sodick LP20VRE Vertical Injection Molding Machine
22 Ton, 0.15 Oz., Sodick LP20VRE Vertical Injection Molding Machine
Available quantity:1
Description
The Sodick LP20VRE is a used vertical injection molding machine designed for precision with a clamping force of 22 tons. It features a shot size of 0.15 oz., making it suitable for small, detailed plastic components. The machine has a 14 mm screw diameter and a 12 mm plunger diameter, providing efficient material handling. This model includes an 800 mm rotary table, allowing for versatile mold configurations. With a minimum mold height of 7.9 inches and an open daylight of 15.7 inches, it accommodates a variety of mold sizes. The machine's opening stroke is 1.57 inches, with a 2.36-inch ejector stroke for reliable part ejection. The Sodick LP20VRE operates on 220V/3P/60Hz power and features a hybrid direct pressure clamp system, combining the benefits of hydraulic and electric technologies for enhanced performance and energy efficiency. This machine is ideal for manufacturers seeking precision and reliability in their injection molding processes.
Specifications
| Manufacturer | Sodick |
| Model | LP20VRE |
| Year | 2017 |
| Condition | Used |
| Stock Number | 14082 |
| Model | LP20VRE |
| US Tonnage | 22 |
| Shot Size (oz. of PS) | 0.15 |
| Screw Diameter | 14 mm |
| Plunger Diameter | 12 mm |

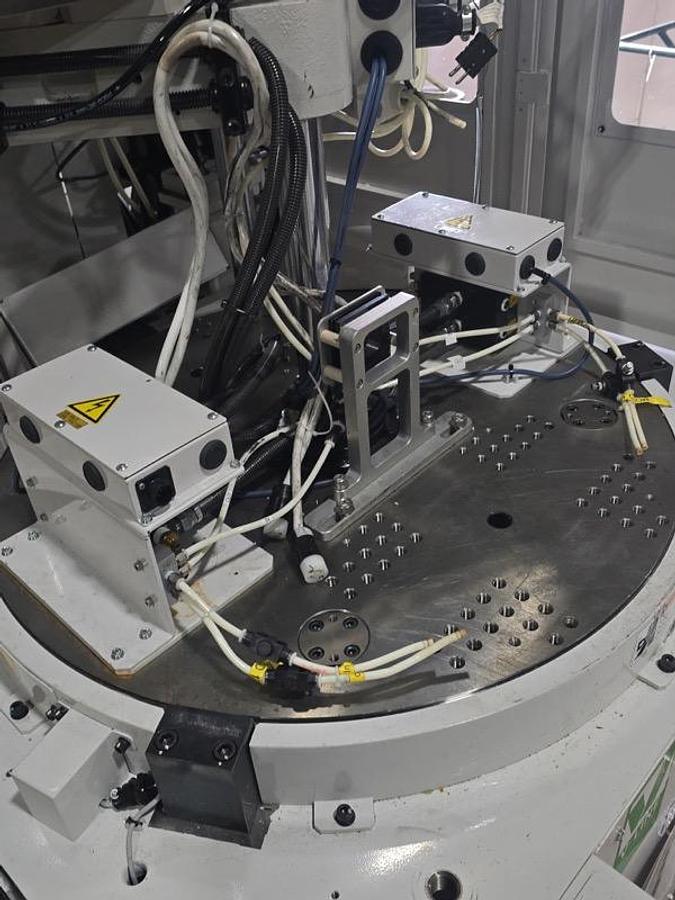

| Rotary Table Diameter | 800 mm |
| Min Mold Height (in.) | 7.9 |
| Opening Stroke (in.) | 1.57 |
| Open Daylight (in.) | 15.7 |
| Ejector Stroke (in.) | 2.36 |
| Voltage | 220V/3P/60Hz |
| Clamp | Hybrid Direct Pressure |
