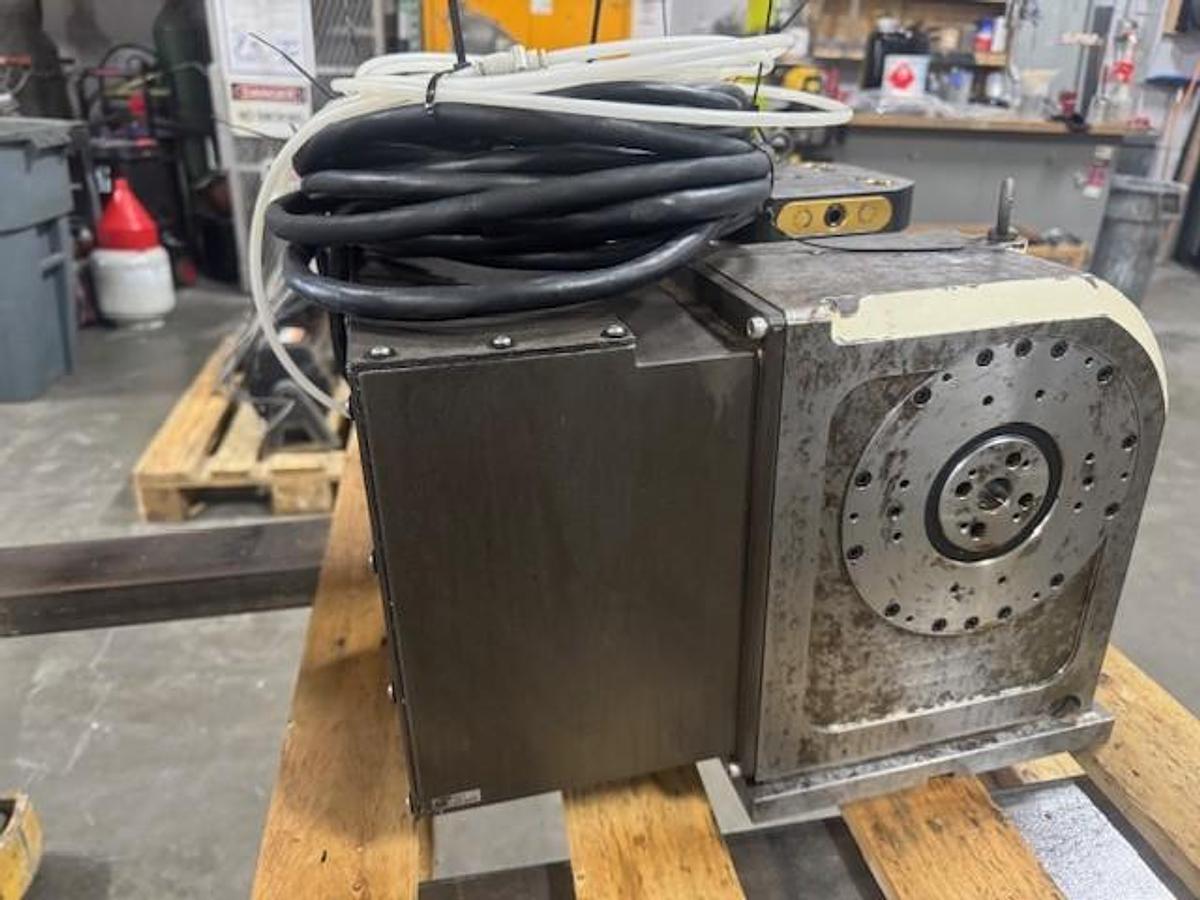

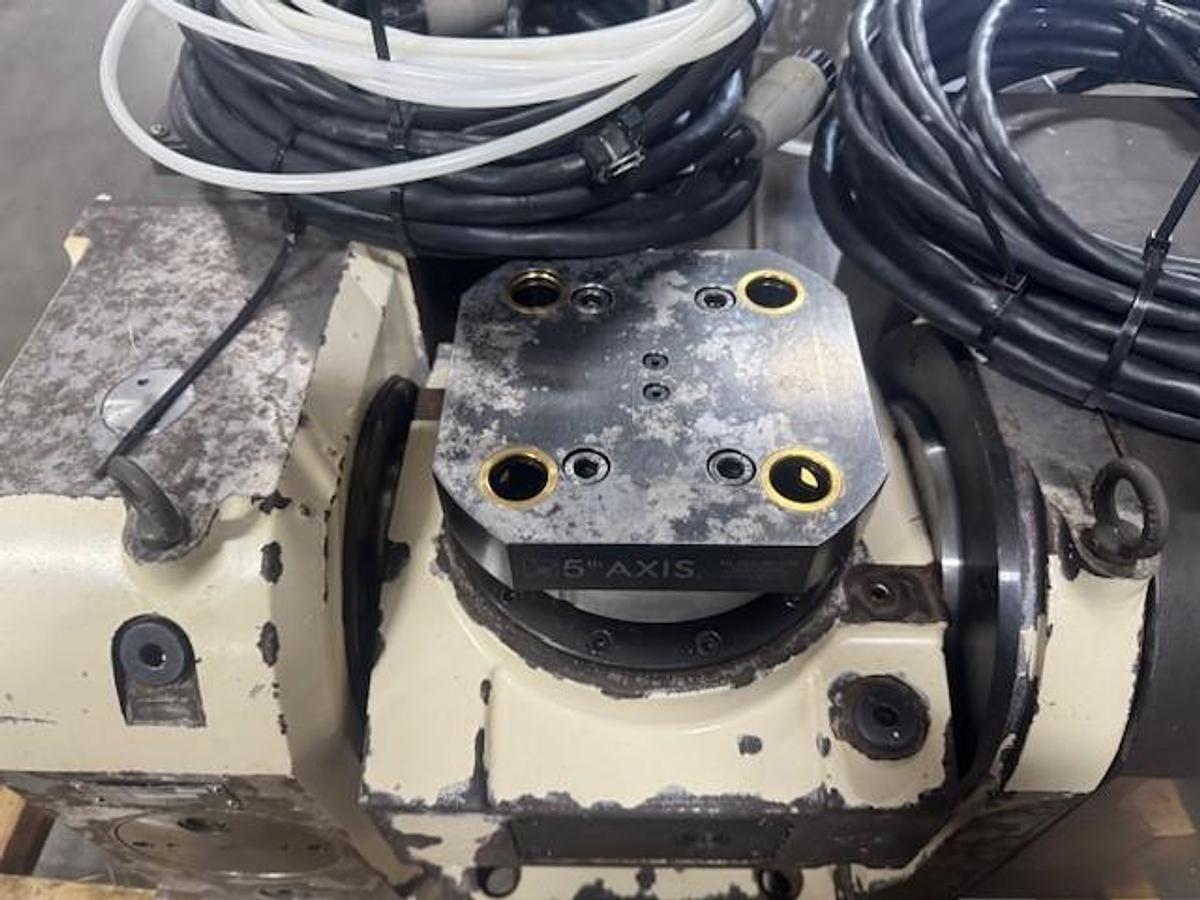

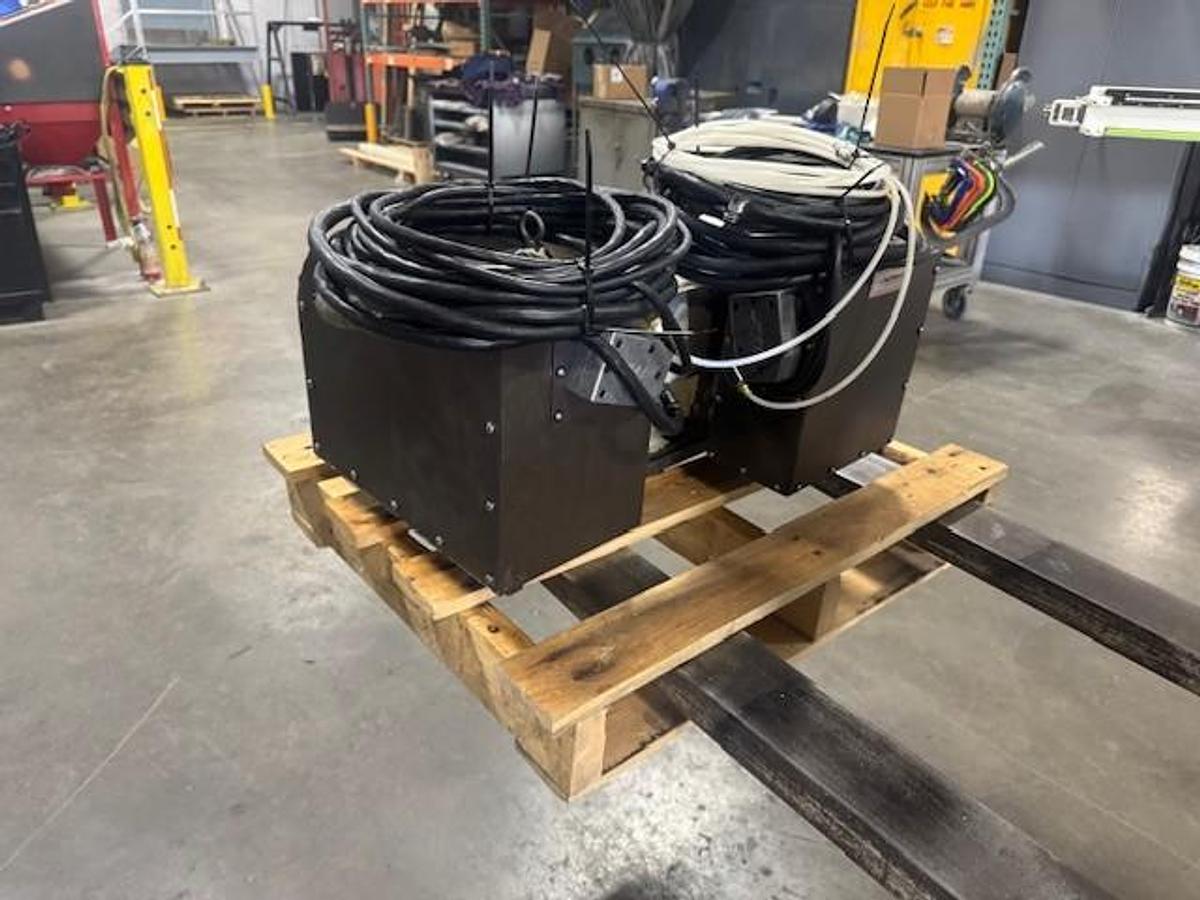

Tsudakoma TBS-160 H 5-axis Tilting Rotary Table (2019)
Tsudakoma TBS-160 H 5-axis Tilting Rotary Table (2019)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Tsudakoma |

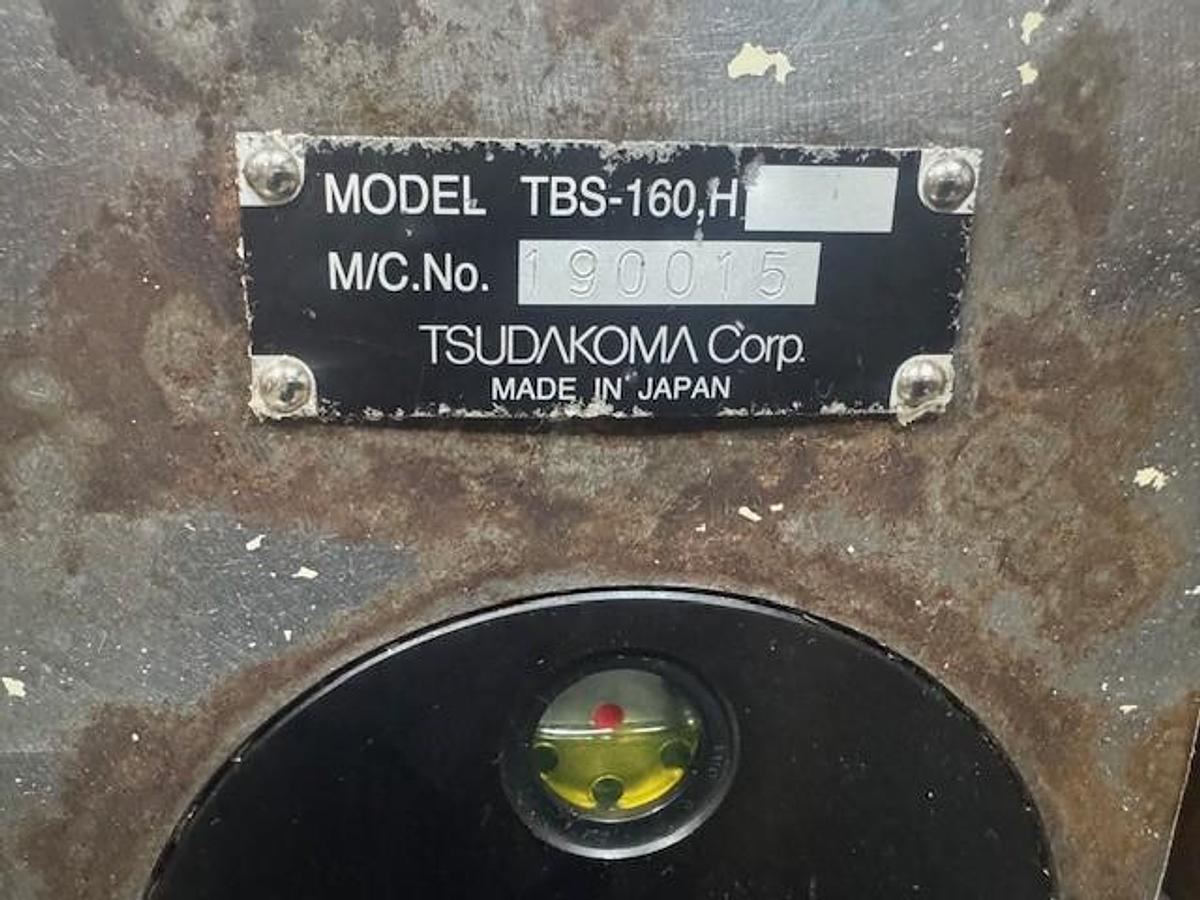

| Model | TBS-160 H |
| Year | 2019 |
| Condition | Used |
| Stock Number | 14076 |
| Number of Axis | 5 |
| Tilt Range | -30 - +110° |
| Spindle Outer Diameter (in) | 3.93" |
| Table Height | 10.62" @ 0° |
| Center Height | 7.87" @ 90° |
| Center Bore Nose Diameter (in) | 2.16" |
| Center Bore Thru Diameter (in) | 1.57" |
| Table T-Slot Width | 0.47" |
| Motor Speed | 5,000 rpm Max |
| Table Speed | 83.3 rpm Max |
| Clamp System | Pneumatic |
| Holding Torque | 516 ft/lbs @ 72 psi |
| Index Accuracy | +10 arc/sec |
| Tilting Accuracy | +17.5 arc/sec |
| Weight (lbs) | 353 lbs. |
