2022 Wittmann/Battenfeld PZAPT1SE5W

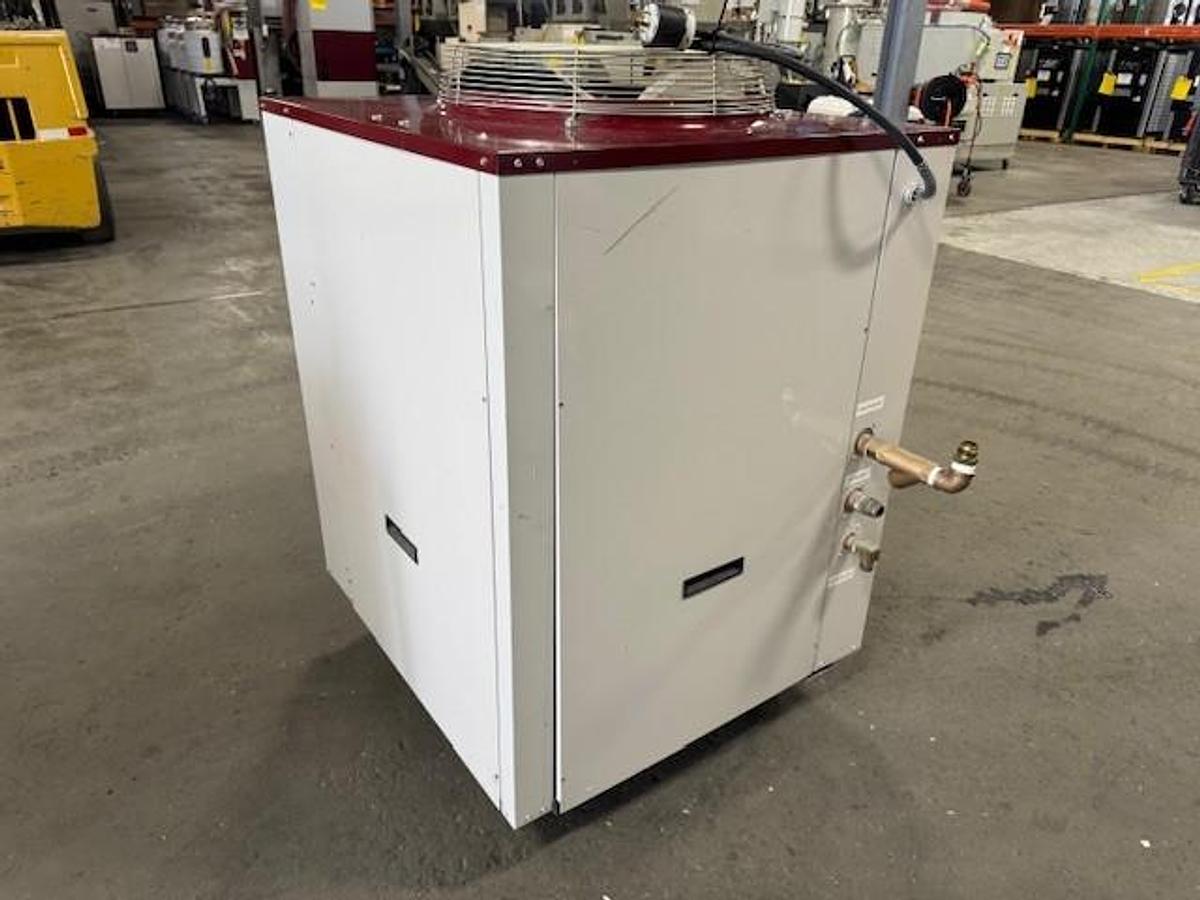

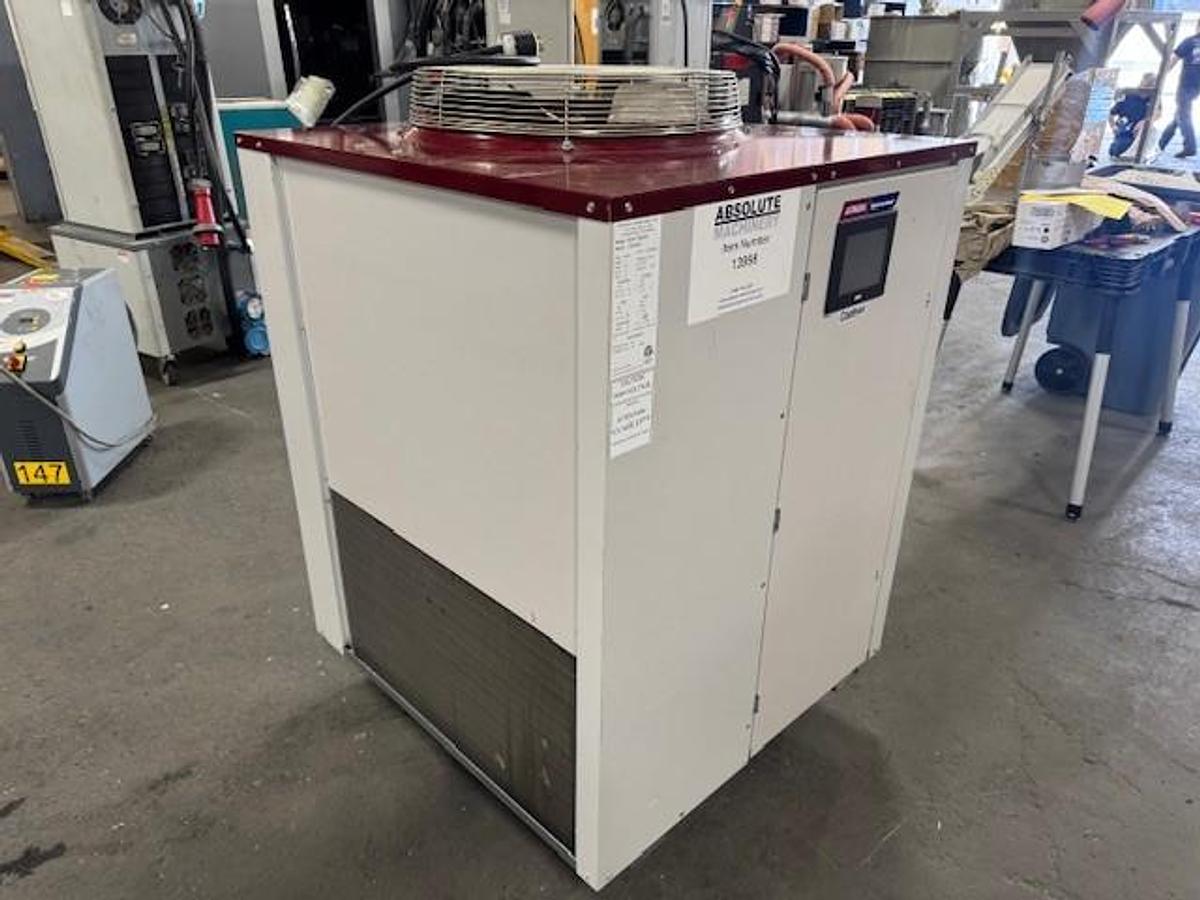

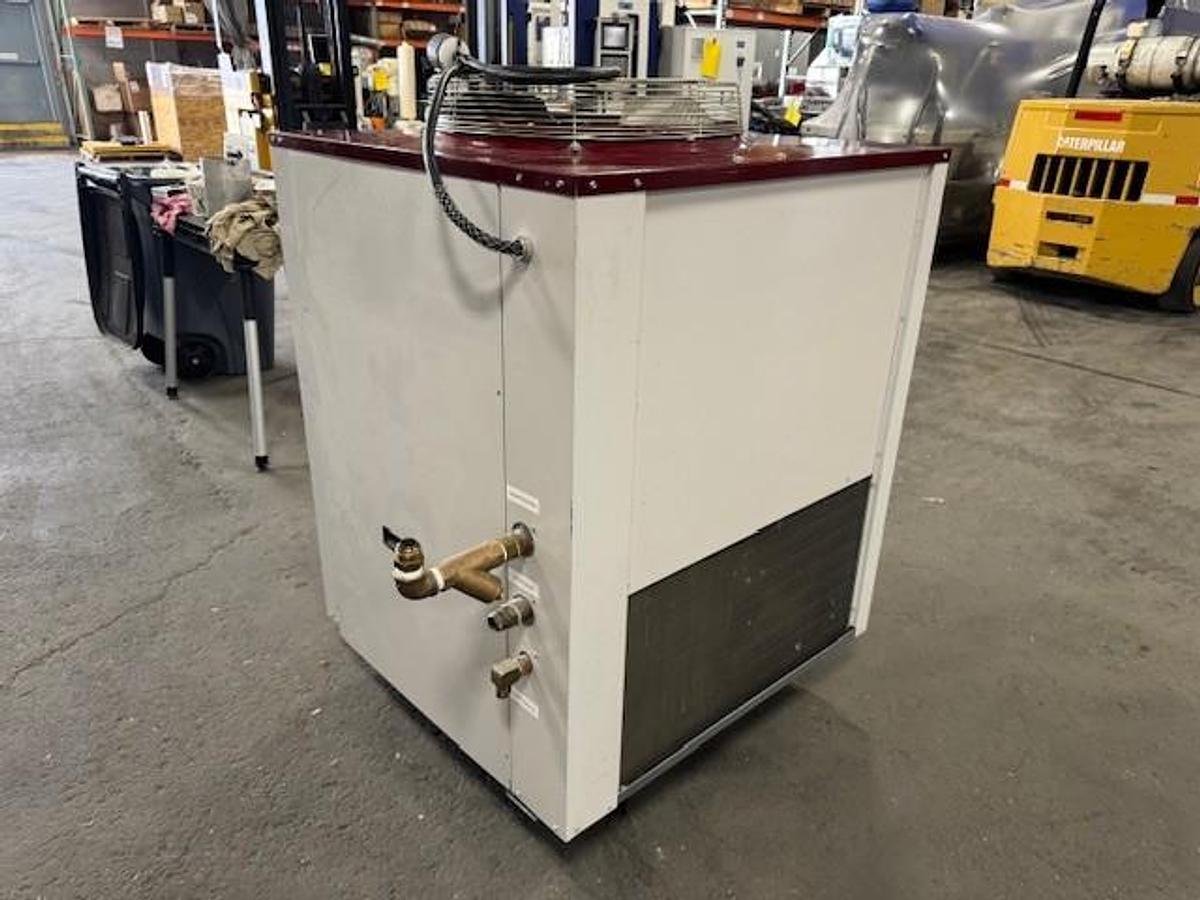

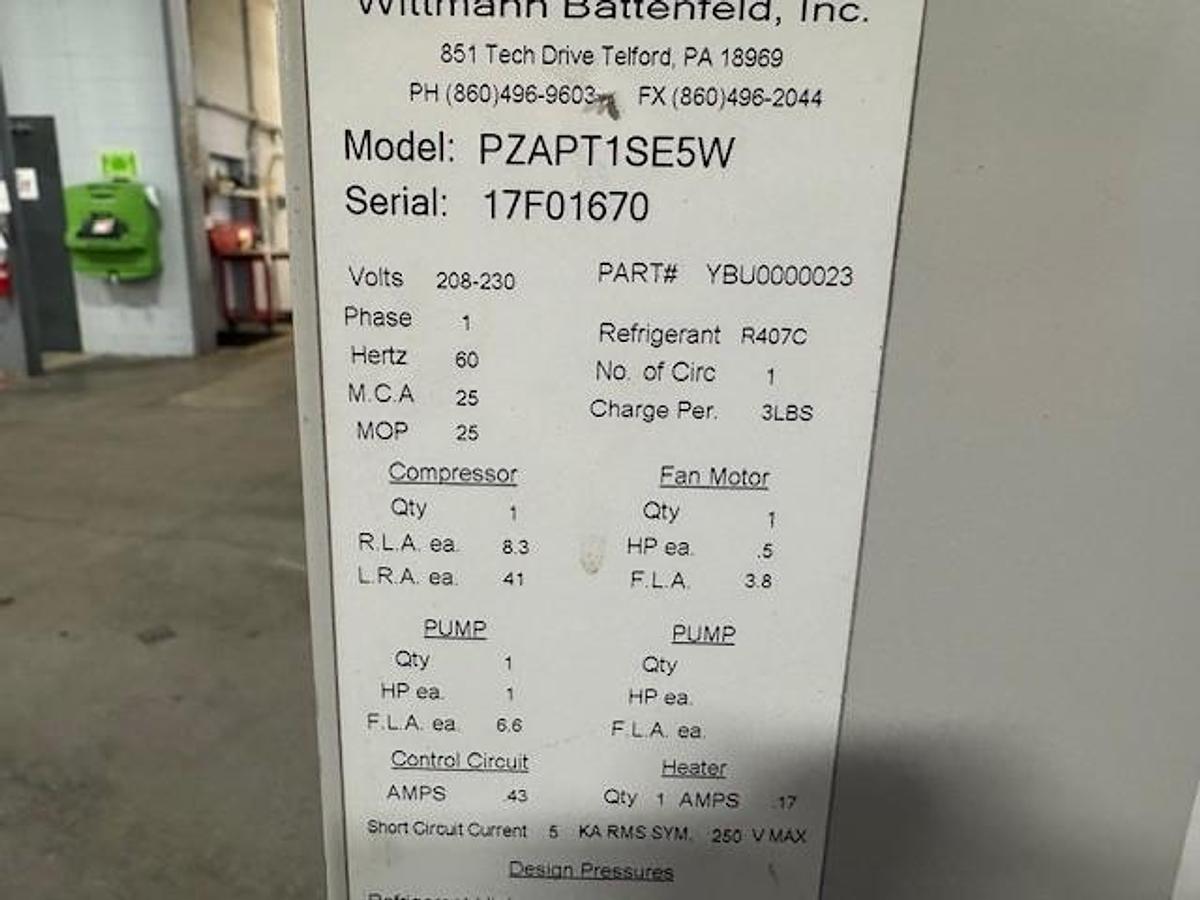

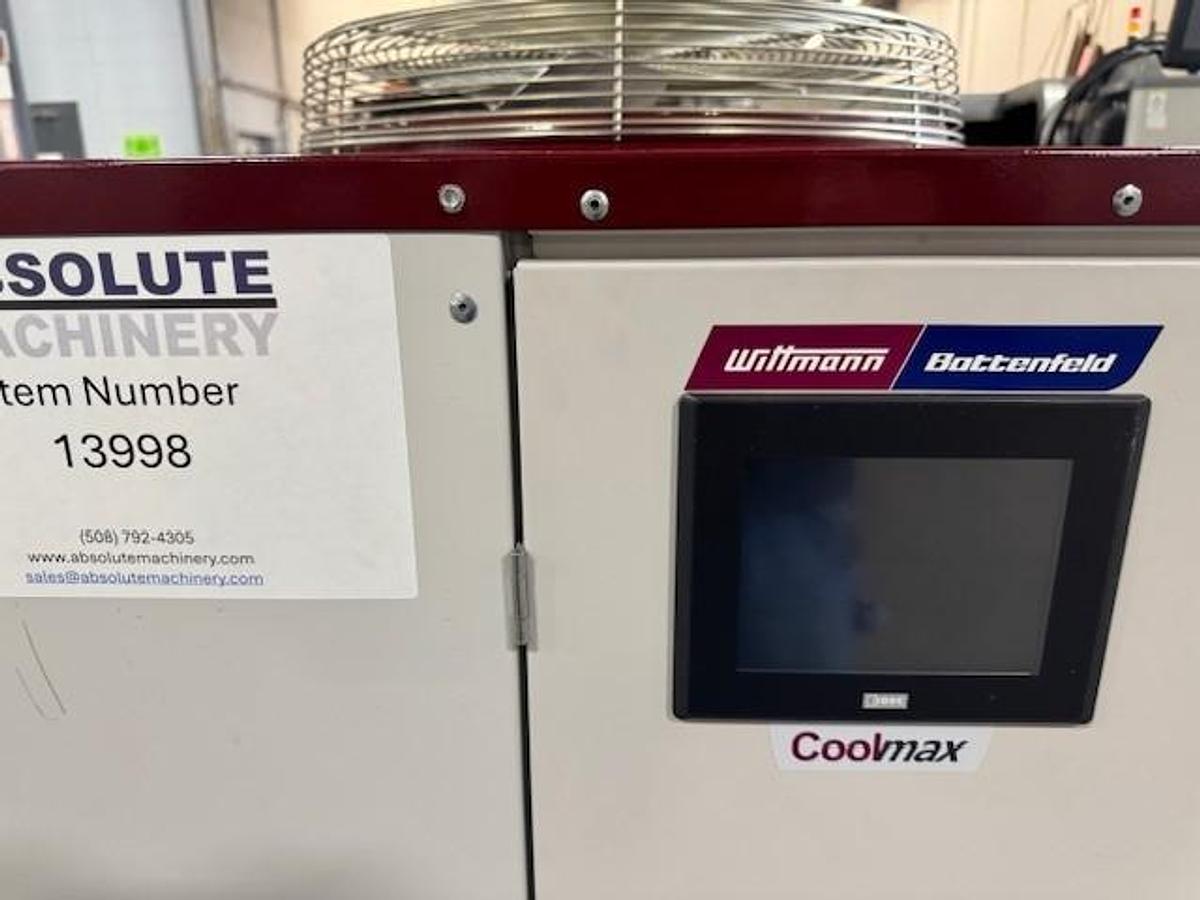

The 2022 Wittmann/Battenfeld PZAPT1SE5W is a used plastic auxiliary equipment chiller, specifically engineered to provide reliable cooling solutions. It has a cooling capacity of 1 ton (1.4 kW) and uses a scroll-type compressor with 1.3 horsepower. The process pump delivers a flow rate of 6.6 gallons per minute, is constructed from stainless steel, and includes a discharge ball valve for durability and ease of operation. This unit incorporates an air-cooled condenser with copper tubes and aluminum fins, and utilizes refrigerant type R407C for effective heat exchange. The chiller's 12-gallon reservoir tank and 1" NPT female connection ensure efficient integration with existing systems. Powered by 230 volts with a 1/60 phase, the system is built to deliver dependable and consistent cooling performance. Measuring 36 inches in length, 34 inches in width, and standing 49 inches tall, it weighs 400 pounds. Despite being compact, it efficiently houses a .5 horsepower fan motor. Designed for demanding industrial environments, the Wittmann/Battenfeld PZAPT1SE5W chiller offers efficient operation with its robust build and reliable components.
