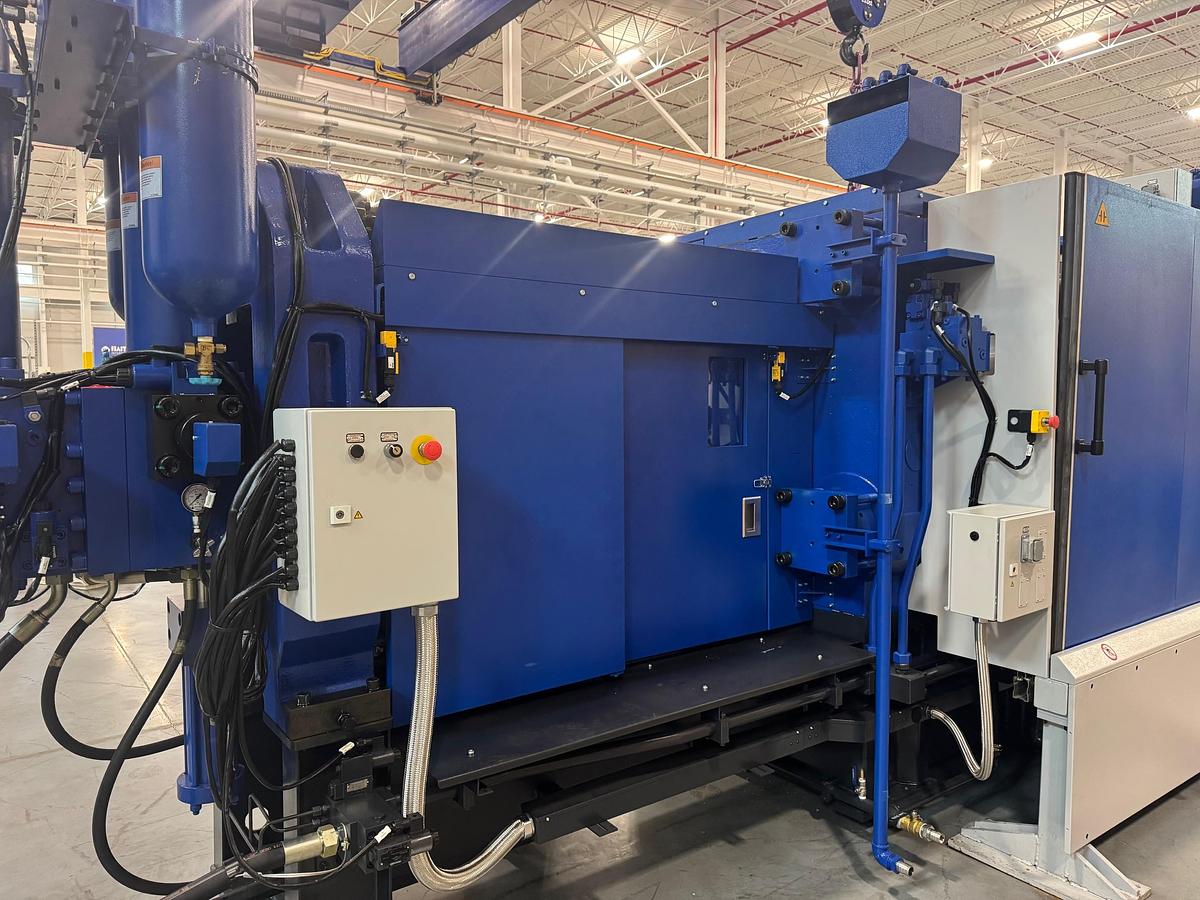

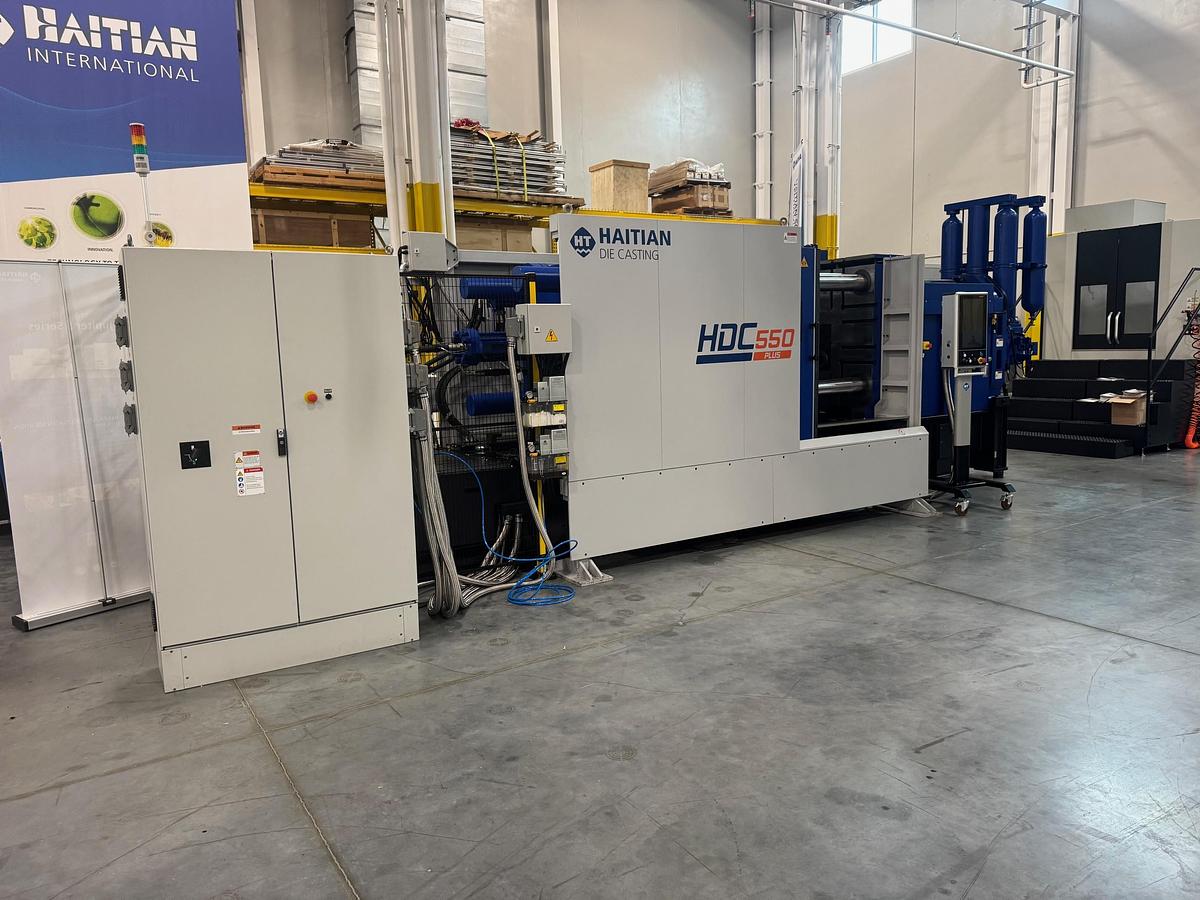

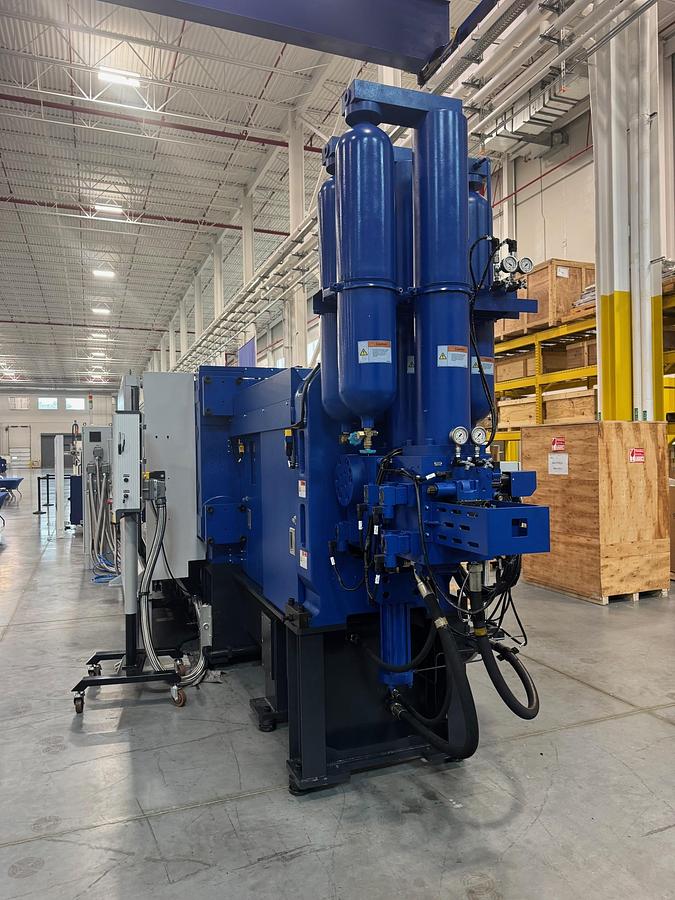

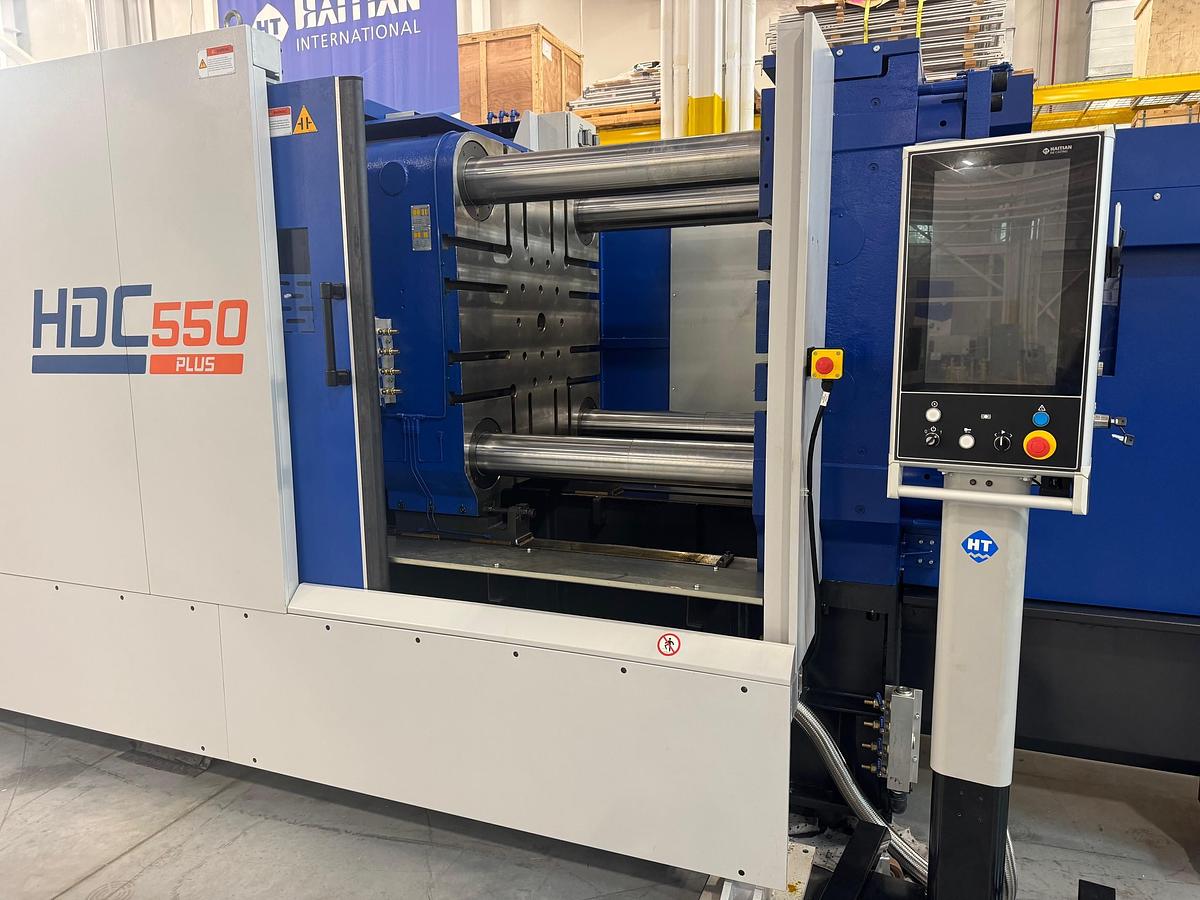

(2023) 550 Ton Die Haitian Casting Machine, Shot Size: 9.47 - 15.8 lbs. Cold Chamber (Showroom Machine)
(2023) 550 Ton Die Haitian Casting Machine, Shot Size: 9.47 - 15.8 lbs. Cold Chamber (Showroom Machine)
Available quantity:1
or
Call +1 508-792-4305
Description
2023 Show Room Machine. Never put into production. Only used for dry cycle and control demonstrations.
Specifications
| Manufacturer | Haitian |
| Model | HDC 550 |
| Year | 2023 |
| Condition | New |
| Stock Number | 13990 |
| Clamping Force | 550 Metric Tons |
| Die Closing Stroke (mm) | 580mm |
| Die Thickness (mm) | 350mm min. - 850mm max |
| Platen Size (mm) | 1,200mm x 1,200mm |
| Tiebar Spacing (HxV) mm | 755mm x 755mm |
| Tiebar Diameter (mm) | 150mm |
| Injection Force | 580 kN |
| Plunger Stroke (mm) | 600mm |
| Plunger Tip Diameter (mm) | 70, 80, 90 |
| Max Shot Weight | 9.47, 12.5, 15.8 lbs. (Aluminum) |
| Casting Pressure (MPa) | 151, 115, 92 |
| Casting Projected Area cm^2 | 364, 478, 601 |
| Max Casting Projected Area cm^2 | 3175 |
| Shot Position (mm) | 0 - 270mm |
| Plunger Tip Protrusion (mm) | 270 |
| Shot Sleeve Flange Diameter (mm) | 165mm |
| Shot Sleeve Flange Protrusion (mm) | 270mm |
| Ejector Stroke (mm) | 150mm |
| Ejector Force | 25 Tons |
| Control | KEBA |
