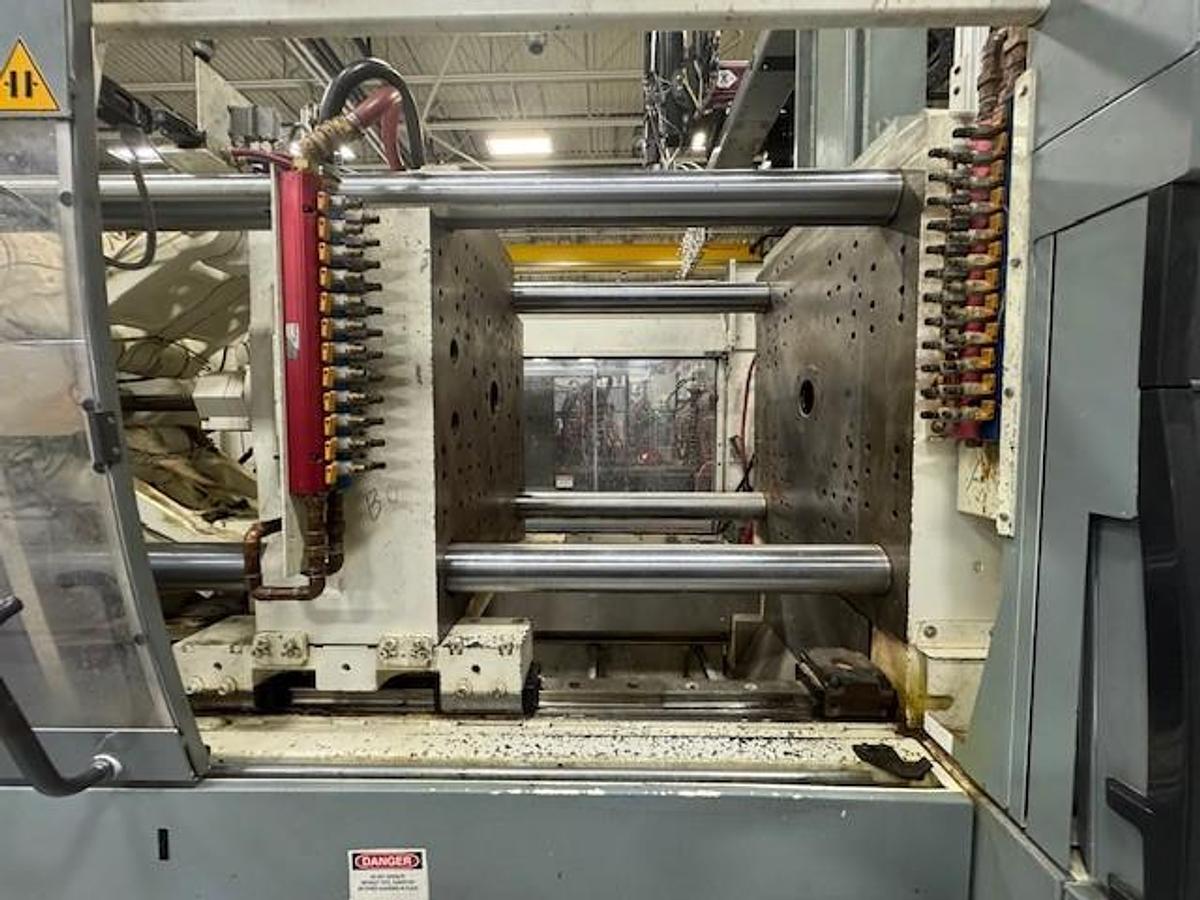

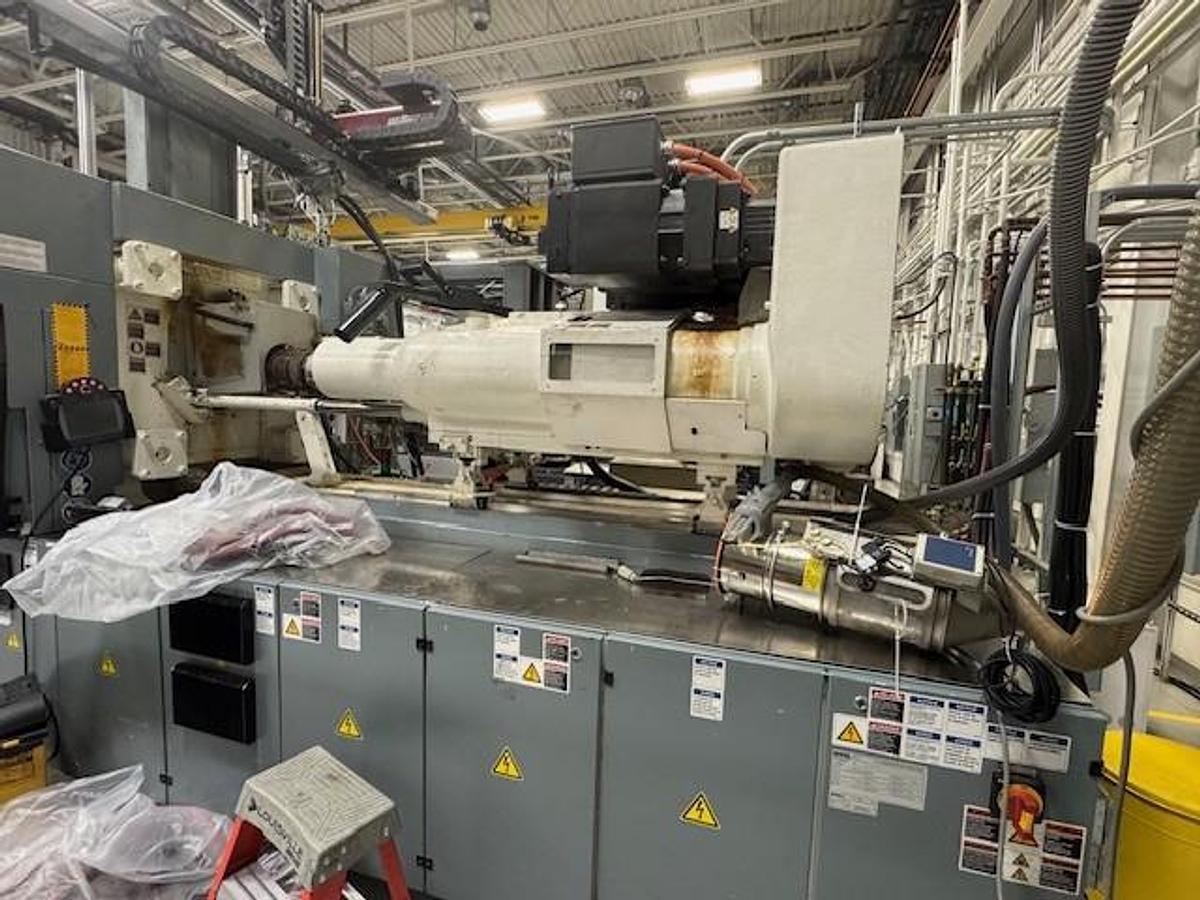

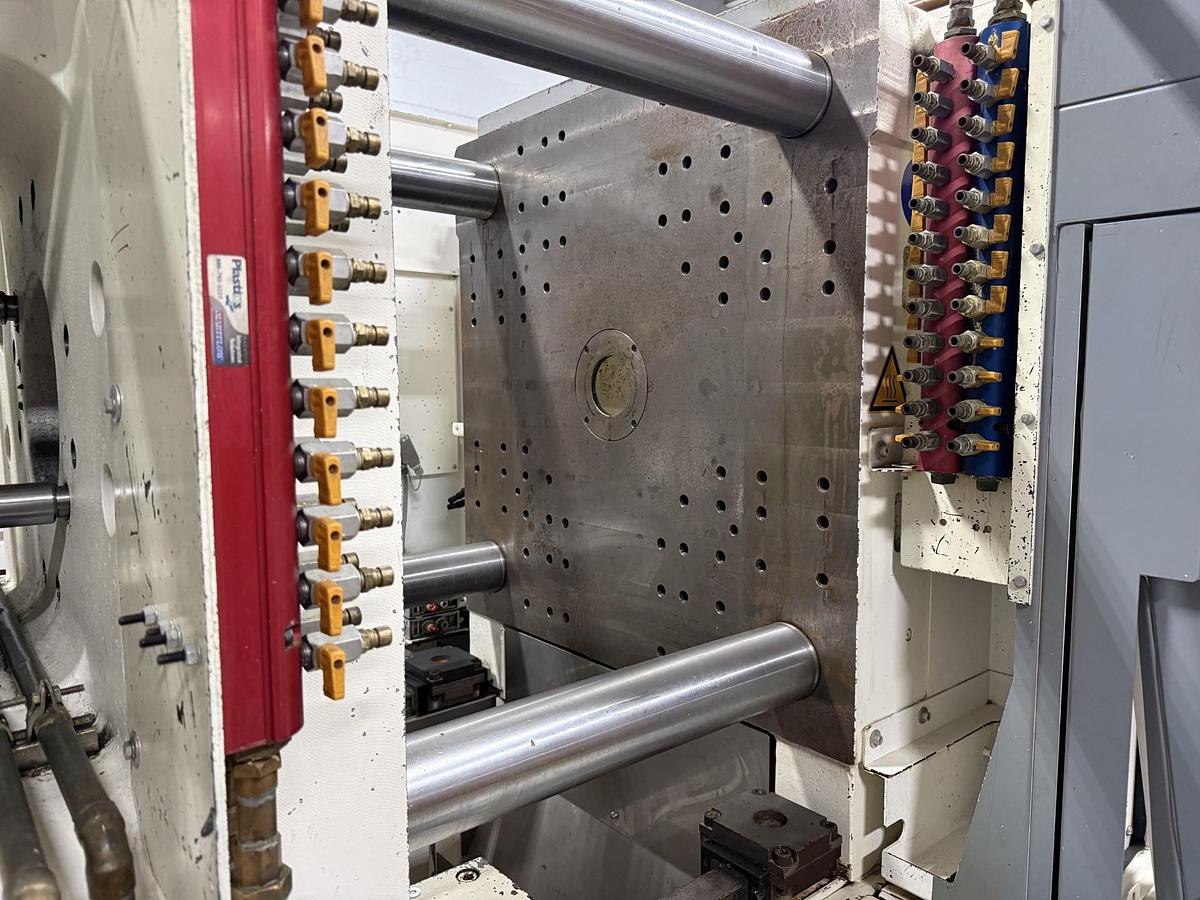

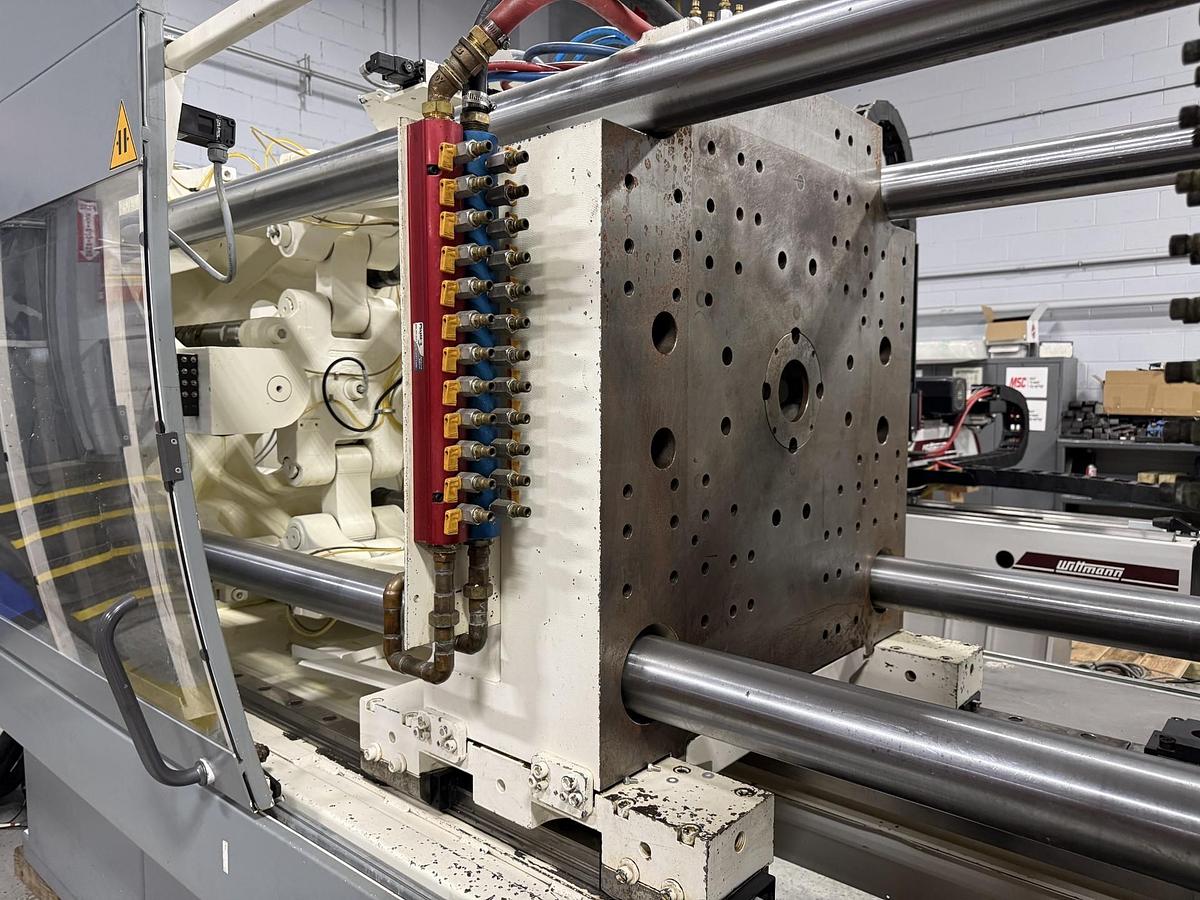

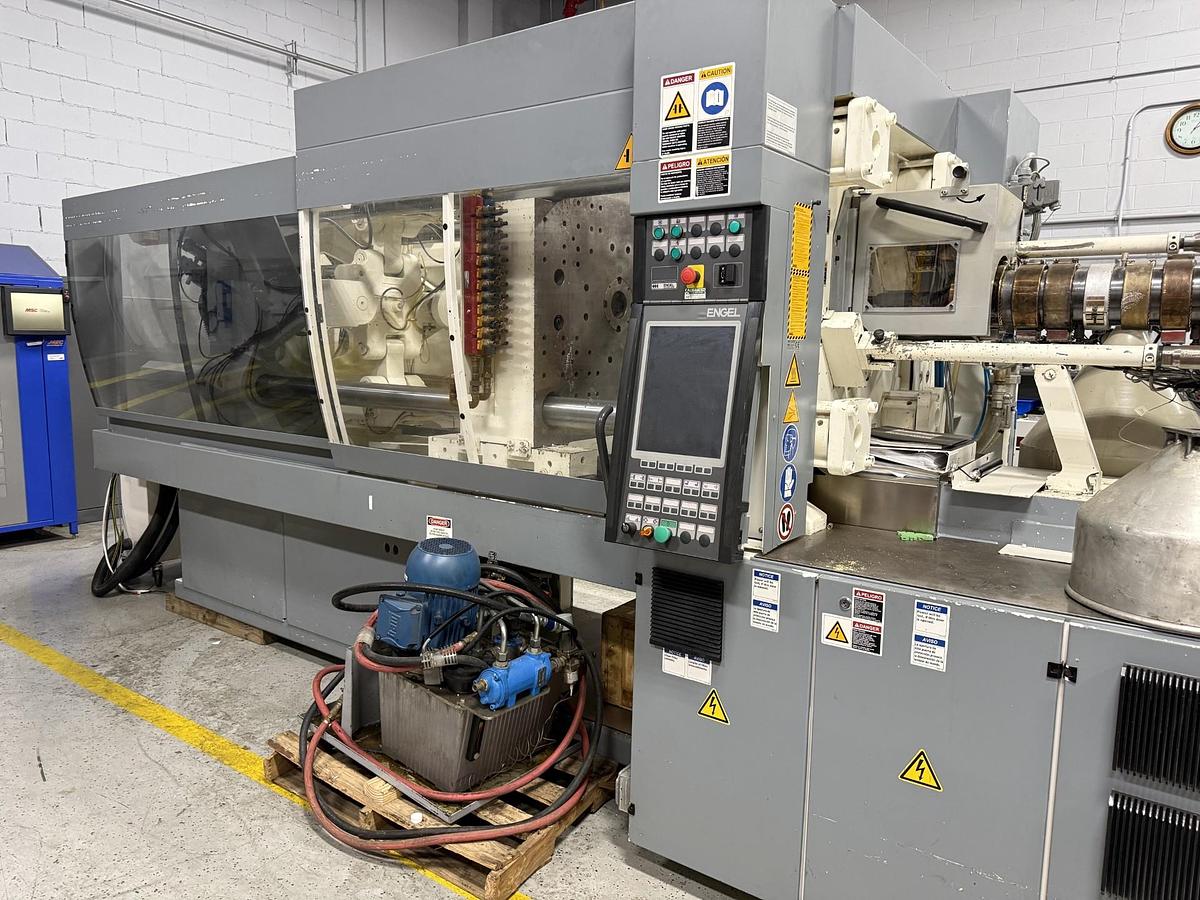

310 Ton, 21.21 Oz., Engel Electric Emotion 1340/310 Injection Molding Machine (2011)

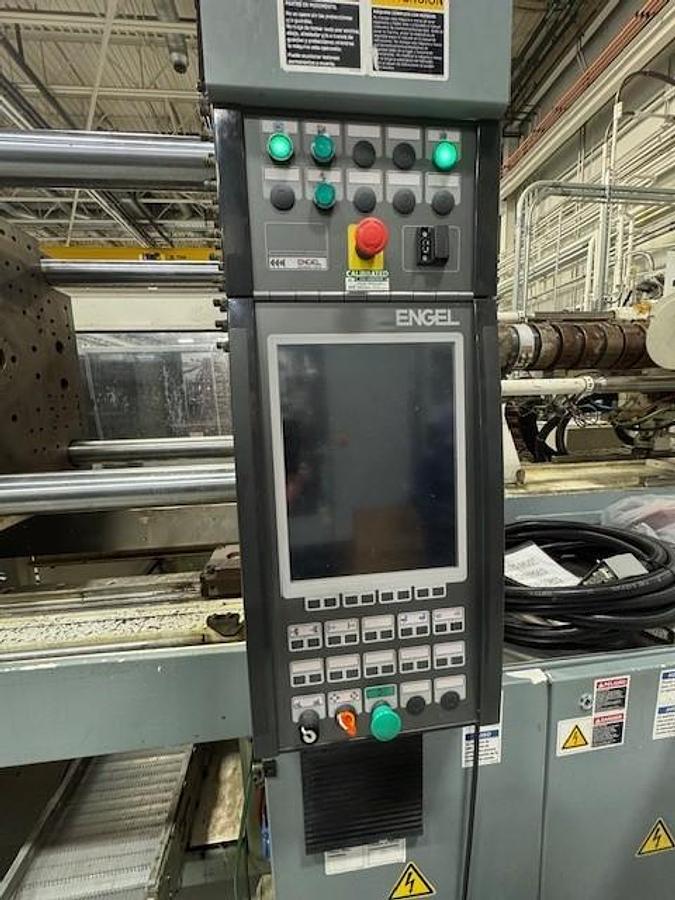

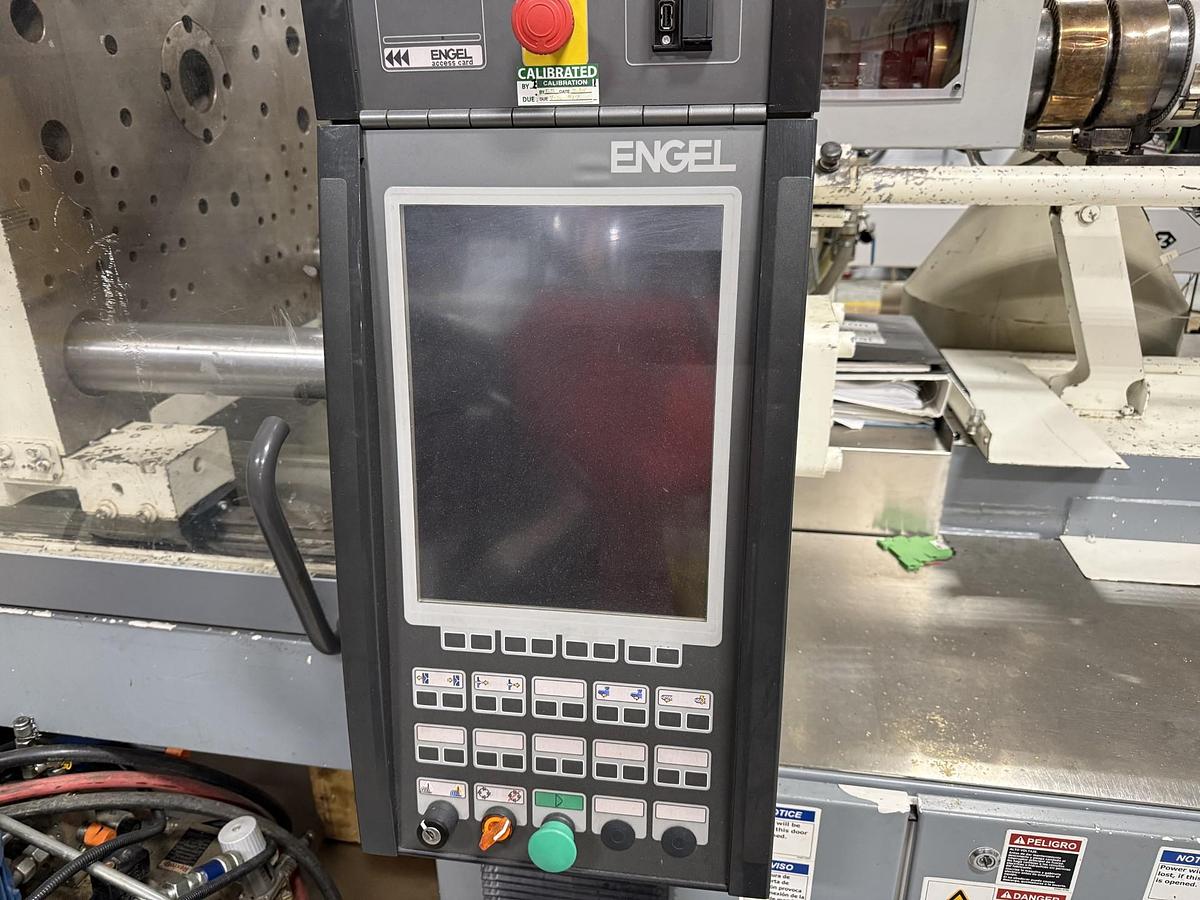

This Engel Electric Emotion 1340/310 injection molding machine, manufactured in 2011, offers a robust 310-ton clamping force. Ideal for medium-to-large scale production, it features a shot size capacity of 21.21 ounces (of PS) and a screw diameter of 55 mm, ensuring precise and efficient production cycles. The machine boasts a platen size of 38.25 x 38.12 inches, along with a tiebar spacing of 26.00 x 26.00 inches, providing the flexibility to accommodate various mold sizes. The Engel Emotion 1340/310 supports a maximum mold height of 23.6 inches and a minimum mold height of 9.84 inches, with an opening stroke and open daylight both measuring 23.6 inches and 47.24 inches, respectively. The ejector stroke spans 4.58 inches, providing reliable part ejection. The machine is equipped with the EC200 control system, ensuring user-friendly operation and precise control over the molding process. Operating on a 480-volt electrical system, this used Engel machine is suitable for facilities with existing infrastructure to support its power requirements. This machine is a strategic choice for manufacturers seeking reliability and precision in injection molding applications.
