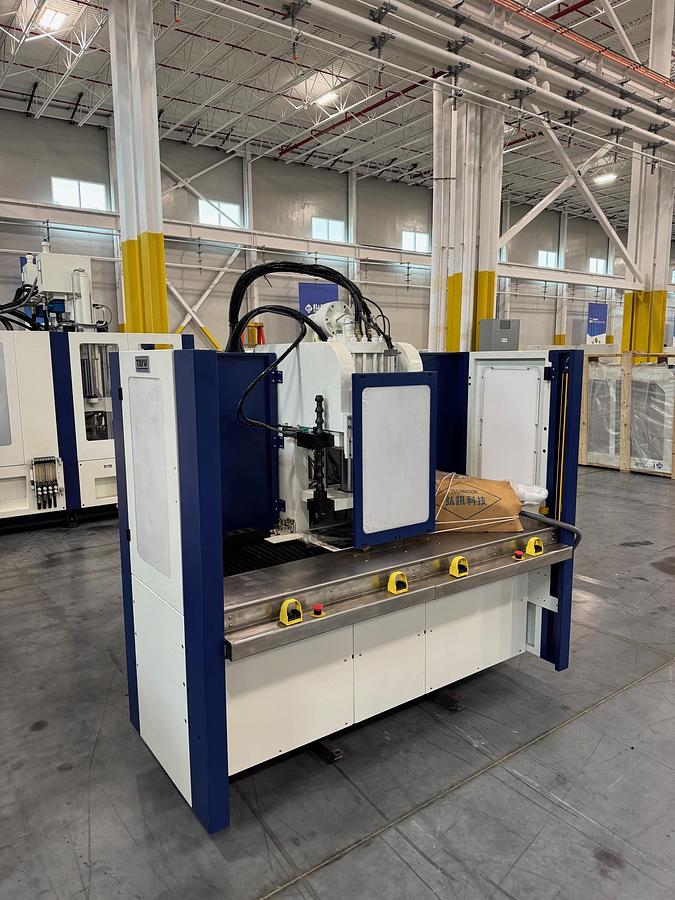

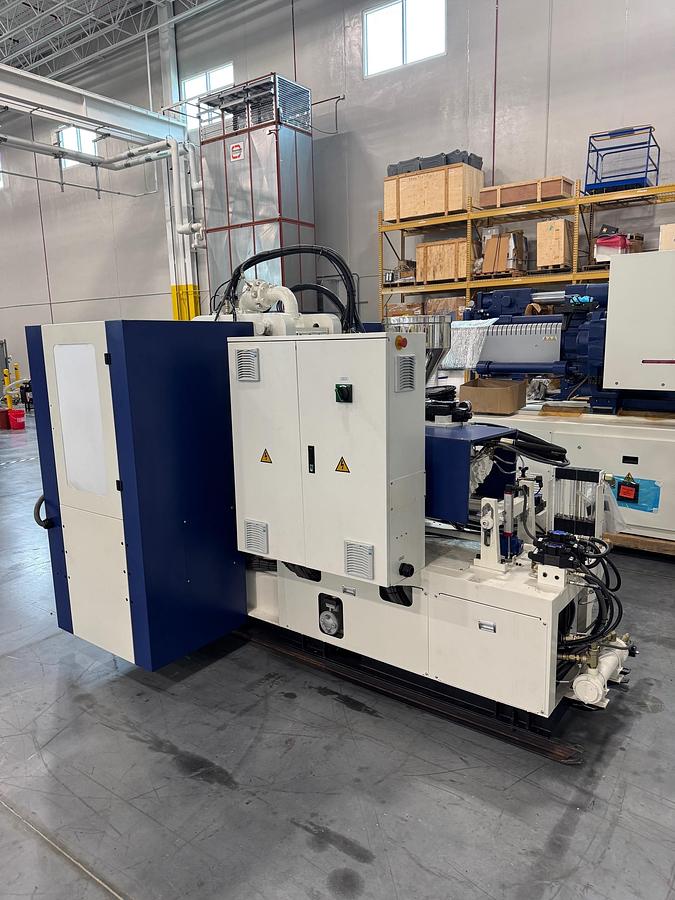

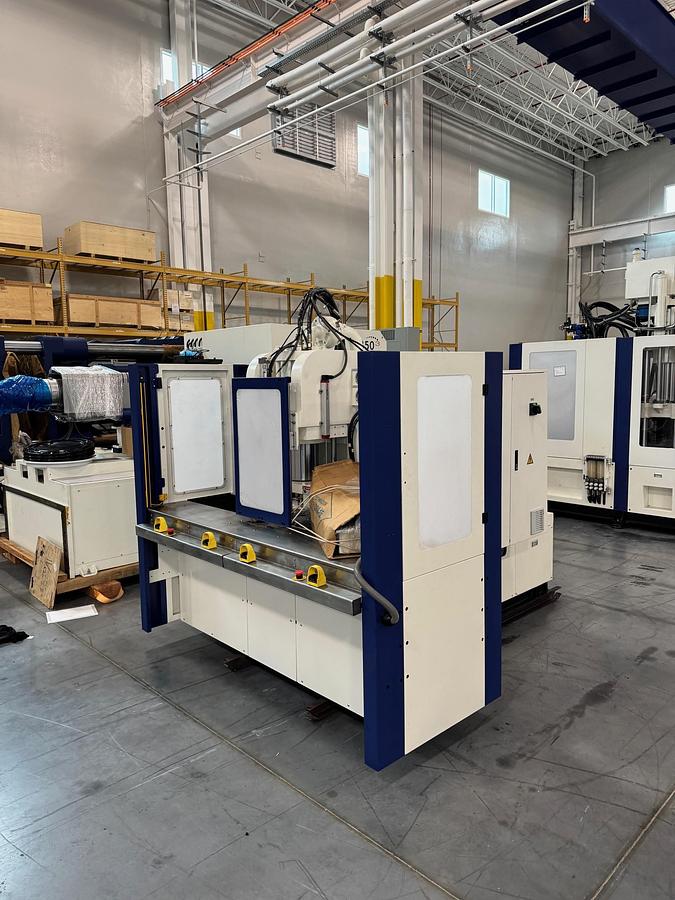

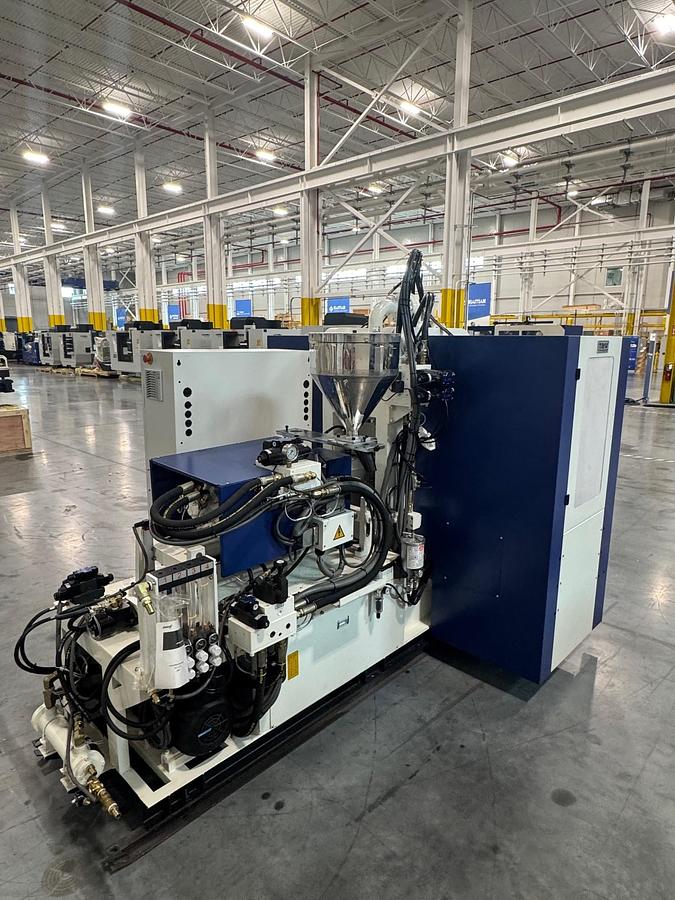

51 Ton, 3.8 oz. TAYU Vertical Dual Shuttle Injection Molding Machine (2024)
51 Ton, 3.8 oz. TAYU Vertical Dual Shuttle Injection Molding Machine (2024)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | TAYU |
| Model | Vertical Injection Molding Machine |
| Year | 2024 |
| Condition | New |
| Stock Number | 13832 |
| Model | TC-450DS |
| US Tonnage | 51 |
| Shot Size (oz. of PS) | 3.8 |
| Screw Diameter | 32mm |
| Top Platen Size (in.) | 23.43" x 12.01" |
| Bottom Platen Size (in.) | 35.43" x 13.39" |
| Max Open Daylight (in.) | 14.76" |
| Min Mold Height (in.) | 6.89" |
| Opening Stroke (in.) | 7.87" |
| Ejector Stroke (in.) | 3.15" |
| Ejector Force | 1 Ton |
| Control | Sigmatek |
| Voltage | 460V/3P/60Hz |
