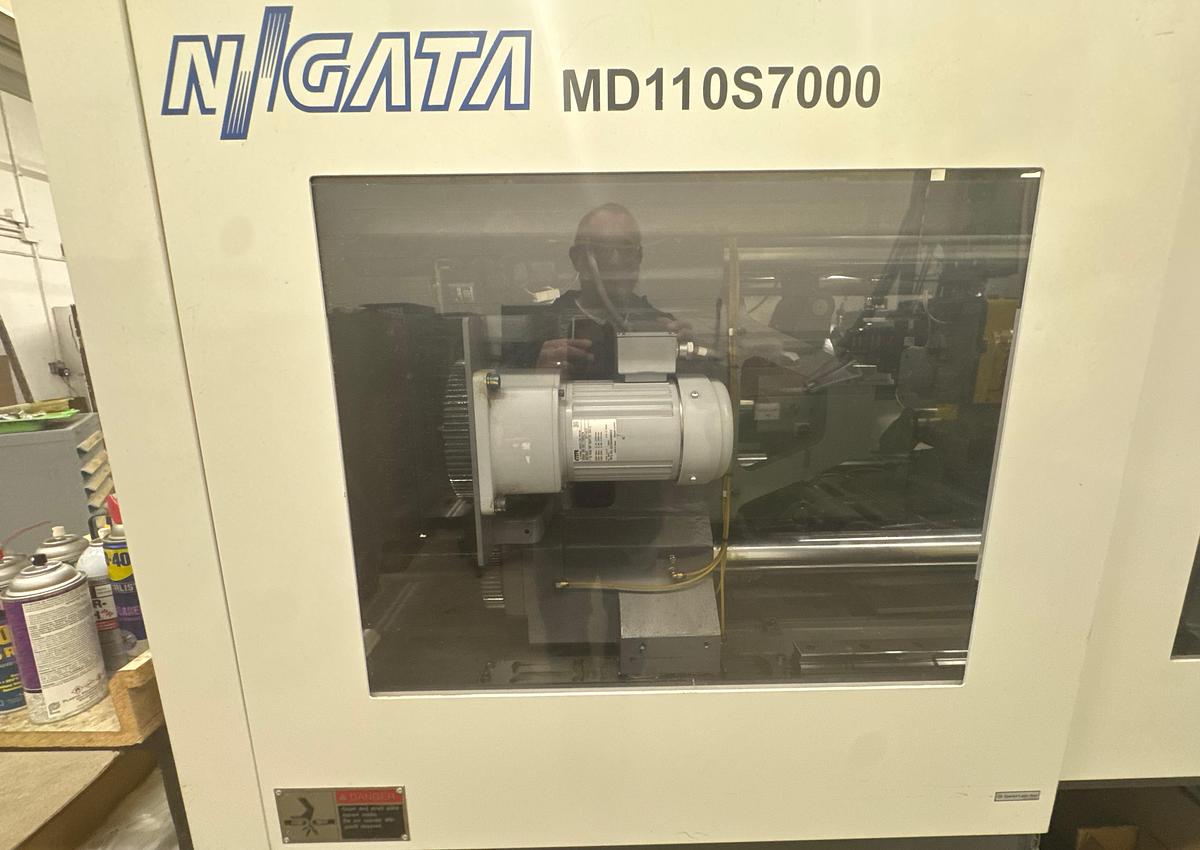

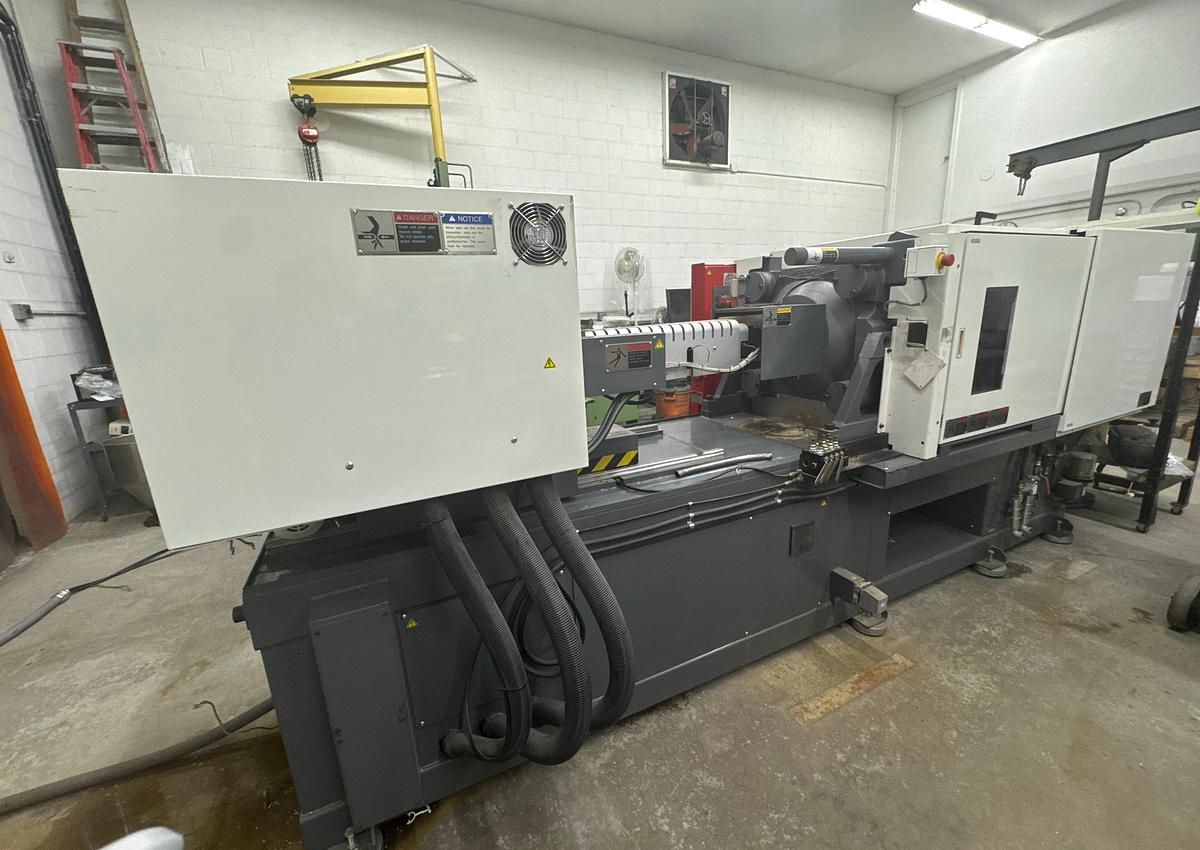

110 Ton, 6.53 Oz., Niigata All-Electric MD-Series Injection Molding Machine (2016)
Featured
110 Ton, 6.53 Oz., Niigata All-Electric MD-Series Injection Molding Machine (2016)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Niigata |
| Model | MD110S7000 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 13825 |
| Model | MD110S7000 |
| US Tonnage | 110 |
| Shot Size (oz. of PS) | 6.53 |
| Screw Diameter | 1.57 |
| Platen Size (in.) | 24.02 x 24.02 |
| Tiebar Spacing (HxV) in. | 18.11 x 16.4 |
| Max Mold Height (in.) | 17.72 |
| Min Mold Height (in.) | 7.87 |
| Opening Stroke (in.) | 13.78 |
| Open Daylight (in.) | 31.50 |
| Ejector Stroke (in.) | 3.94 |
| Voltage | 220V/3P/360Hz |
Included Options
Robot Interface, Core Pull
