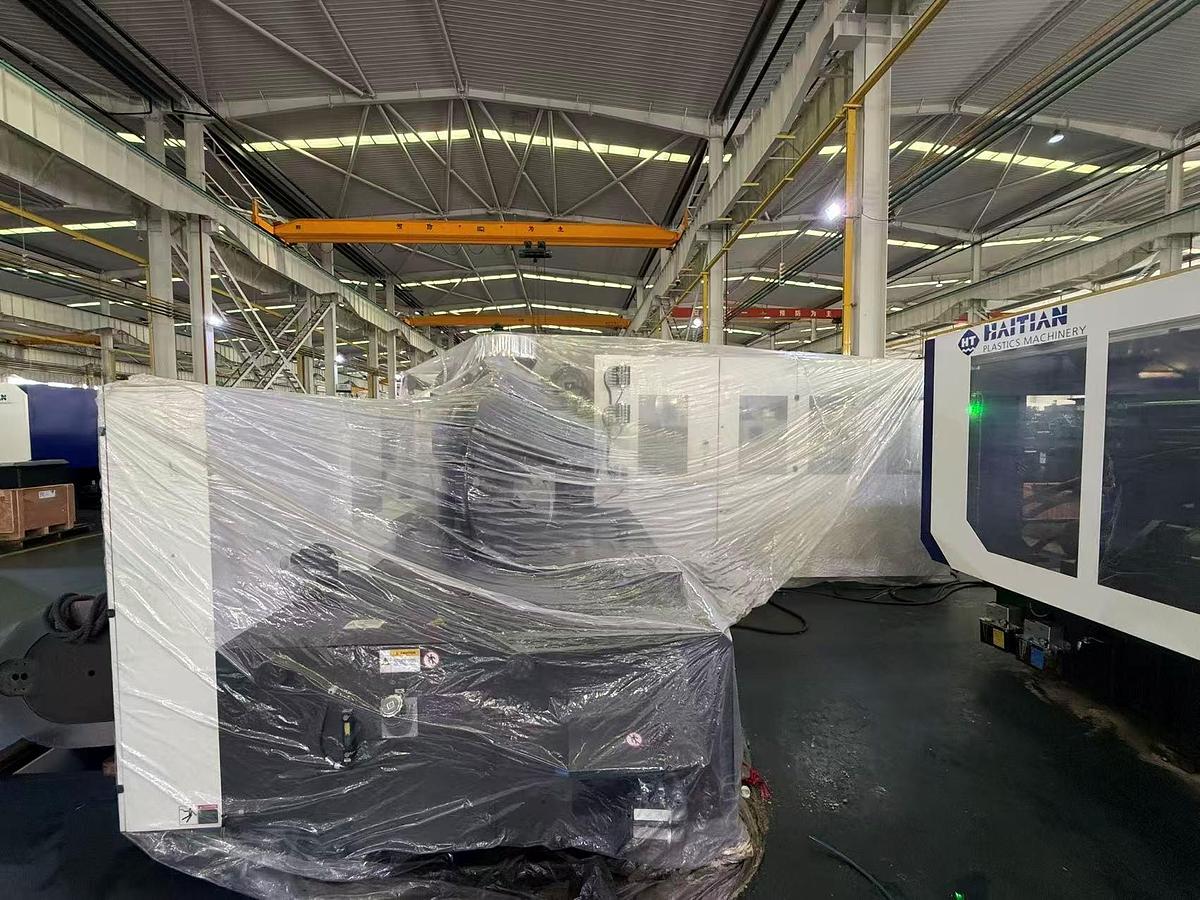

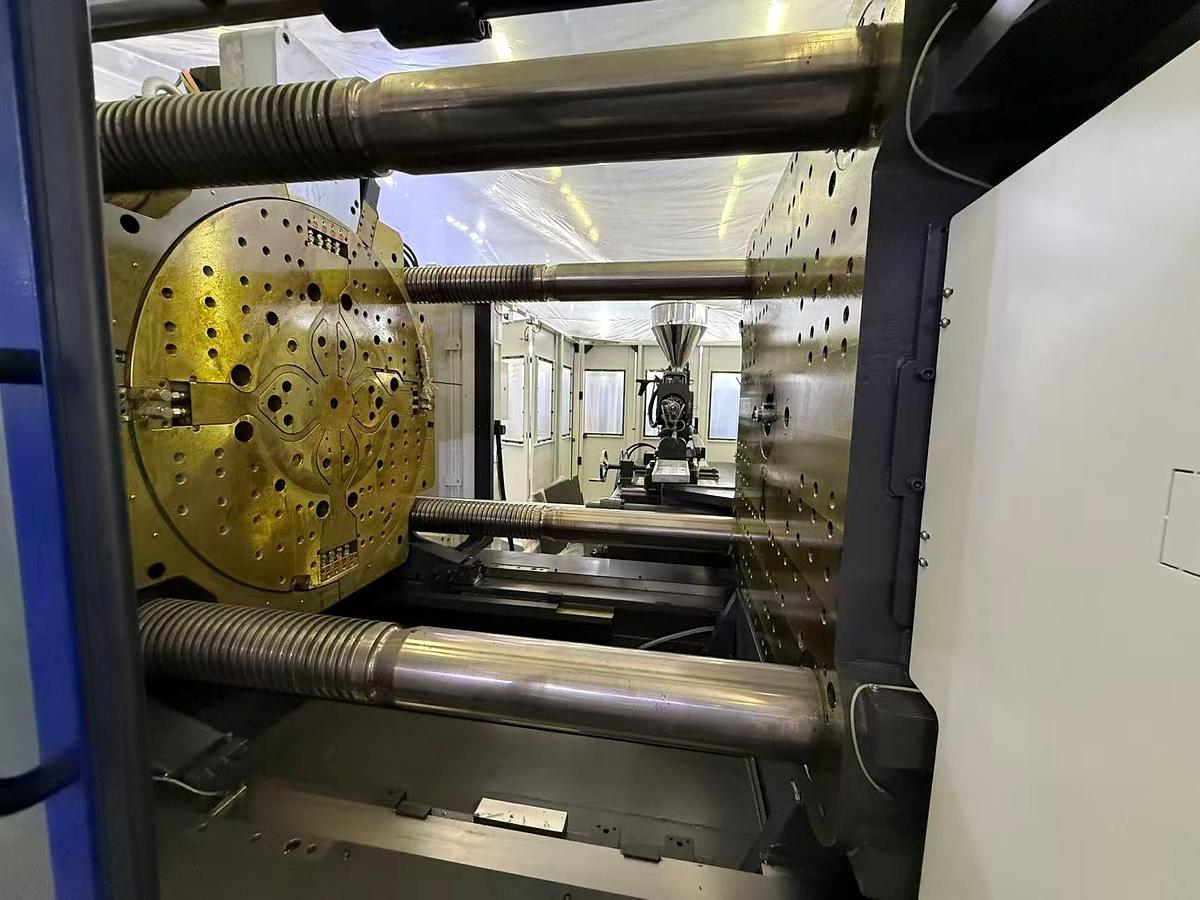

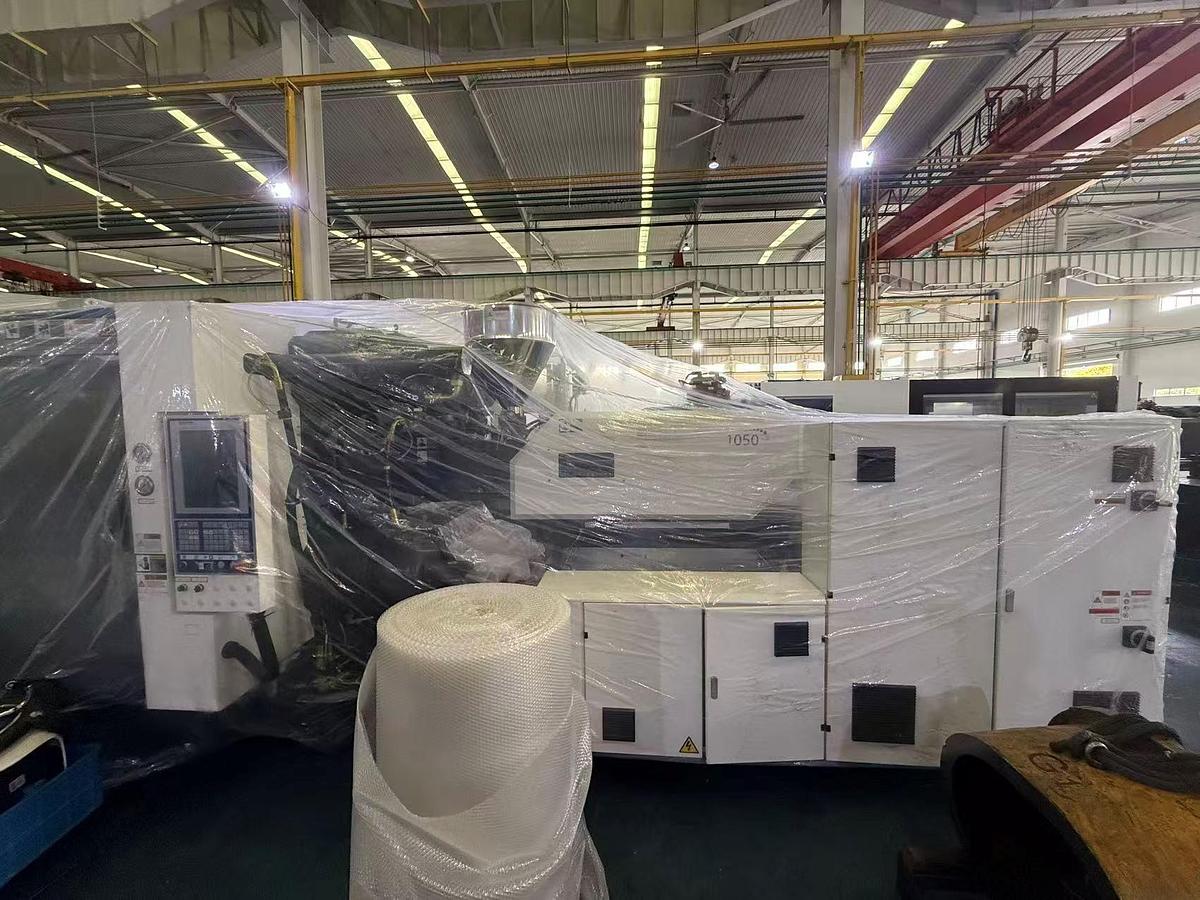

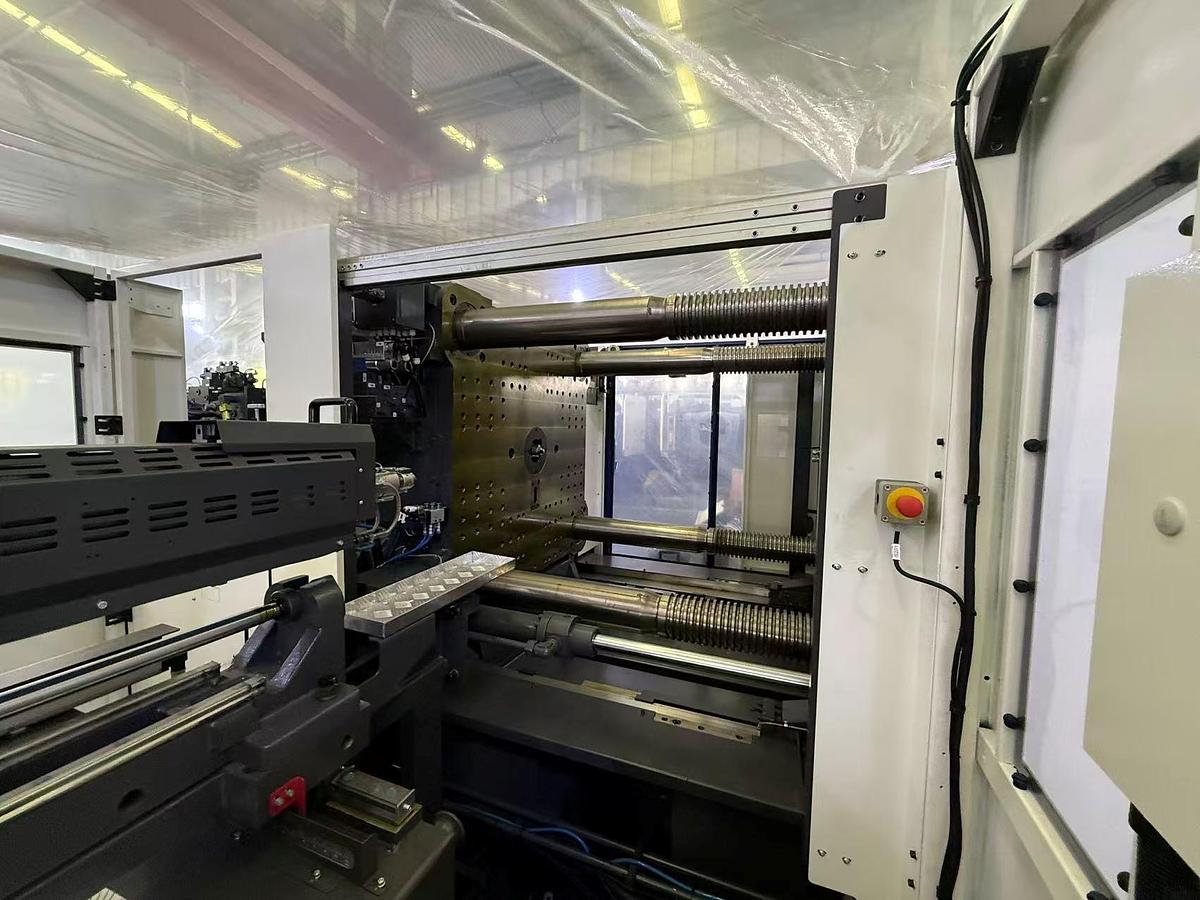

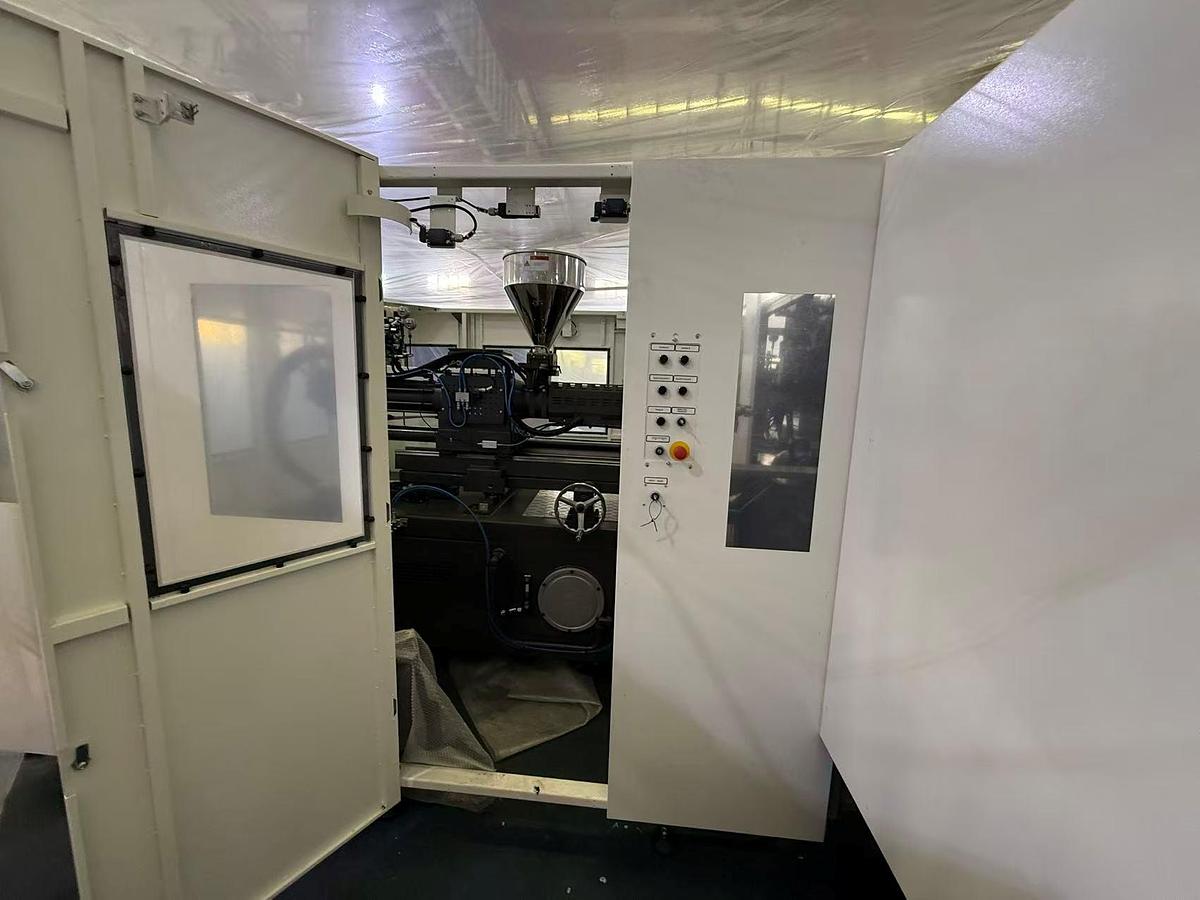

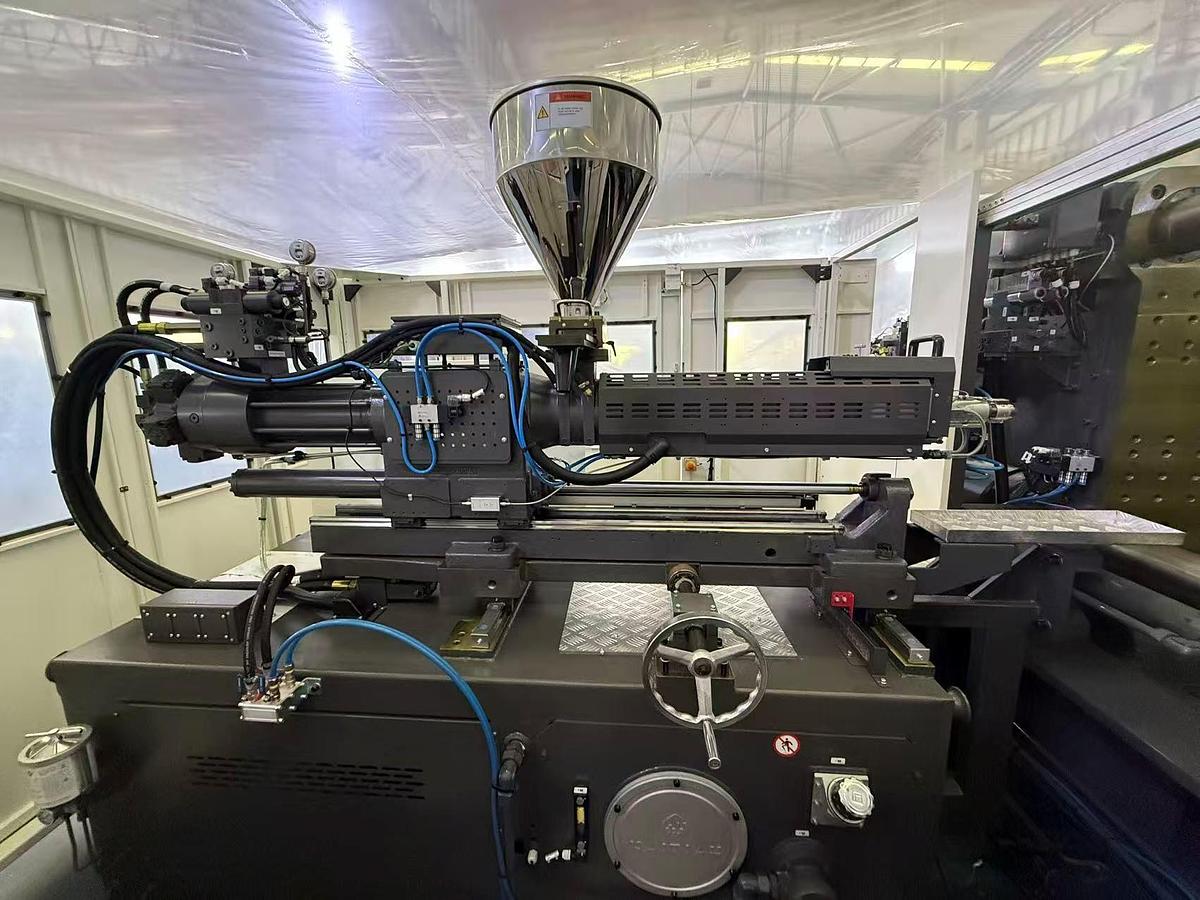

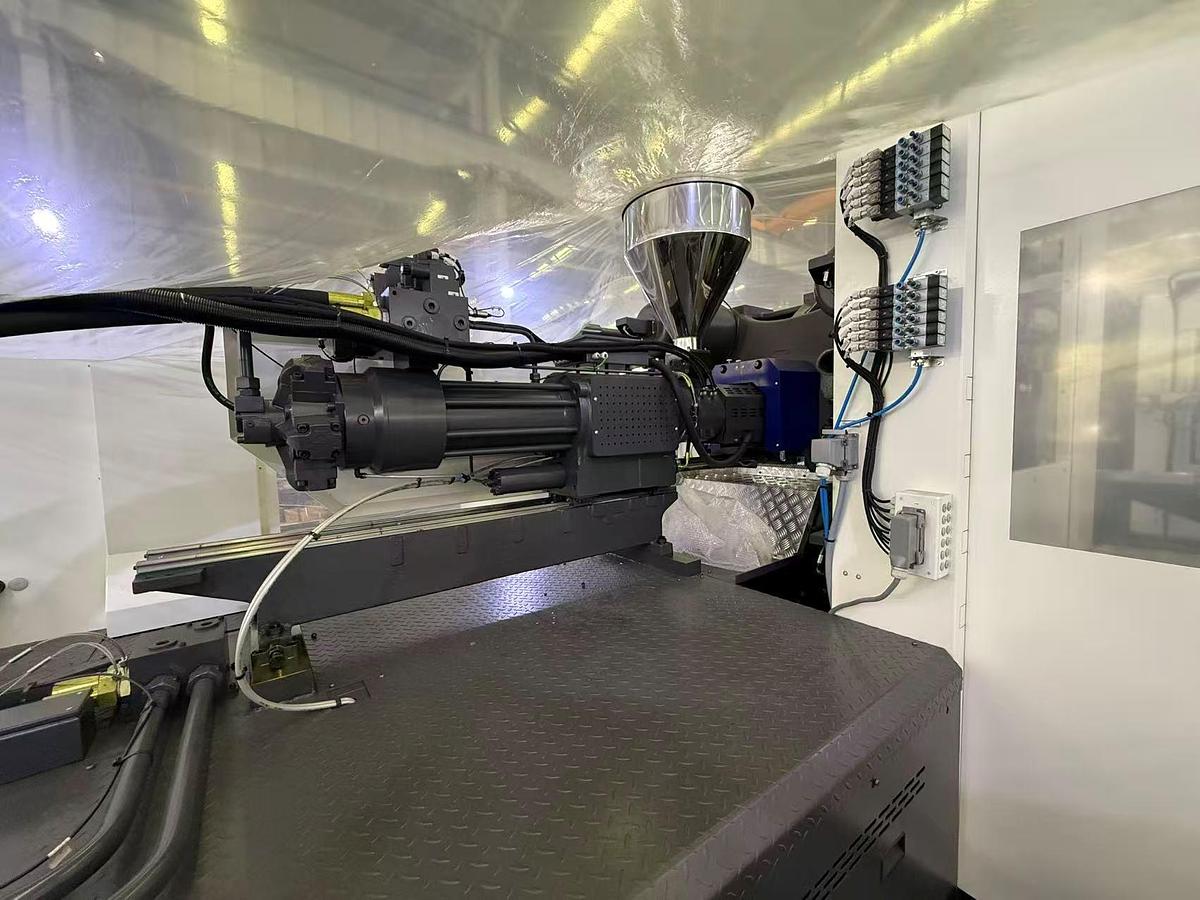

731 Ton, 18.31 & 5.54 oz. Multi-Shot "L" Configuration Two-Platen Injection Molding Machine w/Rotary Table (2025)
731 Ton, 18.31 & 5.54 oz. Multi-Shot "L" Configuration Two-Platen Injection Molding Machine w/Rotary Table (2025)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Haitian |
| Model | JU6500M-1050-L380 |
| Year | 2025 |
| Condition | New |
| Stock Number | 13720 |
| Model | JU6500M-1050-L380 |
| US Tonnage | 731 |
| Primary Injection Shot Size (oz.) | 18.31 |
| Primary Injection Unit Screw Diameter | 55 mm |
| Primary Injection Pressure (max) | 27702 psi |
| Secondary Injection Shot Size (oz.) | 5.54 |
| Secondary "L" Injection Unit Screw Diameter | 36 mm |
| Secondary Injection Pressure (max) | 32198.38 psi |
| Min Mold Height (in.) | 14.17 |
| Max Mold Height (in.) | 39.76 |
| Mold Opening Stroke (At Min Mold Height) (in.) | 57.09 |
| Mold Opening Stroke (At Max Mold Height) (in.) | 31.49 |
| Max Daylight (in.) | 71.26 |
| Tiebar Spacing (HxV) (in.) | 40.94 x 35.83 |
| Platen Size (in.) | 55.12 x 53.15 |
| Ejector Stroke (in.) | 9.84 |
| Bearing Capacity of Rotary Platen (lbs.) | 14330 |
| Rotary Table Thickness (in.) | 9.44 |
| Rotary Table Diameter (in.) | 49.21 |
| Control | KEBA |
| Voltage | 460/3/60 |
| NOTE | List Price is to Closest USA Port - $489,000 if we do Inland Freight |
Included Options
Full New Machine Warranty, Start-Up & Training, 8 Hydraulic Core Pull, 4 Air Blast, 12 Pneumatic Valve Gates, EU 67 Robot Interface, High-Wear Screw & Barrel Package, High-Precision Clamp Proportional Valve, OPC-UA, Euromap 82.2, Spare Parts Kit, Removable Bolt on Rotary Table
