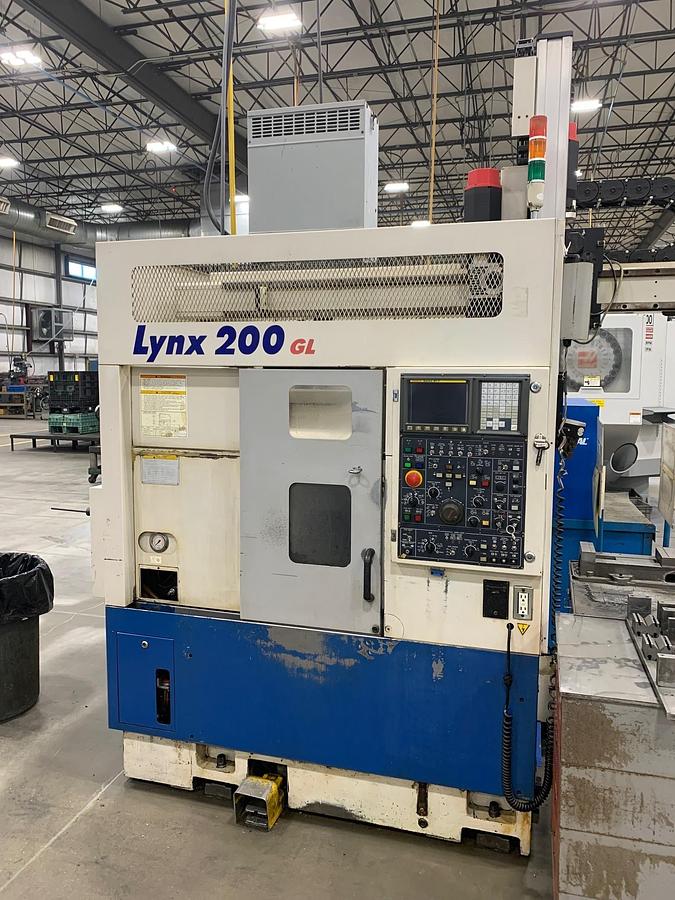

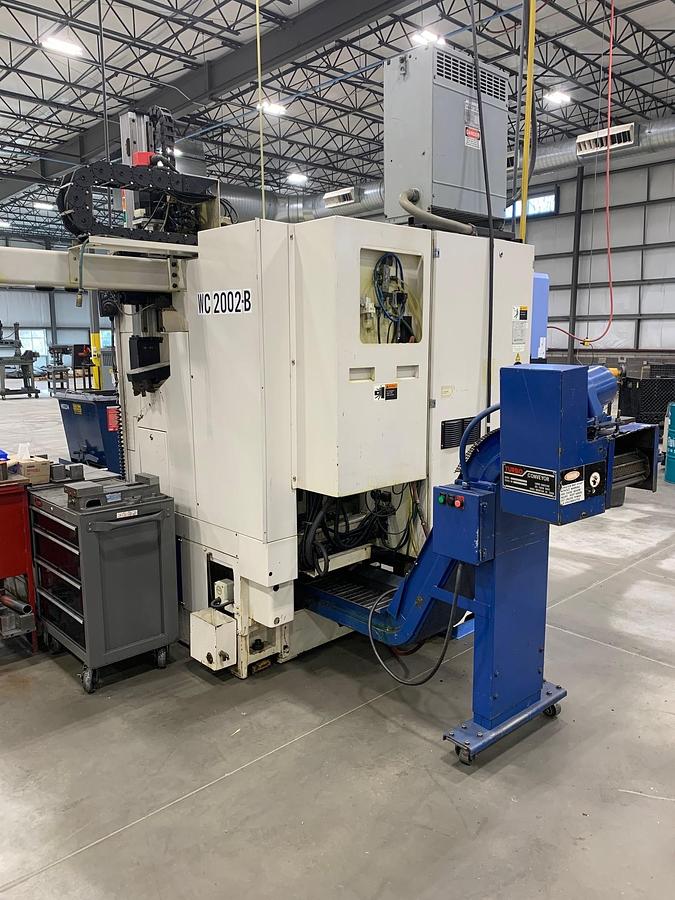

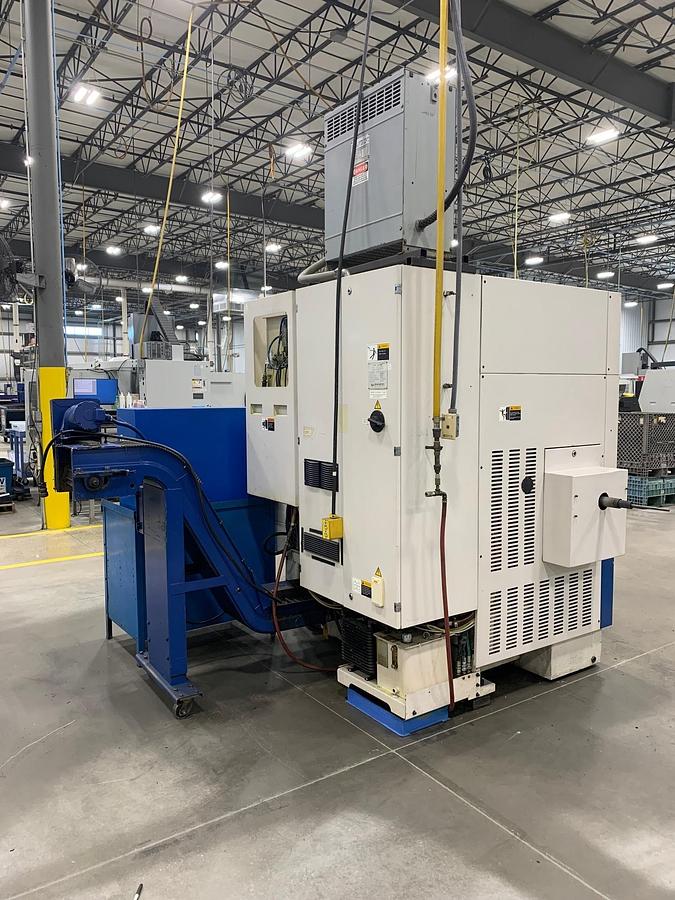

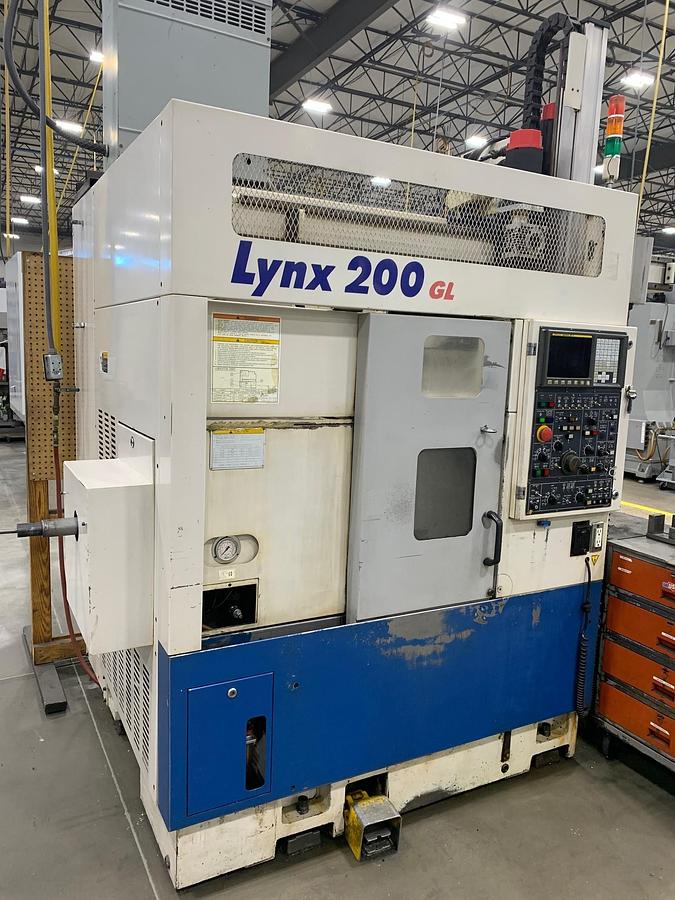

Daewoo Doosan Lynx 200B-GL CNC Turning Center (1999)
No longer available
Daewoo Doosan Lynx 200B-GL CNC Turning Center (1999)
Available quantity:1
Specifications
| Manufacturer | Daewoo |
| Model | Lynx 200B-GL |
| Year | 1999 |
| Condition | Used |
| Stock Number | 13637 |
| Model | Lynx 200B-GL |
| Max. Turning Diameter | 11" |
| Max. Turning Length | 11.8" |
| Max. Bar Capacity | 1.75" |
| Swing Over Bed | 18" |
| Distance Between Centers | 20" |
| X Axis Travel | 6.3" |
| Z Axis Travel | 13" |
| Rapid Traverse X Axis | 787 IPM |
| Rapid Traverse Z Axis | 945 IPM |
| Spindle Nose | A2-5 |
| Spindle Bore | 2" |
| Spindle Speed | 35 - 5000 RPM |
| Spindle Motor | 15 HP |
| Turret Capacity | 12 Station |
| Turret Index Time | 0.15 Second |
| Tailstock | NO |
| Control | Fanuc 21-T Series |
| Overall Dimensions | 120" x 77" x 80" High |
| Weight | 7600 lbs. |
Included Options

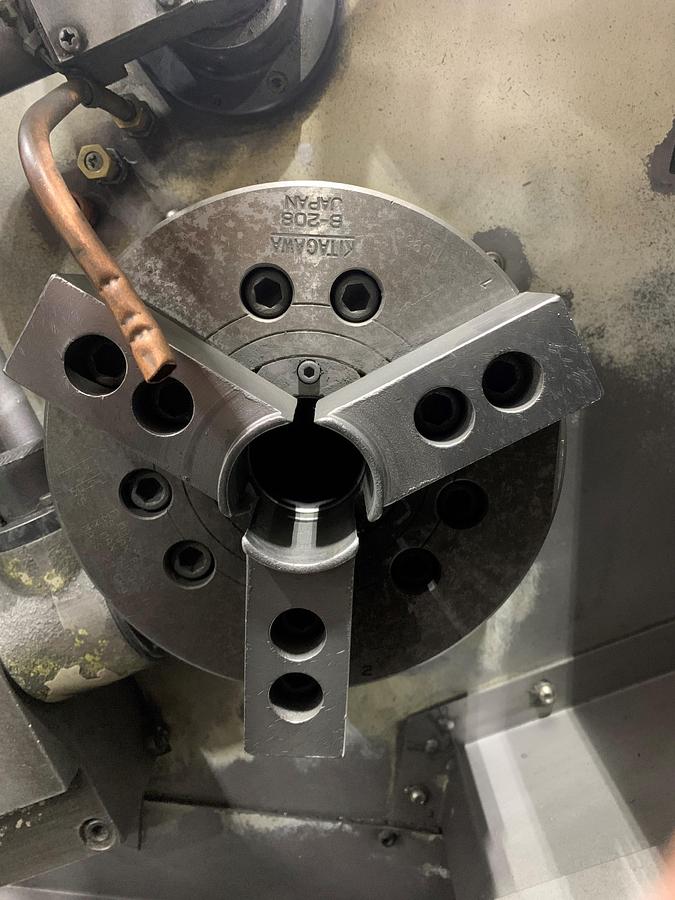

Rigid Tapping, 8" 3 Jaw Kitagawa Hydraulic Chuck, Tool Presetter, Parts Catcher, RS-232, Coolant System, Foot Switch & Turbo Chip Conveyor
Note: Transformer can be purchased separately.
