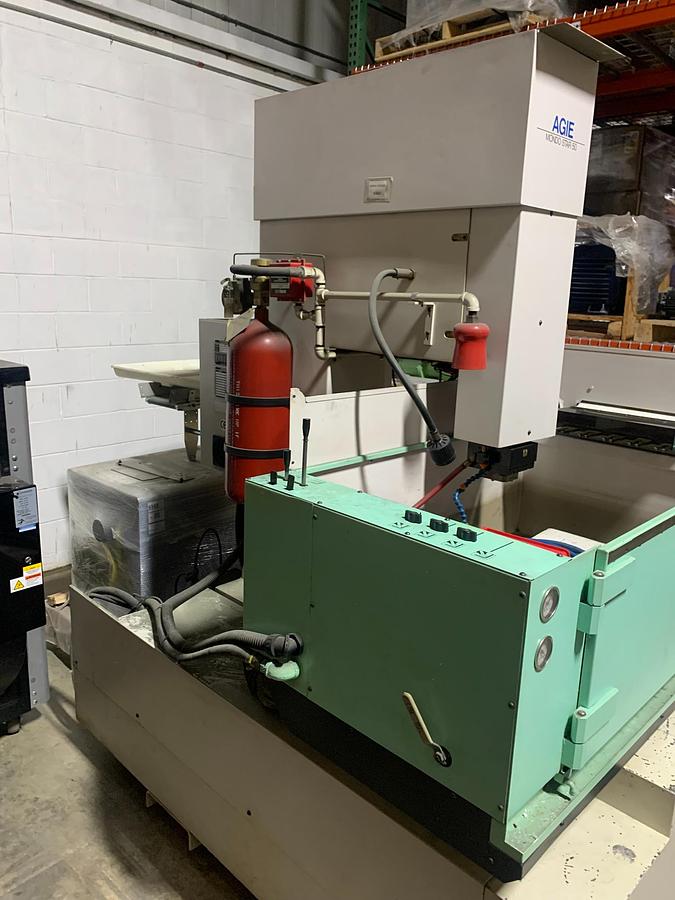

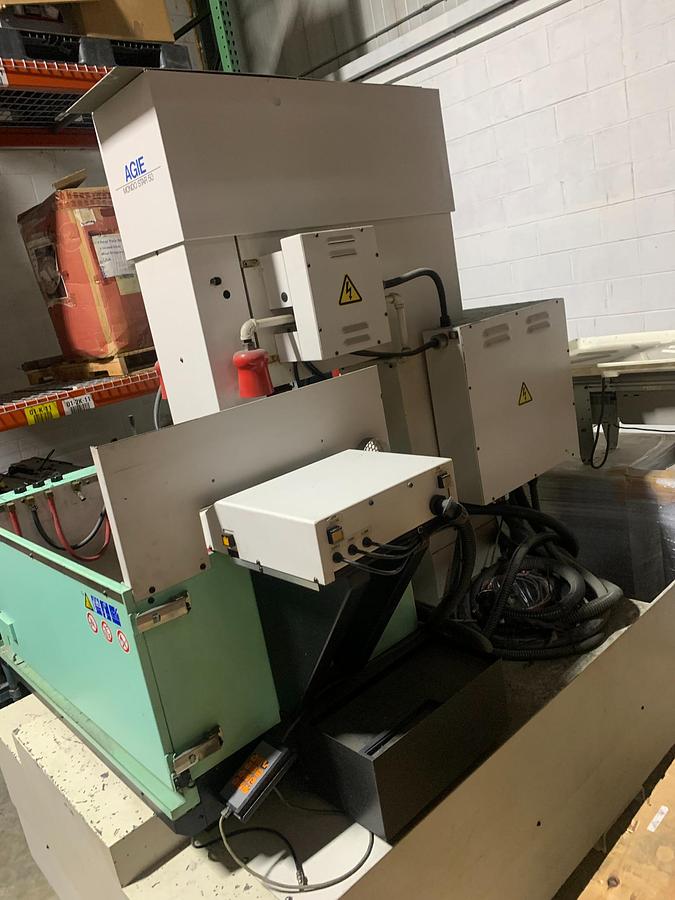

Agie Mondo Star 50 CNC Sinker EDM (2000)
Agie Mondo Star 50 CNC Sinker EDM (2000)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Agie Charmilles Group |
| Model | Mondo Star 50 |
| Year | 2000 |
| Condition | Used |
| Stock Number | 13632 |
| Model | Mondo Star 50 |
| Travels (X x Y x Z) | 19.6" x 13.7" x 13.7" |
| Rapid Traverse | 37 IPM |

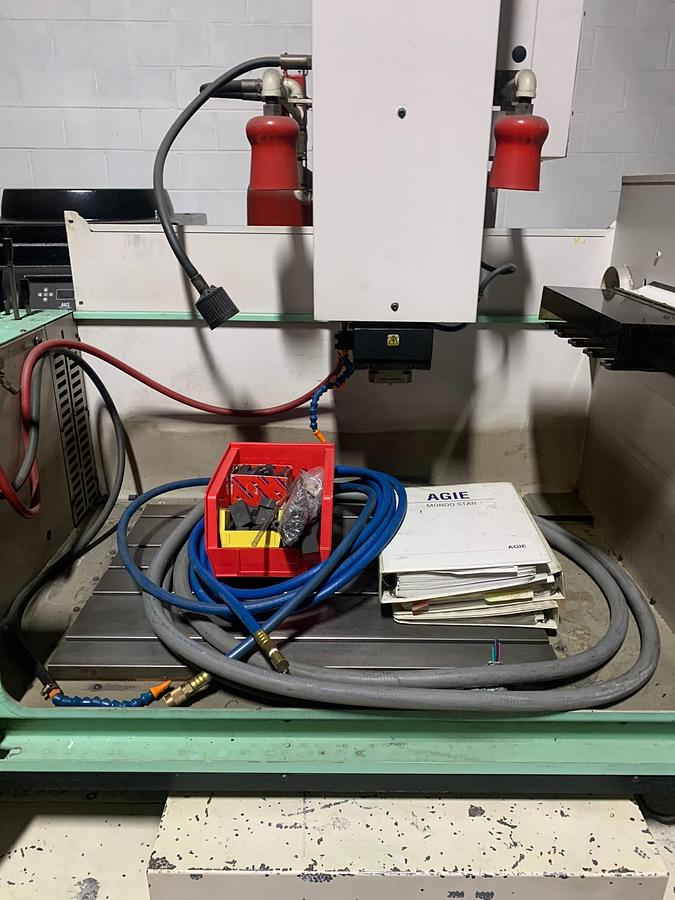

| Work Table | 29.5" x 21.6" |
| Max. Workpiece | 33.8" x 25.5" x 12.4" |
| Max. Table Load | 1,100 lbs |
| Work Tank Size | 40.1" x 26.7" x 15.7" |
| Distance - Spindle to Table Top | 9.8" - 23.6" |
| Max. Electrode Weight (No C Axis) | 220 lbs. |
| Programmable Increment | 0.0001" |
| Servo Resolution | 0.0000025" |
| C Axis Specs - | Programmable Increments: 0.001 Degree | Positioning: Absolute & Relative | Programmable Rotation Speed: 0 - 55 RPM | Max. Electrode Weight: 110 lbs. |
| Measuring System | Optical Encoder |
| Drive System | DC Digital Closed Loop Motor |

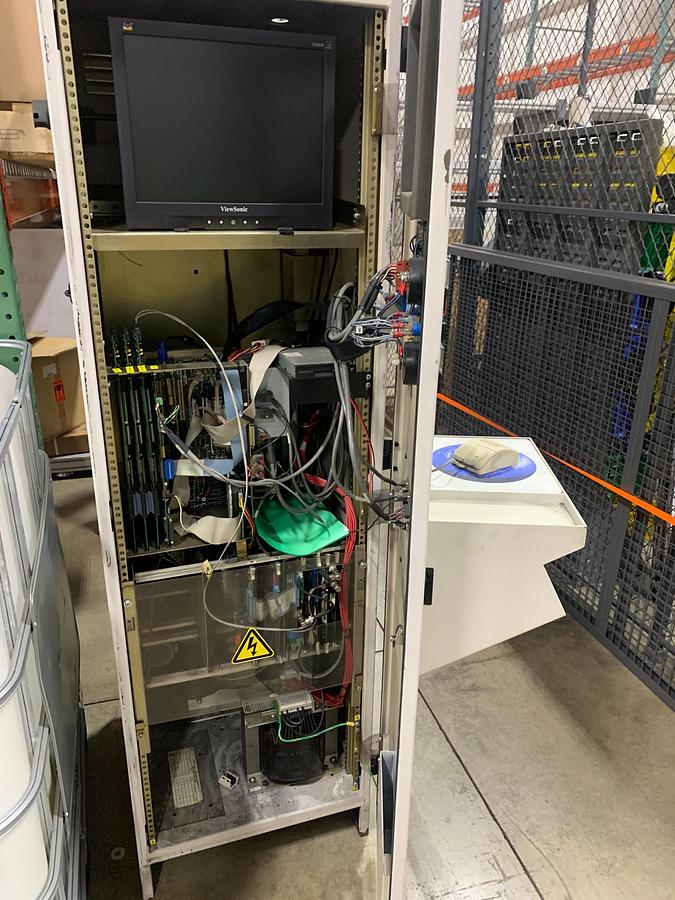

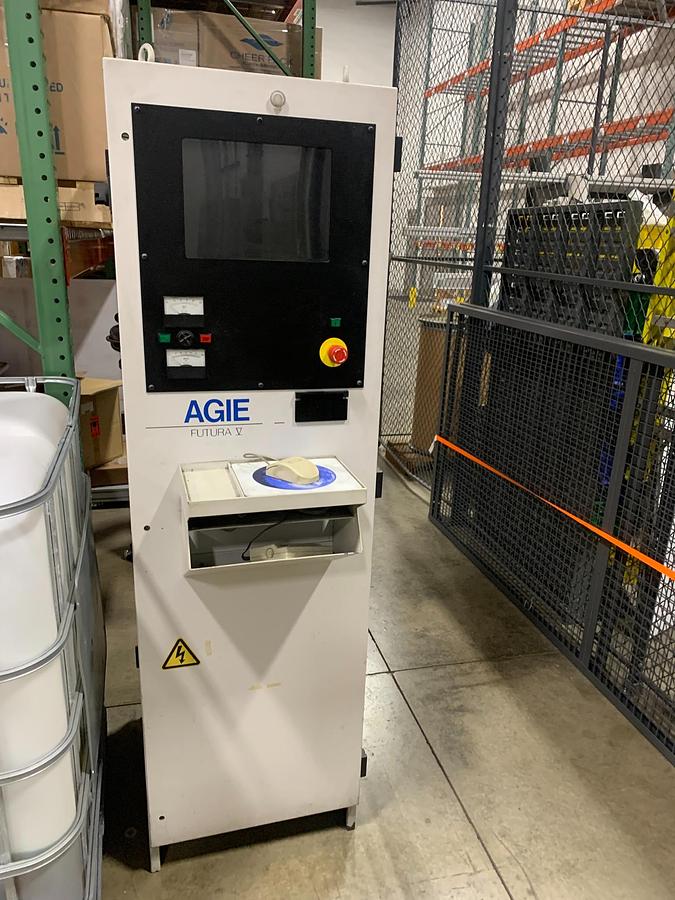

| Control | Futura V |
| Dielectric Fluid Capacity | 140 gal |
| Filter Type | Paper Cartridge (two) |
| Pump Flow Rating | 10 GPM |
| Peak Amperage | 60 |
| Average Amperage | 40 |

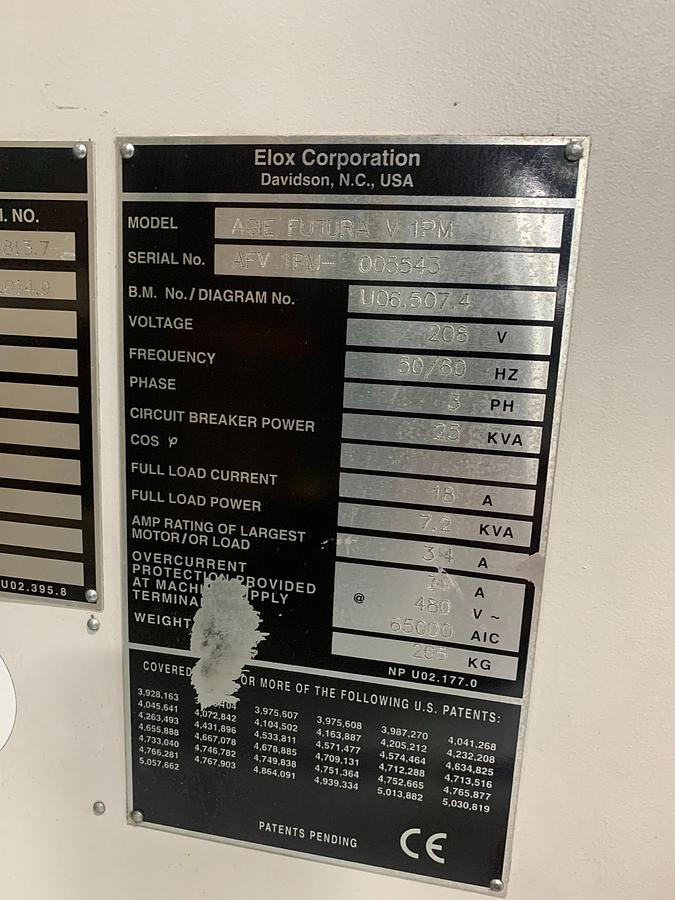

| Power Requirement | 220V/3PH/60Hz |
Included Options

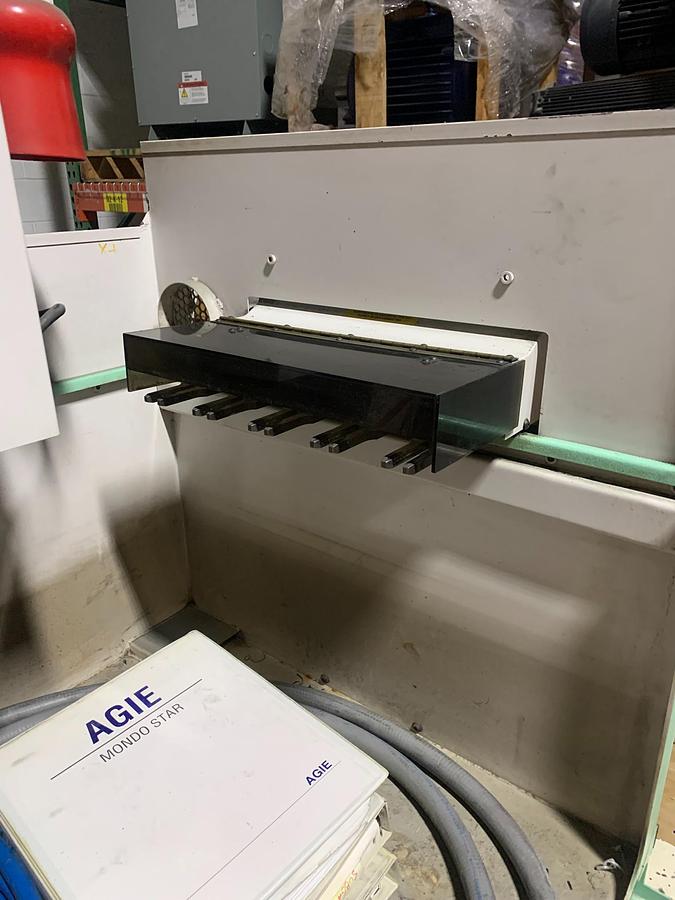

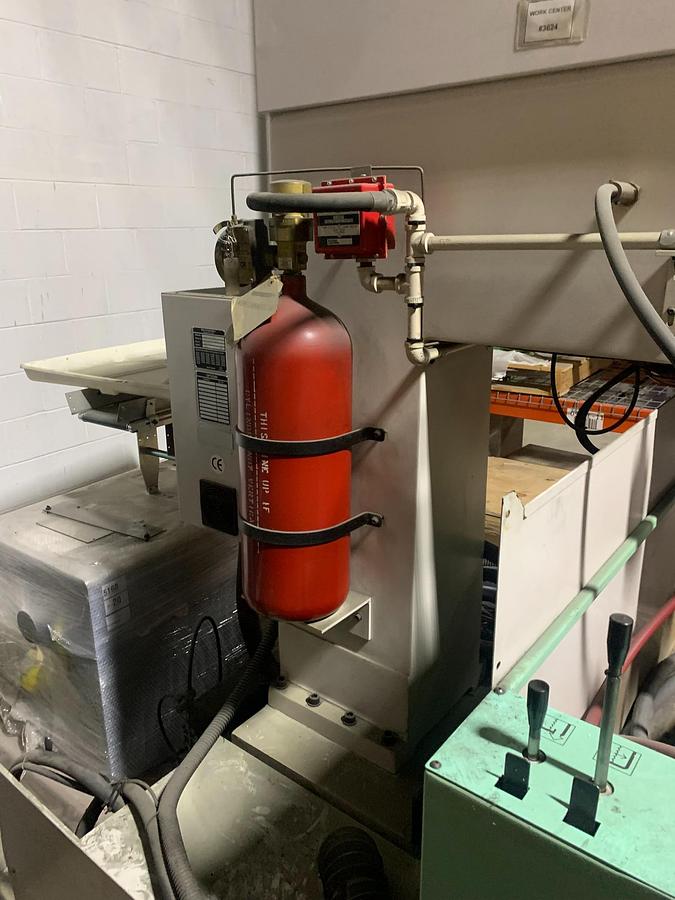

Full C Axis, Electric Chiller, Hirschmann Chuck, 4 Position Rack Style Automatic Tool Changer, Worklight & Fire Extinguisher
