2007 Johnsford DMC 4100PH CNC Double Column Machining Center
No longer available
2007 Johnsford DMC 4100PH CNC Double Column Machining Center
Available quantity:1
Specifications
| Manufacturer | Johnsford |
| Model | DMC 4100PH |
| Year | 2007 |
| Condition | Used |
| Stock Number | 13582 |
| Model | DMC 4100PH |
| Power | Main Motor - 54 HP |
| X-Axis Travel | 161.4" |
| Y-Axis Travel | 90.5" |
| Z-Axis Travel | 31.5" |
| Rapid Traverse Rate - X / Y / Z | 472 in/min. |
| Table-Width | 80.7" |
| Table-Length | 165.3" |
| Spindle Nose to Table Top | 5.9" ~ 37.4" |
| Spindle Speed | 10,000 RPM |
| Spindle Taper | 50 |
| # ATC | 40 |
| Weight on Table | 22,000 lbs |
| Number of Gear Ranges | 2 |
| Tool Diameter | 5" , 7.8" |
| Tool Length | 15.7" |
| Tool Weight | 33 lbs. |
| Machine Weight | 90,200 lbs. |

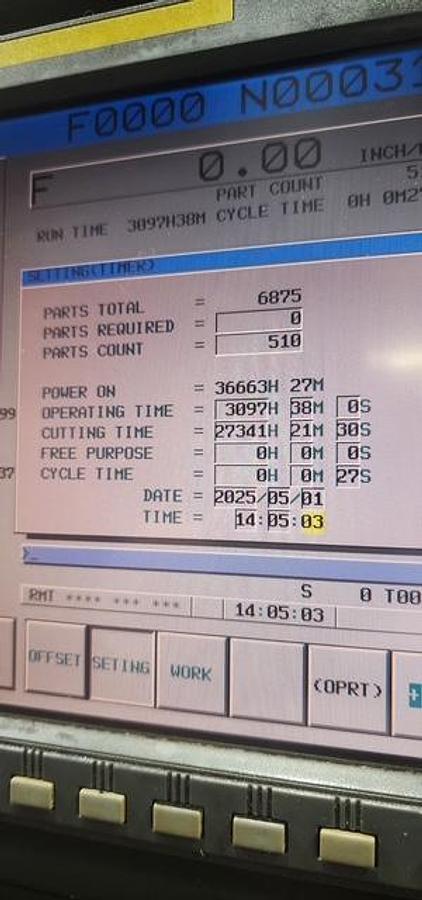

| Control CNC | Fanuc 18I-MB Color Control |
| Note | New Spindle 4 years ago |
Included Options
Spindle Air Blast, Coolant thru the Spindle, Rigid Tapping, Spindle Chiller, Full Enclosure, Twin Screw Augers, Remote Pulse Generator, Upright Chip Conveyor, All Available Manuals
