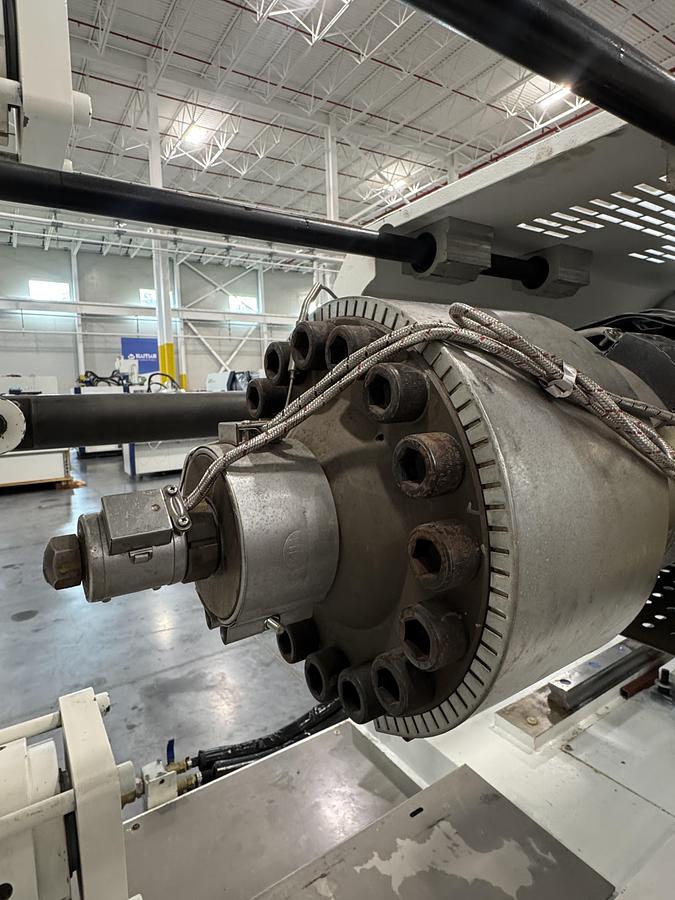

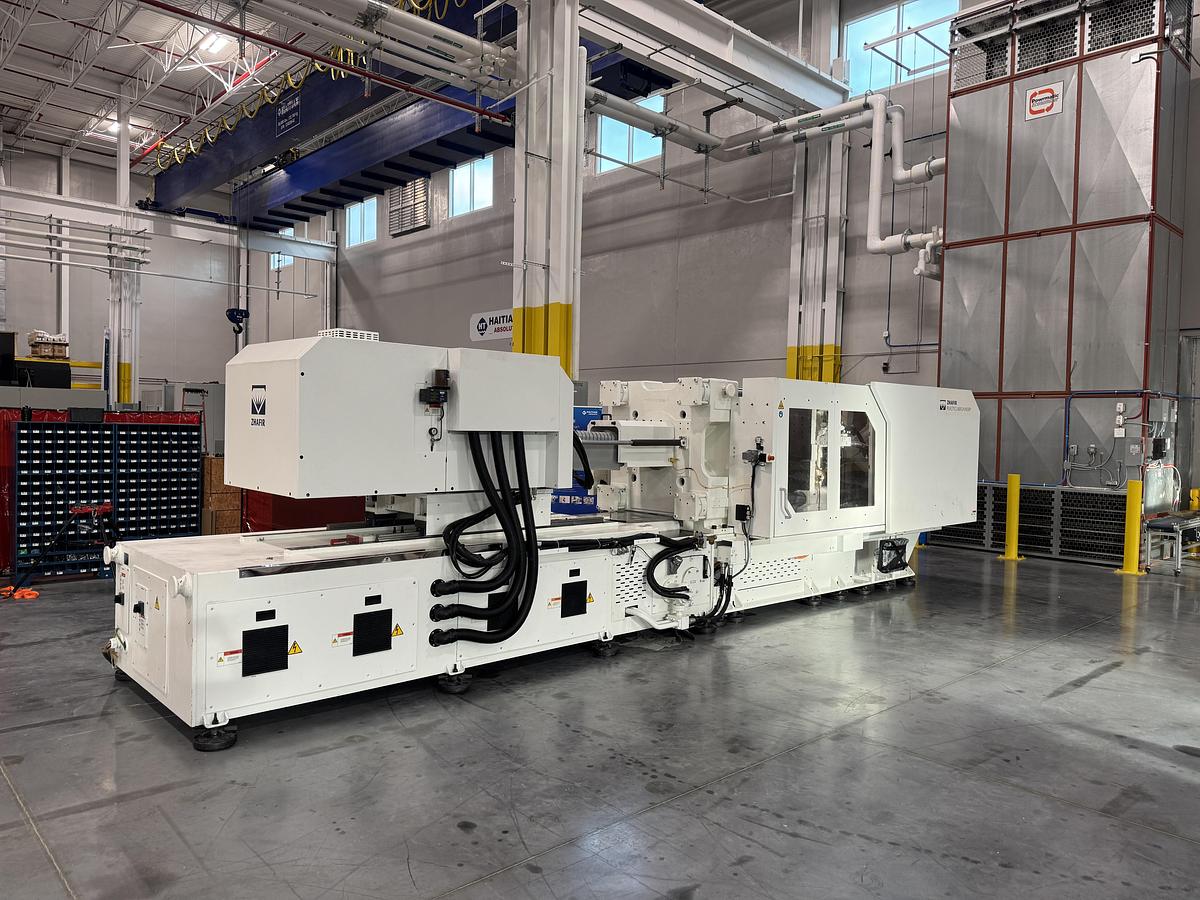

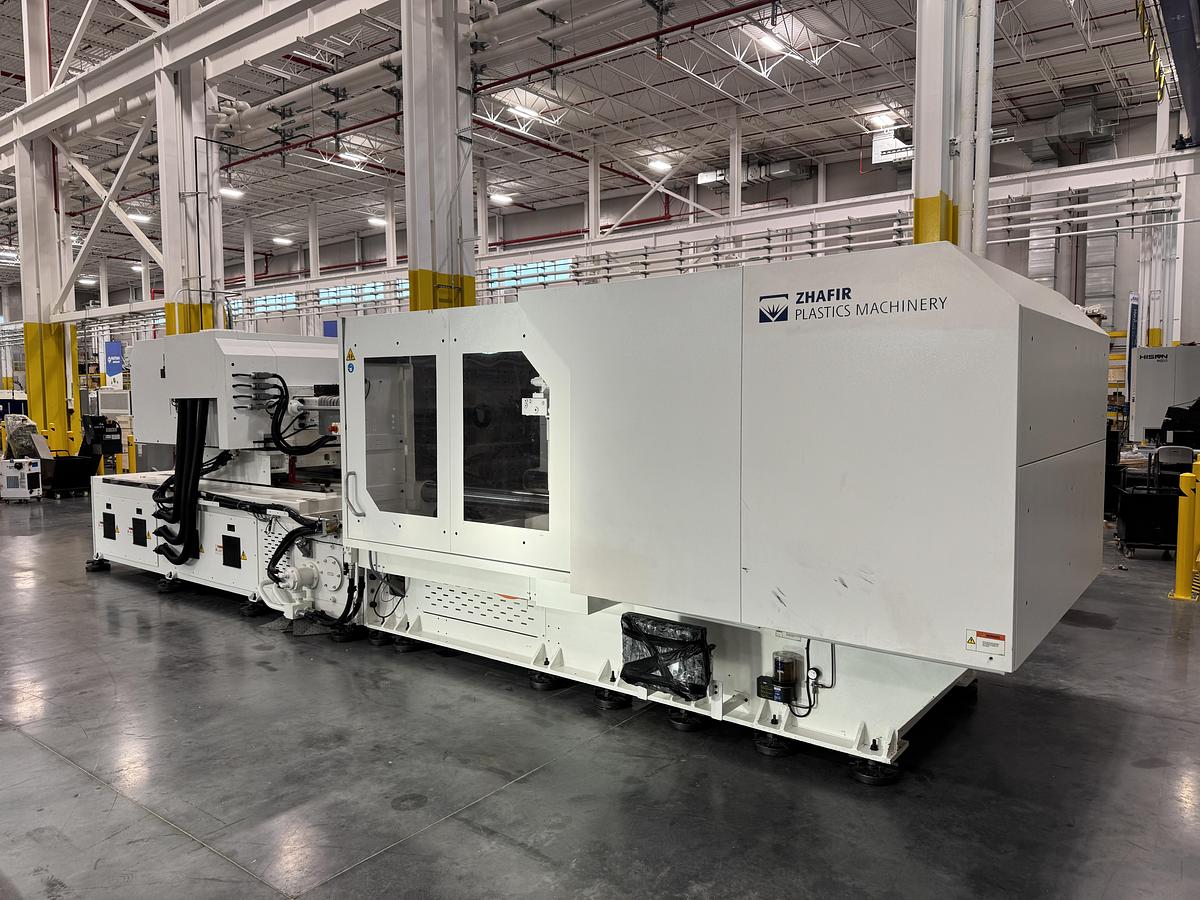

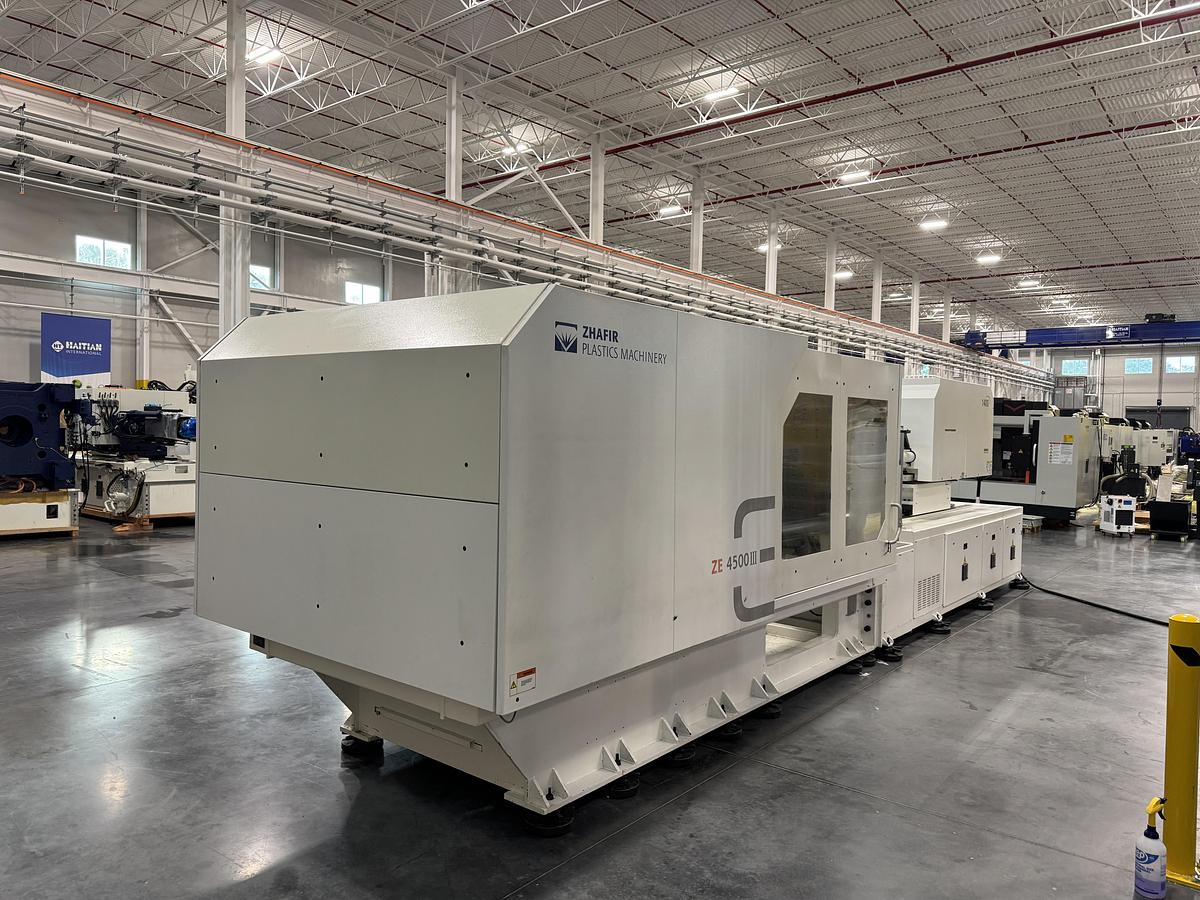

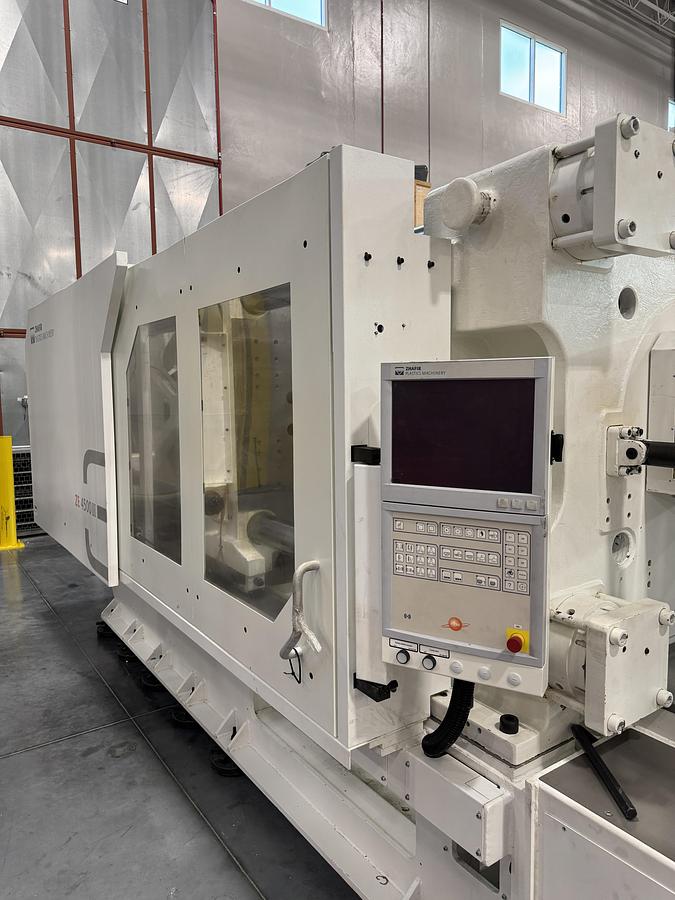

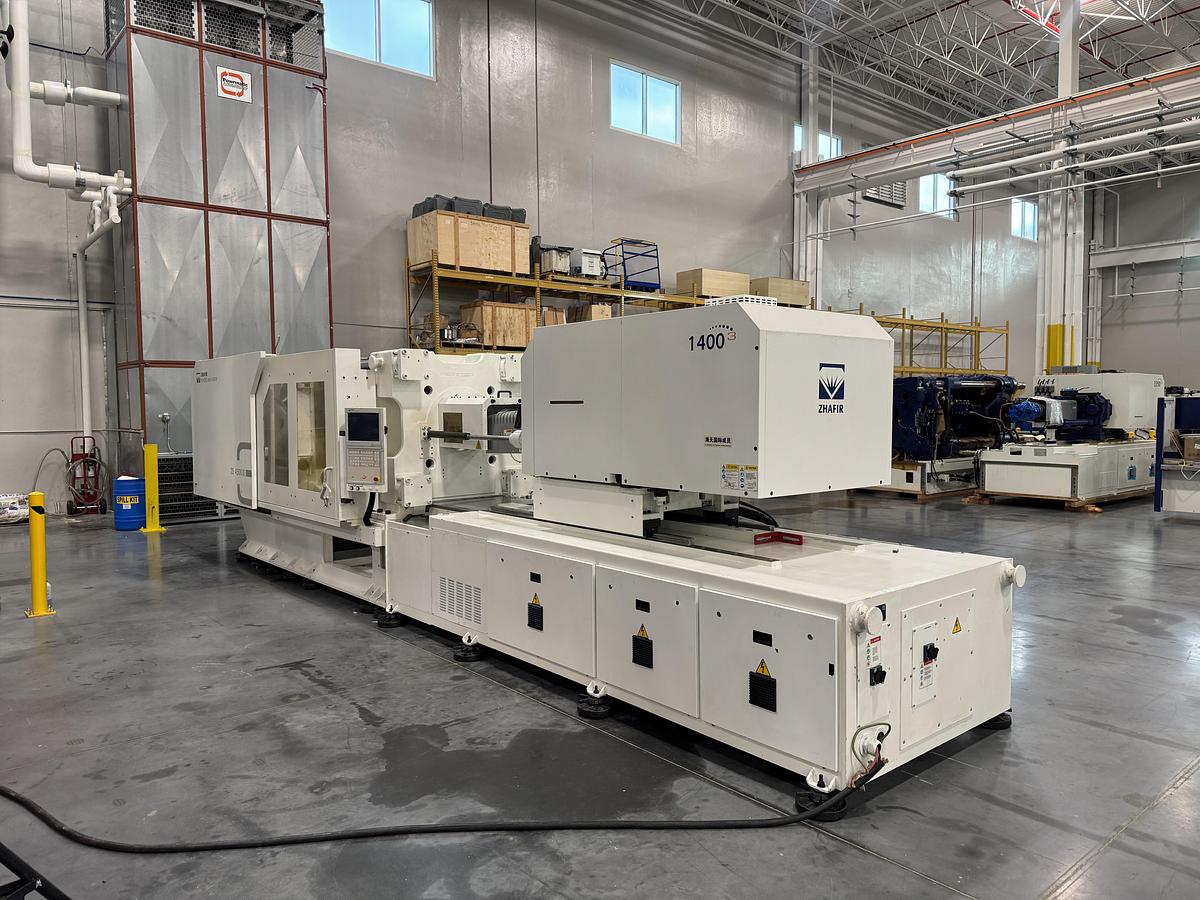

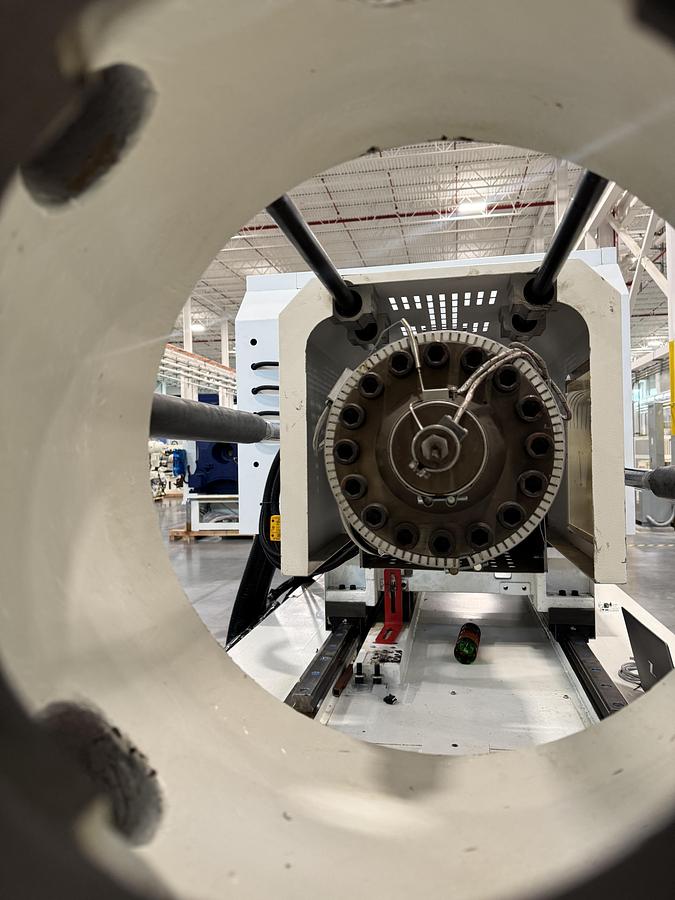

506 Ton, 23.56 Oz., Haitian Zhafir Zeres ZEIII 4500/1400 B Screw Electric Injection Molding Machine (2021)
506 Ton, 23.56 Oz., Haitian Zhafir Zeres ZEIII 4500/1400 B Screw Electric Injection Molding Machine (2021)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Haitian |
| Model | ZEIII 4500/1400 B |
| Year | 2021 |
| Condition | Used |
| Stock Number | 13558 |
| Model | ZEIII 4500/1400 B |
| US Tonnage | 506 |
| Shot Size (oz. of PS) | 23.56 |
| Screw Diameter | 60mm |

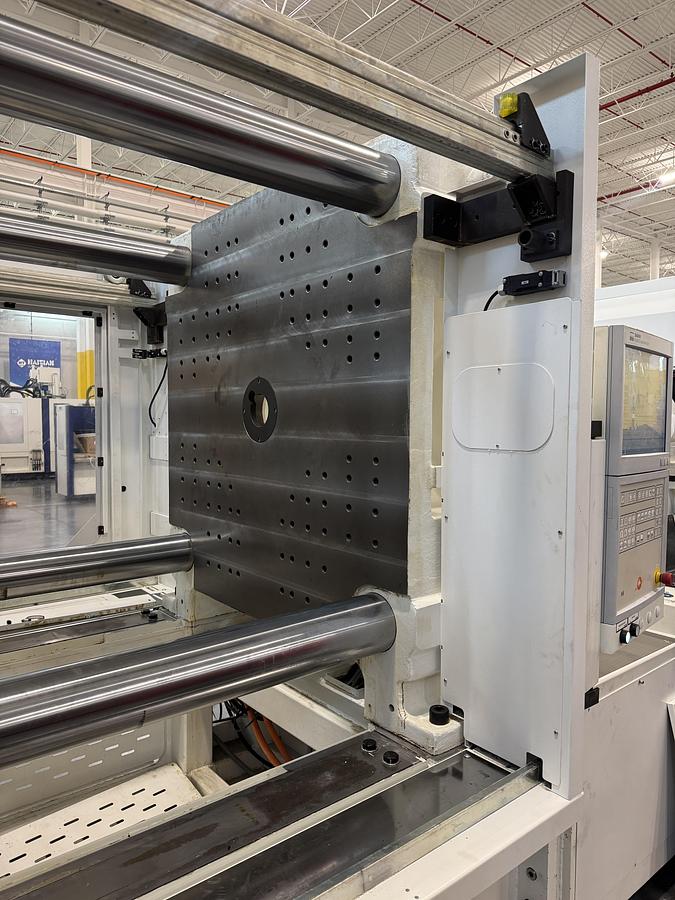

| Platen Size (in.) | 50.00 x 50.00 |
| Tiebar Spacing (HxV) in. | 34.25 x 34.25 |
| Max Mold Height (in.) | 31.50 |
| Min Mold Height (in.) | 13.78 |
| Opening Stroke (in.) | 31.5 |
| Open Daylight (in.) | 62.99 |
| Ejector Stroke (in.) | 7.09 |

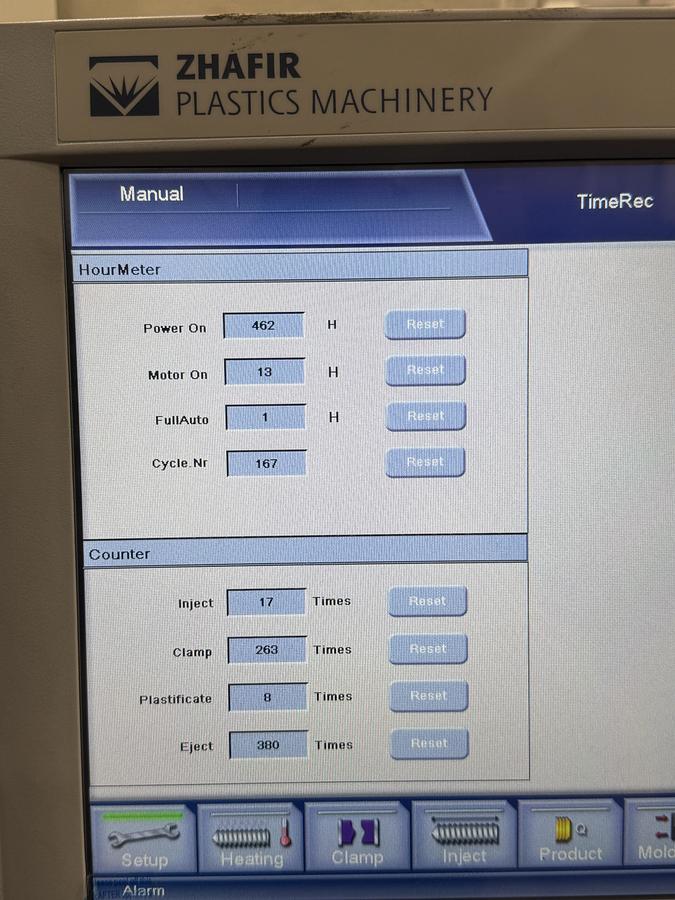

| Control | Sigmatek |
| Voltage | 460 |
Included Options
Integrated Hydraulics, Air Valves, EU67 Robot Interface, Control Upgrade for OPC UA Interface
