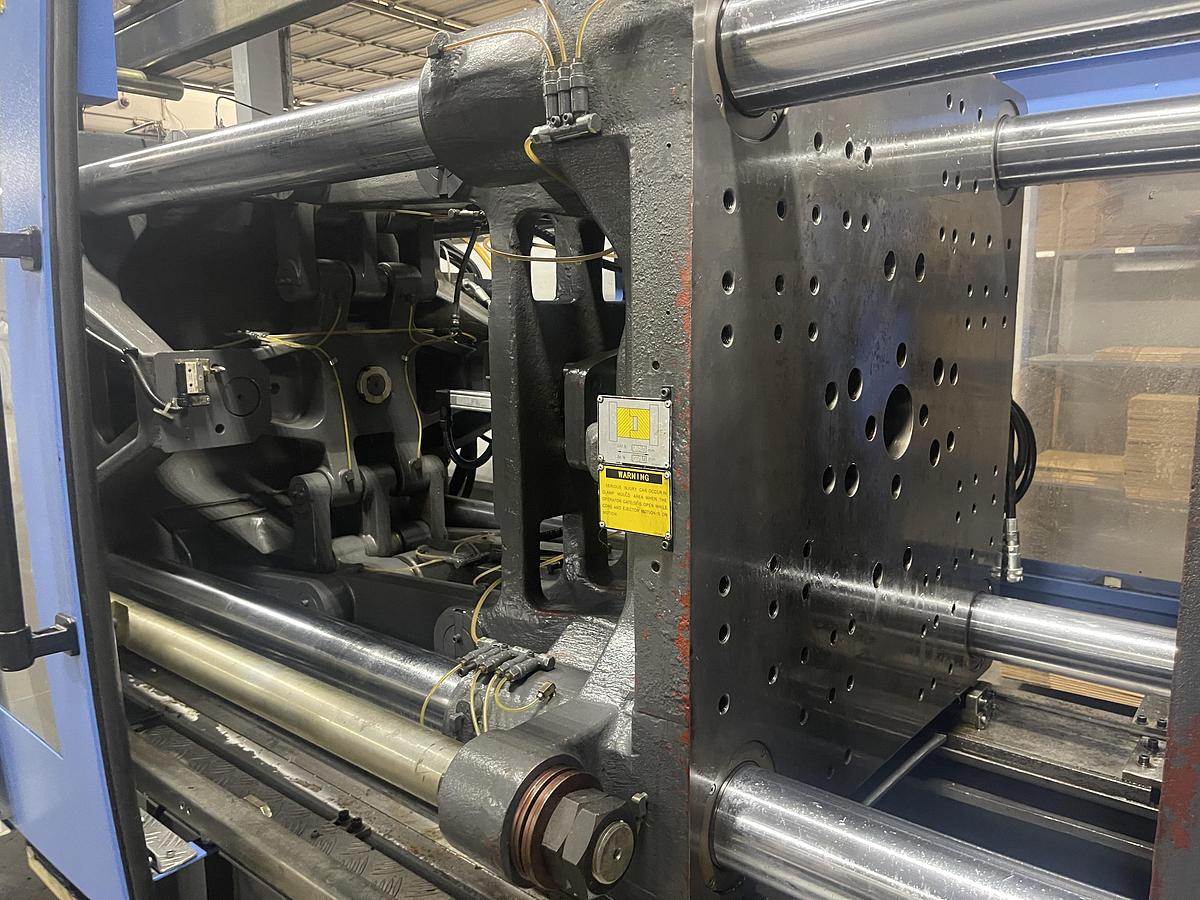

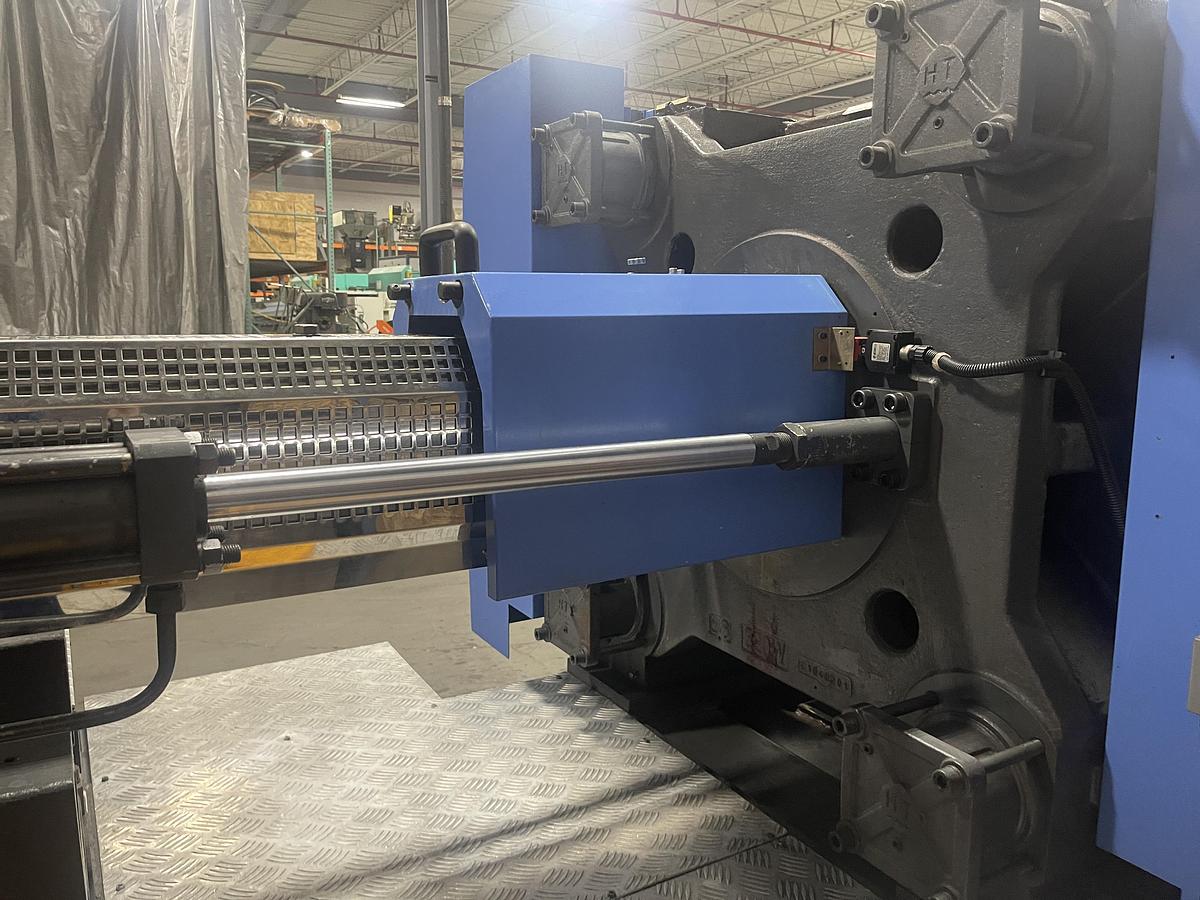

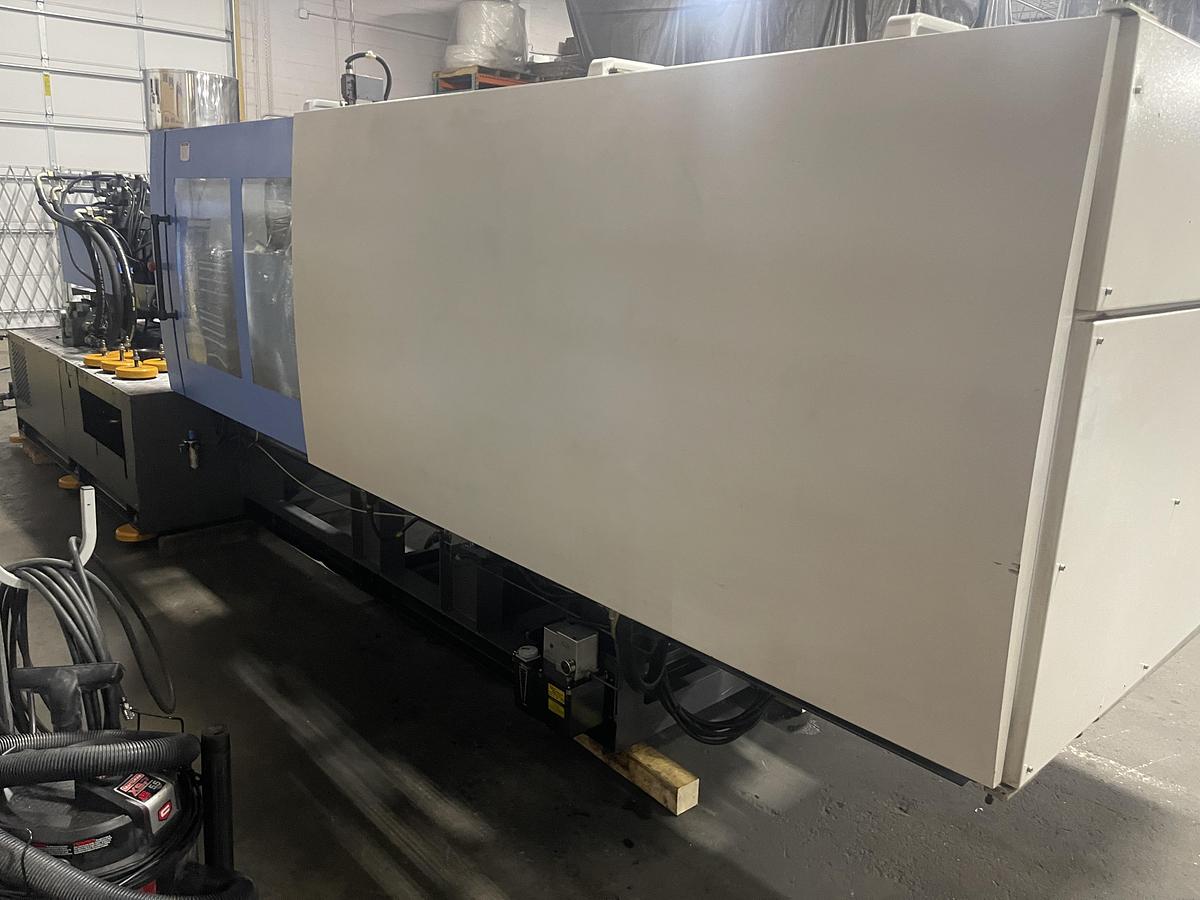

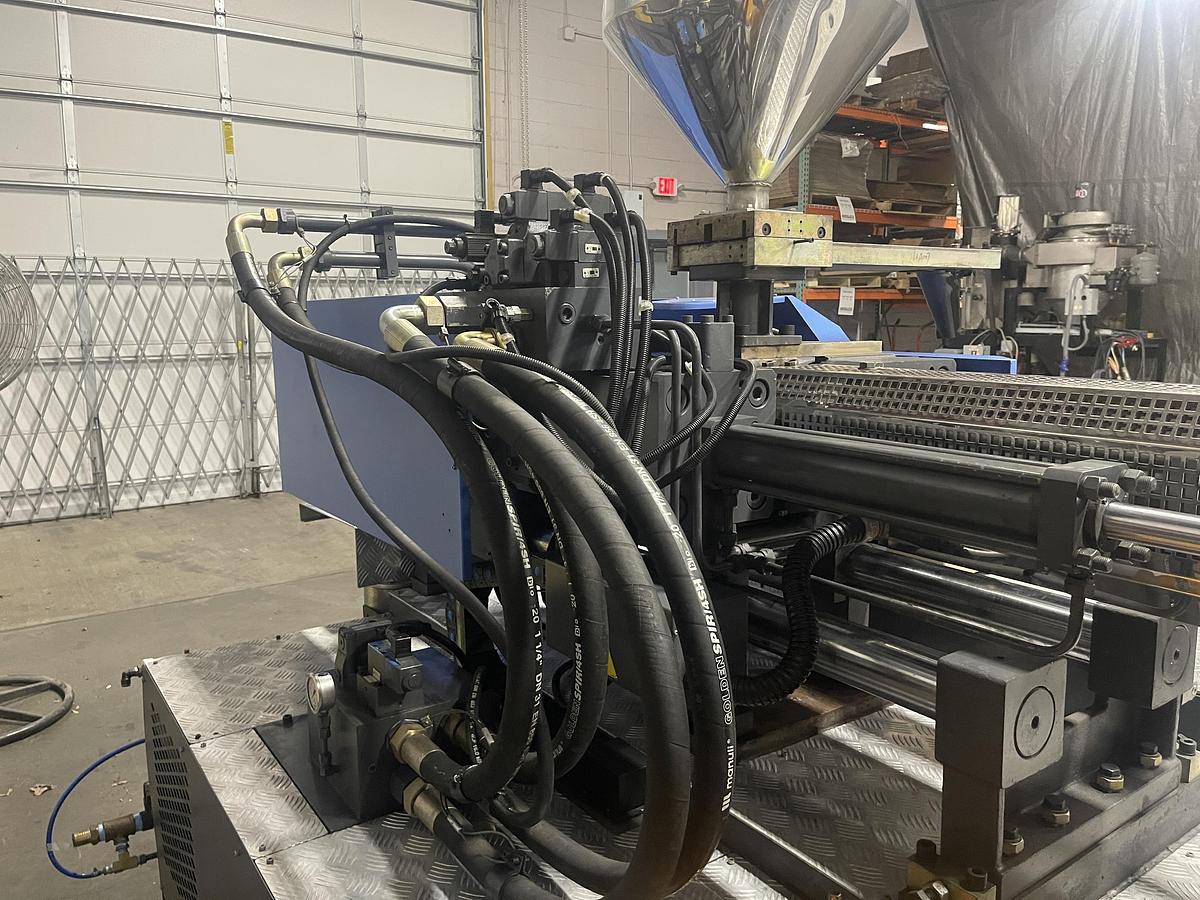

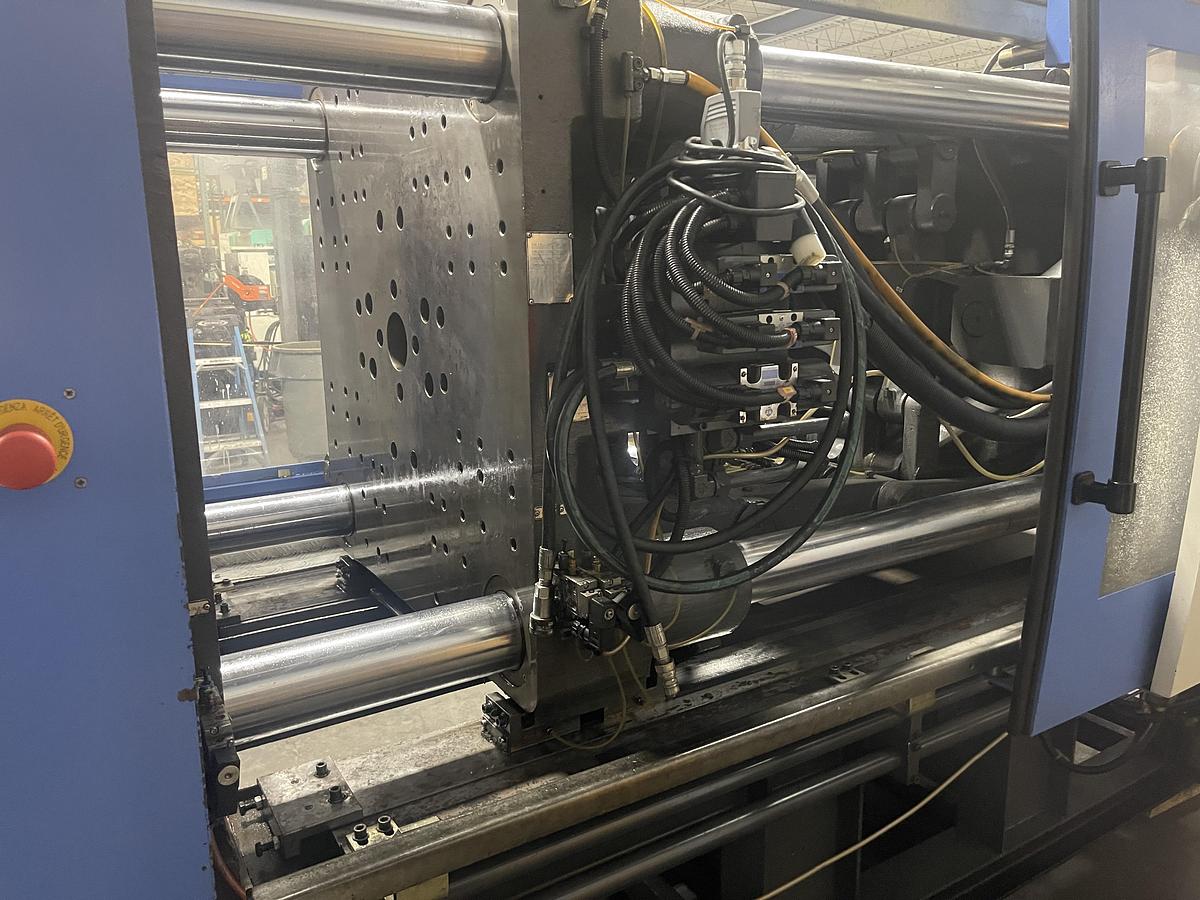

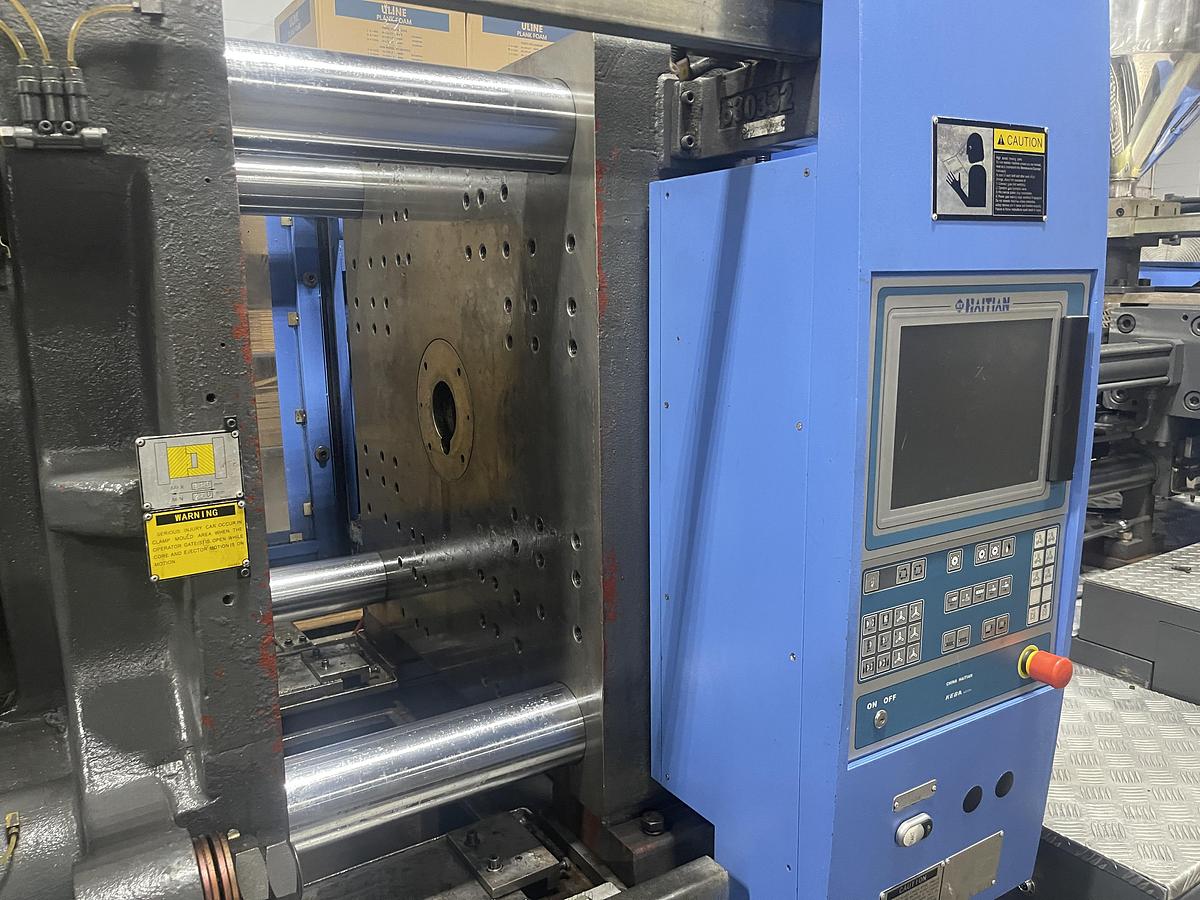

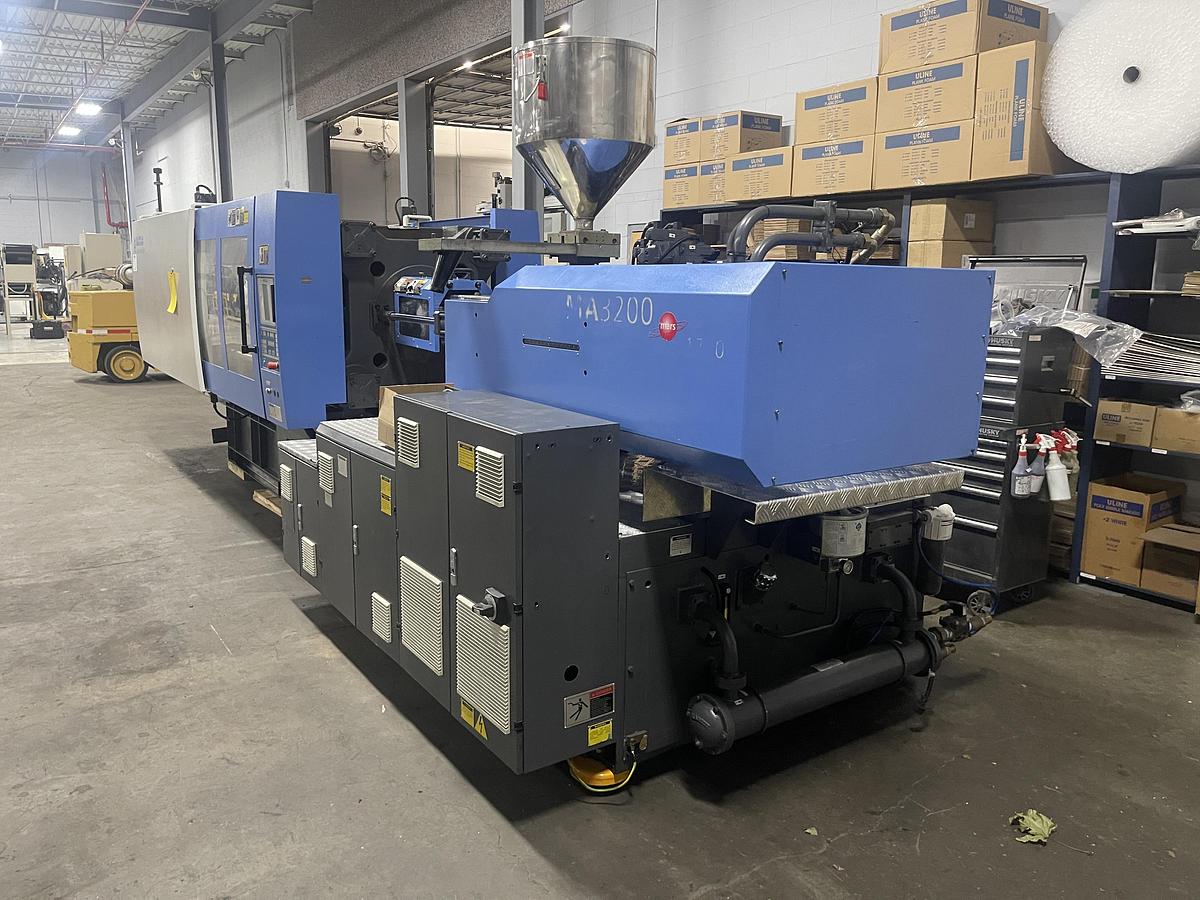

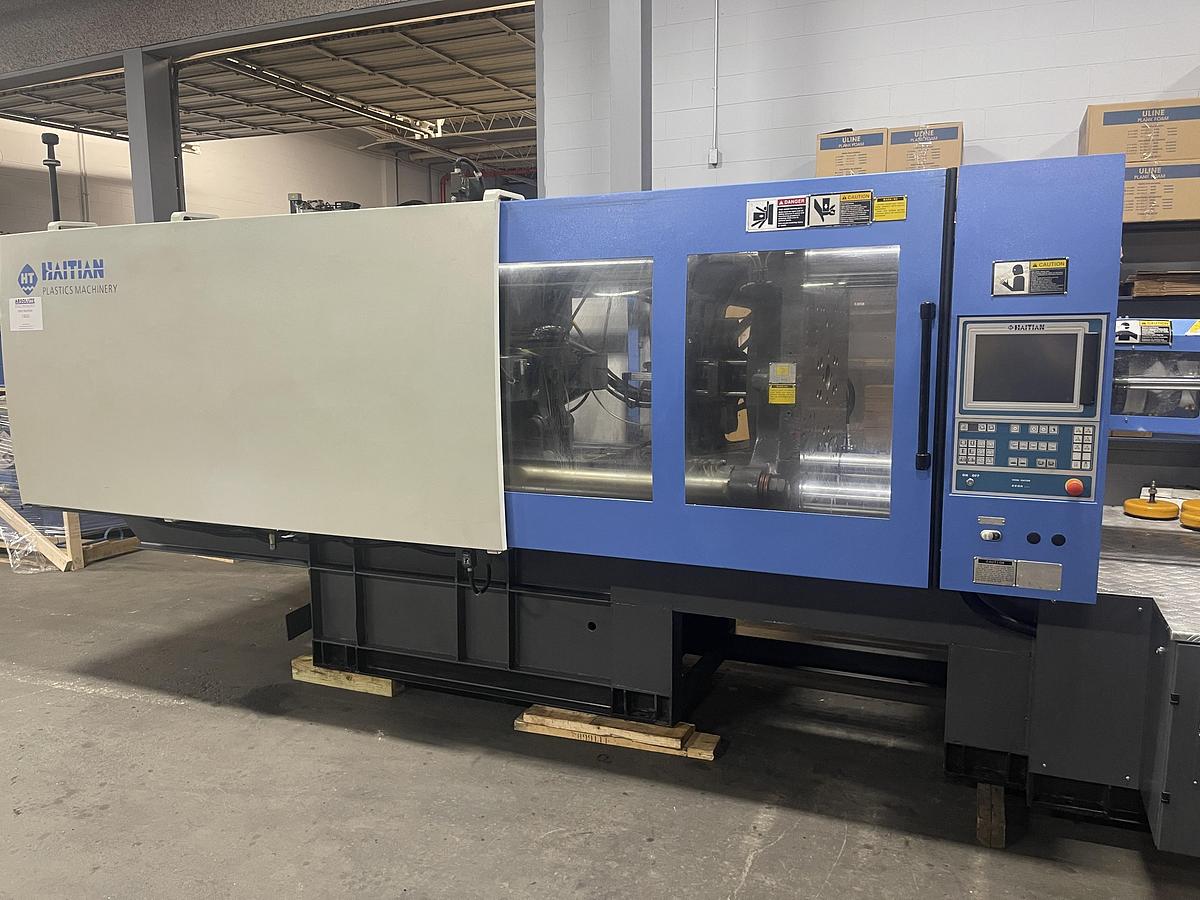

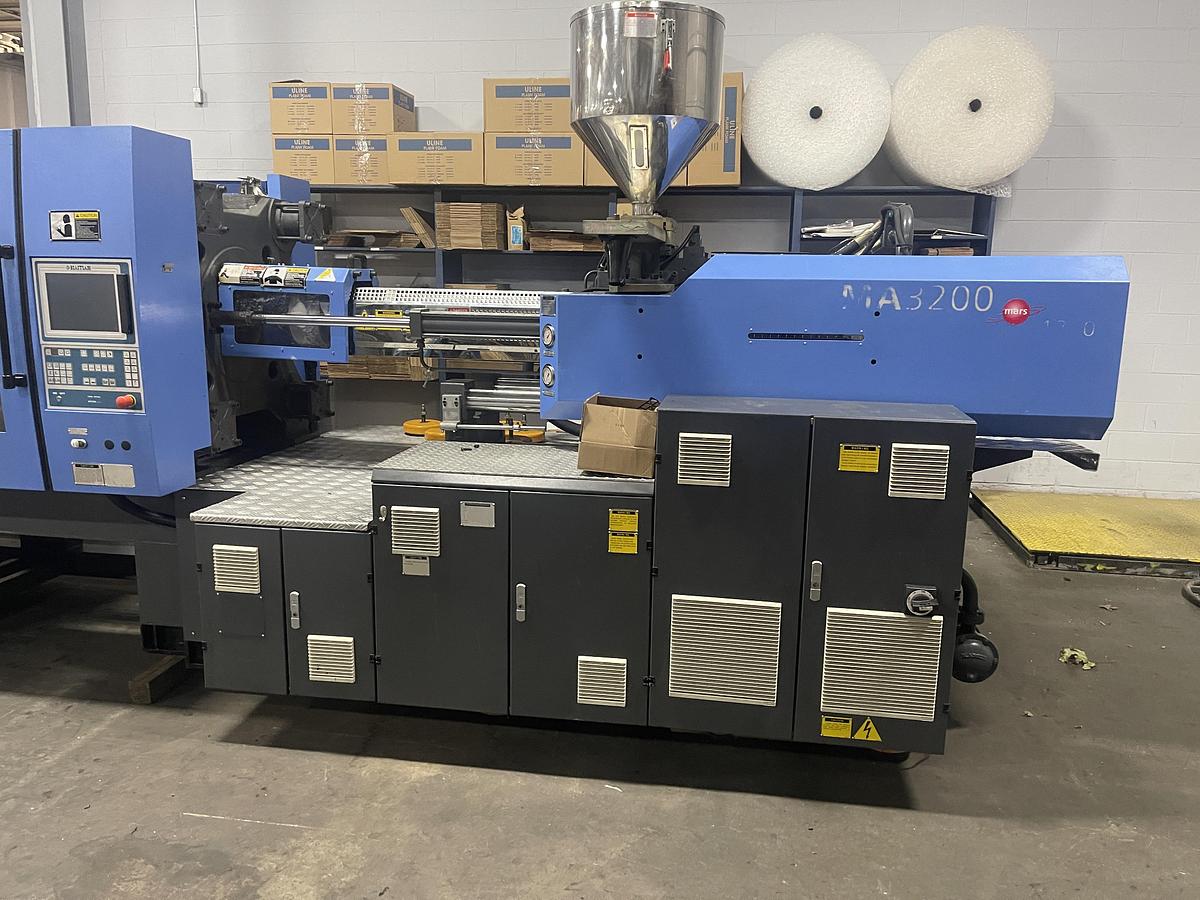

360 Ton, 29.81 Oz., Haitian MA 3200/1700 Injection Molding Machine (2011)
Sold
360 Ton, 29.81 Oz., Haitian MA 3200/1700 Injection Molding Machine (2011)
Description
Includes: Core Pull, Air Blast, Robot Interface
Specifications
| Manufacturer | Haitian |
| Model | MA 3200/1700 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 13553 |
| US Tonnage | 360 |
| Shot Size (oz. of PS) | 29.81 |
| Screw Diameter (mm) | 65 |
| Platen Size (in.) | 38.98x38.98 |
| Tiebar Spacing (HxV) in. | 26.77x26.77 |
| Max Mold Height (in.) | 26.77 |
| Min Mold Height (in.) | 9.84 |
| Opening Stroke (in.) | 25.20 |
| Open Daylight (in.) | 51.97 |
| Ejector Stroke (in.) | 6.30 |

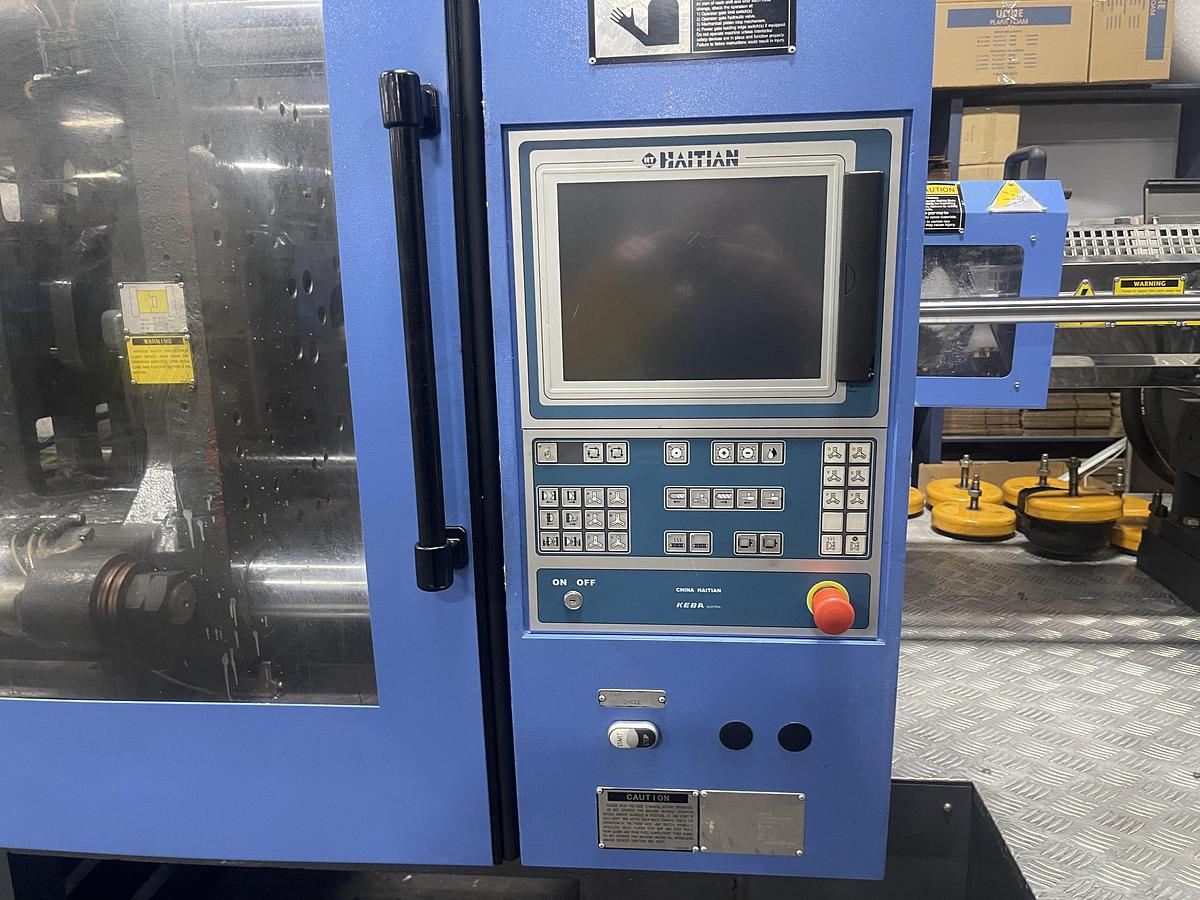

| Control | KEBA 4030 |
| Voltage | 460/3/60 |
