506 Ton, 59.68 Oz., Haitian ZEIII 4500/3350 (B) Electric Injection Molding Machine (2021)
506 Ton, 59.68 Oz., Haitian ZEIII 4500/3350 (B) Electric Injection Molding Machine (2021)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Haitian |
| Model | ZEIII 4500/3350 B |
| Year | 2021 |
| Condition | Used |
| Stock Number | 13513 |
| Model | ZEIII 4500/3350 |
| US Tonnage | 506 |
| Shot Size (oz. of PS) | 59.68 |
| Screw Diameter | 80 mm |
| Platen Size (HxV) in. | 51.18 x 51.18 |
| Tiebar Spacing (HxV) in. | 35.83 x 35.83 |
| Max Mold Height (in.) | 31.89 |
| Min Mold Height (in.) | 13.78 |
| Opening Stroke (in.) | 31.50 |
| Open Daylight (in.) | 63.39 |
| Ejector Stroke (in.) | 7.09 |
| Control | SigmaTek |
| Voltage | 460/3/60 |

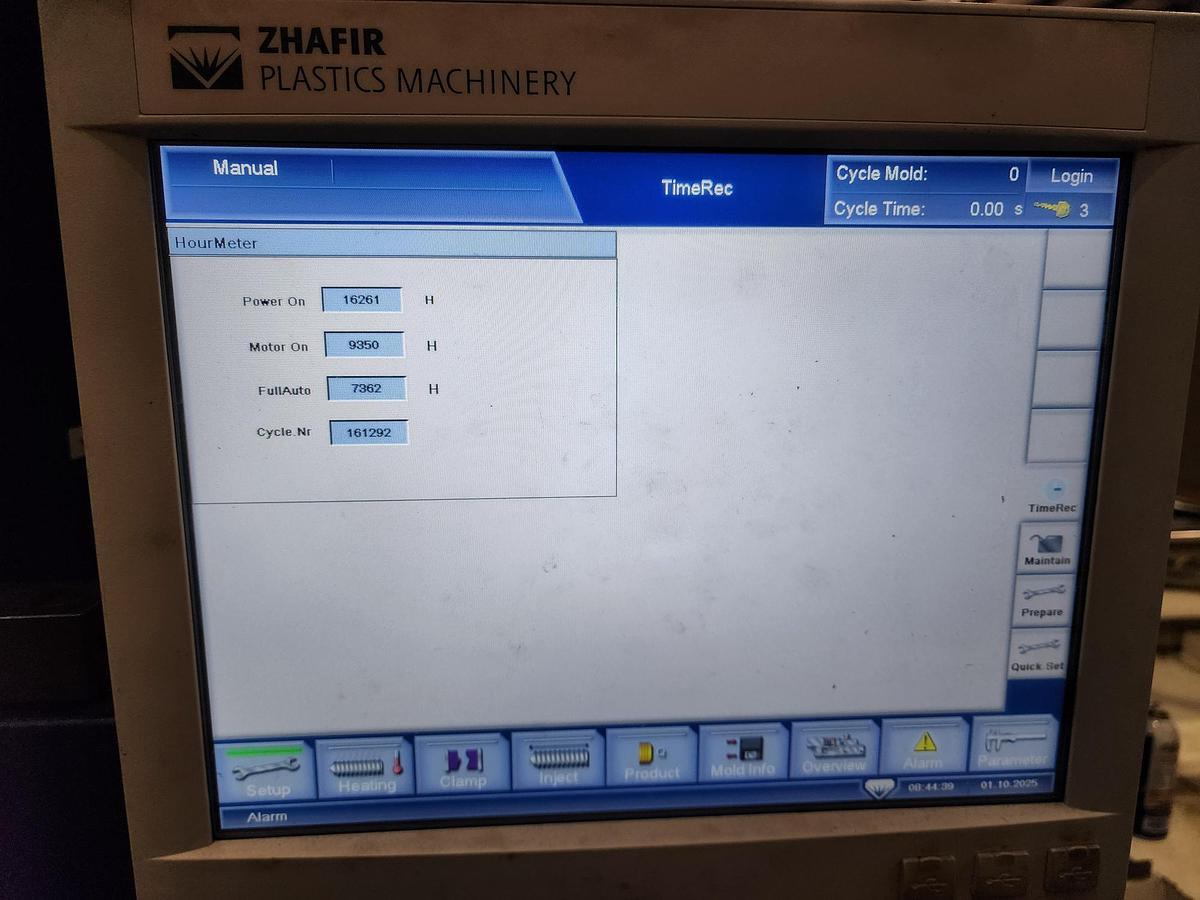

| Hour Meter: | Full Auto - 7362 H |
Included Options
Core Pull, Air Blast, Robot Interface
