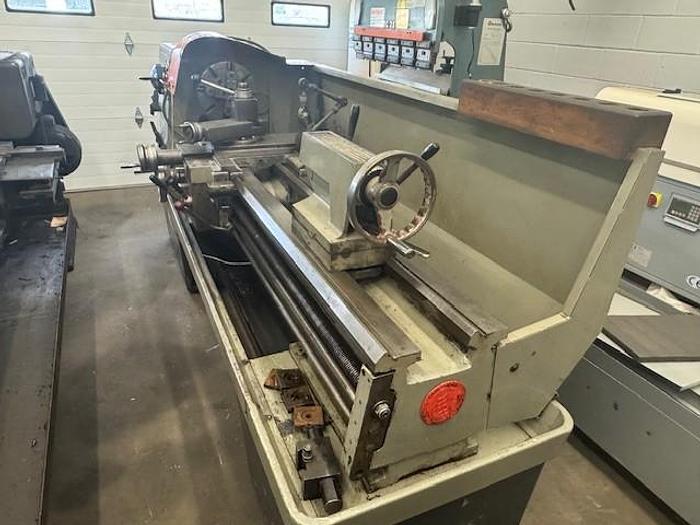

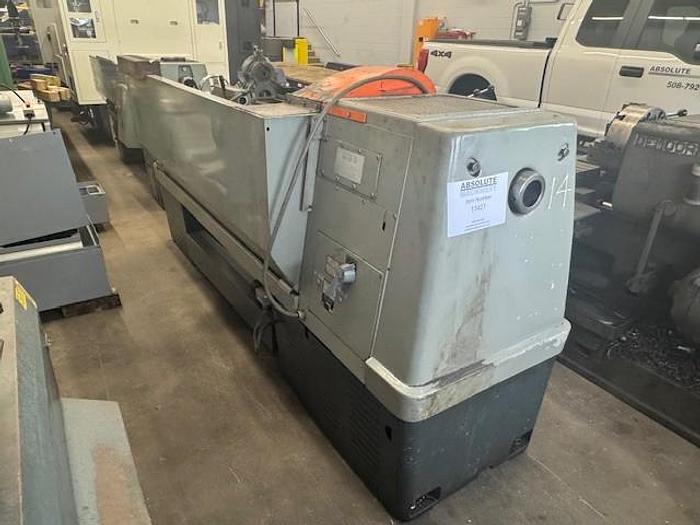

17" x 60" Clausing Colchester Engine Lathe, Mark II

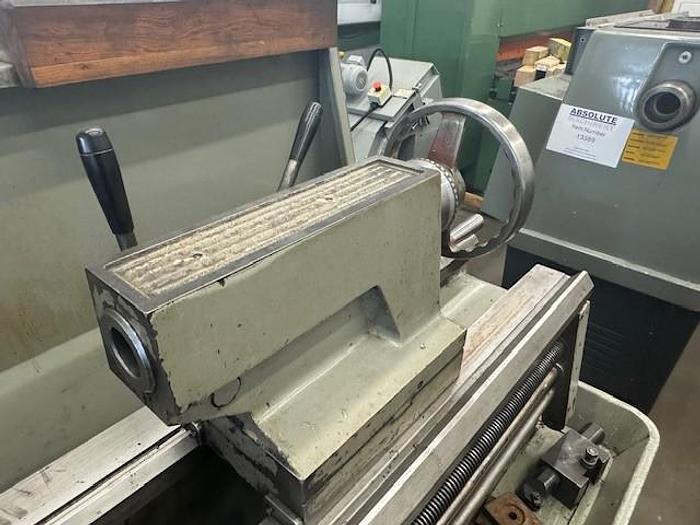

The 17" x 60" Clausing Colchester Engine Lathe, Model Mark II, is a robust and versatile machine ideal for metalworking tasks. This used manual lathe offers a swing over bed of 17.25" and swing over cross slide of 10.5", along with a substantial 60" distance between centers, allowing for precision work on sizeable pieces. It is equipped with a 10 HP spindle motor and features spindle speeds ranging from 20 to 1,600 RPM, providing the flexibility to handle various materials and intricacies of the job. This lathe includes practical features such as a spindle bore measuring 3" and tailstock with a #5 Morse taper and 7" spindle travel, ensuring diverse compatibilities with workpieces. It supports both longitudinal and cross feeds with 45 settings each, spanning ranges of 0.002 - 0.032 IPR and 0.001 - 0.016 IPR, respectively, providing accurate control over machining operations. Additionally, the machine accommodates threading requirements in both imperial and metric measurements, producing threads from 2 - 72 TPI and 0.4 - 14 mm. The Clausing Colchester Mark II lathe measures approximately 118" x 42" x 52" and weighs around 5,600 lbs. The machine operates on a 230V/3PH/60Hz electrical supply, suitable for standard industrial environments. This lathe promises reliability and efficiency for meticulous manual operations in a range of heavy-duty applications.
