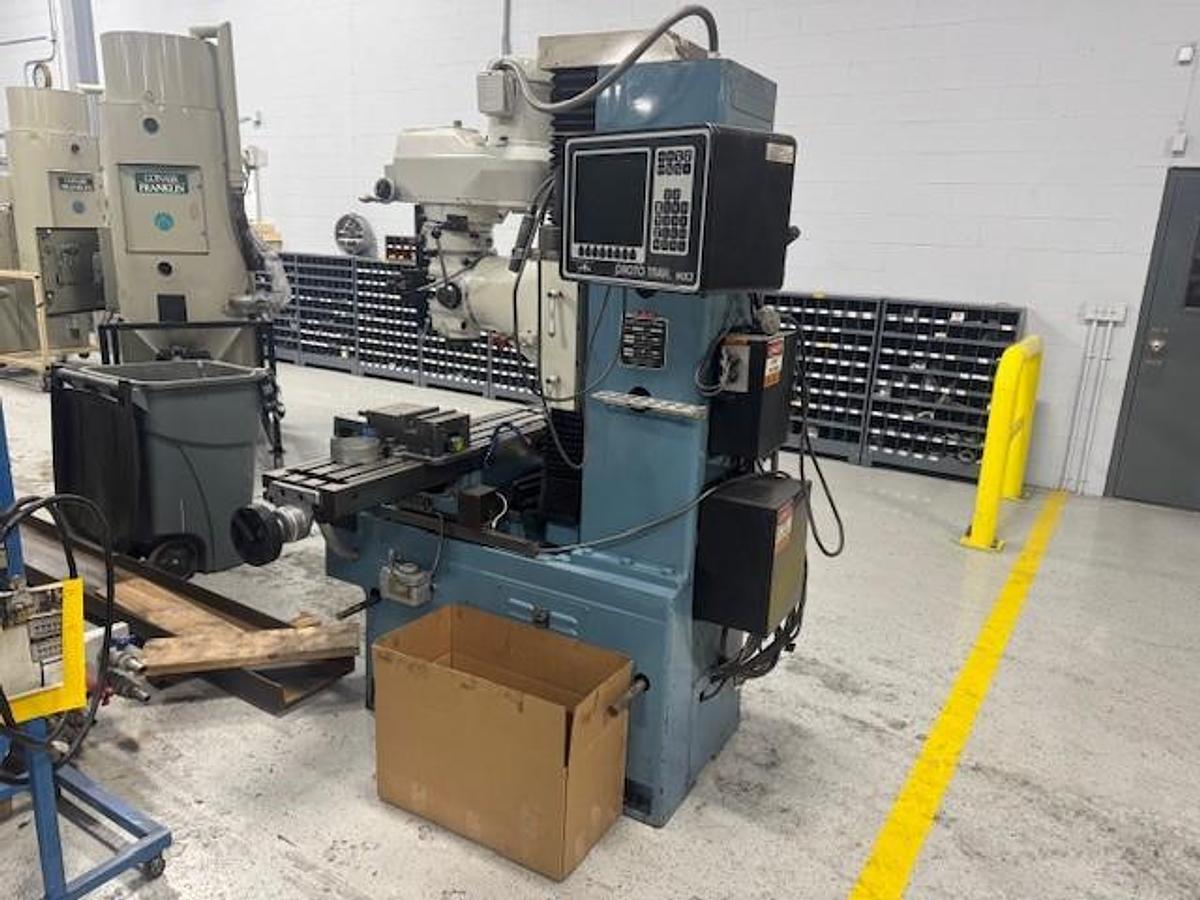

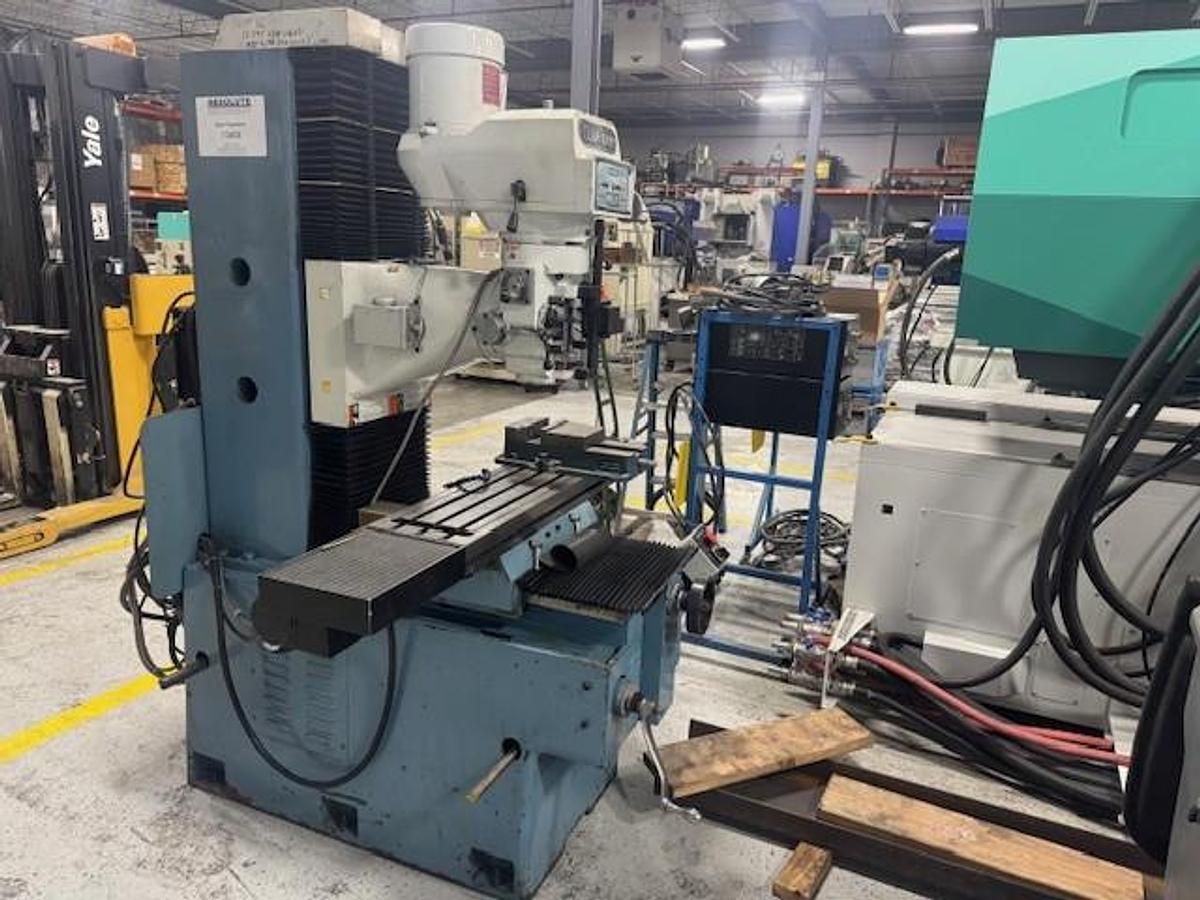

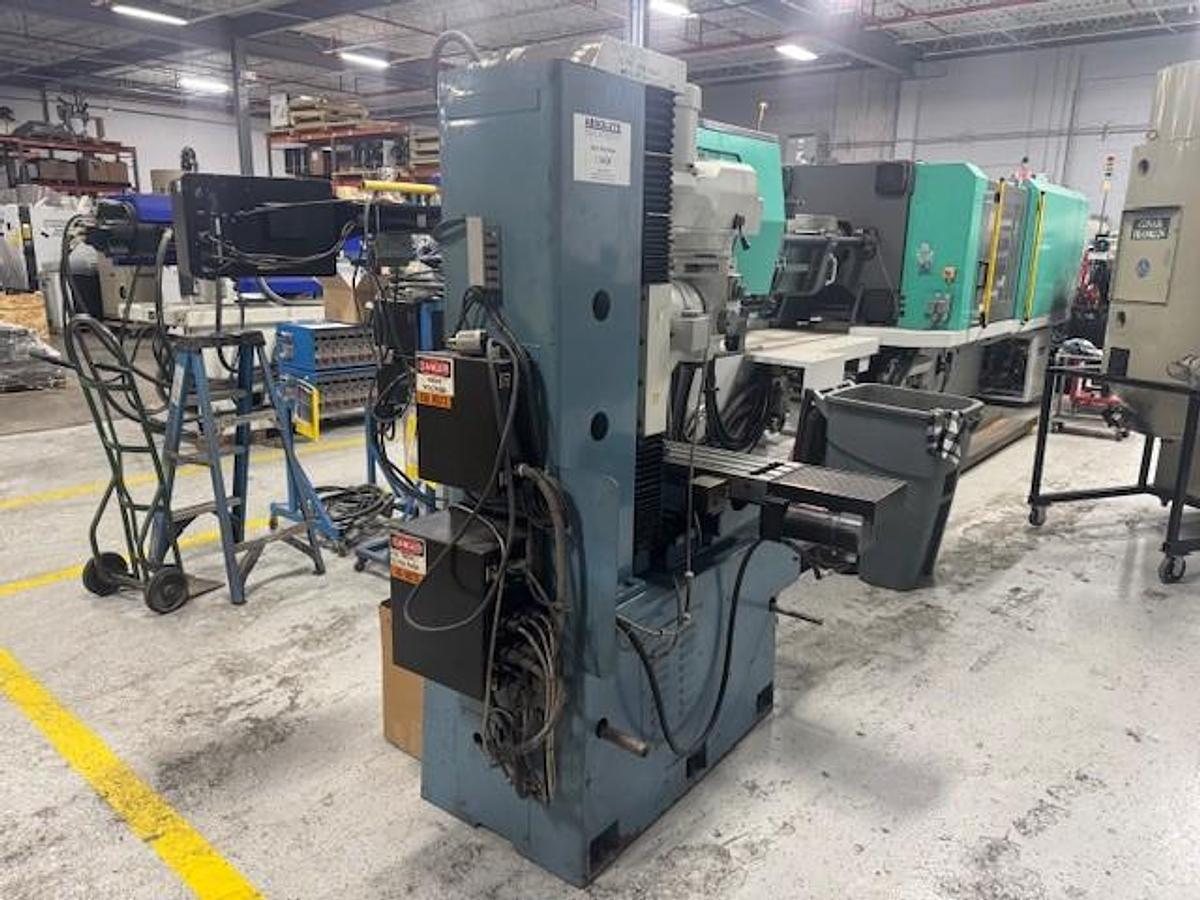

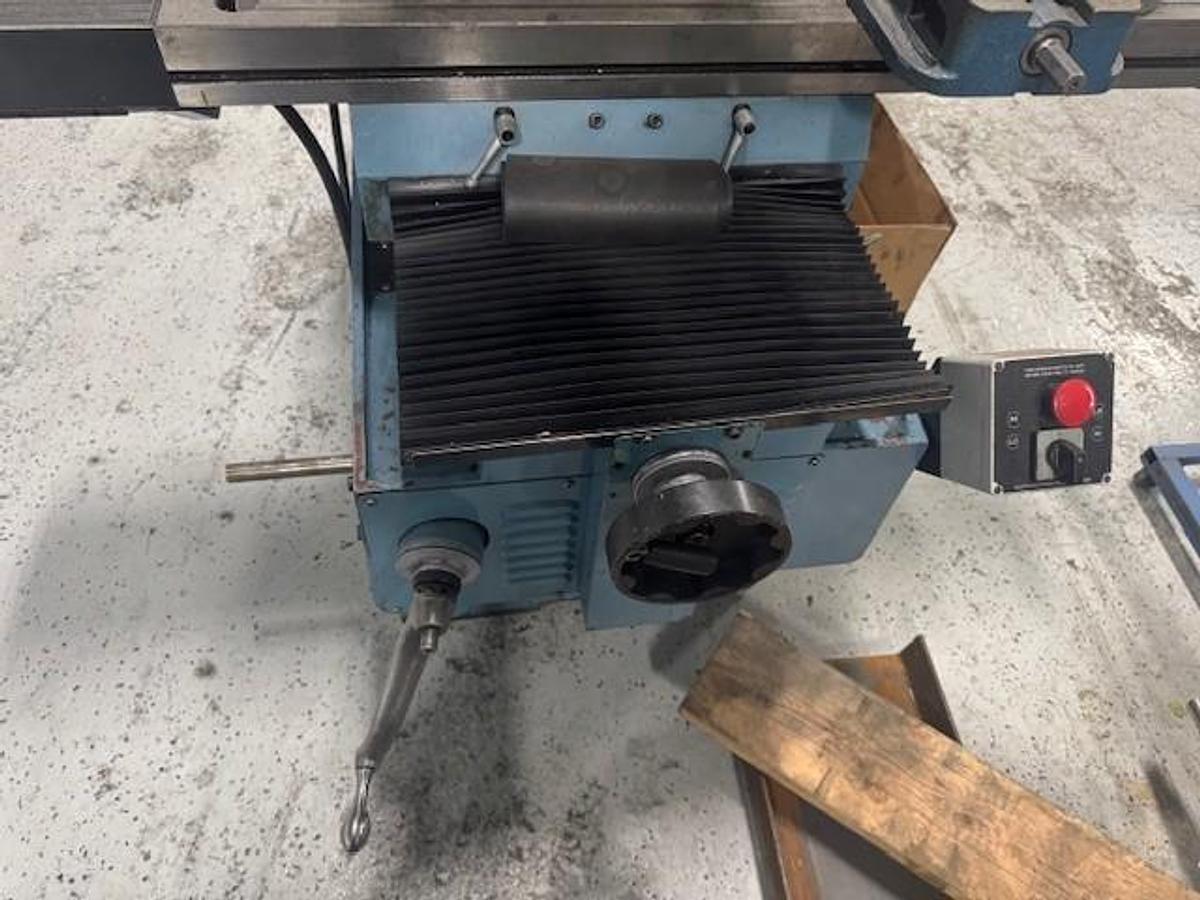

Trak TRM CNC Vertical Mill
Trak TRM CNC Vertical Mill
Available quantity:1
or
Call +1 508-792-4305
Description

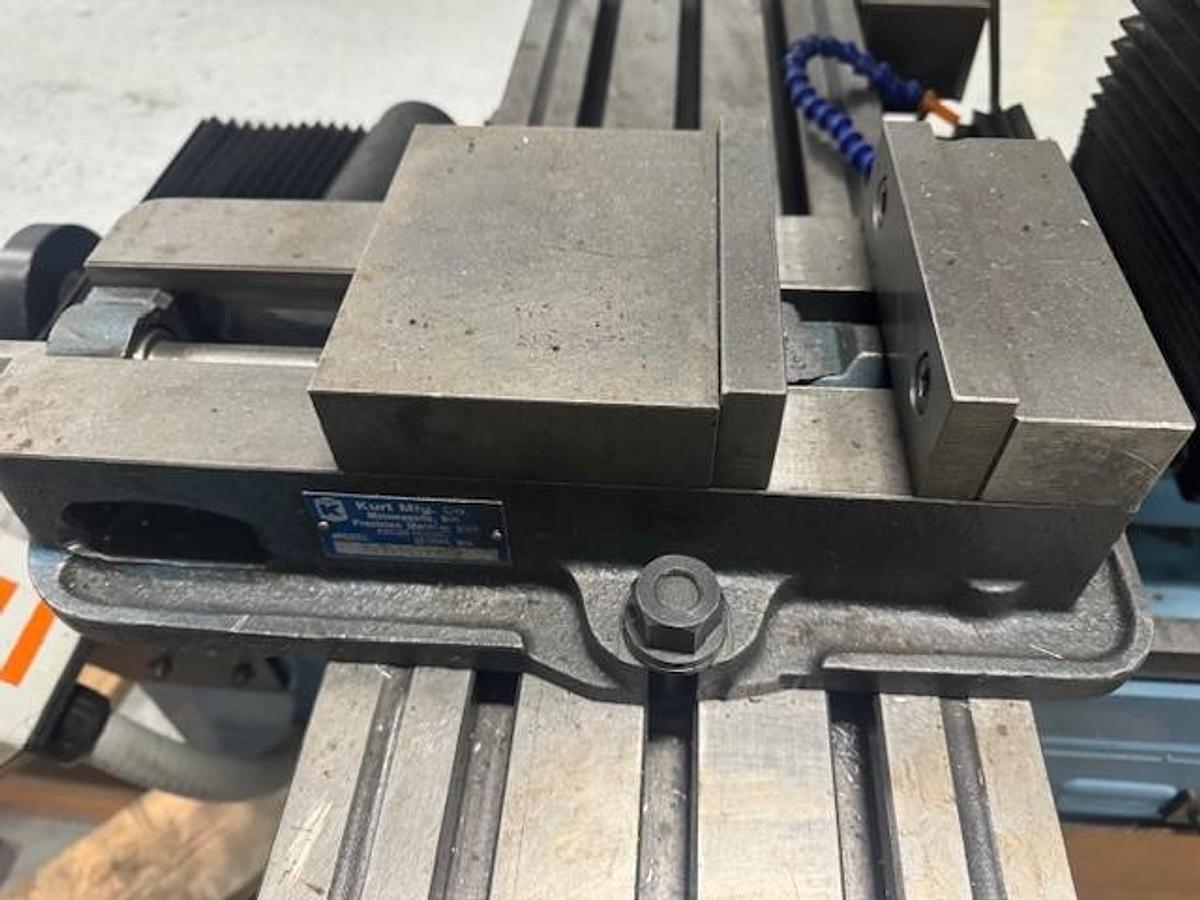

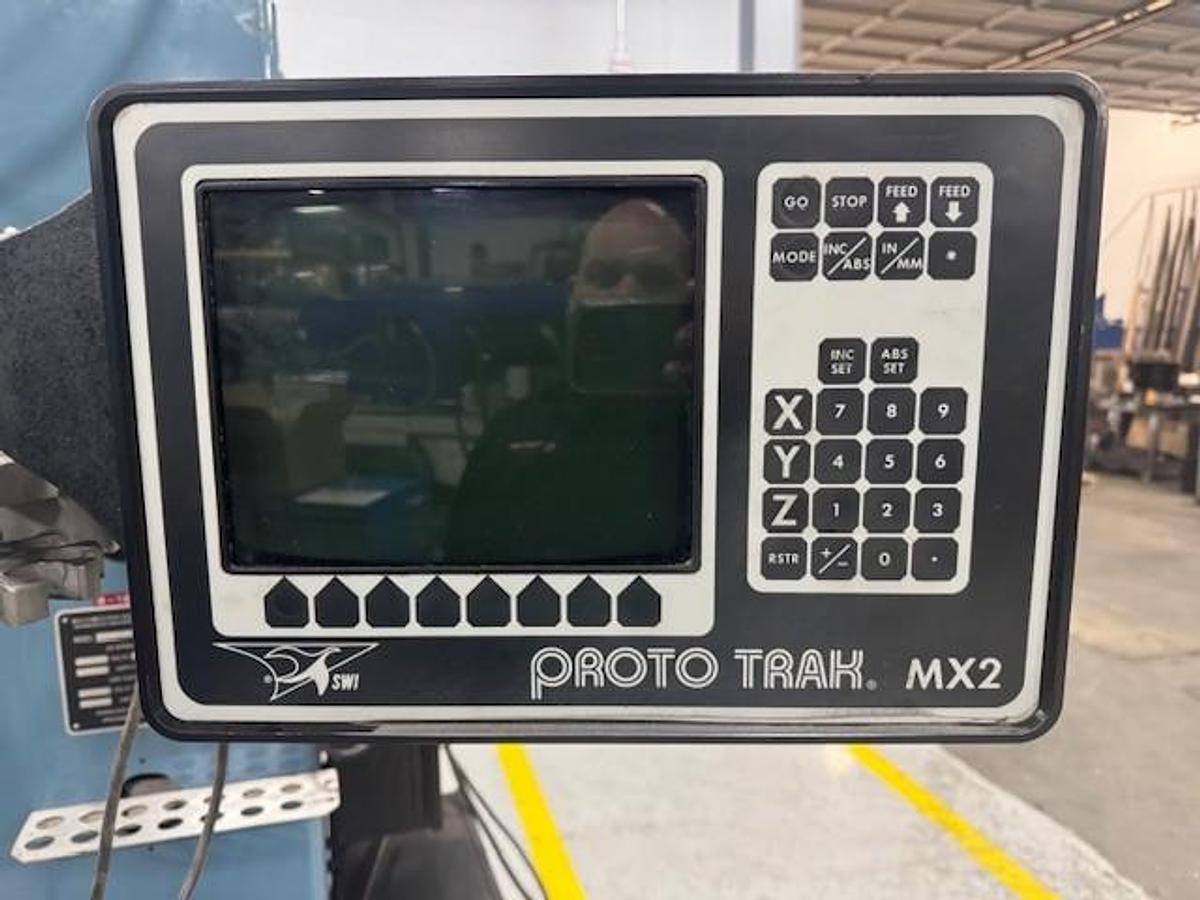

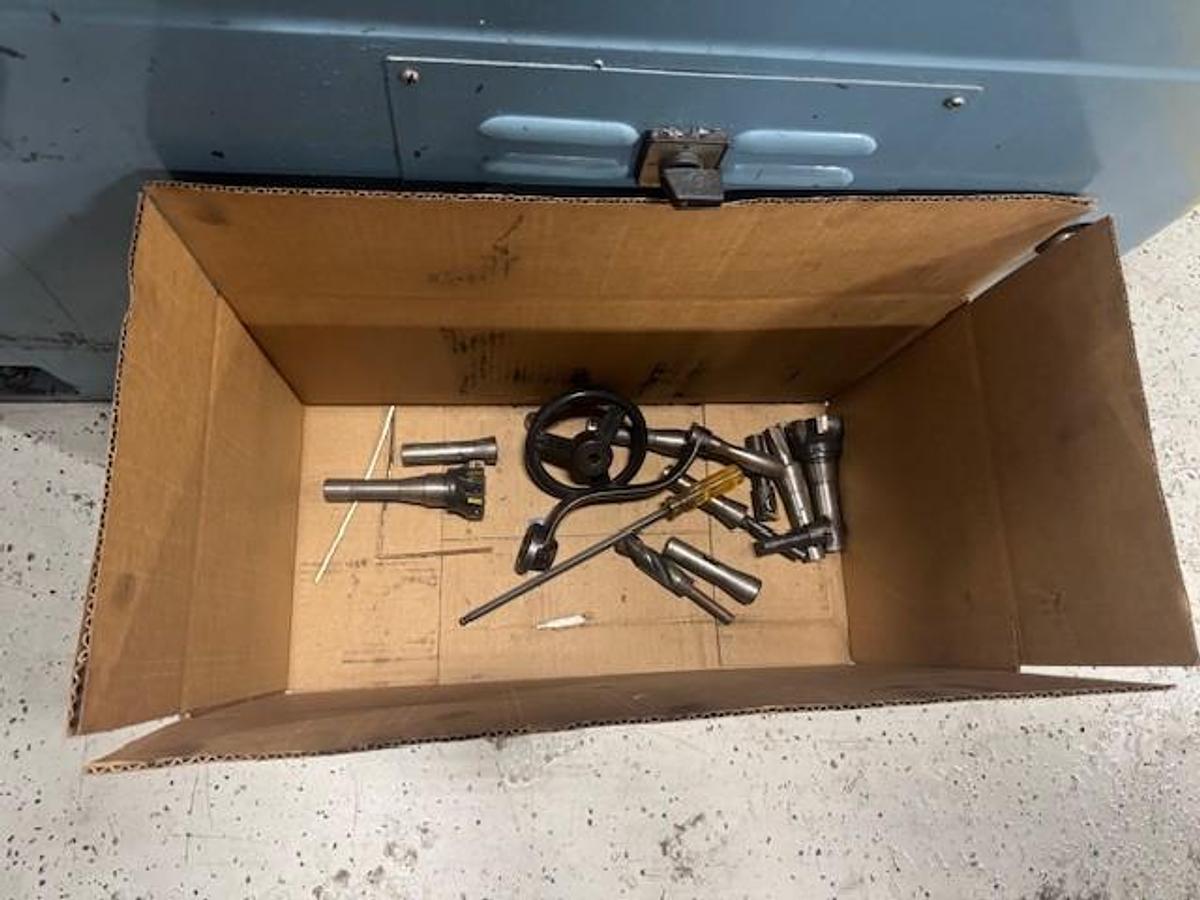

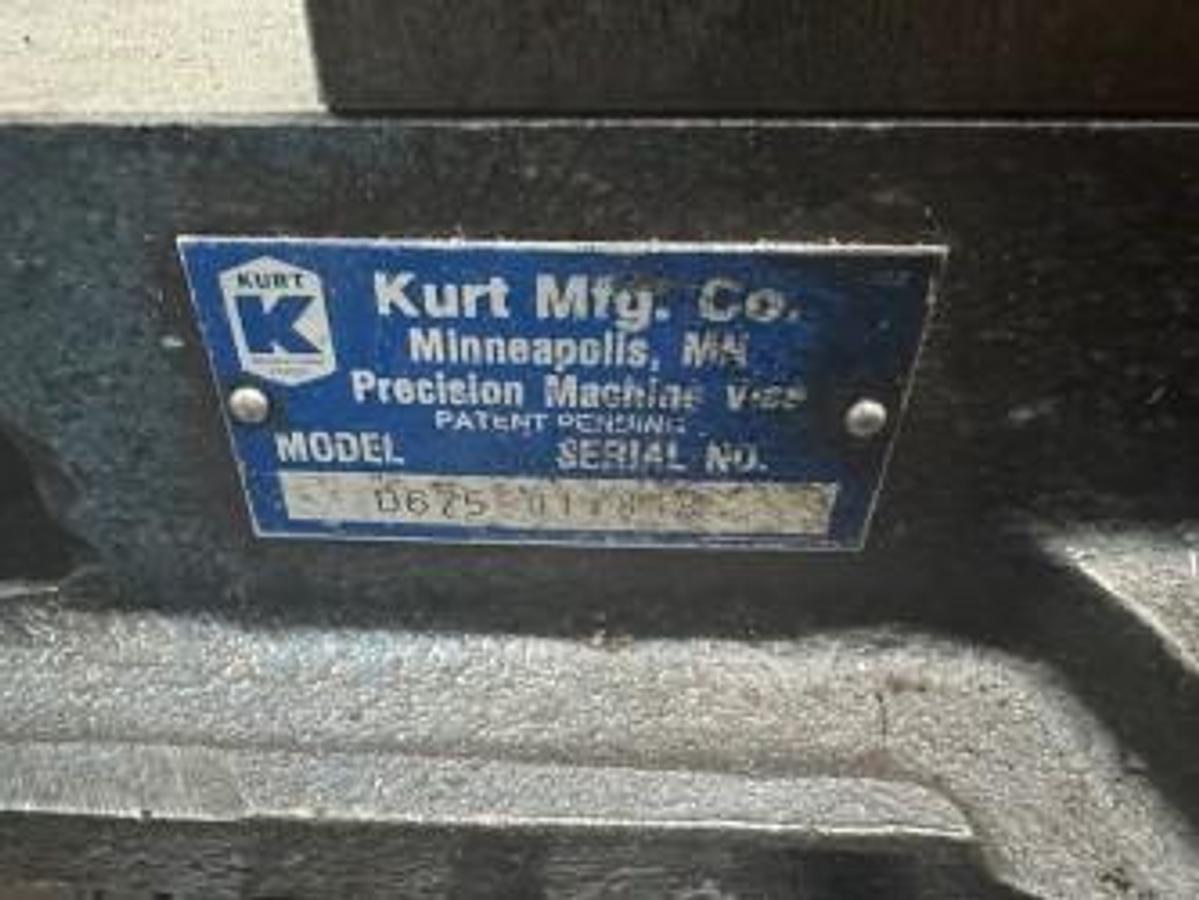

Equipped With: Proto Trak MX2 Control, 6" Kurt Vise, Misc. BT-40 Taper Tooling
Specifications
| Manufacturer | Southwestern Industries |
| Model | Trak TRM |
| Year | 1992 |
| Condition | Used |
| Stock Number | 13408 |
| Model | Trak TRM |
| Table Size | 10"x50" |
| Max Weight On Table (LBS.) | 1,320 |
| X-Y-Z Axis Travel (in.) | 31"x17"x25" |
| Spindle Taper | BT-40 |

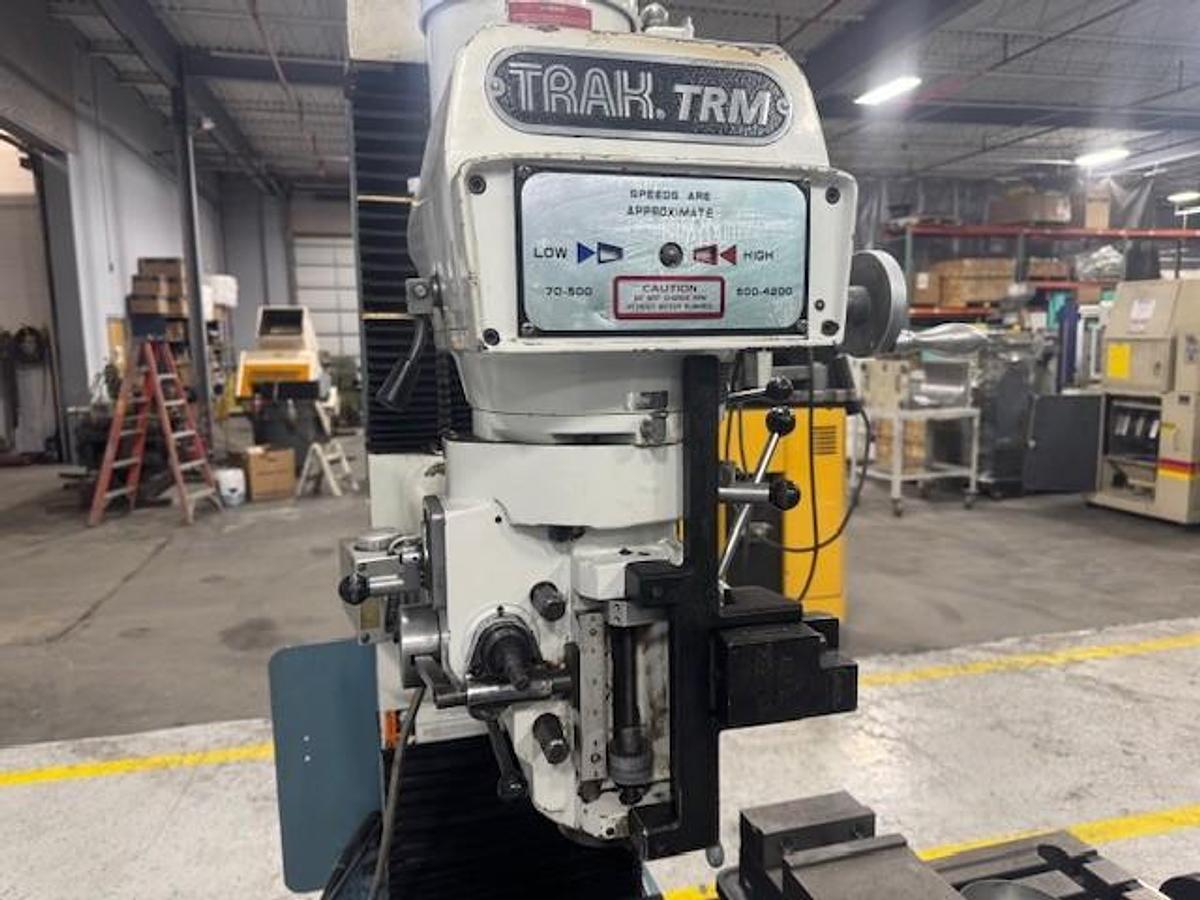

| Spindle Speeds ( Variable ) RPM | 70-4,200 |
| Spindle Center to Column Face (in.) | 17.3" |
| Maximum Quill Travel (in.) | 5" |
| Aprox Demensions (in.) | 70"x72"x89" |
| Appox Weight (lbs.) | 4,500 |

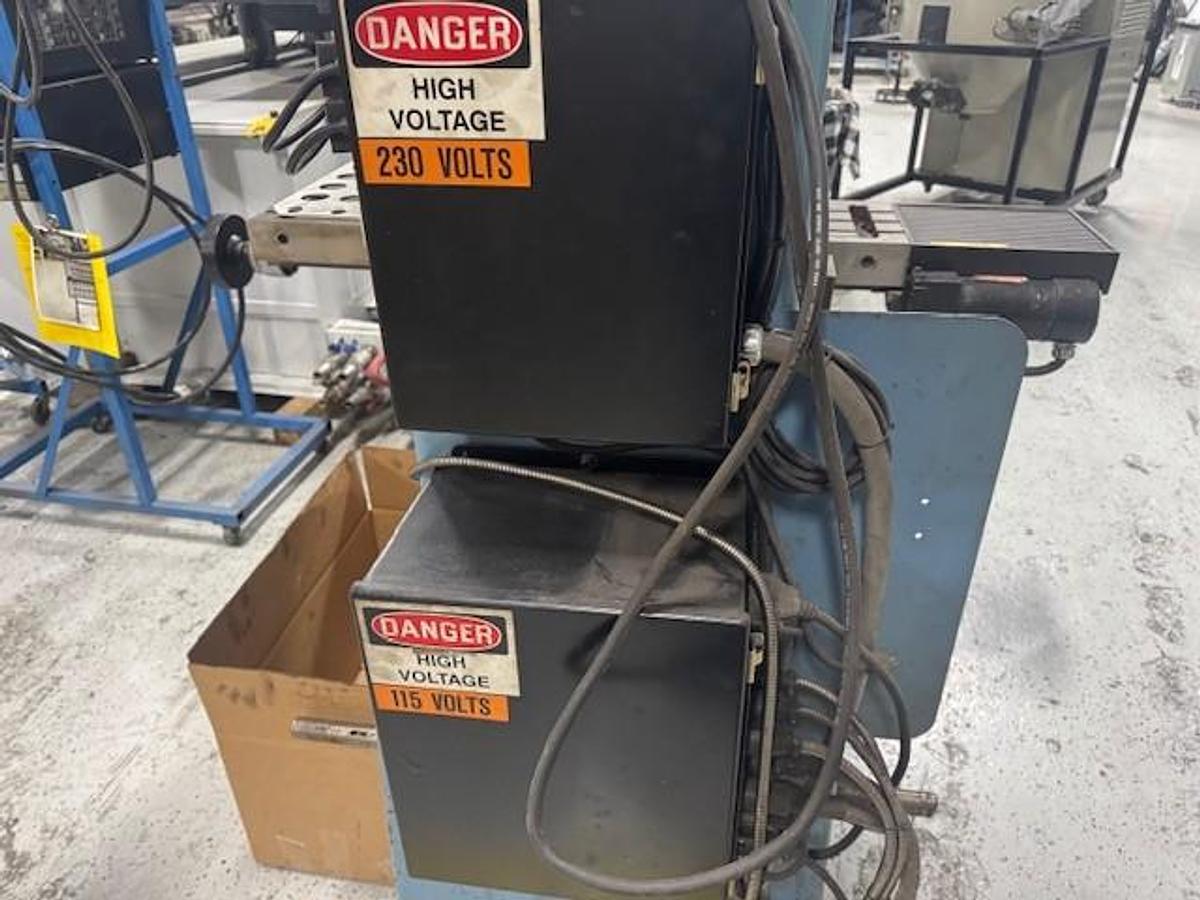

| Voltage | 220/3/60 |
