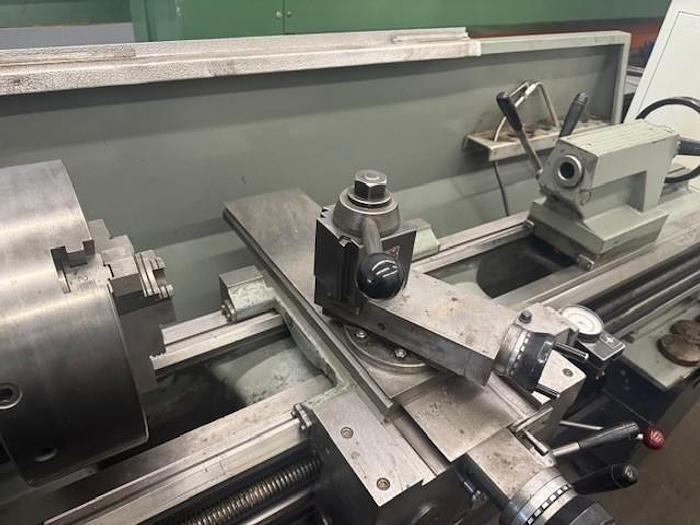

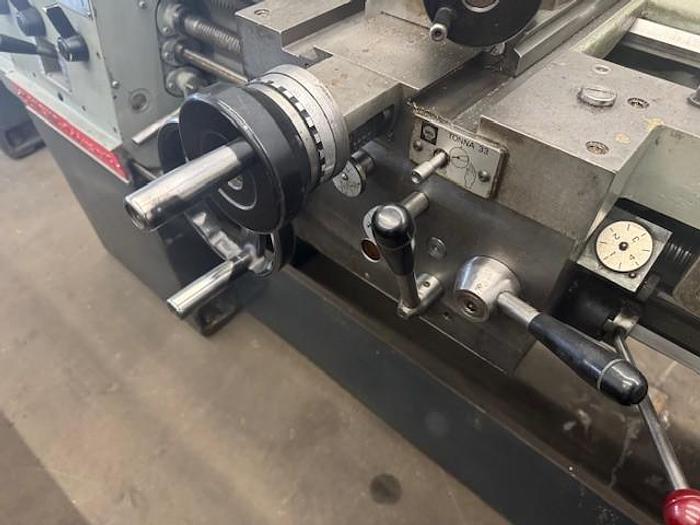

15" x 50" Clausing Colchester Engine Lathe
15" x 50" Clausing Colchester Engine Lathe
Available quantity:1
or
Call +1 508-792-4305
Description
Specifications
| Manufacturer | Colchester |
| Model | 1550 |
| Condition | Used |
| Stock Number | 13389 |
| Model | 1550 |
| Swing Over Bed (in.) | 15.25 |
| Swing Over Cross Slide (in.) | 9.5 |
| Distance Between Centers (in.) | 50 |
| Spindle Hole (in.) | 2.125 |
| Spindle Nose | D1-6 Camlock |

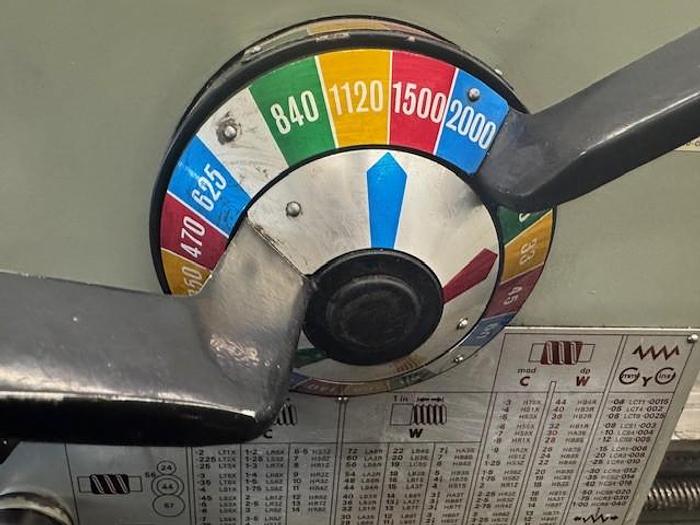

| Spindle Speeds | (16)-25-2,000 RPM |
| Main Motor | 7.5 HP |
| Bed Width (in.) | 11 |
| Type Of Ways | Vee and Flat |
| Cross Slide Travel (in.) | 9.25 |
| Compound Slide Travel (in.) | 4.75 |

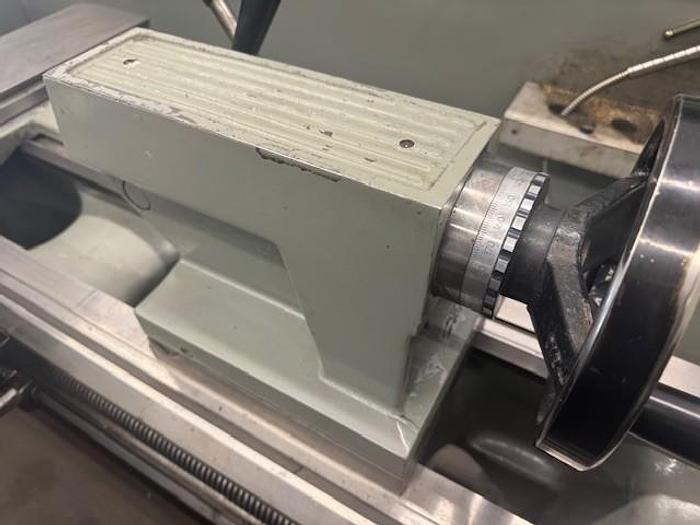

| Tailstock Quill Diameter (in.) | 2.25 |
| Tailstock Quill Travel (in.) | 6.25 |
| Tailstock Taper | 4MT |
| Threads (in.) | (45)-2-72 TPI |

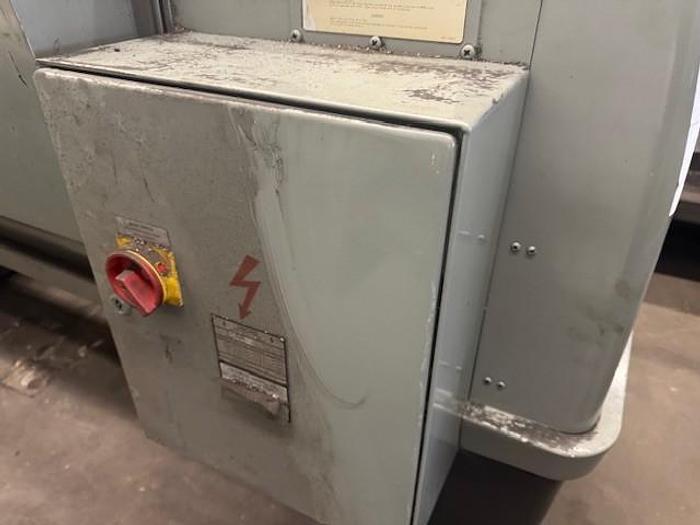

| Voltage | 230/3 Phase |
Included Options

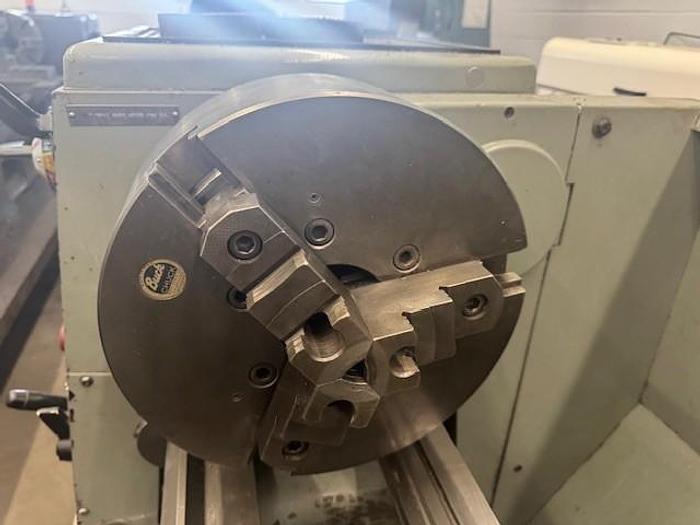

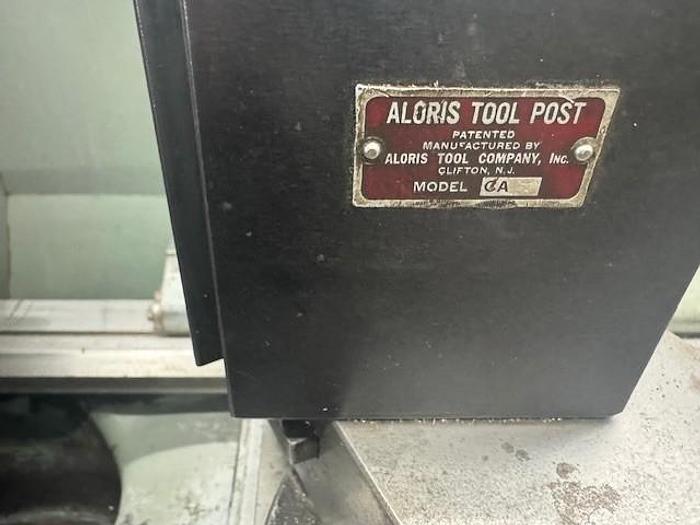

12" 3-Jaw Chuck, Inch Metric Threading, Aloris Model CA Quick Change Toolpost, Misc. Aloris CA Holders, Coolant System, Thread Dial, Trav-a-Dial
