1012 Ton, 143.4 Oz., Haitian JUII 9000 Injection Molding Machine (2016)
No longer available
1012 Ton, 143.4 Oz., Haitian JUII 9000 Injection Molding Machine (2016)
Available quantity:1
Description
Options; CP, Air Blow, Pneumatic Valve Gate, Configurable Inputs/Outputs, EU67 Interface

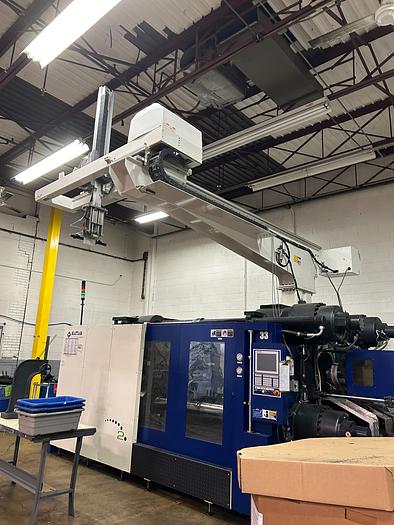

NOTE: Attached Robot not included, can be purchased separately!
Specifications
| Manufacturer | Haitian |
| Model | JU9000 II |
| Year | 2016 |
| Condition | Used |
| Stock Number | 13363 |
| US Tonnage | 1012 |
| Shot Size (oz. of PS) | 143.4 |
| Screw Diameter | 110 mm |
| Platen Size (in.) | 61.42 x 59.84 |
| Tiebar Spacing (HxV) in. | 46.46 x 39.37 |
| Max Mold Height (in.) | 43.31 |
| Min Mold Height (in.) | 19.69 |
| Opening Stroke (in.) | 62.99 / 39.37 |
| Open Daylight (in.) | 82.68 |
| Ejector Stroke (in.) | 11.81 |

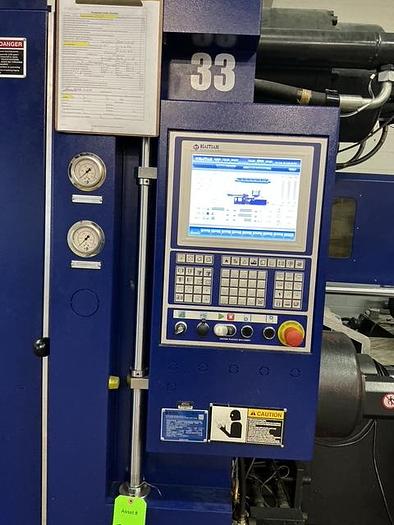

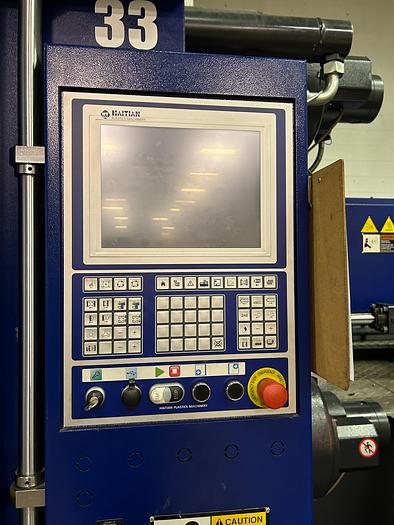

| Control | KEBA 2880 |
| Voltage | 460/3/60 |
