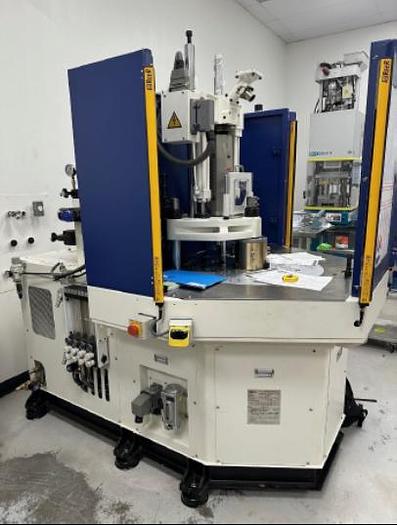

28 Ton, 1.62 Oz., TAYU Vertical Injection Molding Machine (2023)

28 Ton, 1.62 Oz., TAYU Vertical Injection Molding Machine (2023)

Available quantity:1

or
Call +1 508-792-4305

Specifications

ManufacturerTAYU
ModelTY-200.3R.SF.J
Year2023
ConditionNew
Stock Number12845
ModelTY-200.3R.SF.J
US Tonnage28
Shot Size (oz. of PS)1.62
Screw Diameter25 mm

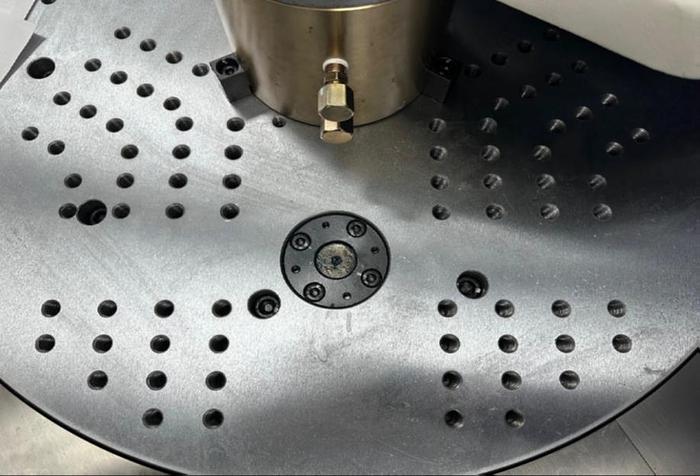

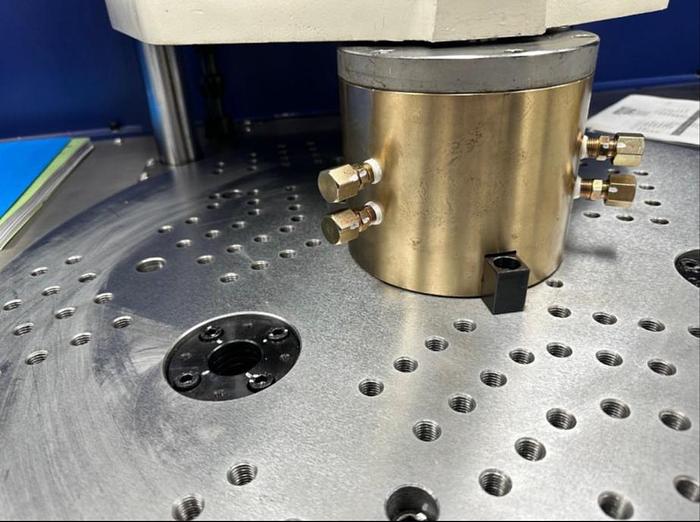

Rotary Table3 Station
Rotary Table Diameter (in.)27.56
Min Mold Height (in.)3.93/7.08
Opening Stroke (in.)7.08
Max. Open Daylight (in.)11.02/14.17
Ejector Stroke (in.)2.36
ControlSigmatek
Voltage460/3/60

Included Options

Tayu 40t - 55t Servo Motor System - Clamping (Bosch D Type), Tayu Shut Off Nozzle, Air Valve, Servo Motor System - Rotary Table, Euromap 67 Robot Interface
