45 Ton, 1.16 Oz., Haitian Zhafir Electric ZE 400/80-B Injection Molding Machine (2015)
Sold
45 Ton, 1.16 Oz., Haitian Zhafir Electric ZE 400/80-B Injection Molding Machine (2015)
Specifications
| Manufacturer | Haitian |
| Model | ZE 400/80-B |
| Year | 2015 |
| Condition | Used |
| Stock Number | 12635 |
| Model | ZE 400/80-B |
| US Tonnage | 45 |
| Shot Size (oz.) | 1.16 |
| Screw Diam | 22mm |
| Clamp Stroke | 9.25" |
| Min./Max. Mold Height | 5.91"/12.6" |
| Platen Size | 18.11" x 17.32" |
| Tie Bar Distance | 12.6" x 11.02" |
| Max. Daylight | 21.85" |
| Ejector Stoke | 2.36" |

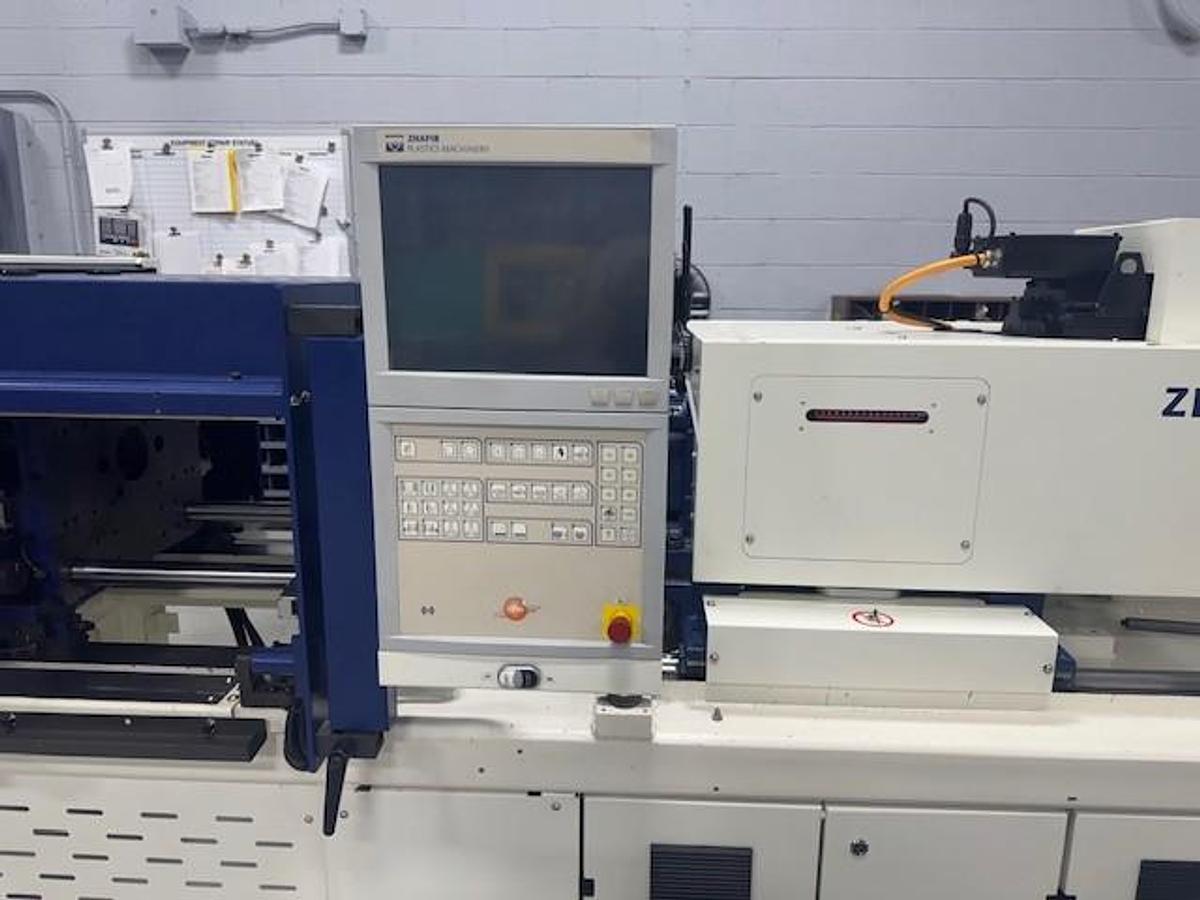

| Control | Sigmatek |
| Voltage | 460/3/60 |
| Includes | Core Pull, Air Blow |
