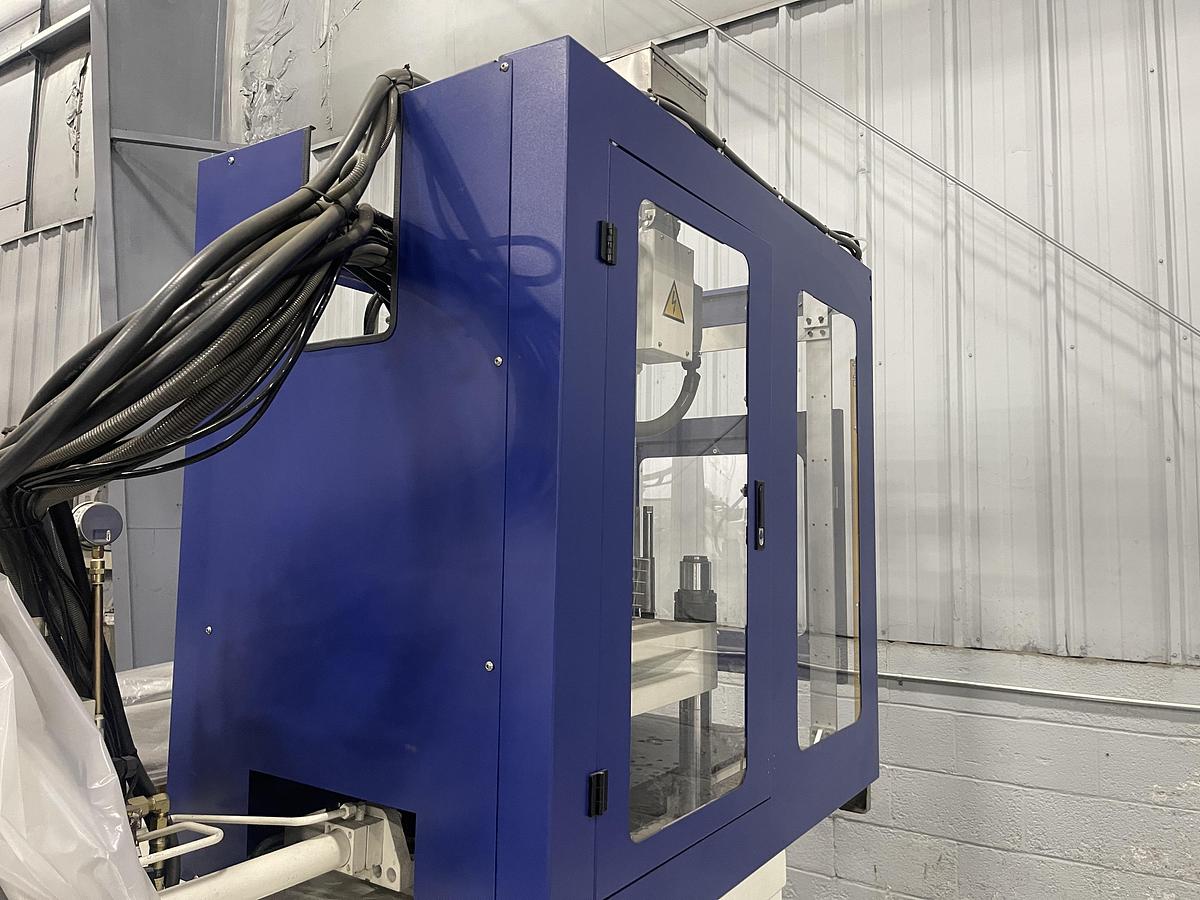

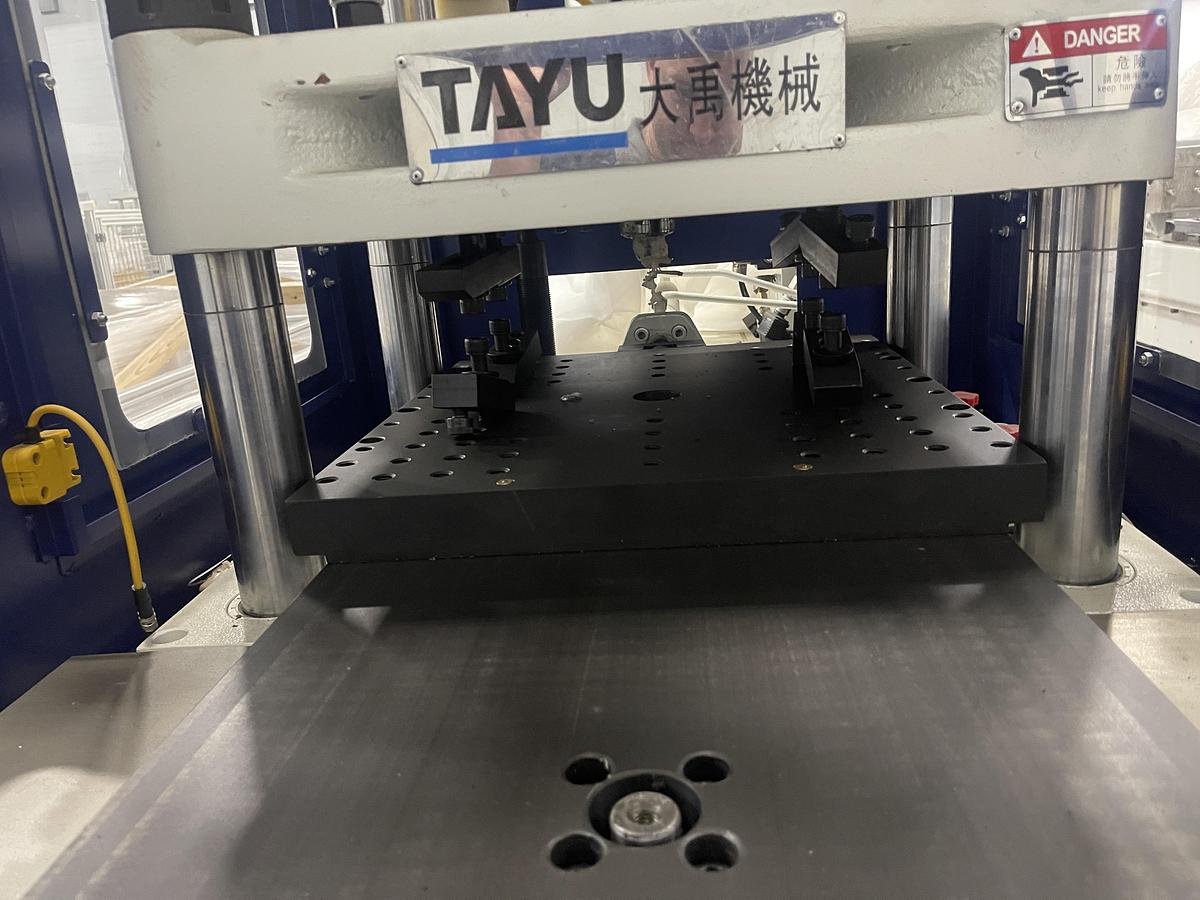

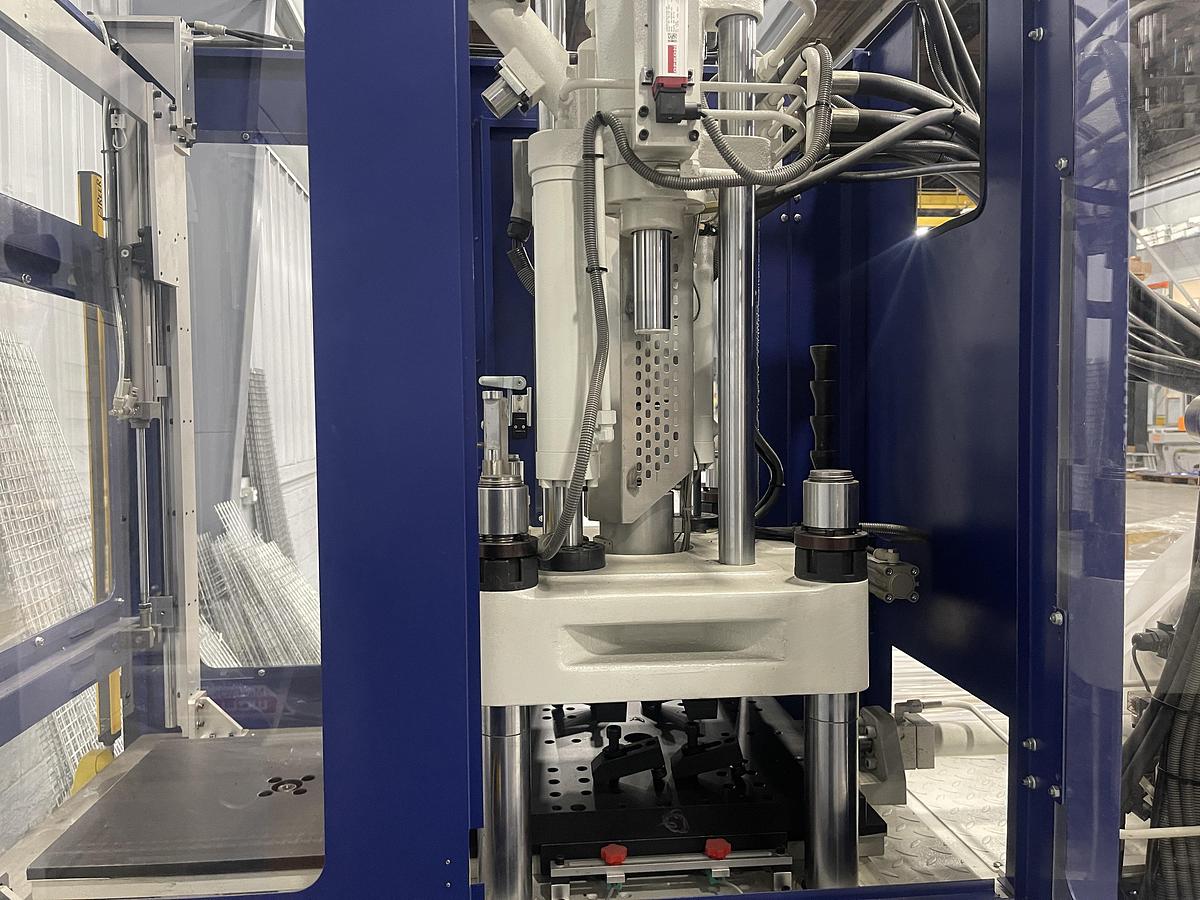

67 Tons, 5.1 oz., TAYU Shuttle Table Vertical Injection Molding Machine (2022)
67 Tons, 5.1 oz., TAYU Shuttle Table Vertical Injection Molding Machine (2022)
Available quantity:1
orCall +1 508-792-4305
Description
Clamping Force: 67 Tons | Screw Diameter: 36mm | Shot Size: 5.1 oz. | Opening Force: 6 Tons | Min. Mold Height: 5.91" | Opening Stroke: 7.87" | Max. Open Daylight: 15.75" | Ejector Stroke: 2.36" | Ejector Force: 2 Tons | Slide Table Size: 17.72" x 18.9" | Slide Table Stroke: 18.9" | Oil Tank Volume: 68.68" | Pump Motor Power: 4.6 KW | Voltage: 460/3/60 | Included for Additional Cost: Additional 28 mm, 2.5 oz. Screw & Barrel, With Nozzle Tip and Heater Bands
Specifications
Manufacturer | TAYU |
Model | TY600.S |
Year | 2022 |
Condition | New |
Serial Number | 0983 |
Stock Number | 12477 |
US Tonnage | 67 |
Shot Size (oz.) | 5.1 |
