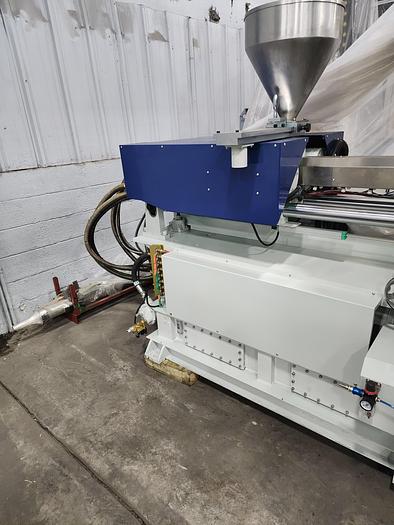

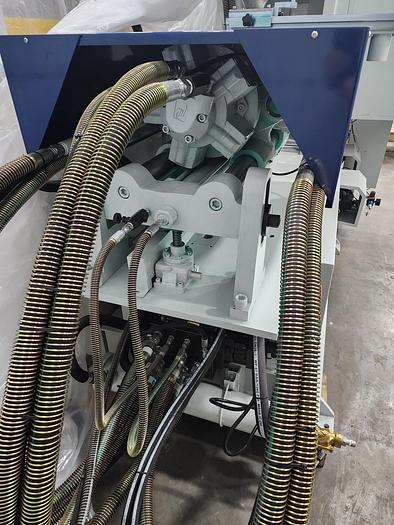

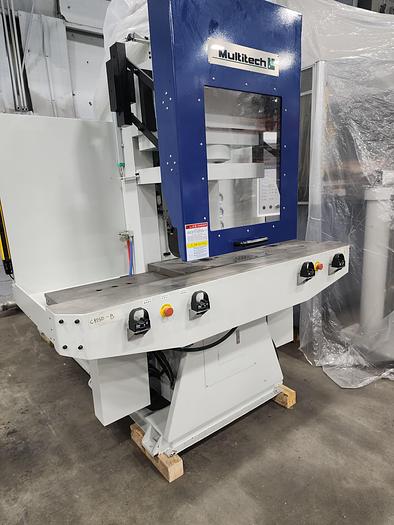

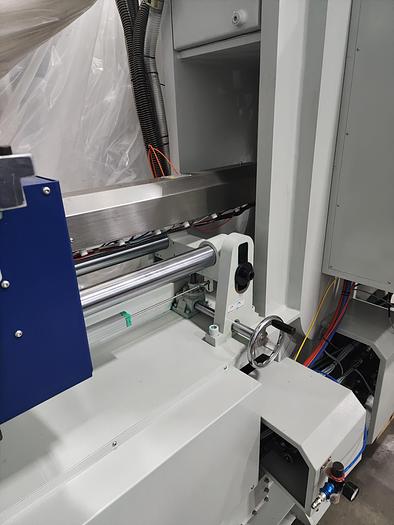

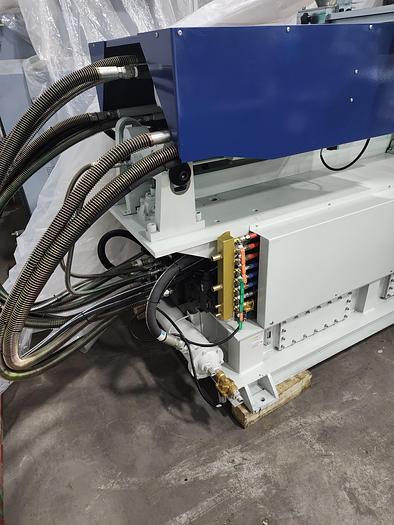

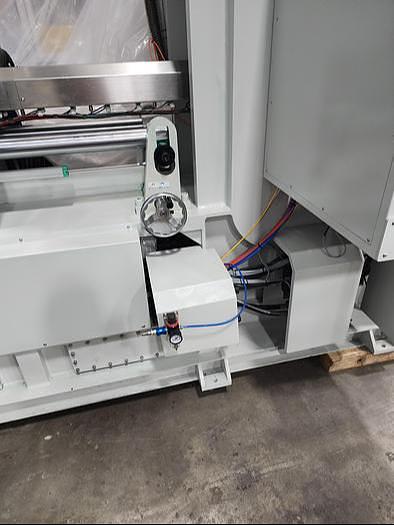

94 Tons, 6.8 oz., MULTITECH Vertical Injection Molding Machine (2022)
94 Tons, 6.8 oz., MULTITECH Vertical Injection Molding Machine (2022)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Multitech |
| Model | C85SD-GK |
| Year | 2022 |
| Condition | Used |
| Stock Number | 12475 |
| Model | C85SD-GK |
| US Tonnage | 94 |
| Shot Size (oz.) | 6.8 |
| Screw Diameter | 50mm |
| Mold Opening Force | 12 Tons |
| Clamping Stroke | 10.63" |
| Min. Mold Thickness | 7.28" |
| Max Mold Open | 17.91" |
| Max Mold Size | 22.05" x 14.17" |
| Max Mold Weight | 2072 lbs. |
| Platen / Slide Size | 45.67" x 14.96" |
| Ejector Stroke | 3.54" |
| Ejector Force | 2.98 Tons |
| Motor (kW) | 15 |
| Heater (kW) | 12.1 |
| Voltage | 460/230V 60Hz |
| Note | Optional Screw & Barrel Assembly Incl. Heater Bands, Cables, Plugs etc. Ø38mm, 5.9 oz.- Available for an Additional Cost |
