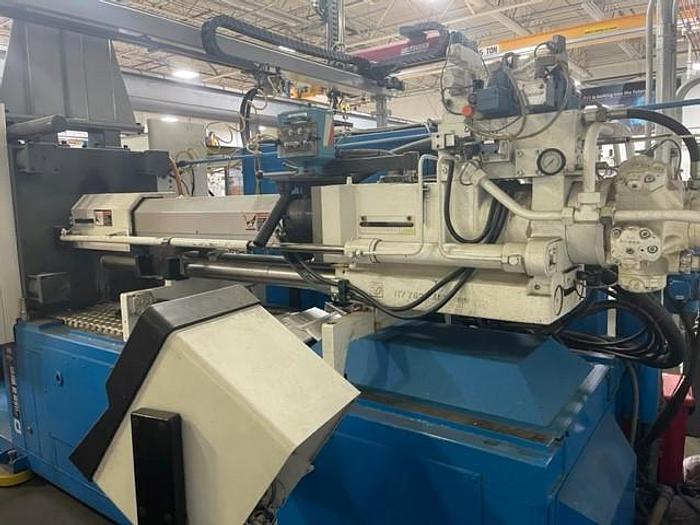

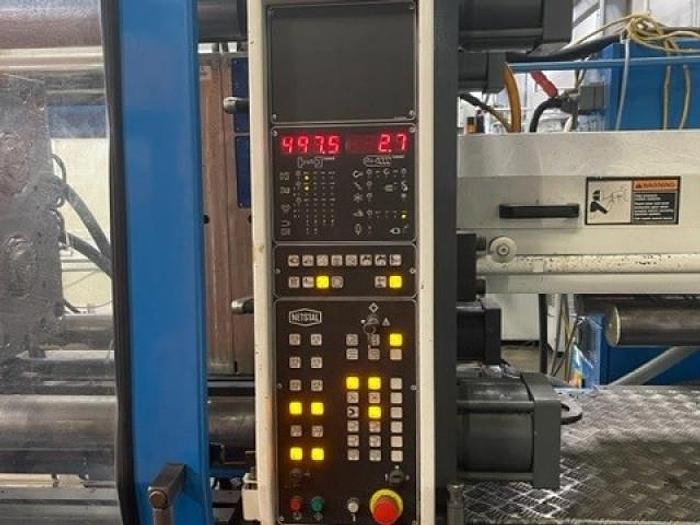

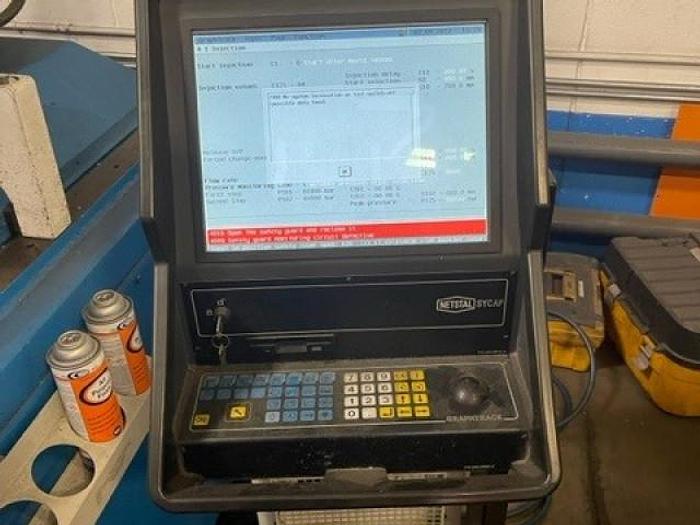

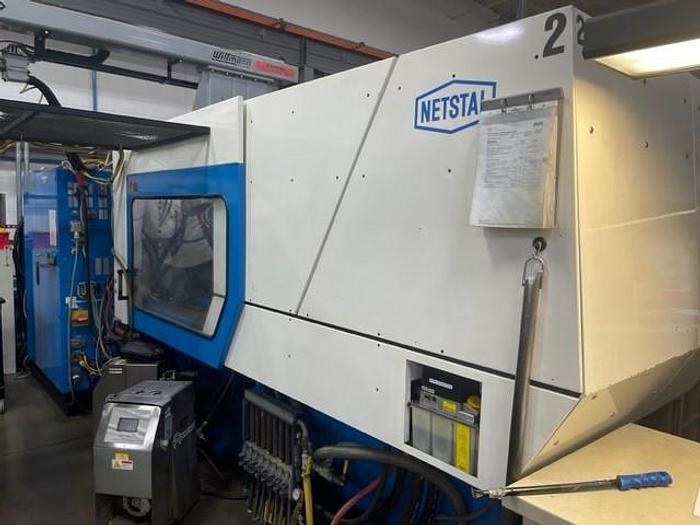

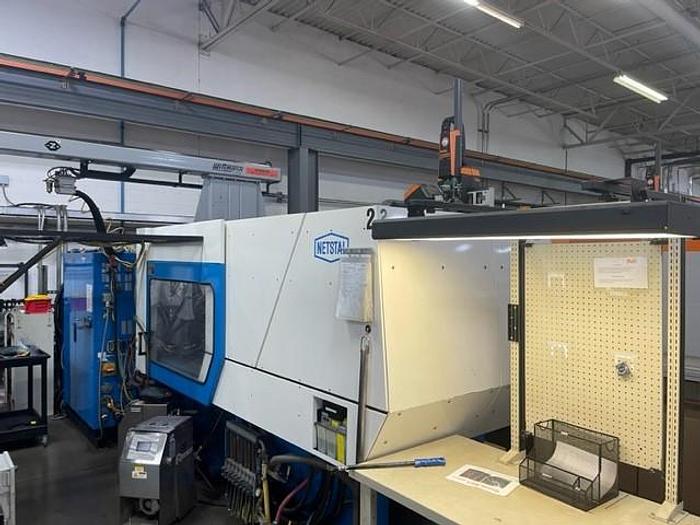

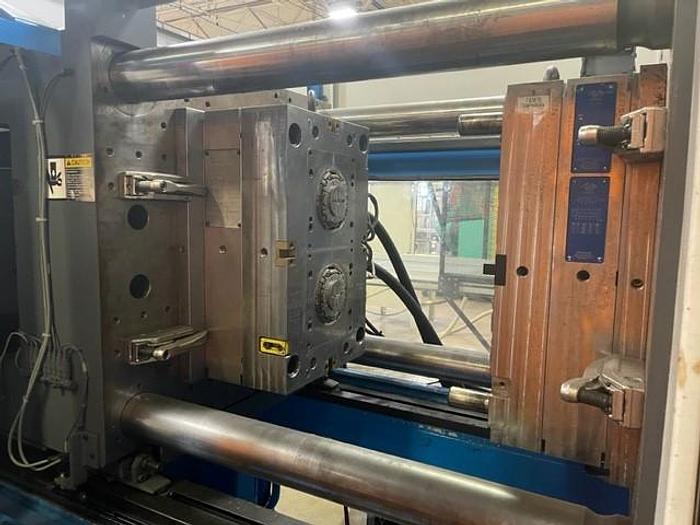

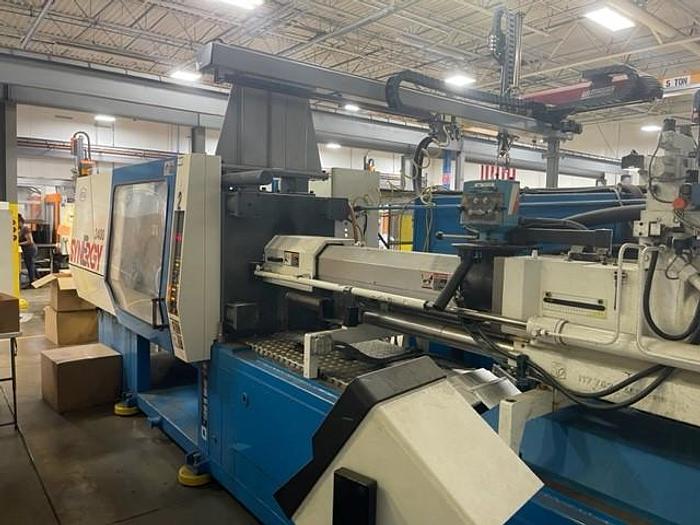

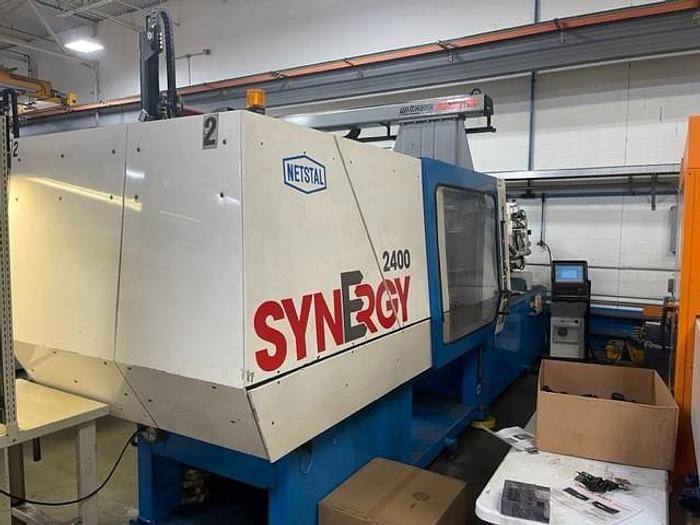

260 Ton, 16 oz., Netstal Injection Molding Machine (2004)
No longer available
260 Ton, 16 oz., Netstal Injection Molding Machine (2004)
Available quantity:1
Specifications
| Manufacturer | Netstal |
| Model | SynErgie 2400-900 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 12366 |
| Model | SynErgie 2400-900 |
| US Tonnage | 260 |
| Shot Size (oz.) | 16 |
| Screw Diameter | 55mm |
| Platen Size (in.) | 51.57" |
| Tiebar Spacing HxV (in.) | 24.8" x 24.8" |
| Mold Height (in.) | 18.11"-31.5" |
| Opening Stroke (in.) | 20.08" |
| Ejector Stroke (in.) | 6.89" |
| Diameter Locating Ring | 6.3" (moving side no ejector-Traverse) |
| Ejector Length and Ø28: | 4.96"/5.04"(Ø28) |
| Ejector Type | Type 1 |
| Equipped with | 2 Core Pulls |
