112 Ton, 2.4 Oz. Niigata Vertical 2-Station Rotary Injection Molding Machine (2022)

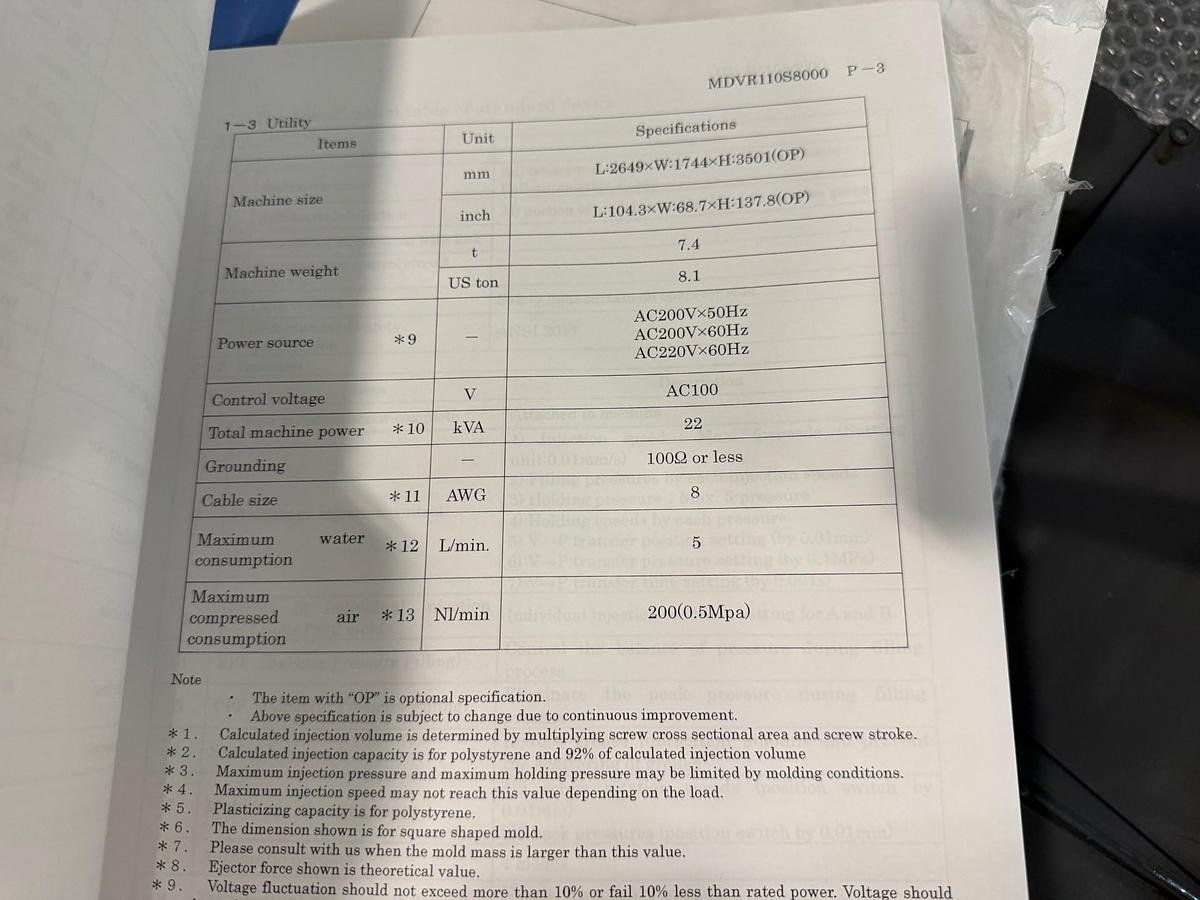

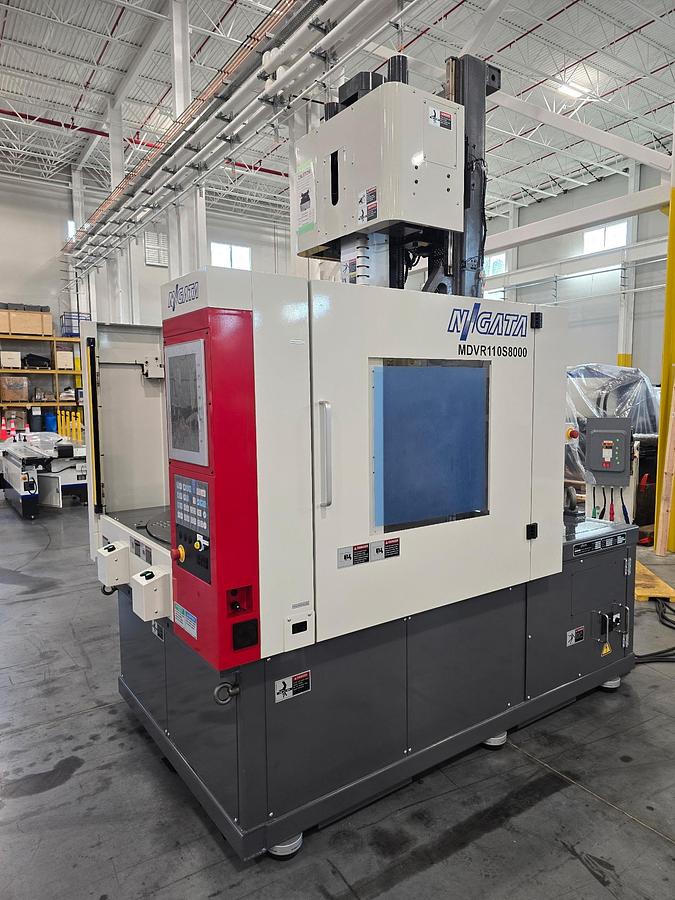

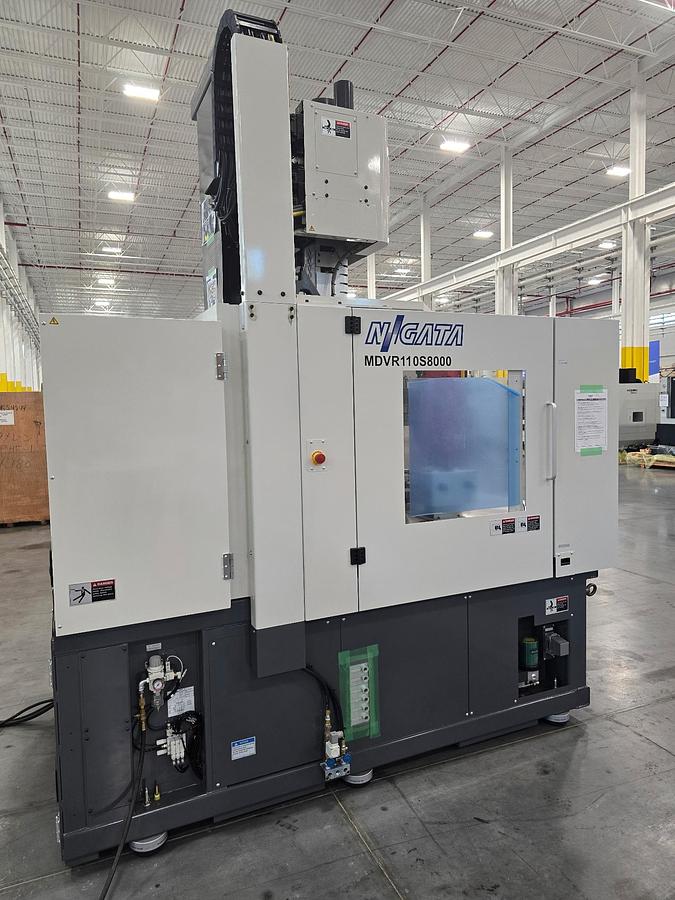

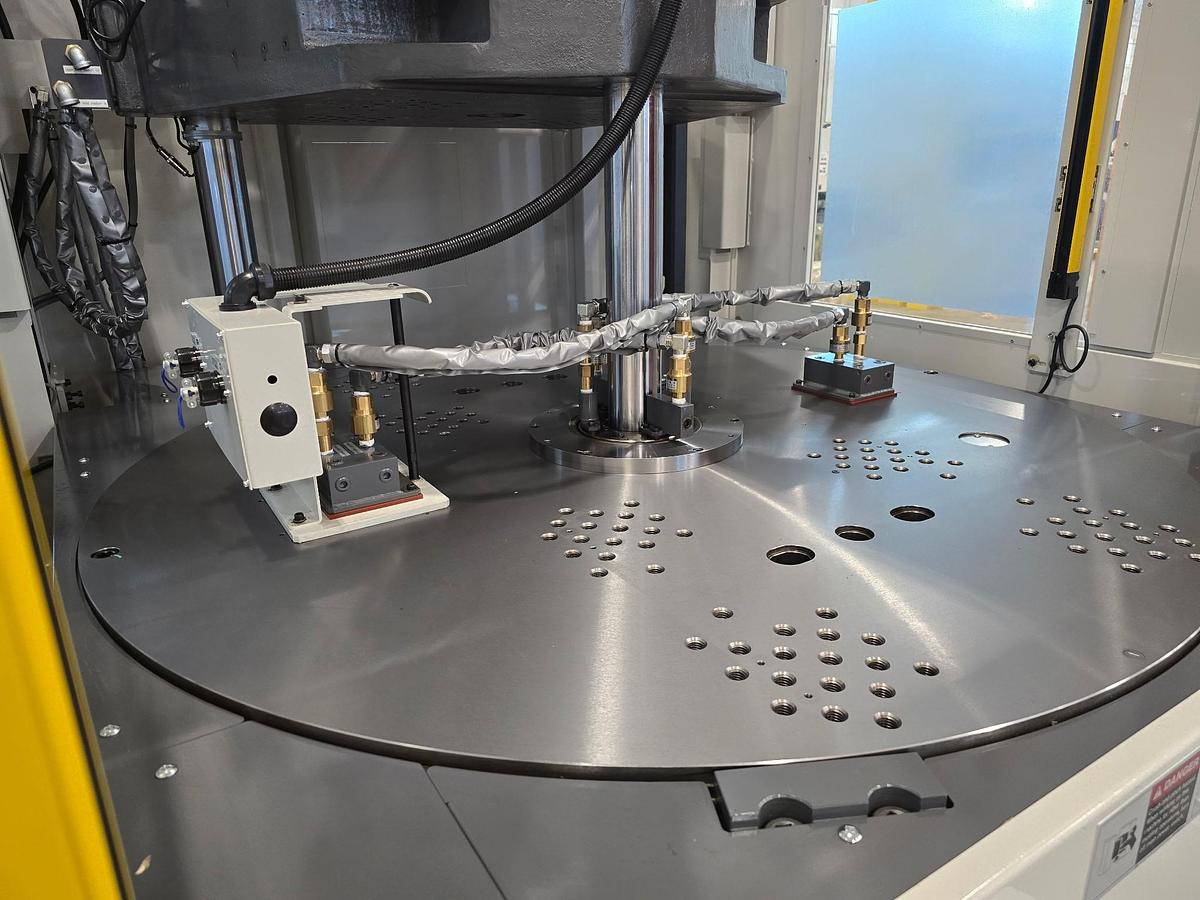

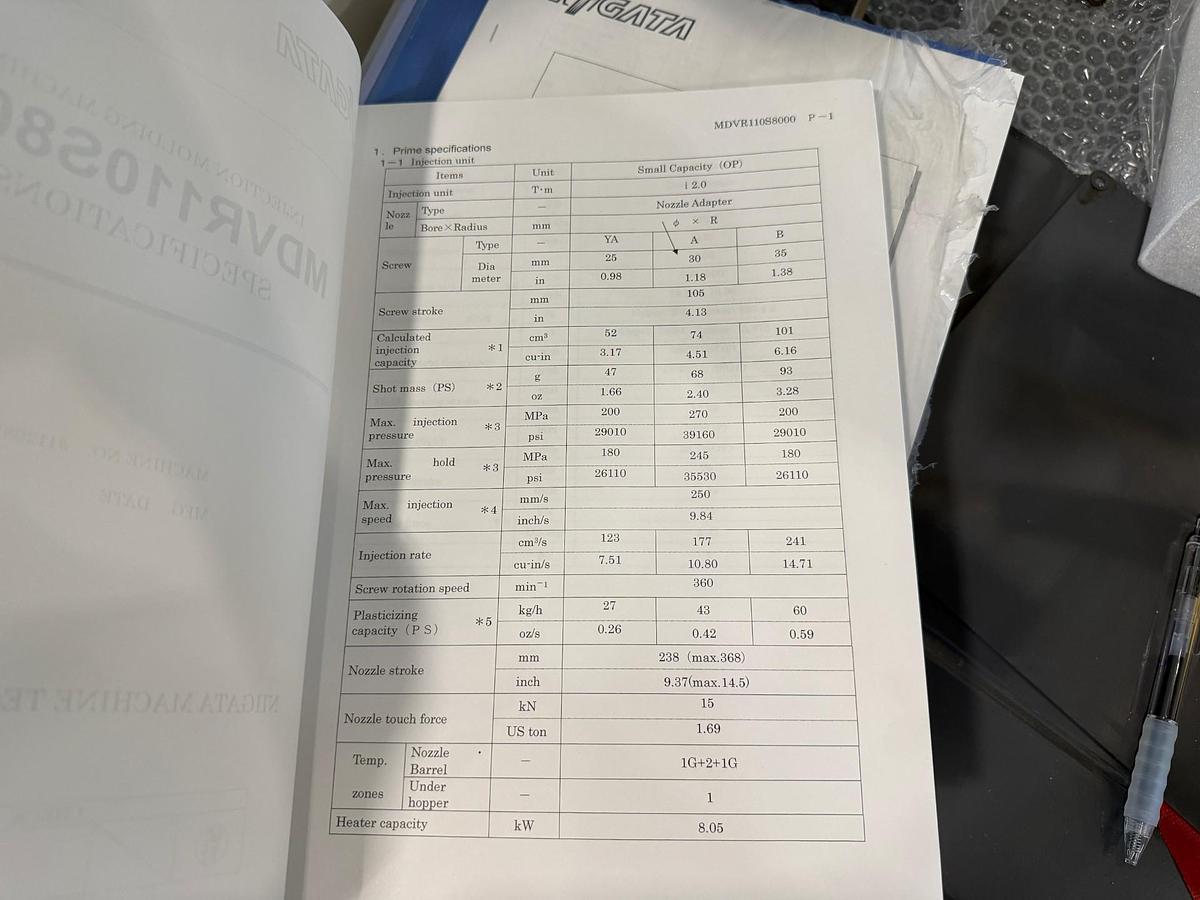

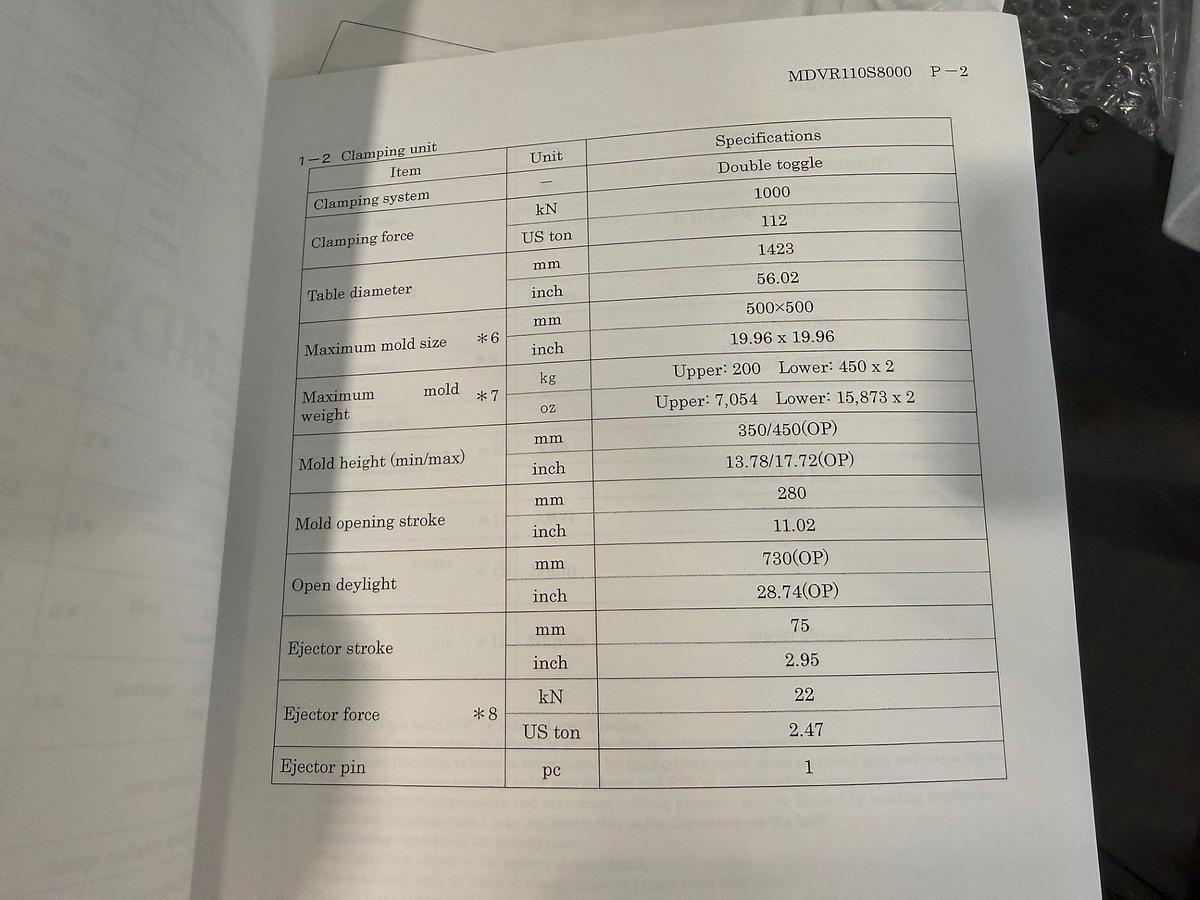

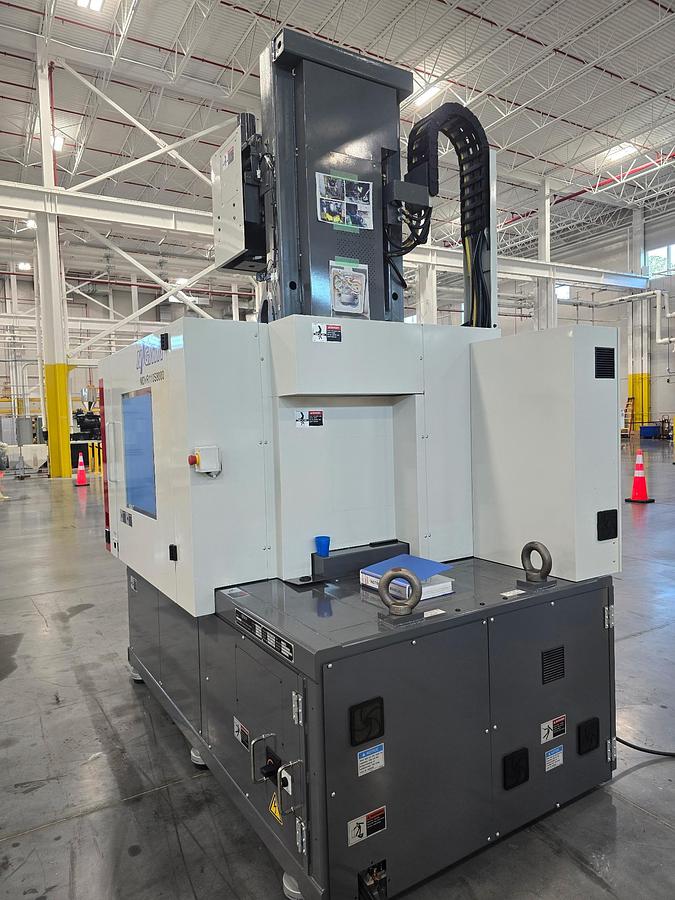

The 112 Ton Niigata Vertical 2-Station Rotary Injection Molding Machine, model MDVR110S8000-IM1142, is a robust and versatile piece of equipment manufactured in 2022. Designed for high efficiency, it features a US tonnage capacity of 112 tons and provides a shot size of 2.4 ounces of polystyrene. The machine is equipped with a screw diameter of 1.18 inches and a table diameter of 56.02 inches, which accommodates a maximum mold size of 19.96 by 19.96 inches. With a maximum mold height of 17.72 inches and a minimum mold height of 13.78 inches, it offers an opening stroke of 11.02 inches and open daylight of 24.8 inches. Its dual stations facilitate increased production capacity, and the Niigata Hiper control ensures precision operations. The machine operates on 220V and can exert an injection pressure of 35,530 psi, making it suitable for a variety of injection molding applications. Additional features include an ejector stroke of 2.95 inches and it can handle a maximum upper mold weight of 440 lbs and a lower mold weight of 992 lbs. This used model represents a reliable choice for companies seeking quality performance and efficiency in vertical injection molding processes.
