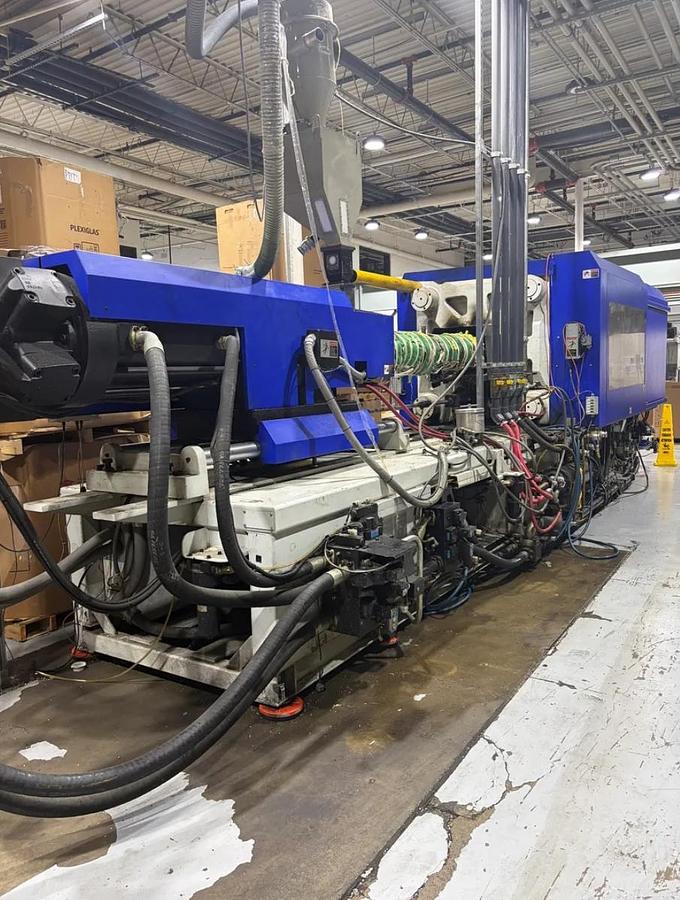

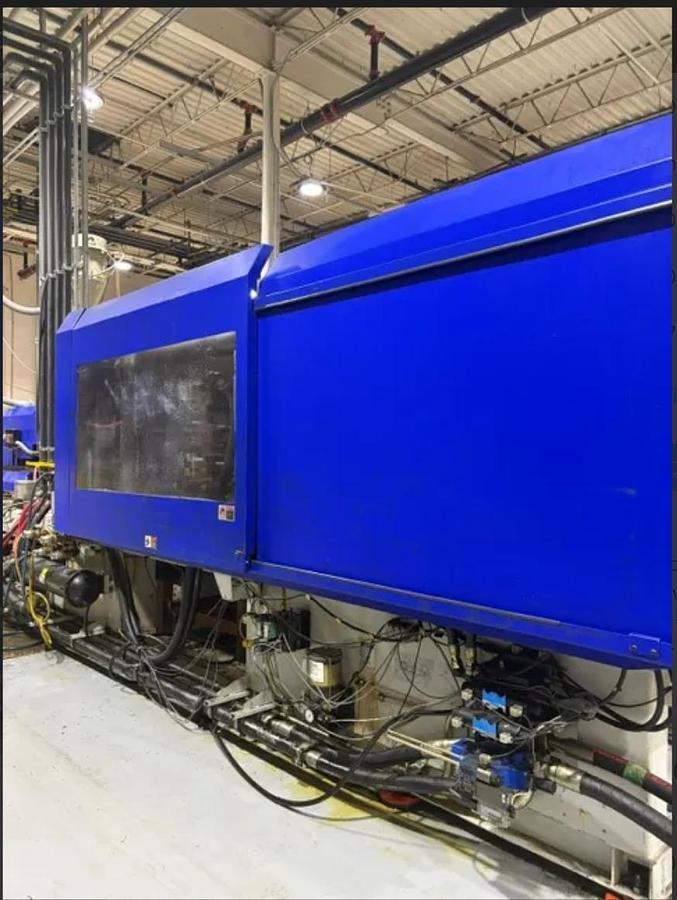

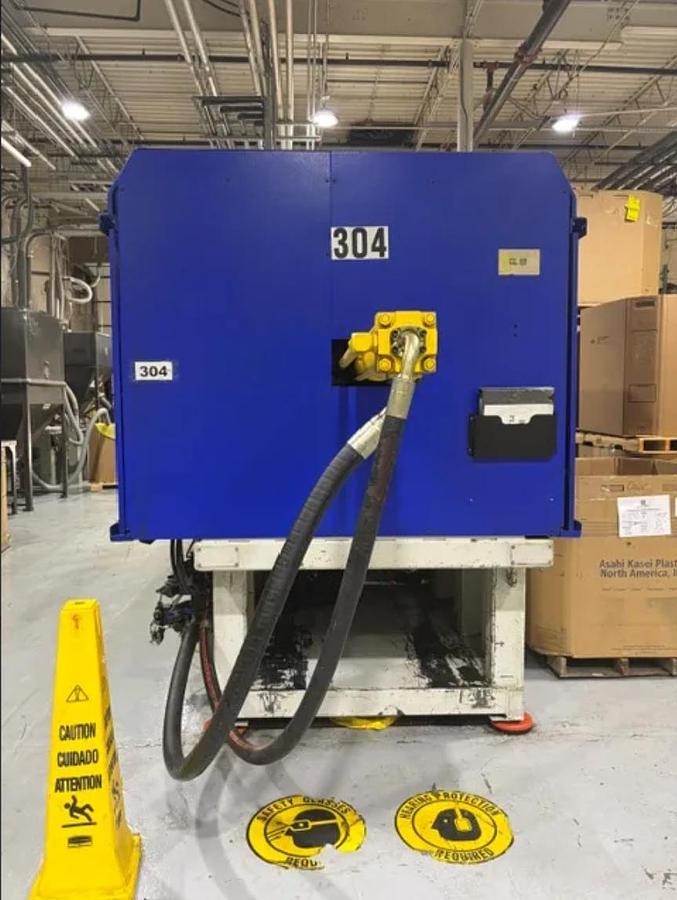

650 Ton, 89.6 oz Van Dorn 650HT-4300 Injection Molding Machine (2006)
650 Ton, 89.6 oz Van Dorn 650HT-4300 Injection Molding Machine (2006)
Available quantity:1
or
Call +1 508-792-4305
Specifications
| Manufacturer | Van Dorn |
| Model | 650HT-4300 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 14284 |
| Model | 650HT-4300 |
| US Tonnage | 650 |
| Shot Size (oz. of PS) | 89.6 oz |
| Platen Size (in.) | 53" x 53" |
| Tiebar Spacing (HxV) in. | 36" x 36" |
| Max Mold Height (in.) | 34" |
| Min Mold Height (in.) | 12" |
| Clamp Stroke (in.) | 35.5" |

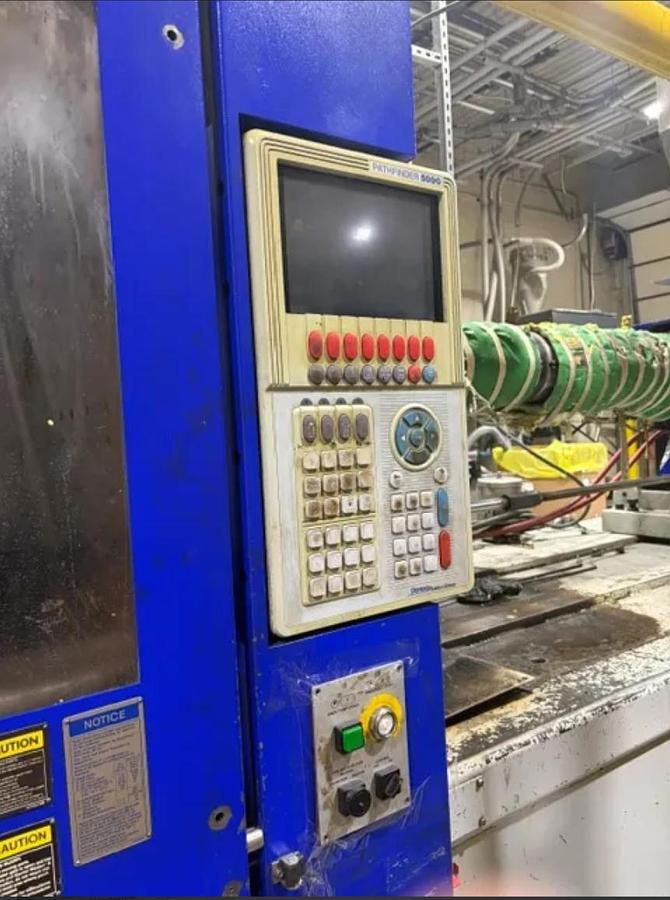

| Control | Pathfinder 5000 |
| Voltage | 460V/3P/60Hz |
| Includes | Core pull, Hydraulic Knockout |
