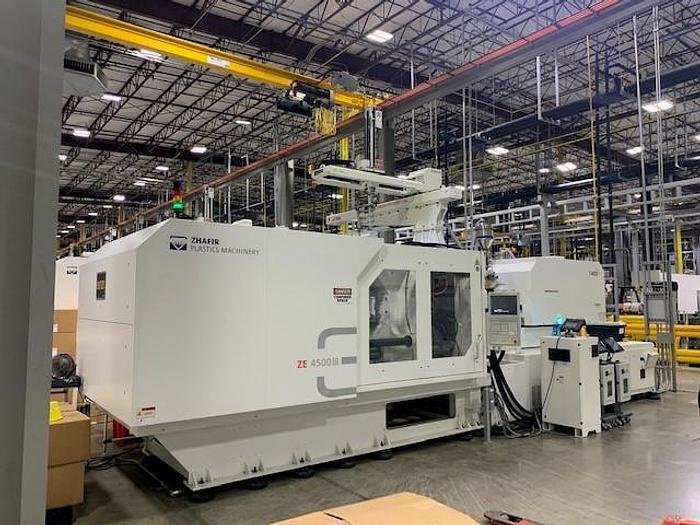

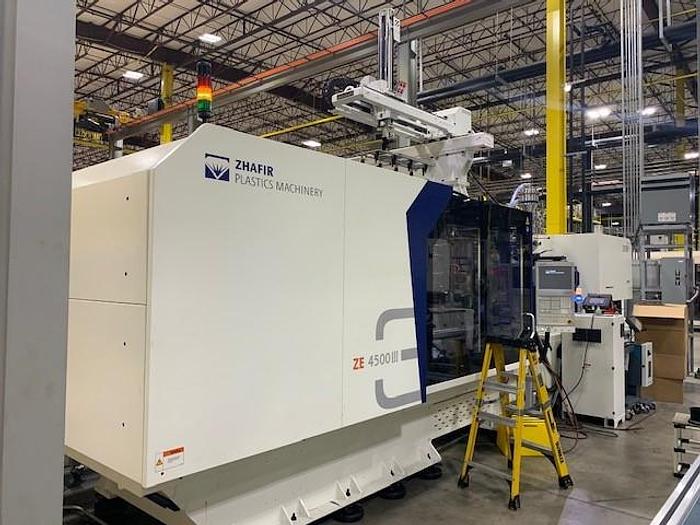

506 Ton, 23.56 oz., Haitian/Zhafir Zeres III Injection Molding Machine

Clamping Force: 506 Tons | Shot Size: 23.56 oz. | Screw Diameter: 60 mm | Screw L/D: 20 | Mold Opening Stroke: 31.50" | Mold Height Min.: 13.78" | Mold Height Max.: 31.89" | Daylight Max.: 63.39" | Distance Between Tie Bars (HxV): 35.83" x 35.83" | Mold Dimension Min.: 23.23" x 23.23" | Ejector Stroke: 7.09" | Ejector Force: 11.02 Tons | Size of Mold Platen (HxV): 51.18" x 51.18" | Voltage: 460/3/60 | Control: Sigmatek | Includes: OPC-UA Interface, (2) Water Manifolds - Stainless Steel - Moving Platen & (2) Water Manifolds - Stainless Steel - Fixed Platen | NOTE: ROBOT NOT INCLUDED
